2022 TOYOTA PRIUS PLUG-IN HYBRID display

2764-2. Opening, closing and locking the doors
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
The door cannot be opened from
inside the vehicle when the lock is
set.
Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear doors.
QUsing the mechanical key
The doors can also be locked and unlocked with the mechanical key.
(P. 693)
QOpen door warning buzzer
If the vehicle speed reaches 5 km/h (3 mph), the master warning light flashes
and a buzzer sounds to indicate that the door(s) is not fully closed.
The open door(s) is displayed on the multi-information display.
QConditions affecting the operation of the smart entry & start system or
wireless remote control
P. 286
QRear seat reminder function
OIn order to remind you not to forget luggage, etc. in the rear seat, when the
power switch is turned off after any of the following conditions are met, a
buzzer will sound and a message will be displayed on the multi-information
display for approximately 6 seconds.
• The hybrid system is started within 10 minutes after opening and closing
a rear door.
• A rear door has been opened and closed after the hybrid system was
started.
However, if a rear door is opened and then closed within approximately 2
seconds, the rear seat reminder function may not operate.
OThe rear seat reminder function determines that luggage, etc. has been
placed in a rear seat based on opening and closing of a rear door. There-
fore, depending on the situation, the rear seat reminder function may not
operate and you may still forget luggage, etc. in the rear seat, or it may
operate unnecessarily.
OThe rear seat reminder function can be enabled/disabled. (P. 724)
Rear door child-protector lock
1
2

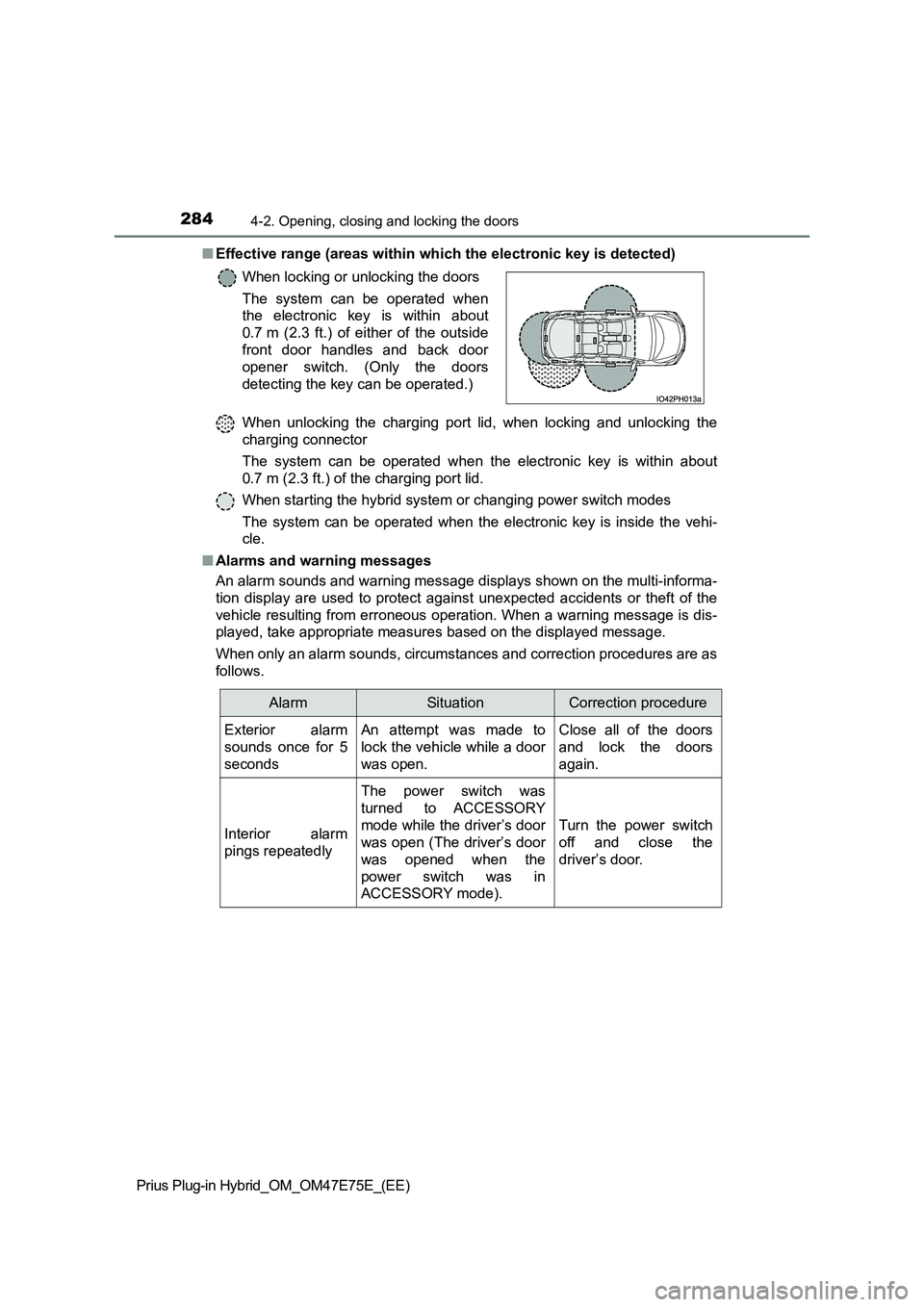

2844-2. Opening, closing and locking the doors
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Q Effective range (areas within which the electronic key is detected)
When unlocking the charging port lid, when locking and unlockin g the
charging connector
The system can be operated when the electronic key is within ab out
0.7 m (2.3 ft.) of the charging port lid.
When starting the hybrid system or changing power switch modes
The system can be operated when the electronic key is inside th e vehi-
cle.
Q Alarms and warning messages
An alarm sounds and warning message displays shown on the multi -informa-
tion display are used to protect against unexpected accidents o r theft of the
vehicle resulting from erroneous operation. When a warning message is dis-
played, take appropriate measures based on the displayed messag e.
When only an alarm sounds, circumstances and correction procedu res are as
follows.
When locking or unlocking the doors
The system can be operated when
the electronic key is within about
0.7 m (2.3 ft.) of either of the outside
front door handles and back door
opener switch. (Only the doors
detecting the key can be operated.)
AlarmSituationCorrection procedure
Exterior alarm
sounds once for 5
seconds
An attempt was made to
lock the vehicle while a door
was open.
Close all of the doors
and lock the doors
again.
Interior alarm
pings repeatedly
The power switch was
turned to ACCESSORY
mode while the driver’s door
was open (The driver’s door
was opened when the
power switch was in
ACCESSORY mode).
Turn the power switch
off and close the
driver’s door.

2854-2. Opening, closing and locking the doors
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
4
Operation of each component
QWhen “Smart Entry & Start System Malfunction See Owner’s Manual” is
displayed on the multi-information display
The system may be malfunctioning. Have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any rel iable repairer
immediately.
Q Battery-saving function
The battery-saving function will be activated in order to preve nt the electronic
key battery and the 12-volt battery from being discharged while the vehicle is
not in operation for a long time.
O In the following situations, the smart entry & start system may take some
time to unlock the doors.
• The electronic key has been left in an area of approximately 2 m (6 ft.) of
the outside of the vehicle for 10 minutes or longer.
• The smart entry & start system has not been used for 5 days or longer.
O If the smart entry & start system has not been used for 14 days or longer,
the doors cannot be unlocked at any doors except the driver’s d oor. In this
case, take hold of the driver’s door handle, or use the wireles s remote con-
trol or the mechanical key, to unlock the doors.
Q Electronic Key Battery-Saving Function
When battery-saving mode is set, battery depletion is minimized by stopping
the electronic key from receiving radio waves.
Press twice while pressing and
holding . Confirm that the electronic
key indicator flashes 4 times.
While the battery-saving mode is set, the
smart entry & start system cannot be
used. To cancel the function, press any of
the electronic key buttons.

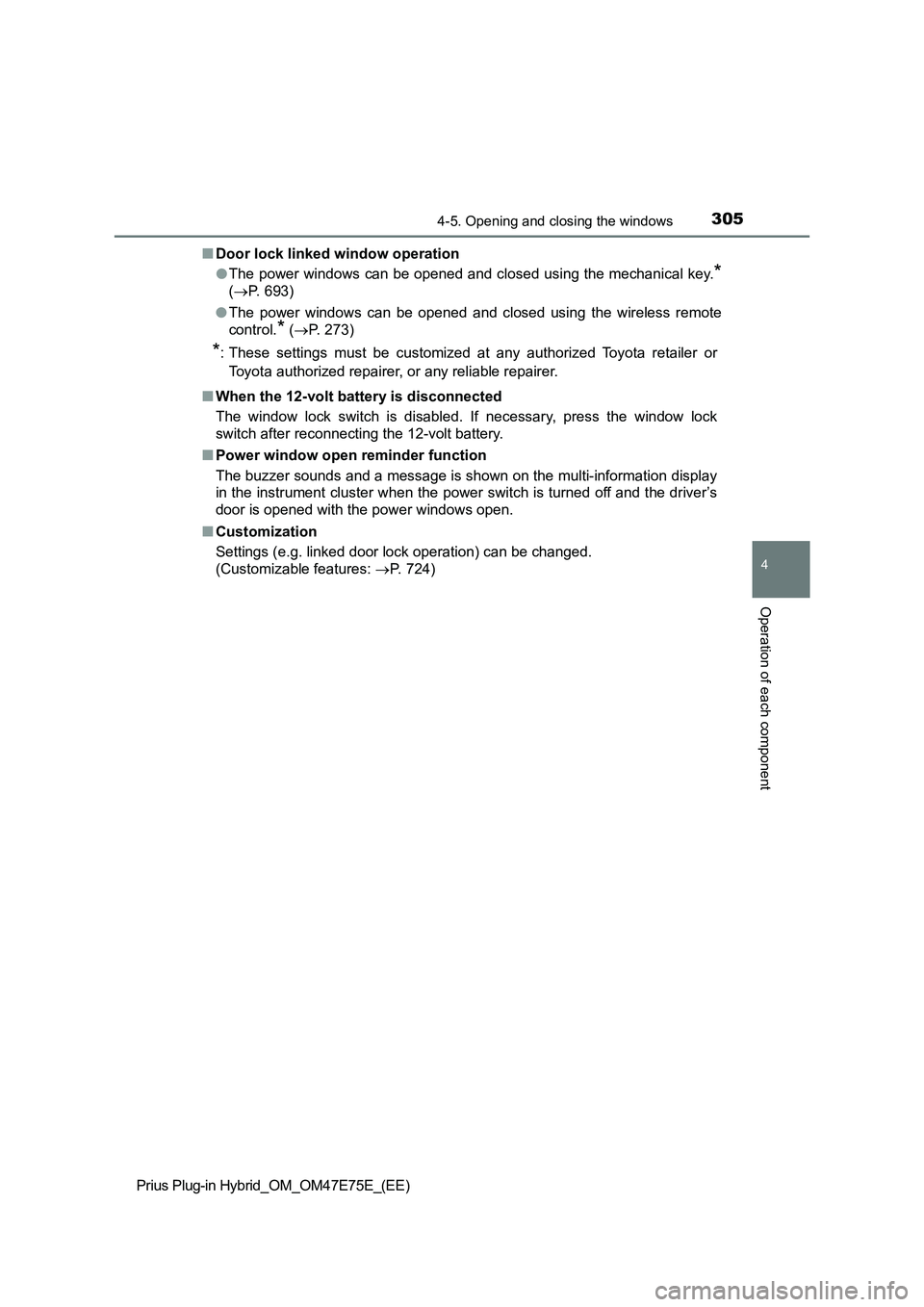

3054-5. Opening and closing the windows
4
Operation of each component
Prius Plug-in Hybrid_OM_OM47E75E_(EE)QDoor lock linked window operation
OThe power windows can be opened and closed using the mechanical key.
*
(P. 693)
OThe power windows can be opened and closed using the wireless remote
control.
* (P. 273)
*: These settings must be customized at any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
QWhen the 12-volt battery is disconnected
The window lock switch is disabled. If necessary, press the window lock
switch after reconnecting the 12-volt battery.
QPower window open reminder function
The buzzer sounds and a message is shown on the multi-information display
in the instrument cluster when the power switch is turned off and the driver’s
door is opened with the power windows open.
QCustomization
Settings (e.g. linked door lock operation) can be changed.
(Customizable features: P. 724)

3095-1. Before driving
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
5
Driving
Stop the vehicle completely.
Set the parking brake. (P. 3 3 6 )
Shift the shift position to P. (P. 330)
Check that the shift position indicator shows P.
Press the power switch to stop the hybrid system.
Slowly release the brake pedal.
Lock the door, making sure that you have the electronic key on your
person.
If parking on a hill, block the wheels as needed.
Firmly set the parking brake with the brake pedal depressed, and
then shift the shift position to D.
Release the brake pedal and gently depress the accelerator pedal.
Release the parking brake.
When the following unusual operation is performed with the accelera-
tor pedal depressed, the hybrid system output may be restrained.
OWhen the shift position is shifted to R
*.
OWhen the shift position is shifted from P or R to forward drive shift
position such as D
*.
When the system operates, a message appears on the multi-informa-
tion display. Read the message and follow the instruction.
*: Depending on the situation, the shift position may not be changed.
QWhen starting off on an uphill
The hill-start assist control will activate. (P. 509)
QFor electricity-saving and fuel-efficient driving
Understand the system characteristics of the vehicle to use the functions of
the hybrid system. Also, keep in mind that hybrid vehicles are similar to con-
ventional vehicles, and it is necessary to refrain from activities such as sud-
den acceleration. Refer to “Plug-in hybrid vehicle driving tips” (P. 105).
Parking the vehicle
Starting off on a steep uphill
Sudden start restraint control (Drive-Start Control [DSC])
1
2
3
4
5
6
1
2
3

3105-1. Before driving
Prius Plug-in Hybrid_OM_OM47E75E_(EE)QDriving in the rain
ODrive carefully when it is raining, because visibility will be reduced, the win-
dows may become fogged-up, and the road will be slippery.
ODrive carefully when it starts to rain, because the road surface will be espe-
cially slippery.
ORefrain from high speeds when driving on an expressway in the rain,
because there may be a layer of water between the tires and the road sur-
face, preventing the steering and brakes from operating properly.
QRestraining the hybrid system output (Brake Override System)
OWhen the accelerator and brake pedals are depressed at the same time, the
hybrid system output may be restrained.
OA warning message is displayed on the multi-information display while the
system is operating. (P. 671)
Q“ECO Accelerator Guidance” (P. 229)
It is easier to drive in an Eco-friendly manner by driving while referring to the
“ECO Accelerator Guidance” display. Also, by using the “ECO Accelerator
Guidance”, it is easier to increase the Eco score evaluation.
OWhen starting off:
While staying within the “ECO Accelerator Guidance” range, gradually
depress the accelerator pedal and accelerate to the desired speed. If exces-
sive acceleration is avoided, the “Eco-Start” score will increase.
OWhen driving:
After accelerating to the desired speed, release the accelerator pedal and
drive at a stable speed within the “ECO Accelerator Guidance” range. By
keeping the vehicle within the “ECO Accelerator Guidance” range, the “Eco-
Cruise” score will increase.
OWhen stopping:
When stopping the vehicle, early releasing the accelerator pedal will cause
the “Eco-Stop” score to increase.
QDrive-Start Control (DSC)
When the TRC is turned off (P. 511), sudden start restraint control also
does not operate. If your vehicle have trouble escaping from the mud or fresh
snow due to sudden start restraint control operation, deactivate TRC (P.
511) so that the vehicle may become able to escape from the mud or fresh
snow.

3145-1. Before driving
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
Q When shifting the shift position
O Do not let the vehicle roll backward while a forward driving position is
selected, or roll forward while the shift position is in R.
Doing so may result in an accident or damage to the vehicle.
O Do not shift the shift position to P while the vehicle is moving.
Doing so can damage the transmission and may result in a loss o f vehicle
control.
O Do not shift the shift position to R while the vehicle is moving forward.
Doing so can damage the transmission and may result in a loss o f vehicle
control.
O Do not shift the shift position to a driving position while the vehicle is mov-
ing backward.
Doing so can damage the transmission and may result in a loss o f vehicle
control.
O Changing the shift position to N while the vehicle is moving will disengage
the hybrid system. Engine braking is not available with the hyb rid system
disengaged.
O Be careful not to change the shift position with the accelerator pedal
depressed.
Changing the shift position to any position other than P or N m ay lead to
unexpected rapid acceleration of the vehicle that may cause an accident
and result in death or serious injury.
Also, when the shift position is in N, the shift position may n ot be able to be
changed to the intended shift position.
After changing the shift position, make sure to confirm the cur rent shift
position displayed on the shift position indicator inside the m eter.

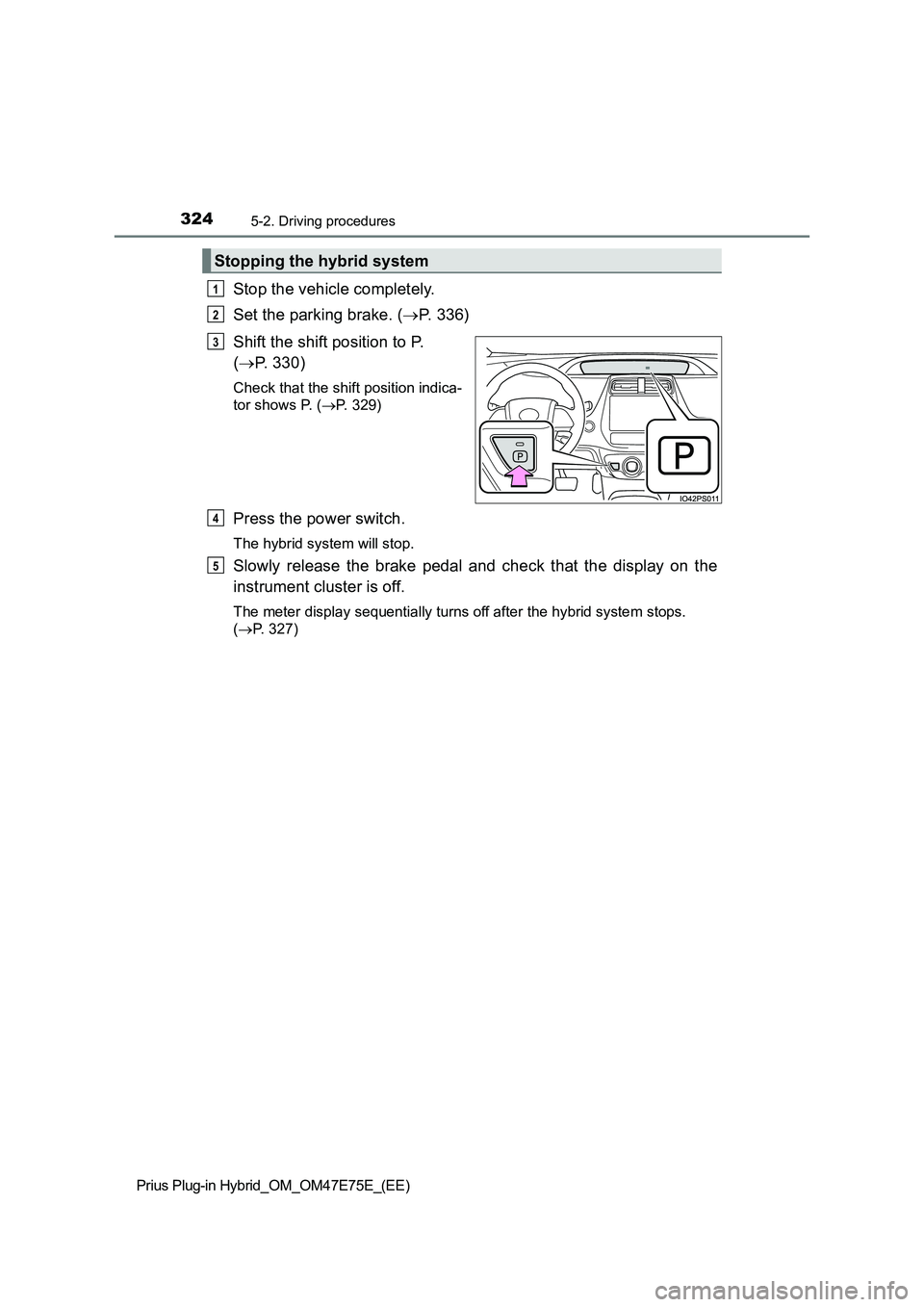

3245-2. Driving procedures
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Stop the vehicle completely.
Set the parking brake. (P. 3 3 6 )
Shift the shift position to P.
(P. 330)
Check that the shift position indica-
tor shows P. (P. 329)
Press the power switch.
The hybrid system will stop.
Slowly release the brake pedal and check that the display on the
instrument cluster is off.
The meter display sequentially turns off after the hybrid system stops.
(P. 327)
Stopping the hybrid system
1
2
3
4
5
