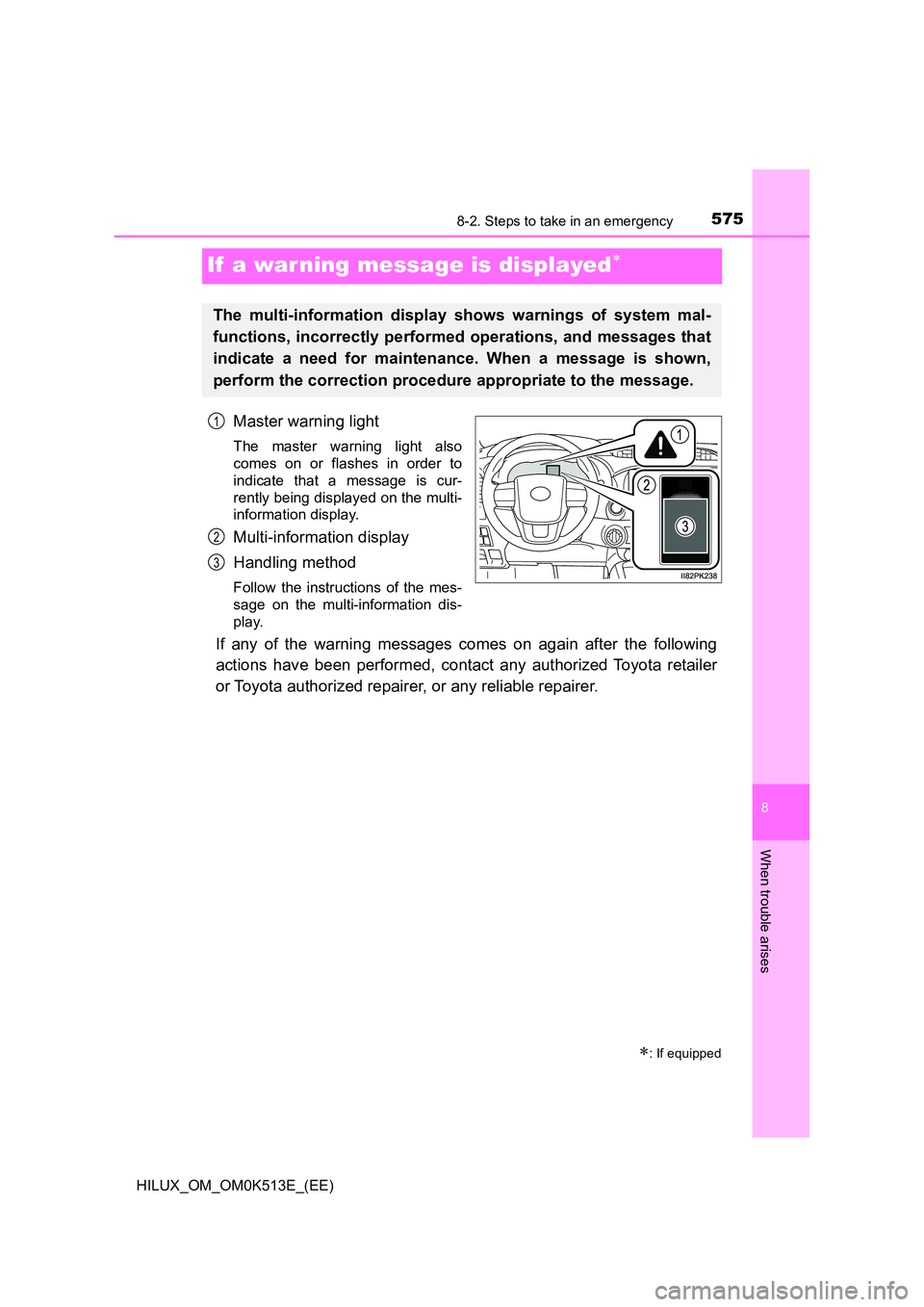

5758-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
8
When trouble arises
If a war ning message is displayed
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the multi-
information display.
Multi-information display
Handling method
Follow the instructions of the mes-
sage on the multi-information dis-
play.
If any of the warning messages comes on again after the following
actions have been performed, contact any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.
: If equipped
The multi-information display shows warnings of system mal-
functions, incorrectly performed operations, and messages that
indicate a need for maintenance. When a message is shown,
perform the correction procedure appropriate to the message.
1
2
3

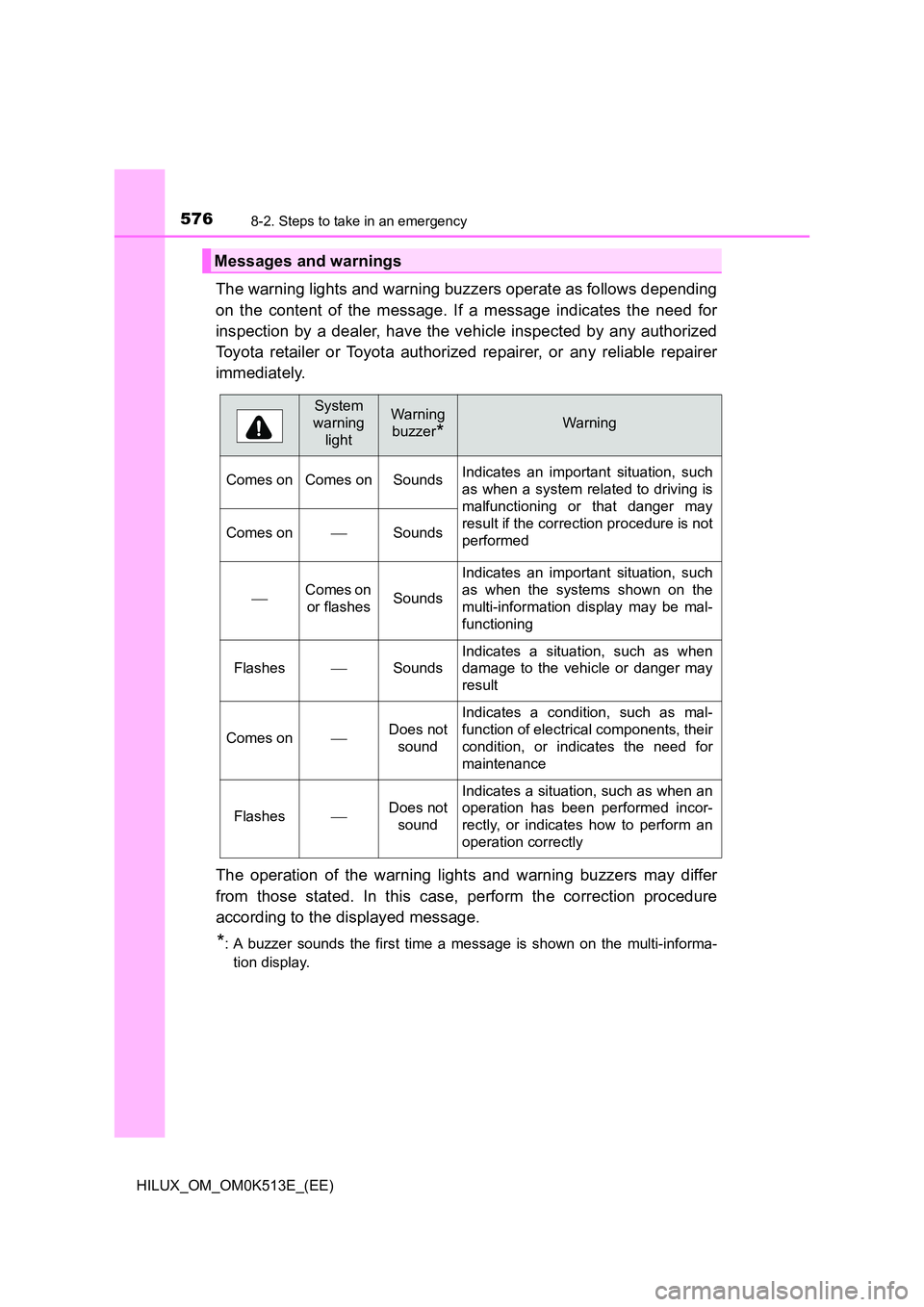

5768-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
The warning lights and warning buzzers operate as follows depending
on the content of the message. If a message indicates the need for
inspection by a dealer, have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer
immediately.
The operation of the warning lights and warning buzzers may differ
from those stated. In this case, perform the correction procedure
according to the displayed message.
*: A buzzer sounds the first time a message is shown on the multi-informa-
tion display.
Messages and warnings
System
warning
light
Warning
buzzer*Warning
Comes on Comes on Sounds Indicates an important situation, such
as when a system related to driving is
malfunctioning or that danger may
result if the correction procedure is not
performedComes onSounds
Comes on
or flashesSounds
Indicates an important situation, such
as when the systems shown on the
multi-information display may be mal-
functioning
FlashesSounds
Indicates a situation, such as when
damage to the vehicle or danger may
result
Comes onDoes not
sound
Indicates a condition, such as mal-
function of electrical components, their
condition, or indicates the need for
maintenance
FlashesDoes not
sound
Indicates a situation, such as when an
operation has been performed incor-
rectly, or indicates how to perform an
operation correctly

5778-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
8
When trouble arises
QWarning messages
The warning messages explained below may differ from the actual messages
according to operation conditions and vehicle specifications.
Q If a message about an operation is shown
O If a message about an operation of the engine switch is shown
An instruction for operation of the engine switch is shown when the incor-
rect procedure for starting the engine is performed or the engine switch is
operated incorrectly. Follow the instructions shown on the multi-information
display to operate the engine switch again.
O If a message about a shift lever operation is shown
To prevent the shift lever from being operated incorrectly or the vehicle from
moving unexpectedly, a message that requires shifting the shift lever may
be shown on the multi-information display. In that case, follow the instruc-
tion of the message and shift the shift lever.
O If a message or image about an open/close state of a part or replenishment
of a consumable is shown
Confirm the part indicated by the multi-information display or a warning
light, and then perform the coping method such as closing the open door or
replenishing a consumable.
Q If is shown
The engine oil pressure is too low. (This warning message may be displayed
if the vehicle is stopped on a slope. Move the vehicle to a level surface and
check to see if the message goes off.)
Immediately stop the vehicle in a safe place and contact any authorized
Toyota retailer or Toyota authorized repai rer, or any reliable repairer. Continu-
ing to drive the vehicle may be dangerous.
Q If “Accelerator and Brake Pedals Pressed Simultaneously” is shown
The accelerator and brake pedal are being depressed simultaneously.
( P. 195)
Release the accelerator pedal and depress the brake pedal.
Q If “Windshield washer fluid low” is shown
The washer fluid level is low.
Add washer fluid. ( P. 4 9 8 )

5788-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
Q If “Oil maintenance required soon” is shown
The engine oil is scheduled to be changed.
Check the engine oil, and change if necessary. After changing the engine oil,
the oil change system should be reset. ( P. 491)
For Russia, Armenia, Ukraine, Byelarus, Moldova, Bosnia Herzegovina, Mon-
tenegro, Serbia and Macedonia: You have forgotten to reset the oil change
system. Change the engine oil in accordance with the maintenance schedule.
Q If “Oil maintenance required” is shown
The engine oil is scheduled to be changed.
Check and change the engine oil, and oil filter by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer. After changing
the engine oil, the oil change system should be reset. ( P. 491)
For Russia, Armenia, Ukraine, Byelarus, Moldova, Bosnia Herzegovina, Mon-
tenegro, Serbia and Macedonia: You have forgotten to reset the oil change
system. Change the engine oil in accordance with the maintenance schedule.
Q If “Differential oil temp high Shift to 2WD mode Cooling time required” or
“Differential oil temp high Co oling time required” is shown
The differential oil temperature is too high.
Turn the front-wheel drive control switch to H2, and reduce the vehicle speed
or stop the vehicle in a safe place. ( P. 331)
Q If “Engine oil level low Add or replace” is shown
The engine oil level is low. (This warning message may be displayed if the
vehicle is stopped on a slope. Move the vehicle to a level surface and check
to see if the message goes off.)
Check the level of the engine oil and add or replace oil if necessary.
( P. 479)
Q If “Power turned off to save battery” is shown
Power was turned off due to the automatic power off function.
Next time when starting the engine, increase the engine speed slightly and
maintain that level for approximately 5 minutes to recharge the battery.
Q If “DPF full Manual regeneration required See owner’s manual” is shown
The deposit collected in the filter needs to be regenerated. ( P. 371)
Q If “DPF regeneration in progress” is shown
Regeneration is being automatically carried out by the DPF system.
( P. 370)

5808-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
Q If “Radar Cruise Control Temporarily Unavailable See Owner’s Manual”
is shown
The dynamic radar cruise control system is suspended temporarily or until the
problem shown in the message is resolved. (causes and coping methods:
 P. 271)
Q If “Radar Cruise Control Unavailable” is shown
The dynamic radar cruise control system cannot be used temporarily. Use the
system when it becomes available again.
Q If “Visit your dealer” is shown
The system or part shown on the multi- information display is malfunctioning.
Have the vehicle inspected by any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer immediately.
Q Warning buzzer
In some cases, the buzzer may not be heard due to being in a noisy location
or audio sound.
WARNING
Q If a warning light comes on or a warning buzzer sounds when a warn-
ing message is shown
Check and follow the message shown on the multi-information display. Fail-
ure to do so may result in death or serious injury.
NOTICE
Q While the engine oil level warning is shown
Continued engine operation with lo w engine oil will damage the engine.
Q If “Water accumulation in fuel filter See owner’s manual” is shown
Never drive the vehicle if the warning message is displayed. Continued driv-
ing with water accumulated in the fuel filter will damage the fuel injection
pump.

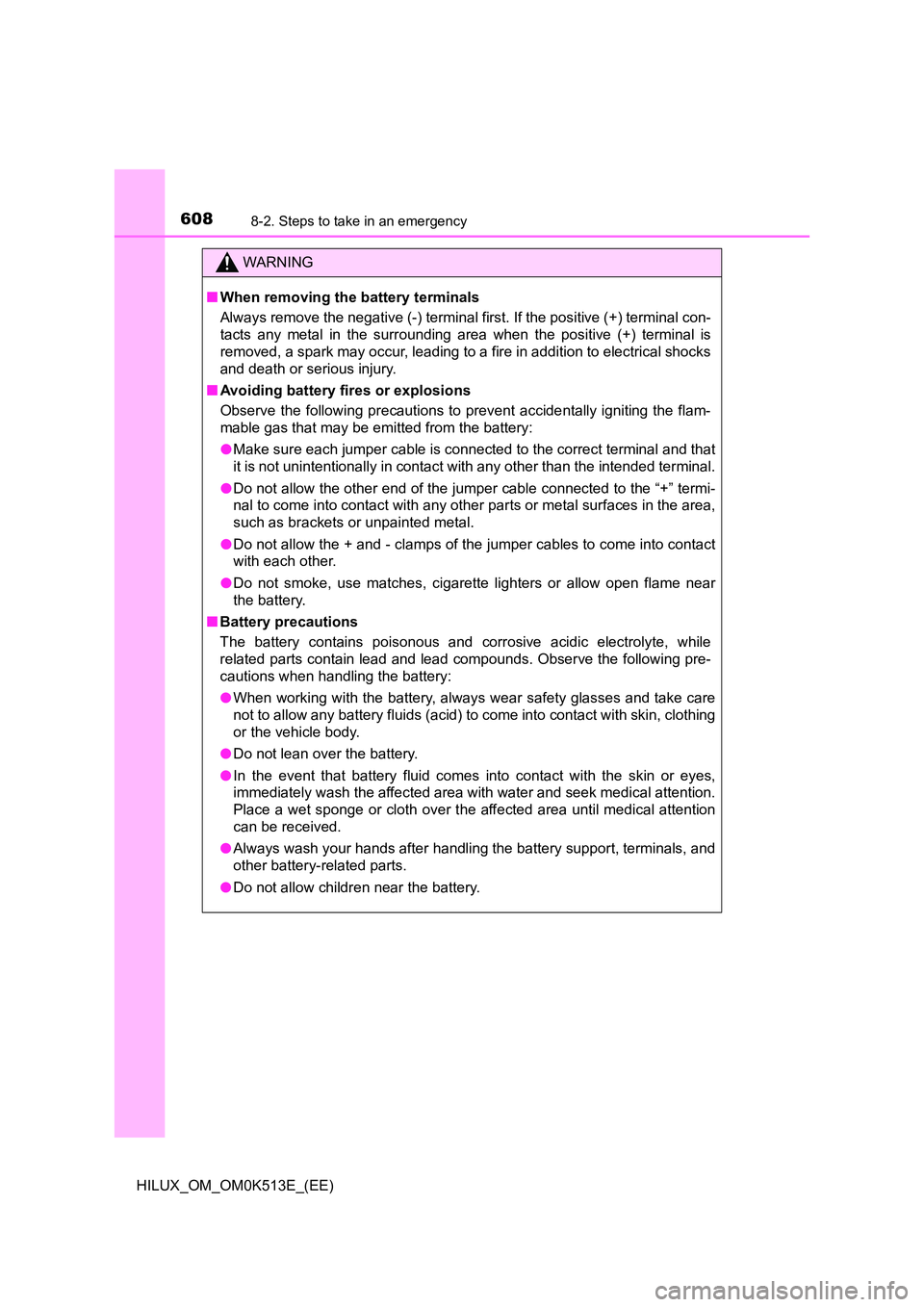

6088-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
WARNING
QWhen removing the battery terminals
Always remove the negative (-) terminal first. If the positive (+) terminal con-
tacts any metal in the surrounding area when the positive (+) terminal is
removed, a spark may occur, leading to a fire in addition to electrical shocks
and death or serious injury.
Q Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flam-
mable gas that may be emitted from the battery:
O Make sure each jumper cable is connected to the correct terminal and that
it is not unintentionally in contact with any other than the intended terminal.
O Do not allow the other end of the jumper cable connected to the “+” termi-
nal to come into contact with any other parts or metal surfaces in the area,
such as brackets or unpainted metal.
O Do not allow the + and - clamps of the jumper cables to come into contact
with each other.
O Do not smoke, use matches, cigarette lighters or allow open flame near
the battery.
Q Battery precautions
The battery contains poisonous and corrosive acidic electrolyte, while
related parts contain lead and lead compounds. Observe the following pre-
cautions when handling the battery:
O When working with the battery, always wear safety glasses and take care
not to allow any battery fluids (acid) to come into contact with skin, clothing
or the vehicle body.
O Do not lean over the battery.
O In the event that battery fluid comes into contact with the skin or eyes,
immediately wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention
can be received.
O Always wash your hands after handling the battery support, terminals, and
other battery-related parts.
O Do not allow children near the battery.

658What to do if... (Troubleshooting)
HILUX_OM_OM0K513E_(EE)
OVehicles without smart entry & start system:
It is locked to prevent theft of the vehicle if the key is removed from the
engine switch. ( P. 2 2 2 )
OVehicles with smart entry & start system:
It is locked automatically to prevent theft of the vehicle. ( P. 228)
OIs the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be oper-
ated if the window lock switch is pressed. ( P. 186)
OThe auto power off function will be operated if the vehicle is left in ACCES-
SORY or IGNITION ON mode (the engine is not operating) for a period of
time. ( P. 227)
OThe seat belt reminder light is flashing
Are the driver and passengers wearing the seat belts? ( P. 570)
OThe parking brake indicator light is on
Is the parking brake released? ( P. 247)
Depending on the situation, other types of warning buzzer may also sound.
( P. 566, 575)
ODid anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( P. 117)
To stop the alarm, turn the engine switch to the “ON” position (vehicles with-
out smart entry & start system) or IGNITION ON mode (vehicles with smart
entry & start system) or start the engine.
The steering wheel cannot be turned after the engine is
stopped
The windows do not open or close by operating the power
window switches (if equipped)
The engine switch is turned off automatically
(vehicles with smart entry & start system)
A warning buzzer sounds during driving
An alarm is activated and the horn sounds (if equipped)

659What to do if... (Troubleshooting)
HILUX_OM_OM0K513E_(EE)
OIs the message displayed on the multi-information display?
Check the message on the multi-information display.
OWhen a warning light turns on or a warning message is displayed, refer to
P. 566, 575.
OStop the vehicle in a safe place and replace the flat tire with the spare tire.
( P. 581)
OTry the procedure for when the vehicle becomes stuck in mud, dirt, or
snow. ( P. 615)
A warning buzzer sounds when leaving the vehicle
(vehicles with smart entry & start system)
A warning light turns on or a warning message is displayed
When a problem has occurred
If you have a flat tire
The vehicle becomes stuck
