2994-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K513E_(EE)
In the following situations, the RSA system will notify the driver.
O When the vehicle speed exceeds the speed notification threshold of
the speed limit sign displayed, the sign display will be emphasized
and a buzzer will sound.
O When the RSA system recognizes a no-entry sign and detects that
the vehicle has entered a no-entry area based on the map informa-
tion of the navigation system, the no-entry sign flashes and a
buzzer will sound. (For vehicles with navigation system)
O If it is detected that your vehicle is overtaking when a no overtaking
sign is displayed on the multi-information display, the displayed sign
will flash and a buzzer will sound.
Depending on the situation, traffic environment (traffic direction,
speed unit) may be detected incorrectly and a notification function
may not operate properly.
Q Setting procedure
Setting for “RSA” in of the multi-information display is set to “On”
( P. 139)
Q Automatic turn-off of RSA sign display
One or more signs automatically turn off in the following situations.
O No sign has been recognized for a certain distance.
O The road changes due to a left or right turn, etc.
Q Conditions in which the function may not operate or detect correctly
In the following situations, RSA does not operate normally and may not rec-
ognize signs, display the incorrect sign, etc. However, this does not indicate a
malfunction.
O The front camera is misaligned due to a strong impact being applied to the
sensor, etc.
O Dirt, snow, stickers, etc. are on the windshield near the front camera.
O In inclement weather such as heavy rain, fog, snow or sand storms.
O Light from an oncoming vehicle, the sun, etc. enters the front camera.
O The sign is dirty, faded, tilted or bent.
O The contrast of electronic sign is low.
O All or part of the sign is hidden by the leaves of a tree, a pole, etc.
O The sign is only visible to the front camera for a short amount of time.
O The driving scene (turning, lane change, etc.) is judged incorrectly.
Notification function

3294-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K513E_(EE)
WARNING
QCautions regarding the use of the system
There is a limit to the degree of recognition accuracy and control perfor-
mance that this system can provide, do not overly rely on this system. The
driver is always responsible for paying attention to the vehicle’s surround-
ings and driving safely.
Q To ensure the system can operate properly
Observe the following precautions.
Failure to do so may result in the vehicle being unable to be driven safely
and possibly cause an accident.
O Do not damage the sensors, and always keep them clean.
O Do not attach a sticker or install an electronic component, such as a backlit
license plate (especially fluorescent type), fog lights, fender pole or wire-
less antenna near a radar sensor.
O Do not subject the surrounding area of the sensor to a strong impact. If
subjected to an impact, have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repai rer, or any reliable repairer. If the
front or rear bumper needs to be removed/installed or replaced, contact
any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
O Do not modify, disassemble or paint the sensors.
O Do not attach a license plate cover.
O Keep your tires properly inflated.
Q When to disable the function
In the following situations, disable the function as it may operate even
though there is no possibility of a collision.
O Failing to observe the warnings above.
O A non-genuine Toyota suspension (lowered suspension, etc.) is installed.
Q Notes when washing the vehicle
Do not apply intensive bursts of water or steam to the sensor area.
Doing so may result in the sensor malfunctioning.
O When using a high pressure washer to wash the vehicle, do not spray the
sensors directly, as doing so may cause a sensor to malfunction.
O When using steam to clean the vehicle, do not direct steam too close to
the sensors as doing so may cause a sensor to malfunction.

433
6Interior features
HILUX_OM_OM0K513E_(EE)
6-1. Using the air conditioning
system and defogger
Manual air conditioning
system ............................. 434
Automatic air conditioning
system ............................. 441
Heated steering wheel/
seat heaters ..................... 450
6-2. Using the interior lights
Interior lights list ................. 453
• Personal/interior light
main switch.................... 454
• Personal/interior
lights .............................. 454
• Interior light.................... 454
6-3. Using the storage features
List of storage features ...... 456
• Glove box ...................... 457
• Console box .................. 457
• Cup holders ................... 458
• Bottle holders ................ 459
• Auxiliary boxes .............. 460
Luggage compartment
features............................ 463
6-4. Using the other interior
features
Other interior features ........ 464
• Sun visors...................... 464
• Vanity mirror .................. 464
• Clock ............................. 465
• Power outlets................. 466
• Grocery bag hooks ........ 468
• Coat hooks .................... 469
• Armrest .......................... 469
Using the steering wheel
audio switches ................. 470

4516-1. Using the air conditioning system and defogger
6
Interior features
HILUX_OM_OM0K513E_(EE)

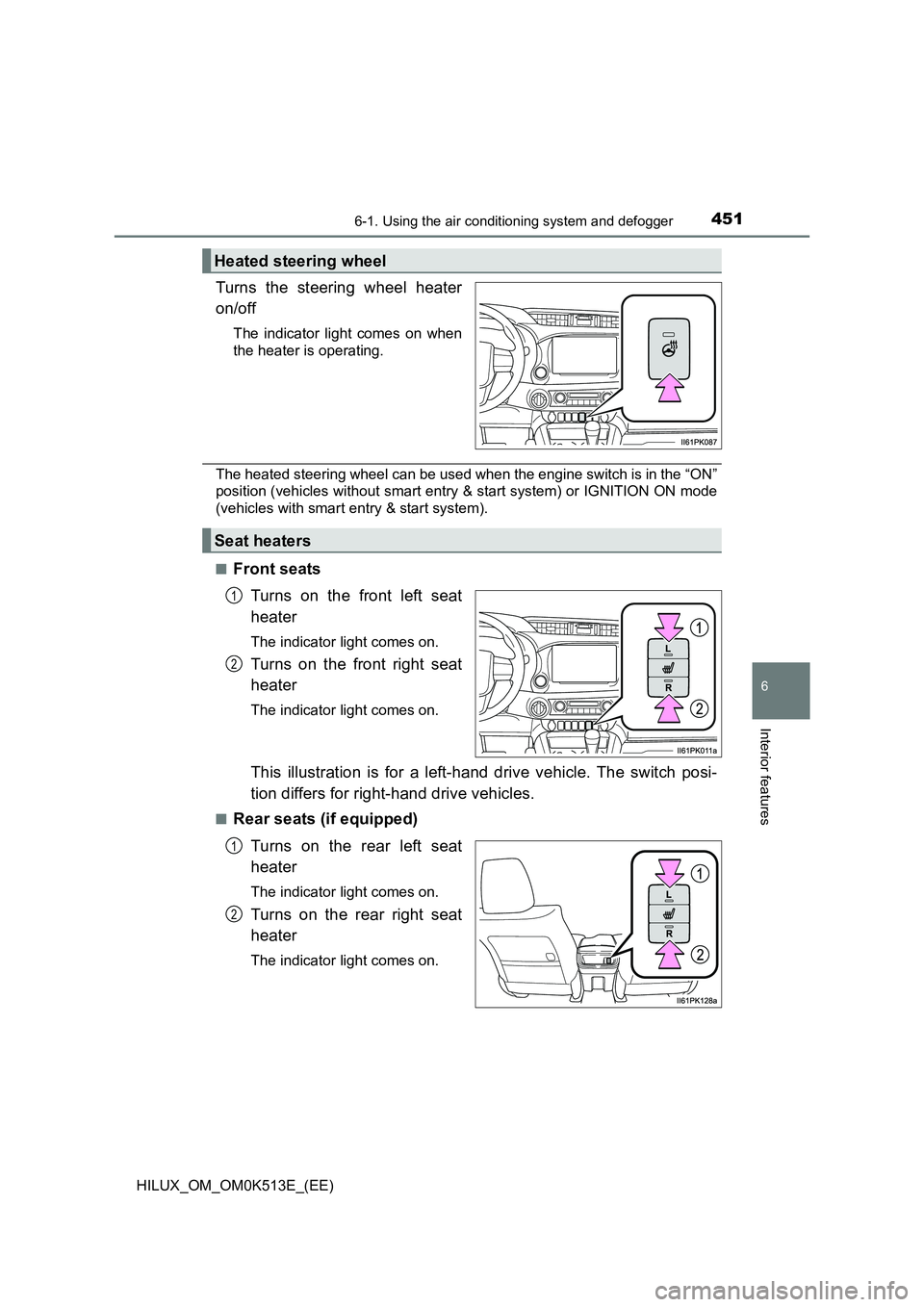

Turns the steering wheel heater
on/off
The indicator light comes on when
the heater is operating.
The heated steering wheel can be used when the engine switch is in the “ON”
position (vehicles without smart entry & start system) or IGNITION ON mode
(vehicles with smart entry & start system).
QFront seats
Turns on the front left seat
heater
The indicator light comes on.
Turns on the front right seat
heater
The indicator light comes on.
This illustration is for a left-hand drive vehicle. The switch posi-
tion differs for right-hand drive vehicles.
QRear seats (if equipped)
Turns on the rear left seat
heater
The indicator light comes on.
Turns on the rear right seat
heater
The indicator light comes on.
Heated steering wheel
Seat heaters
1
2
1
2

4526-1. Using the air conditioning system and defogger
HILUX_OM_OM0K513E_(EE)

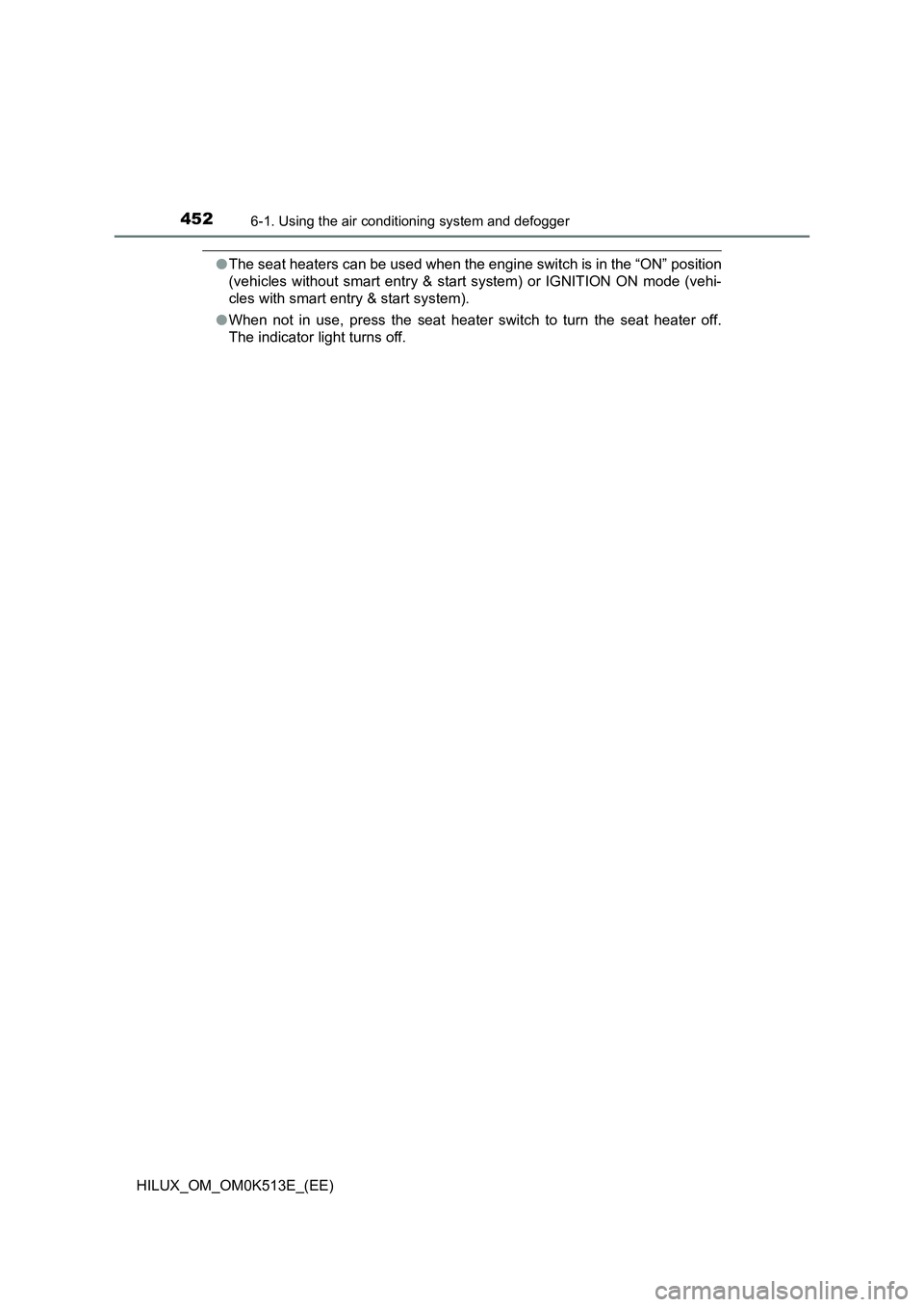

OThe seat heaters can be used when the engine switch is in the “ON” position
(vehicles without smart entry & start system) or IGNITION ON mode (vehi-
cles with smart entry & start system).
O When not in use, press the seat heater switch to turn the seat heater off.
The indicator light turns off.

4787-1. Maintenance and care
HILUX_OM_OM0K513E_(EE)
NOTICE
QCleaning detergents
O Do not use the following types of detergent, as they may discolor the vehi-
cle interior or cause streaks or damage to painted surfaces:
• Non-seat portions: Organic substances such as benzene or gasoline,
alkaline or acidic solutions, dye, and bleach
• Seats: Alkaline or acidic solutions, such as thinner, benzene, and alco-
hol
O Do not use polish wax or polish cleaner. The instrument panel’s or other
interior part’s painted surface may be damaged.
Q Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of
leather surfaces:
O Remove any dust or dirt from leather surfaces immediately.
O Do not expose the vehicle to direct sunlight for extended periods of time.
Park the vehicle in the shade, especially during summer.
O Do not place items made of vinyl, plastic, or containing wax on the uphol-
stery, as they may stick to the leather surface if the vehicle interior heats
up significantly.
Q Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes
into contact with electrical components such as the audio system above or
under the floor of the vehicle. Water may also cause the body to rust.
Q When cleaning the inside of the windshield (vehicles with Toyota
Safety Sense)
Do not allow glass cleaner to contact the lens. Also, do not touch the lens.
( P. 2 6 7 )
Q Cleaning the inside of the rear window (vehicles with rear window
defogger)
O Do not use glass cleaner to clean the rear window, as this may cause
damage to the rear window defogger heater wires. Use a cloth dampened
with lukewarm water to gently wipe the window clean. Wipe the window in
strokes running parallel to the heater wires.
O Be careful not to scratch or damage the heater wires.

5267-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
Headlight (high/low beams) (if equipped)
Headlight (low beam) (if equipped)
Headlight (high beam) (if equipped)
Front position light/daytime running light (if equipped)
Front turn signal light (if equipped)
Halogen front fog light (if equipped)
Outer foot light (if equipped)
LED headlights
1
2
3
4
5
6
7

5277-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
7
Maintenance and care

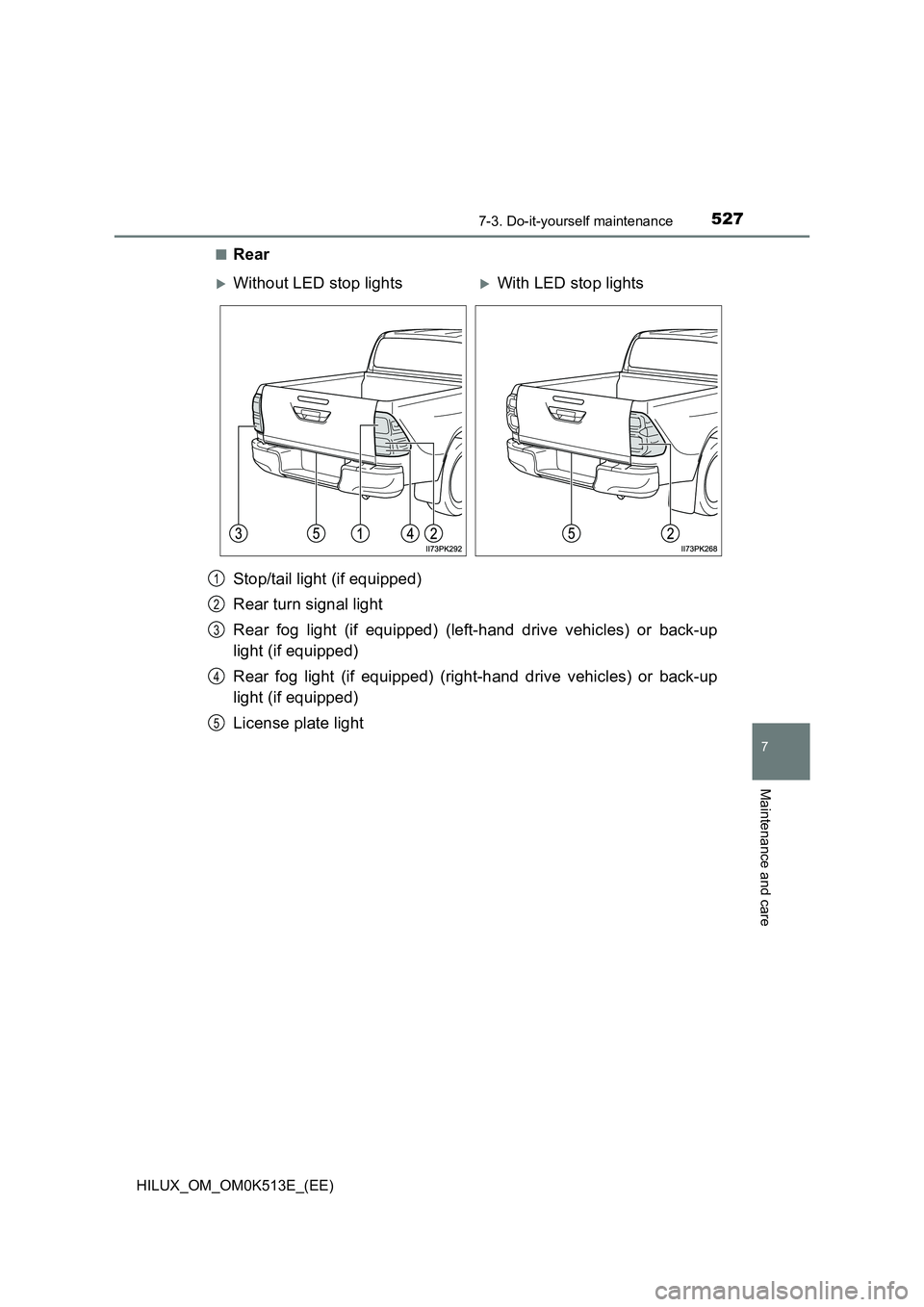

QRear
Stop/tail light (if equipped)
Rear turn signal light
Rear fog light (if equipped) (left-hand drive vehicles) or back-up
light (if equipped)
Rear fog light (if equipped) (right-hand drive vehicles) or back-up
light (if equipped)
License plate light
Without LED stop lightsWith LED stop lights
1
2
3
4
5
