2022 TOYOTA HILUX tire type

5888-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
Chock the tires.
Remove the wheel ornament, using the beveled end of the wheel
nut wrench as shown.
To protect the wheel ornament, place a rag between the wheel nut wrench
and the wheel ornament.

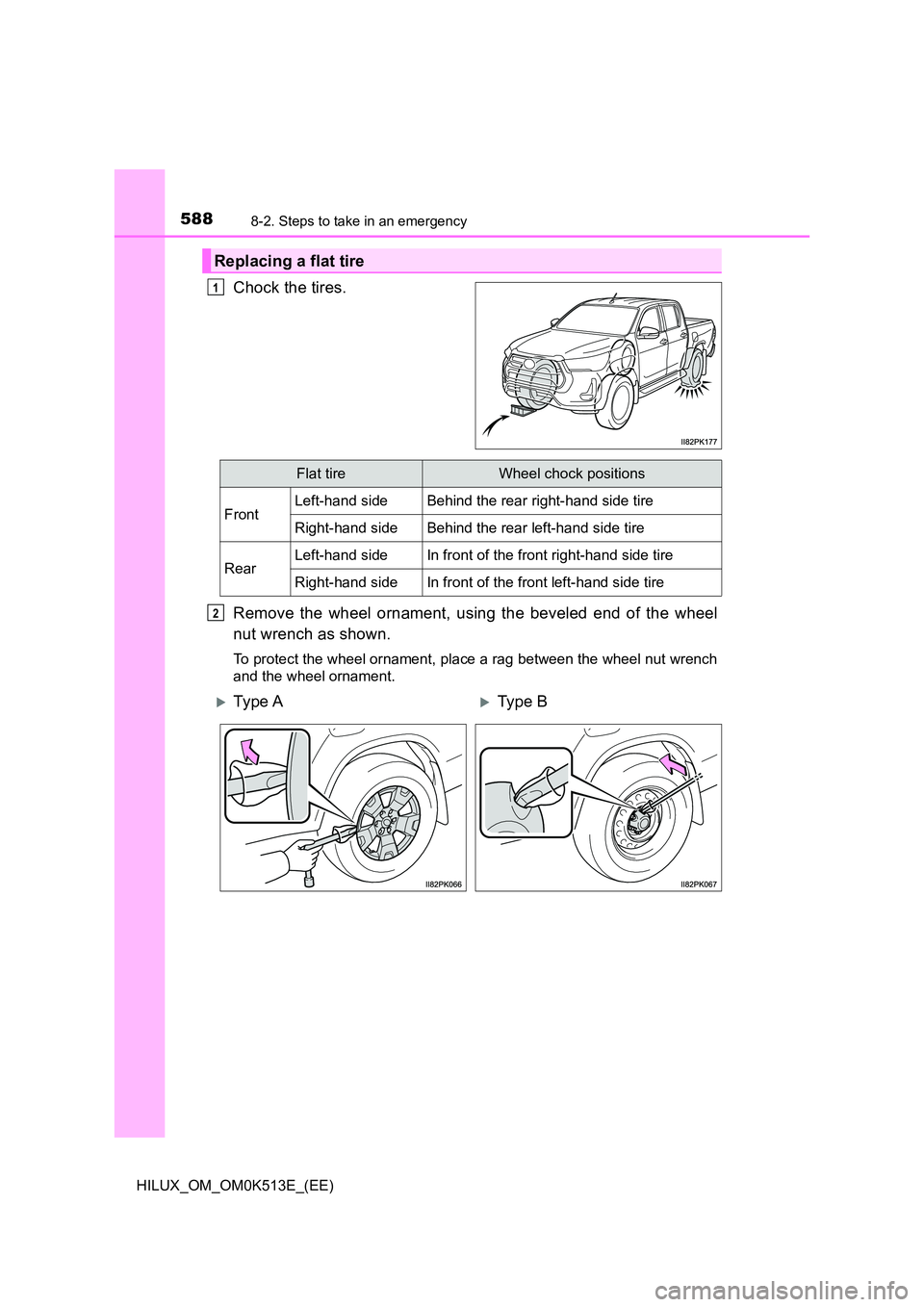

Replacing a flat tire
1
Flat tireWheel chock positions
FrontLeft-hand sideBehind the rear right-hand side tire
Right-hand sideBehind the rear left-hand side tire
RearLeft-hand sideIn front of the front right-hand side tire
Right-hand sideIn front of the front left-hand side tire
2
Ty pe AType B

5938-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
8
When trouble arises
Lower the vehicle.
Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.
Tightening torque:
105 N•m (10.7 kgf•m, 77 ft•lbf)
Vehicles with spare tire of the same wheel type as the installed
tires: Reinstall the wheel ornament.
Type A
Align the cutout of the wheel
ornament with the valve stem
as shown.
Type B
3
4
5

5948-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
Type C
Lay down the tire with the valve
stem facing up and install the
holding bracket, inserting the
claw into the wheel lug nut hole.
Turn the jack handle extension
clockwise to take up slack in
the chain.
Then, check to ensure the claw is
in the wheel lug nut hole and the
holding bracket is centered in the
wheel hub.
Holding bracket
Claw
WARNING
Q Stowing the flat tire
Failure to follow steps listed under stowing the tire may result in damage to
the spare tire carrier and loss of the tire, which could result in death or seri-
ous injury.
Stowing the flat tire, jack and all tools
incorrect
correct
1
1
2

621
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K513E_(EE)
*9: See “How to identify exterior type” to check the type of your vehicle.
( P. 621)
*10: Without short pole antenna
*11: With short pole antenna
*12: With 205R16C tires
*13: With 225/70R17C tires
*14: With 265/65R17 or 265/60R18 tires

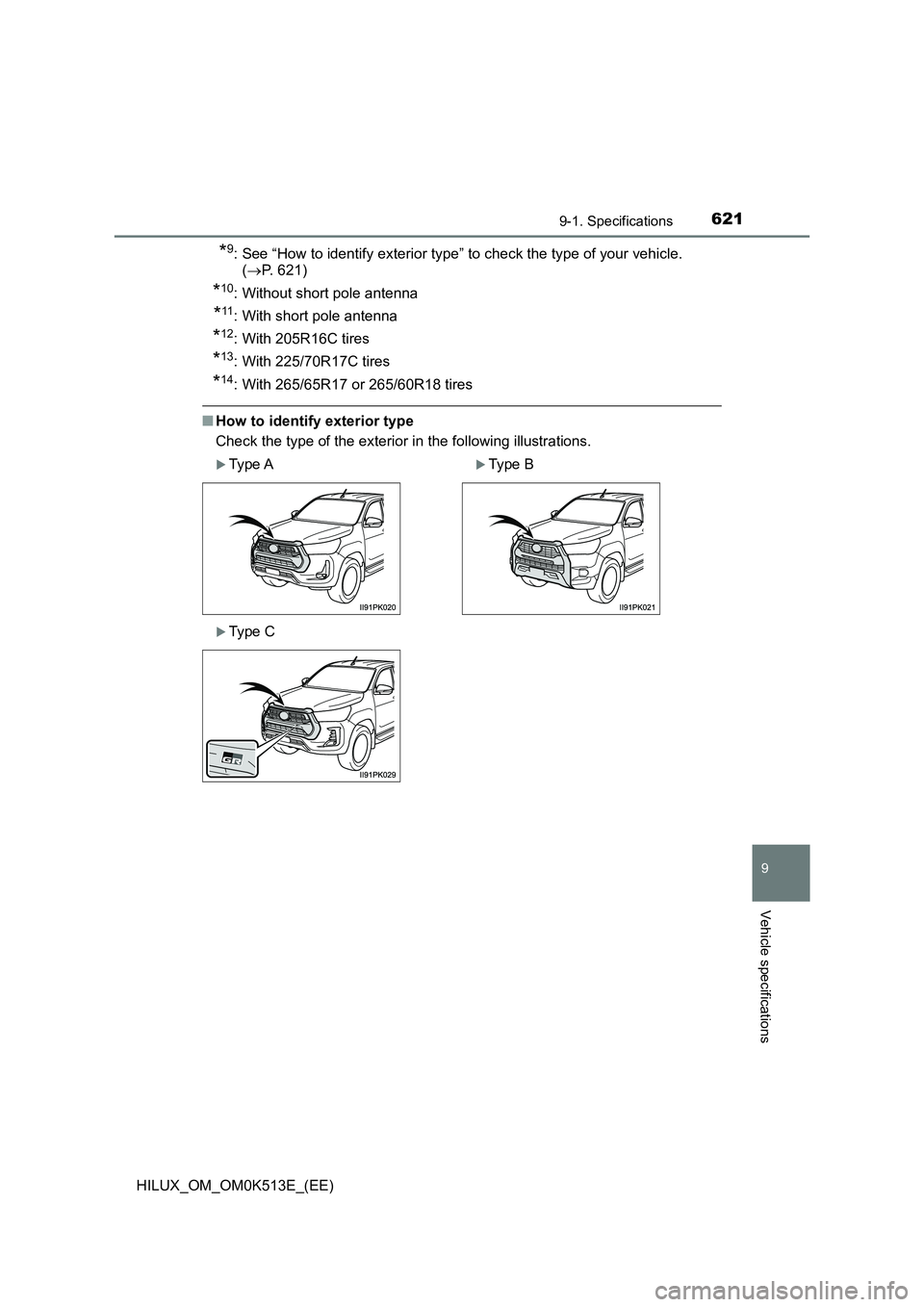

QHow to identify exterior type
Check the type of the exterior in the following illustrations.
Type AType B
Type C

6389-1. Specifications
HILUX_OM_OM0K513E_(EE)
*1: Minimum pedal clearance when depressed with a force of 490 N (50 kgf,
110 lbf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 200 N (20 kgf,
45 lbf)
*3: Without 205R16C tires
*4: With 205R16C tires
*1: Models made in Thailand*3
*2: With grease fitting only
*3: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 1 2 )
Brakes
Pedal
clearance*1
Without VSC82 mm (3.2 in.)*3
92 mm (3.6 in.)*4
With VSC82 mm (3.2 in.)
Pedal free play1.0  6.0 mm
(0.04  0.24 in.)
Parking brake lever travel*27 9 clicks
Fluid type
SAE J1703 or FMVSS No.116
DOT 3 or SAE J1704 or FMVSS
No.116 DOT 4
Chassis lubrication
Propeller
shafts
Front (4WD
models)
SpiderLithium base chassis grease,
NLGI No.2
Slide
yoke*1
Molybdenum-disulfide lithium
base chassis grease, NLGI No.2
or lithium base chassis grease,
NLGI No.2
RearSpider*2Lithium base chassis grease,
NLGI No.2

639
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K513E_(EE)
16 inch tires
17 inch tires (type A)
Steering
Free playLess than 30 mm (1.2 in.)
Power steering fluid typeAutomatic transmission fluid DEXRON® II or III
Tires and wheels
Tire size205R16C 8PR 110/108S
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)
Front wheel
kPa (kgf/cm2 or
bar, psi)
Rear wheel
(unladen)
kPa (kgf/cm2 or
bar, psi)
Rear wheel
(full load)
kPa (kgf/cm2 or
bar, psi)
270 (2.7, 39)270 (2.7, 39)340 (3.4, 49)
Wheel size16  6J
Wheel nut torque105 N•m (10.7 kgf•m, 77 ft•lbf)
Tire size 225/70R17C 108/106S
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)
Front wheel
kPa (kgf/cm2 or
bar, psi)
Rear wheel
(unladen)
kPa (kgf/cm2 or
bar, psi)
Rear wheel
(full load)
kPa (kgf/cm2 or
bar, psi)
240 (2.4, 35)240 (2.4, 35)300 (3.0, 44)
Wheel size17  6J
Wheel nut torque 105 N•m (10.7 kgf•m, 77 ft•lbf)

6409-1. Specifications
HILUX_OM_OM0K513E_(EE)
17 inch tires (type B)
*: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 12)
Tire size265/65R17 112S
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)
Front wheel
(unladen)
kPa
(kgf/cm2 or
bar, psi)
Front wheel
(full load)
kPa
(kgf/cm2 or
bar, psi)
Rear wheel
(unladen)
kPa
(kgf/cm2 or
bar, psi)
Rear wheel
(full load)
kPa
(kgf/cm2 or
bar, psi)
Except for
Kazakhstan,
and except
models for
model code
destination W*
200
(2.0, 29)
230
(2.3, 33)
200
(2.0, 29)
250
(2.5, 36)
For Kazakh-
stan, and
models for
model code
destination W*
230
(2.3, 33)
230
(2.3, 33)
230
(2.3, 33)
250
(2.5, 36)
Wheel size17  7 1/2J
Wheel nut torque105 N•m (10.7 kgf•m, 77 ft•lbf)
