2022 TOYOTA HILUX display

1222. Instrument cluster
HILUX_OM_OM0K513E_(EE)
War ning lights and indicators
Vehicles without multi-information display
Vehicles with multi-information display
The positions of some warning lights and indicators differ depending on
vehicles.
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustrations dis-
play all warning lights and indicators illuminated.

1242. Instrument cluster
HILUX_OM_OM0K513E_(EE)
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without smart entry & start system) or IGNITION ON mode (vehi-
cles with smart entry & start system) to indicate that a system check is
being performed. They will turn off after the engine is started, or after a few
seconds. There may be a malfunction in a system if a light does not come
on, or if the lights do not turn off. Have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
*2: Vehicles with multi-information display: a indicator is displayed on the
multi-information display.
(Yellow)
(if equipped)
LDA indicator ( P. 570)
*1
(if equipped)
Low engine oil level
warning light ( P. 570)
*6
(if equipped)
Cruise control indicator
( P. 569)
*1
(Flashes or
illuminates)
(if equipped)
Master warning light
( P. 570)
*2
(if equipped)
Open door warning light
( P. 570)
*1, 5
(Flashes)
(if equipped)
Stop & Start cancel
indicator ( P. 570)
(Flashes or
illuminates)
Driver’s and front
passenger’s seat belt
reminder light ( P. 570)
Parking brake indicator
light ( P. 571)
*7
(Flashes or
illuminates)
(if equipped)
Rear passengers’ seat
belt reminder lights
( P. 570)(if equipped)
Low AdBlue™ level
warning light ( P. 571)
Low fuel level warning
light ( P. 570)
*1
(Flashes)
(if equipped)
“AUTO LSD” indicator
( P. 571)
(if equipped)
Go to service warning
light ( P. 571)

1252. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K513E_(EE)

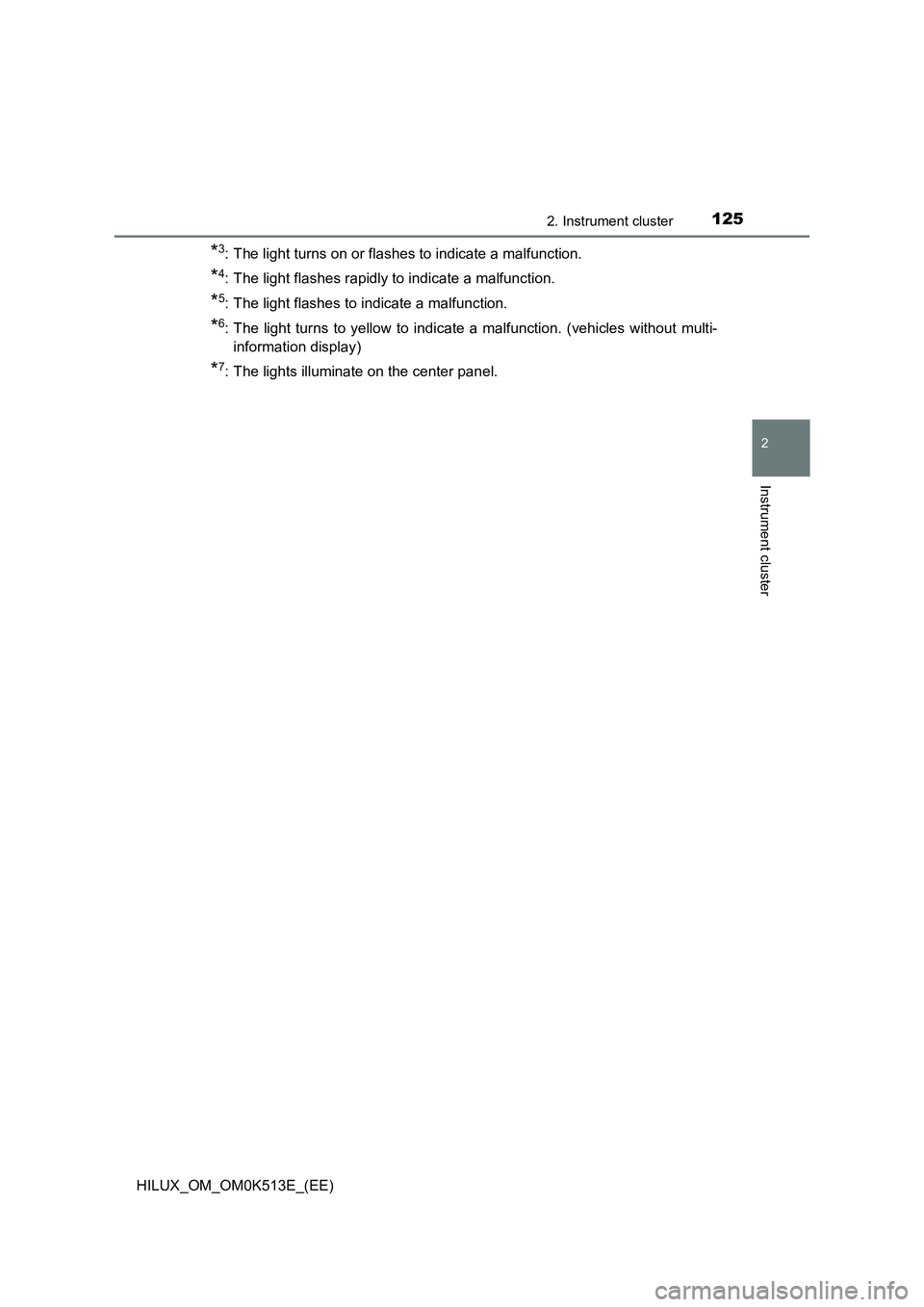

*3: The light turns on or flashes to indicate a malfunction.
*4: The light flashes rapidly to indicate a malfunction.
*5: The light flashes to indicate a malfunction.
*6: The light turns to yellow to indicate a malfunction. (vehicles without multi-
information display)
*7: The lights illuminate on the center panel.

1282. Instrument cluster
HILUX_OM_OM0K513E_(EE)
QEco Driving Indicator
Eco Driving Indicator Zone Display (if equipped)
Suggests Zone of Eco driving with current Eco driving ratio based on accel-
eration.
Zone of Eco driving
Eco driving ratio based on acceleration
If the vehicle exceeds Zone of Eco driving, the right side of Eco Driving Indi-
cator Zone Display will illuminate.
Eco Driving Indicator Light and Eco Driving Indicator Zone Display will not
operate in the following conditions:
O The shift lever is in anything other than D. (vehicles with automatic transmis-
sion)
O The shift lever is in R. (vehicles with manual transmission)
O A paddle shift switch is operated. (vehicles with paddle shift switches)
O The vehicle is in the power mode. (if equipped) (P. 233, 240)
O Downhill assist control system is operating. (if equipped) (P. 364)
O Front-wheel drive control switch is in L4. (if equipped) (P. 331)
O The vehicle speed is approximately 130 km/h (81 mph) or higher.
Eco Driving Indicator Light
Vehicles with automatic transmission:
During Eco-friendly acceleration (Eco
driving), Eco Driving Indicator Light will
turn on. When the accelerator pedal is
depressed excessively, or when the
vehicle is stopped, the light turns off.
Vehicles with manual transmission:
During Eco-friendly acceleration or in
Eco-friendly shift position (Eco driving),
Eco Driving Indicator Light will turn on.
When the accelerator pedal is
depressed excessively, or when the
vehicle is stopped, the light turns off.
1
2
3
4

1292. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K513E_(EE)
Eco Driving Indicator Light can be activated or deactivated.
Vehicles without multi-information display:
Press and hold the odometer/trip meter display change button for more than
2 seconds to complete the setting.
Vehicles with multi-information display: P. 647
While the odometer is being displayed,
press and hold the odometer/trip meter
display change button to display the Eco
Driving Indicator Light customization
screen.
Press the odometer/trip meter display
change button to set Eco Driving Indicator
Light to on or off.
WARNING
Q If a safety system warning light does not come on
Should a safety system light such as ABS and the SRS warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer immediately if
this occurs.

1302. Instrument cluster
HILUX_OM_OM0K513E_(EE)
Gauges and meters
Vehicles without multi-information display
Vehicles with multi-information display
The units used on the speedometer may differ depending on the target
region, and the positions of the outside temperature and shift position indi-
cators differ depending on vehicles.

1312. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K513E_(EE)
Tachometer
Displays the engine speed in revolutions per minute.
Outside temperature
Displays the outside temperature. The temperature range that can be dis-
played is from -40 C (-40F) to 50C (122F). The low outside temperature
indicator comes on when the ambient temperature is approximately 3 C
(37 F) or lower, and goes off when approximately 5C (41F) or higher.
( P. 127)
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Odometer/trip meter display change button
P. 132
Odometer and trip meter
Odometer:
Displays the total distance the vehicle has been driven.
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters A and B can be used to record and display different dis-
tances independently.
Multi-information display
Presents the driver with a variety of driving-related data. ( P. 1 3 5 )
Shift position and shift range (automatic transmission)
Displays the selected shift position or selected shift range. (P. 231)
Engine coolant temperature gauge
Displays the engine coolant temperature.
1
2
3
4
5
6
7
8
9

1322. Instrument cluster
HILUX_OM_OM0K513E_(EE)
Vehicles without multi-information display
Pressing this button switches between odometer and trip meter dis-
plays.
Odometer
Trip meter A*
Trip meter B*
*: Pressing and holding the button
will reset the trip meter.
Vehicles with multi-information display
Pressing this button switches among odometer, trip meter and instru-
ment panel light control displays.
Odometer
Trip meter A*1
Trip meter B*1
Instrument panel light control
display*2
*1: Pressing and holding the button
will reset the trip meter.
*2: Pressing and holding the button
will adjust brightness of the instru-
ment panel lights.
Changing the display
1
2
3
1
2
3
4
