2022 TOYOTA HILUX turn signal bulb

17Pictorial index
HILUX_OM_OM0K513E_(EE)
Fuel filler door*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 261
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 261
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 627
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 507
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 639
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 374
Checking/rotation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 508
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 581
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 484
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 484
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 628
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 610
Camera*1, 2
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 248
Front position lights/daytime running lights*1. . . . . . . . . . P. 248
Front fog lights*1/rear fog light*1, 3. . . . . . . . . . . . . . . . . . . P. 255
Front turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 246
Side turn signal lights (fender-mounted type or
mirror-mounted type) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 246
Rear turn signal lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 246
Stop lights
Downhill assist control system*1. . . . . . . . . . . . . . . . . . . . . . . P. 364
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 248
License plate light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 248
Back-up lights*3
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . P. 231, 239
5
6
7
8
Light bulbs of the exterior lights for driving
(Replacing method: P. 525, Watts: P. 642)
*1: If equipped
*2: Refer to “Navigation and multimedia system Owner’s manual” or
“Multimedia Owner’s Manual”.
*3: They may be located on the opposite side depending on the target region.
9
10
11
12
13
14
15
16
17
18

2464-2. Driving procedures
HILUX_OM_OM0K513E_(EE)
Turn signal lever
Right turn
Left turn
Lane change to the right (move
the lever partway and release
it)
The right hand signals will flash 3
times.
Lane change to the left (move
the lever partway and release
it)
The left hand signals will flash 3
times.
Q Turn signals can be operated when
Vehicles without smart entry & start system
The engine switch is in the “ON” position.
Vehicles with smart entry & start system
The engine switch is in IGNITION ON mode.
Q If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
Q If the turn signals stop flashing before a lane change has been per-
formed
Operate the lever again.
Q To discontinue flashing of the turn signals during a lane change
Operate the lever in the opposite direction.
Q Customization
The number of times the turn signals flash during a lane change can be
changed.
(Customizable features: P. 646)
Operating instructions
1
2
3
4

5367-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)

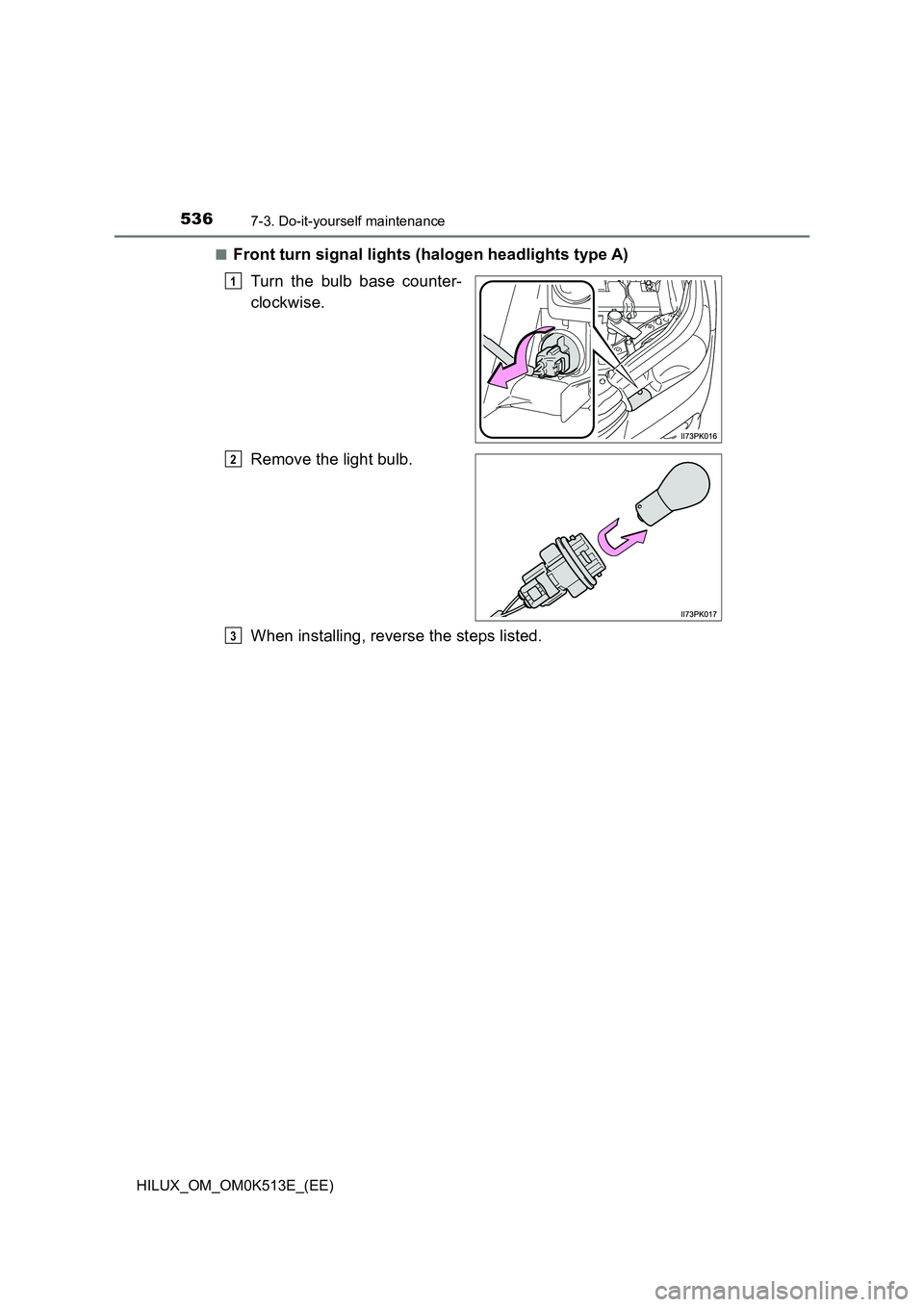

QFront turn signal lights (halogen headlights type A)
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3

5377-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
7
Maintenance and care

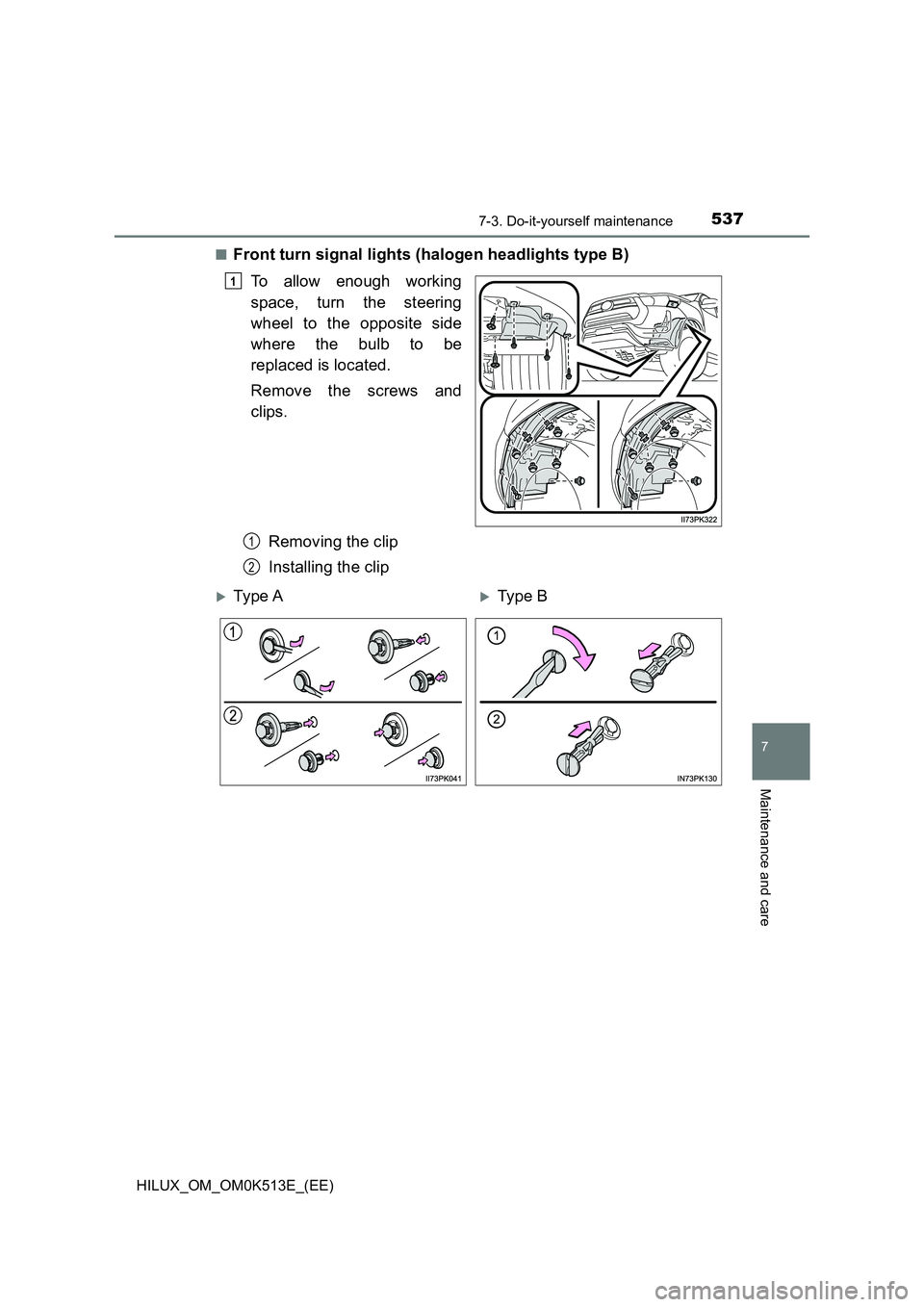

QFront turn signal lights (halogen headlights type B)
To allow enough working
space, turn the steering
wheel to the opposite side
where the bulb to be
replaced is located.
Remove the screws and
clips.
Removing the clip
Installing the clip
1
1
2
Ty pe AType B

5427-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
QStop/tail lights, rear turn signal lights, back-up lights and rear
fog light (if equipped) (without LED stop lights)
Remove the securing bolts
and pull the unit sideways to
remove.
Turn the bulb base counter-
clockwise.
Stop/tail light
Rear turn signal light
Back-up light or rear fog
light
Remove the light bulb.
Stop/tail light
Rear turn signal light
Back-up light or rear fog
light
When installing, reverse the steps listed.
1
2
1
2
3
3
1
2
3
4

5437-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
7
Maintenance and care

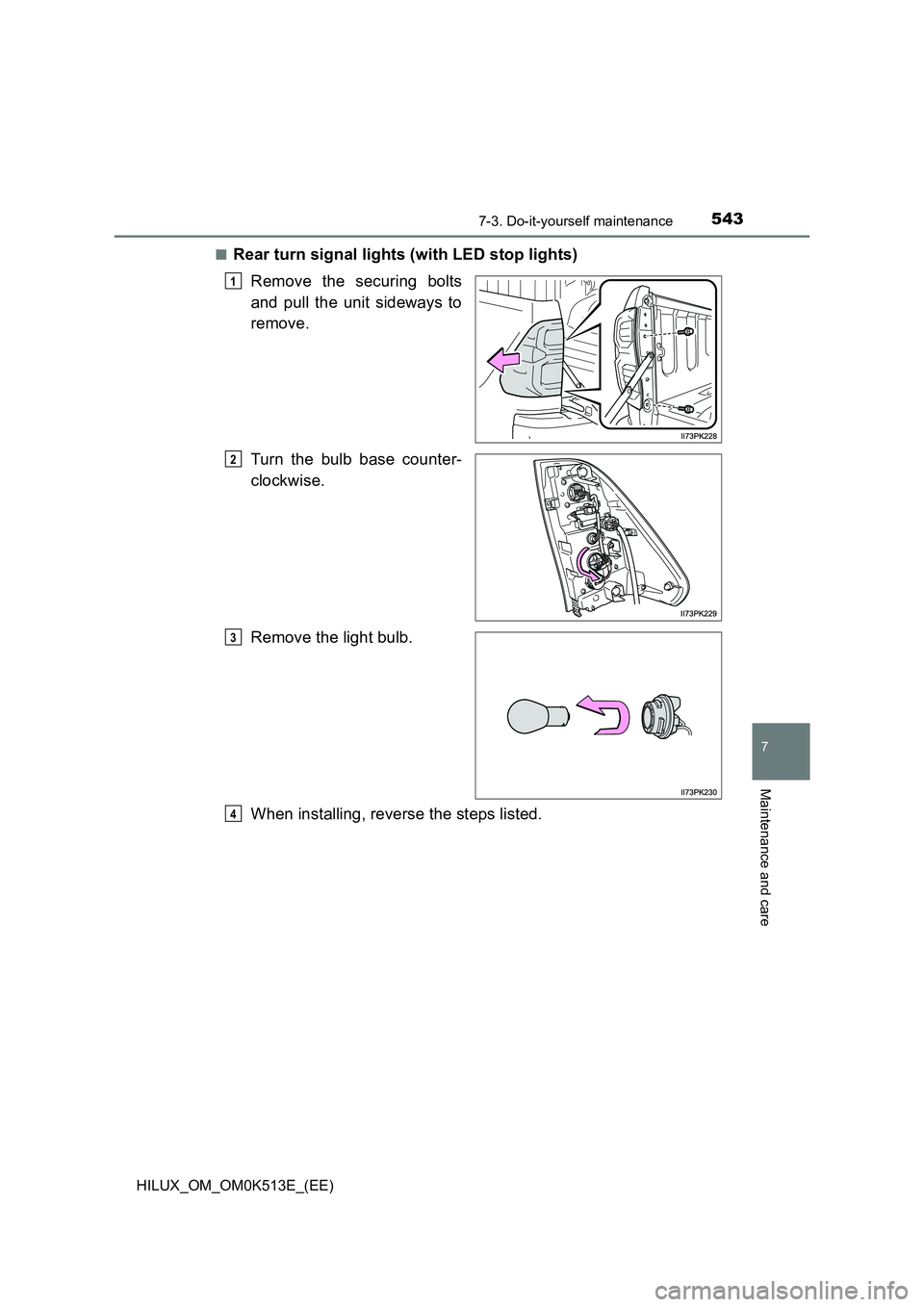

QRear turn signal lights (with LED stop lights)
Remove the securing bolts
and pull the unit sideways to
remove.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4

5467-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)

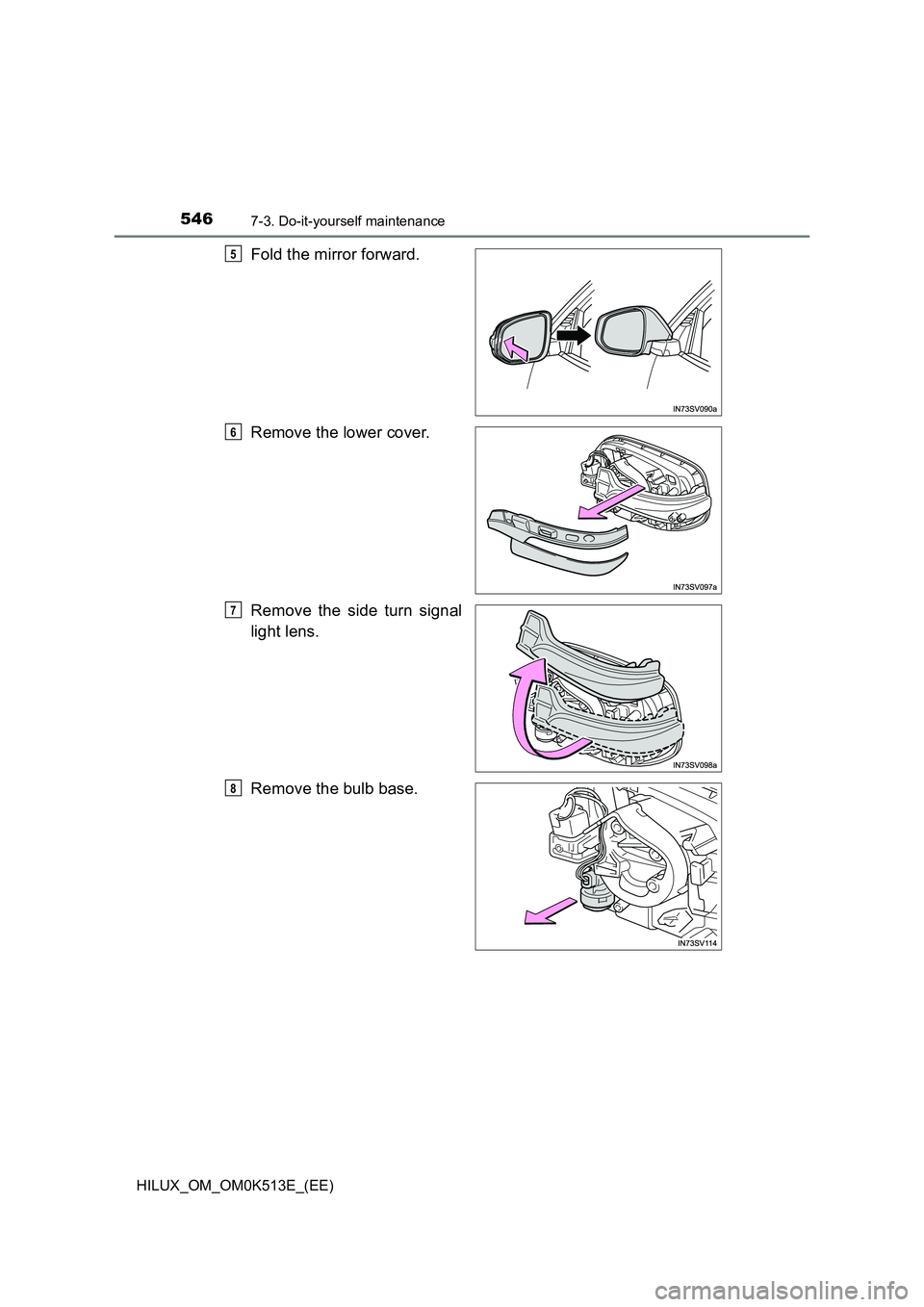

Fold the mirror forward.
Remove the lower cover.
Remove the side turn signal
light lens.
Remove the bulb base.
5
6
7
8

5497-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
7
Maintenance and care
Align the tabs, and secure
the mirror by pushing in each
diagonally-opposite pair of
tabs in order.
Make sure to insert the tabs in
order as shown in the illustra-
tion, and push them in until a
click is heard.
If you do not hear the click, do
not force the tabs in. Instead,
remove the mirror and check
that the tabs are aligned.
QReplacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
O Headlights (high/low beams) (LED headlights)
O Front position lights/daytime running lights (if equipped) (LED
headlights)
O Front turn signal lights (LED headlights)
O Side turn signal lights
O LED front fog lights (if equipped)
O LED stop lights
O Tail lights (LED stop lights)
O Rear fog lights (if equipped) or back-up lights (LED stop lights)
O High mounted stoplight (if equipped)
