2022 TOYOTA CAMRY weight

6018-1. Specifications
8
Vehicle specifications
CAMRY_U
Production options
weight
The combined weight of installed regular pro-
duction options weighing over 5 lb. (2.3 kg) in
excess of the standard items which they
replace, not previously considered in curb
weight or accessory weight, including heavy
duty brakes, ride levelers, roof rack, heavy
duty battery, and special trim
Rim
A metal support for a tire or a tire and tube
assembly upon which the tire beads are
seated
Rim diameter
(Wheel diameter)Nominal diameter of the bead seat
Rim size designationRim diameter and width
Rim type designationThe industry manufacturer’s designation for a
rim by style or code
Rim widthNominal distance between rim flanges
Vehicle capacity
weight (Total load
capacity)The rated cargo and l uggage load plus 150 lb.
(68 kg) times the vehicle’s designated seating
capacity
Vehicle maximum load
on the tire
The load on an individual tire that is deter-
mined by distributing to each axle its share of
the maximum loaded vehicle weight, and
dividing by two
Vehicle normal load on
the tire
The load on an individual tire that is deter-
mined by distributing to each axle its share of
curb weight, accessory weight, and normal
occupant weight (distributed in accordance
with Table 1
* below), and dividing by two
Weather sideThe surface area of the rim not covered by the
inflated tire
Bead
The part of the tire that is made of steel wires,
wrapped or reinforced by ply cords and that is
shaped to fit the rim
Bead separationA breakdown of the bond between compo-
nents in the bead
Tire related termMeaning

6038-1. Specifications
8
Vehicle specifications
CAMRY_U

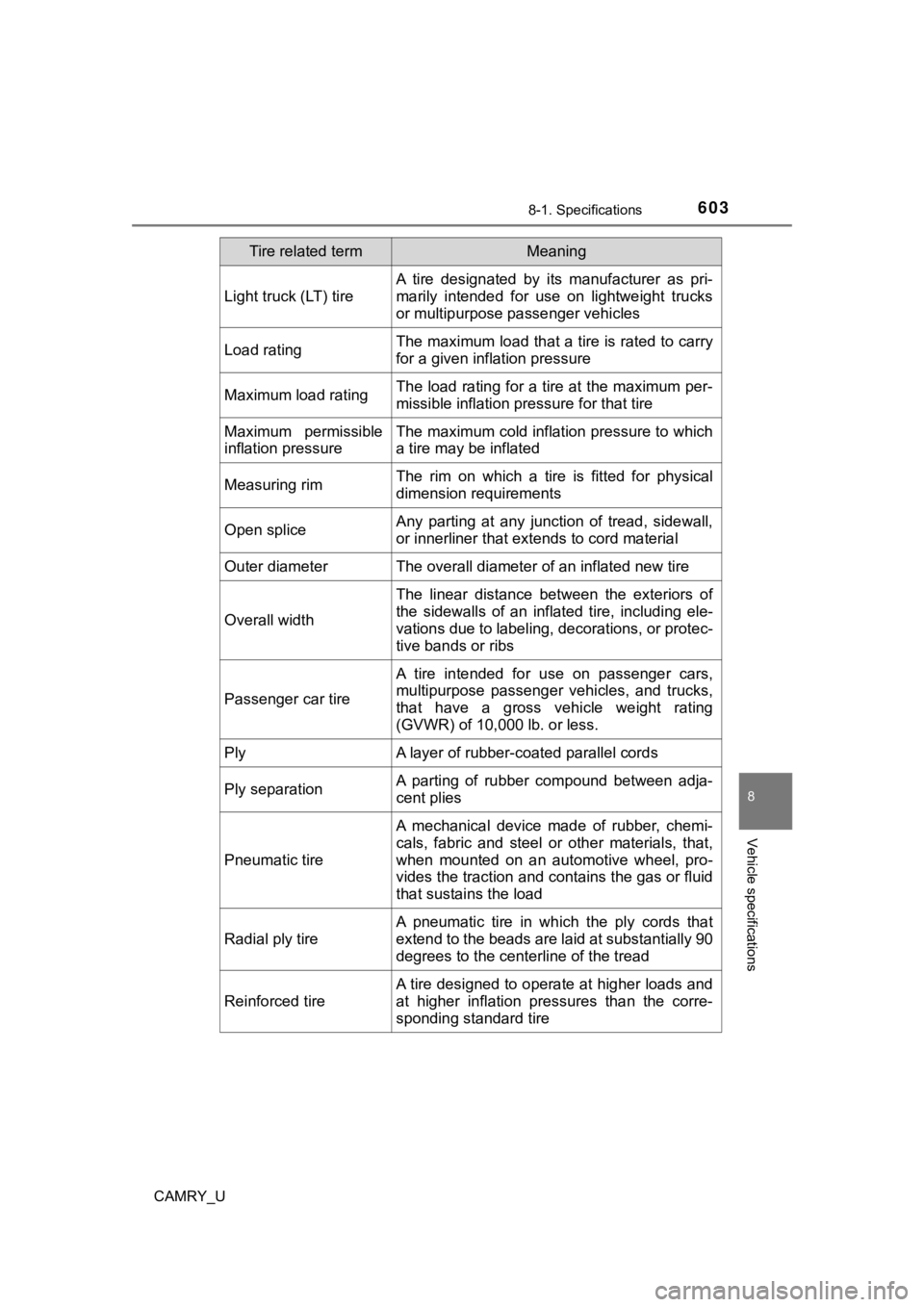

Light truck (LT) tire
A tire designated by its manufacturer as pri-
marily intended for use on lightweight trucks
or multipurpose passenger vehicles
Load ratingThe maximum load that a tire is rated to carry
for a given inflation pressure
Maximum load ratingThe load rating for a tire at the maximum per-
missible inflation pressure for that tire
Maximum permissible
inflation pressureThe maximum cold inflation pressure to which
a tire may be inflated
Measuring rimThe rim on which a tire is fitted for physical
dimension requirements
Open spliceAny parting at any junction of tread, sidewall,
or innerliner that extends to cord material
Outer diameterThe overall diameter of an inflated new tire
Overall width
The linear distance between the exteriors of
the sidewalls of an inflated tire, including ele-
vations due to labeling, decorations, or protec-
tive bands or ribs
Passenger car tire
A tire intended for use on passenger cars,
multipurpose passenger vehicles, and trucks,
that have a gross vehicle weight rating
(GVWR) of 10,000 lb. or less.
PlyA layer of rubber-coated parallel cords
Ply separationA parting of rubber compound between adja-
cent plies
Pneumatic tire
A mechanical device made of rubber, chemi-
cals, fabric and steel or other materials, that,
when mounted on an automotive wheel, pro-
vides the traction and co ntains the gas or fluid
that sustains the load
Radial ply tire
A pneumatic tire in which the ply cords that
extend to the beads are laid at substantially 90
degrees to the centerline of the tread
Reinforced tire
A tire designed to operate at higher loads and
at higher inflation pressures than the corre-
sponding standard tire
Tire related termMeaning

614
CAMRY_U
8-3. Items to initialize
Items to initialize
The following items must be initialized for normal system opera-
tion after such cases as the battery being reconnected, or main -
tenance being performed on the vehicle:
ItemWhen to initializeReference
Message indicating mainte-
nance is required
(on some models)• After the maintenance is per- formedP. 448
Tire pressure warning sys-
tem
• When the tire inflation pres-sure is changed such as
when changing traveling
speed or load weight
• When the tire inflation pres- sure is changed such as
when the tire size is
changed
• When rotating the tires
• After performing the trans-
mitter ID code registration
procedure
P. 475

649Alphabetical index
CAMRY_U
Warning lights............................ 89ABS....................................... 528
Brake hold operated
indicator .............................. 529
Brake system ....... ................. 528
Electric power steering ......... 529
Intuitive parking assist OFF indicator .............................. 336
LTA (Lane Tracing Assist) indicator .............................. 529
Low fuel level ........................ 531
Malfunction indicator lamp .... 528
Master warning light.............. 531
Parking brake indicator ......... 529
PCS warning light ................. 530
PKSB OFF indicator ............. 530
RCD OFF indicator ............... 354
Seat belt reminder light ......... 531
Slip indicator ......................... 531
SRS ...................................... 528
Tire pressure......................... 531
Warning messages .................. 538
Washer...................................... 240 Checking ............................... 472
Preparing and checking before winter....................... 377
Switch ................................... 240 Washing and waxing ............... 440
Weight ...................................... 574
Cargo capacity...................... 206
Load limits ............................ 206
Vehicle capacity weight ........ 574
Wheels ...................................... 490 Replacing.............................. 490
Size....................................... 584
Window glasses ...................... 179
Window lock switch ................ 179
Windows................................... 179 Power windows..................... 179
Rear window defogger ............. 383, 389, 397
Washer ................................. 240
Windshield wipers ................... 240
Winter driving tips ................... 377
Wireless charger ..................... 420
Wireless remote control ......... 141 Battery-Saving Function ....... 163
Locking/Unlocking ........ 148, 157
Panic mode........................... 143
Replacing the battery............ 494
WMA disc
*
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
