2022 TOYOTA C-HR fuel type

15Pictorial index
C-HR_HV_OM_Europe_OM10720E
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 345
Precautions for winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 543
To prevent freezing (windshield wiper de-icer*1) . . . . . . . . . . . P. 552
Precautions for using a car wash . . . . . . . . . . . . . . . . . . . . . . P. 583
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 350
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 350
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 769
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 616
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 776
Winter tires/tire chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 543
Checking/rotation/tire pressure warning system . . . . . . . . . . . P. 616
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 699, 729
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 596
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 596
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 770
Coping with overheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 757
Camera*1, 2
Headlights/front position lights/
daytime running lights/turn sig nal lights . . . . . . . . . . P. 324, 333
Front fog lights*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 343
Side turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 324
Tail lights/turn signal lights . . . . . . . . . . . . . . . . . . . . . P. 324, 333
Tail lights (LED type)
Turn signal lights (LED type) . . . . . . . . . . . . . . . . . . . . . . . . P. 324
Back-up light (bulb type)
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 315
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 333
Rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 343
Back-up light (LED type)
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 315
Light bulbs of the exterior lights for driving
(Replacing method: P. 653, Watts: P. 778)
*1: If equipped
*2: For vehicles with navigation/multimedia system, refer to
“Navigation and multimedia system Owner’s manual” or “Multimedi a owner’s manual”.

491-1. For safe use
1
For safety and security
C-HR_HV_OM_Europe_OM10720E
■If the SRS airbags deploy (inflate)
● Slight abrasions, burns, bruising, etc., may be sustained from SRS airbags,
due to the extremely high speed depl oyment (inflation) by hot gases.
● A loud noise and white powder will be emitted.
● Parts of the airbag module (steering wheel hub, airbag cover and inflator) as
well as the front seats, parts of the front and rear pillars, a nd roof side rails,
may be hot for several minutes. The airbag itself may also be h ot.
● The windshield may crack.
● The hybrid system will be stopped and fuel supply to the engine will be
stopped. ( P. 124)
● For eCall subscribers, if any of the following situations occur, the system is
designed to send an emergency call to the response center, noti fying them
of the vehicle’s location (without needing to push the “SOS” bu tton) and an
agent will attempt to speak with the occupants to ascertain the level of emer-
gency and assistance required. If the occupants are unable to c ommuni-
cate, the agent automatically treats the call as an emergency a nd helps to
dispatch the necessary emergency services. ( P. 97)
• An SRS airbag is deployed.
• A seat belt pretensioner is activated.
• The vehicle is involved in a severe rear-end collision.
■ SRS airbag deployment conditions (SRS front airbags)
● The SRS front airbags will deploy in the event of an impact that exceeds the
set threshold level (the level of force corresponding to an app roximately 20 -
30 km/h [12 - 18 mph] frontal collision with a fixed wall that does not move or
deform).
However, this threshold veloci ty will be considerably higher in the following
situations:
• If the vehicle strikes an object, such as a parked vehicle or sign pole,
which can move or deform on impact
• If the vehicle is involved in an underride collision, such as a collision in
which the front of the vehicle “underrides”, or goes under, the bed of a
truck
● Depending on the type of collision, it is possible that only the seat belt
pretensioners will activate.

1822. Instrument cluster
C-HR_HV_OM_Europe_OM10720E
Navigation/multimedia system screen (vehicles without navigation
system)
Press the “MENU” button.
Select “Info” on the “Menu” screen.
If a screen other than the desired one is displayed, select “Tr ip information”
or “History” on the screen.
Navigation/multimedia system screen (vehicles with navigation s ys-
tem)
Press the “MENU” button.
Select “Info” on the “Menu” screen.
Select “ECO” on the “Information” screen.
If a screen other than the desired one is displayed, select “Tr ip information”
or “History” on the screen.
■Trip information
Resetting the consumption
data
Average vehicle speed since
the hybrid system was
started
Elapsed time since the hybrid
system was started
Fuel consumption in the past
15 minutes
Cruising range ( P. 183)
Regenerated energy in the past 15 minutes
One symbol indicates 30 Wh. Up to 5 symbols are shown.
Current fuel consumption
Average fuel consumption for the past 15 minutes is divided by
color into past averages and averages attained since the power
switch was last turned to ON mode. Use the displayed average fu el
consumption as a reference.
These images are examples only, and may vary slightly from actu al condi-
tions.
Fuel consumption (type A) (if equipped)
1
2
1
2
3

1842. Instrument cluster
C-HR_HV_OM_Europe_OM10720E
■Current fuel consumption screen
Select on the main menu.
Select “Trip information”
If a screen other than “Current”
is displayed, select “Current”.
Average vehicle speed
since the hybrid system
was started.
Trip range
Elapsed time since the
hybrid system was started.
Resetting the history data
Fuel consumption in the past 15 minutes
Current fuel consumption
Use the displayed average fuel consumption as a reference. The
image is an example only, and may vary slightly from actual con di-
tions.
Fuel consumption (type B) (if equipped)
1
2

3504-4. Refueling
C-HR_HV_OM_Europe_OM10720E
Opening the fuel tank cap
●Turn the power switch off and ensure that all the doors and win-
dows are closed.
● Confirm the type of fuel.
■Fuel types
 P. 779
■ Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
Perform the following steps to open the fuel tank cap:
Before refueling the vehicle

531
4
4-5. Using the driving support systems
Driving
C-HR_HV_OM_Europe_OM10720E
GPF (Gasoline Par ticulate Filter) system
■If “Exhaust filter full. See owner’s manual.” is shown on the multi-infor-
mation display
● The message may be displayed while high load driving with particulate mat-
ter accumulating.
● Hybrid system output (engine speed) is restricted when a certain amount of
particulate matter accumulates, however, it is possible to driv e the vehicle
unless the malfunction indicator lamp comes on.
● Particulate matter can accumulate more quickly if the vehicle is frequently
driven short trips or at low s peeds, or if the hybrid system is regularly started
in an extremely cold environment. Excessive accumulation of par ticulate
matter can be prevented by periodically driving long distances continuously
with intermittent releasing of the accelerator pedal, such as w hen driving on
highways and freeways.
■ If the malfunction indicator lamp comes on or “Engine Maintenance
Required. Visit Your Dealer.” is shown on the multi-information display
The amount of accumulated particulate matter has exceeded a cer tain level.
Have the vehicle inspected by any authorized Toyota retailer or Toyota autho-
rized repairer, or any reli able repairer immediately.
The GPF system collects particulate matter in the exhaust gas
by using an exhaust gas filter.
The system will operate to regenerate the filter automatically,
depending on the vehicle conditions.
NOTICE
■ To prevent the GPF system from not operating properly
● Do not use fuel other than the specified type
● Do not modify the exhaust pipes

7447-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
If the hybrid system will not star t
One of the following may be the cause of the problem:
● The electronic key may not be functioning properly. (P. 746)
● There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle. ( P. 125)
● There may be a malfunction in the immobilizer system. (P. 1 3 0 )
● There may be a malfunction in the steering lock system.
● The hybrid system may be malfunctioning due to an electrical prob-
lem such as electronic key battery depletion or a blown fuse. H ow-
ever, depending on the type of malfunction, an interim measure is
available to start the hybrid system. ( P. 745)
One of the following may be the cause of the problem:
● The 12-volt battery may be discharged. (P. 749)
● The 12-volt battery terminal connections may be loose or corroded.
( P. 606)
Reasons for the hybrid system not starting vary depending on
the situation. Check the following and perform the appropriate
procedure:
The hybrid system will not start even though the correct starti ng
procedure is being followed. ( P. 305)
The interior lights and headlights are dim, or the horn does not
sound or sounds at a low volume.

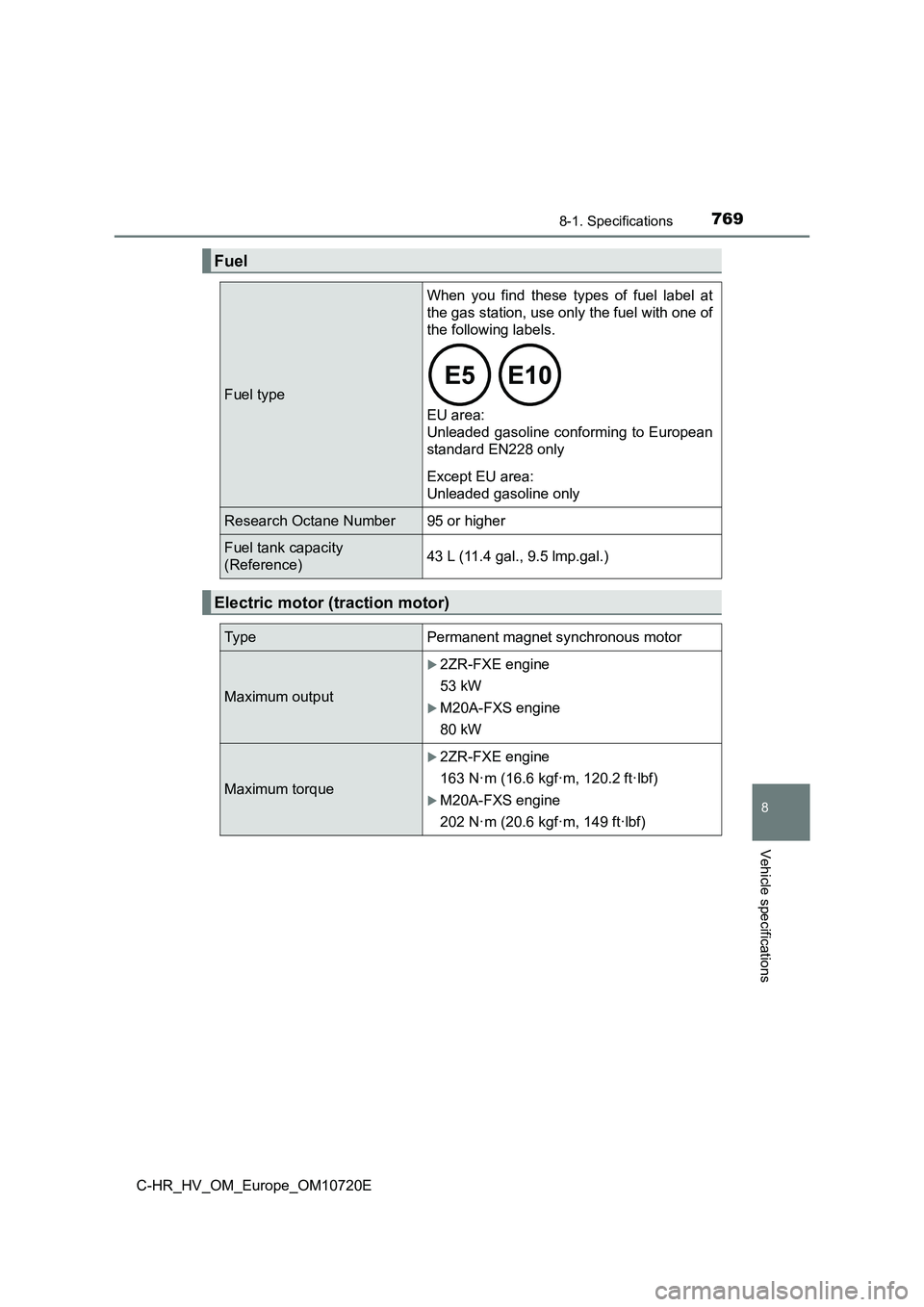

7698-1. Specifications
C-HR_HV_OM_Europe_OM10720E
8
Vehicle specifications
Fuel
Fuel type
When you find these types of fuel label at
the gas station, use only the fuel with one of
the following labels.

EU area:
Unleaded gasoline conforming to European
standard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane Number95 or higher
Fuel tank capacity
(Reference)43 L (11.4 gal., 9.5 lmp.gal.)
Electric motor (traction motor)
Ty p ePermanent magnet synchronous motor
Maximum output
2ZR-FXE engine
53 kW
M20A-FXS engine
80 kW
Maximum torque
2ZR-FXE engine
163 N·m (16.6 kgf·m, 120.2 ft·lbf)
M20A-FXS engine
202 N·m (20.6 kgf·m, 149 ft·lbf)
