2022 SUZUKI IGNIS check engine

7-14
INSPECTION AND MAINTENANCE
75RM4-01E
#1: For further details, see “Engine oil and filter” in this section.
#2: Perform the engine coolant l evel check under the daily inspection in the “OPERATING YOUR VEHICLE” section.
If you use the engine coolant other than “SUZUKI LLC: Super (Bl ue)” for replacement, follow the schedule of “SUZUKI LLC: Standard (Green)”.
Interval: This interval should be judged by
odometer reading or months, whichever comes
first. km (x1000) 20 40 60 80 100 120
miles (x1000) 12.5 25 37.5 50 62.5 75 months 12 24 36 48 60 72ENGINE*1-1. Engine accessory drive belt (with SHVS) Tension check, *Adjustment, *Replacement – I – R – I
(without SHVS) Tension check, *Adjustment, *Replacement
–
I
–
I
–
R
1-2. Engine oil and engine oil filter ACEA Standards or SUZUKI G ENUINE OIL (#1) RRRRRR
Refer to “Oil change request light” in the “BEFORE DRIVING” section.
Other than ACEA Standards or SUZUKI GENUINE OIL (#1) Replace eve ry 15000 km (9375 miles) or 12 months.
Refer to “Oil change request light” in the “BEFORE DRIVING” section.
1-3. Engine coolant SUZUKI LLC: Super (Blue) (#2) First time only : Replace at 160000 km (100000 miles) or 96 months.

Second time and after:
Replace every 80000 km (50000 miles) or 48 months.
SUZUKI LLC: Standard (Green) Replace every 40000 km (25000 mile s) or 36 months.
*1-4.
Exhaust system (except catalyst)
–
I
–
I
–
I
IGNITION
2-1.
Spark plugs When unleaded fuel is used
Iridium plug
Replace every 100000 km (62500 miles) or 84 months.
Spark plugs When leaded fuel is used, refer to “Severe driving condition” schedule.
FUEL
3-1. Air cleaner filter element Paved-road Inspect every 20000 k m (12500 miles) or 12 months.
Replace every 40000 km (25000 miles) or 36 months.
Dusty condition Refer to “Severe driving condition” schedule.
*3-2.
Fuel lines
–
I
–
I
–
I
*3-3. Fuel tank –I–I–I

7-15INSPECTION AND MAINTENANCE
75RM4-01E
#1: For further details, see “Engine oil and filter” in this section.
#2: Perform the engine coolant l evel check under the daily inspection in the “OPERATING YOUR VEHICLE” section.
If you use the engine coolant other than “SUZUKI LLC: Super (Bl ue)” for replacement, follow the schedule of “SUZUKI LLC: Standard (Green)”.
Interval: This interval should be judged by
odometer reading or months, whichever comes
first. km (x1000) 140 160 180 200 220 240
miles (x1000) 87.5 100 112.5 125 137.5 150 months 84 96 108 120 132 144ENGINE*1-1. Engine accessory drive belt (with SHVS) Tension check, *Adjustment, *Replacement – R – I – R
(without SHVS) Tension check, *Adjustment, *Replacement
–
I
–
I
–
R
1-2. Engine oil and engine oil filter ACEA Standards or SUZUKI G ENUINE OIL (#1) RRRRRR
Refer to “Oil change request light” in the “BEFORE DRIVING” section.
Other than ACEA Standards or SUZUKI GENUINE OIL (#1) Replace eve ry 15000 km (9375 miles) or 12 months.
Refer to “Oil change request light” in the “BEFORE DRIVING” section.
1-3. Engine coolant SUZUKI LLC: Super (Blue) (#2) First time only : Replace at 160000 km (100000 miles) or 96 months.

Second time and after:
Replace every 80000 km (50000 miles) or 48 months.
SUZUKI LLC: Standard (Green) Replace every 40000 km (25000 mile s) or 36 months.
*1-4.
Exhaust system (except catalyst)
–
I
–
I
–
I
IGNITION
2-1.
Spark plugs When unleaded fuel is used
Iridium plug
Replace every 100000 km (62500 miles) or 84 months.
Spark plugs When leaded fuel is used, refer to “Severe driving condition” schedule.
FUEL
3-1. Air cleaner filter element Paved-road Inspect every 20000 k m (12500 miles) or 12 months.
Replace every 40000 km (25000 miles) or 36 months.
Dusty condition Refer to “Severe driving condition” schedule.
*3-2.
Fuel lines
–
I
–
I
–
I
*3-3. Fuel tank –I–I–I

7-19INSPECTION AND MAINTENANCE
75RM4-01E
#1: For further details, see “Engine oil and filter” in this section.
#2: Perform the engine coolant l evel check under the daily inspection in the “OPERATING YOUR VEHICLE” section.
If you use the engine coolant other than “SUZUKI LLC: Super (Bl ue)” for replacement, follow the schedule of “SUZUKI LLC: Standard (Green)”.
Interval: This interval should be judged by
odometer reading or months, whichever comes
first. km (x1000) 10 20 30 40 50 60
miles (x1000) 6.25 12.5 18.75 25 31.25 37.5 months6 1218243036ENGINE*1-1. Engine accessory drive belt Tension check, *Adjustment, *Re placement – I – I – R 1-2.
Engine oil and engine oil filter
ACEA Standards or SUZUKI GENUINE OIL (#1)
R
R
R
R
R
R
Refer to “Oil change request light” in the “BEFORE DRIVING” section.
Other than ACEA Standards or SUZUKI GENUINE OIL (#1)
Replace every 7500 km (4687 miles) or 6 months.Refer to “Oil change request light” in the “BEFORE DRIVING” section.
1-3.
Engine coolant
SUZUKI LLC:
Super (Blue) (#2)
First time only:
Replace at 160000 km (100000 miles) or 96 months.
Second time and after: Replace every 80000 km (50000 miles) or 48 months.
SUZUKI LLC:
Standard (Green)
Replace every 40000 km (25000 miles) or 36 months.
*1-4. Exhaust system (except catalyst) ––– I ––
IGNITION
2-1. Spark plugs Iridium plug Replace every 30000 km (18750 miles) or 24 months.FUEL
3-1. Air cleaner filter element*
1
Inspect every 2500 km (1562 miles).Replace every 30000 km (18750 miles) or 24 months.
*3-2. Fuel lines ––– I ––
*3-3.
Fuel tank
–
–
–
I
–
–
EMISSION CONTROL SYSTEM
*4-1.
PCV valve
Inspect every 80000 km (5 0000 miles) or 48 months.
*4-2.
Fuel evaporative emi ssion control system
––––––

7-20
INSPECTION AND MAINTENANCE
75RM4-01E
#1: For further details, see “Engine oil and filter” in this section.
#2: Perform the engine coolant l evel check under the daily inspection in the “OPERATING YOUR VEHICLE” section.
If you use the engine coolant other than “SUZUKI LLC: Super (Bl ue)” for replacement, follow the schedule of “SUZUKI LLC: Standard (Green)”.
Interval: This interval should be judged by
odometer reading or months, whichever comes
first. km (x1000) 70 80 90 100 110 120
miles (x1000) 43.75 50 56.25 62.5 68.75 75 months 42 48 54 60 66 72ENGINE*1-1. Engine accessory drive belt Tension check, *Adjustment, *Re placement – I – I – R 1-2.
Engine oil and engine oil filter
ACEA Standards or SUZUKI GENUINE OIL (#1)
R
R
R
R
R
R
Refer to “Oil change request light” in the “BEFORE DRIVING” section.
Other than ACEA Standards or SUZUKI GENUINE OIL (#1)
Replace every 7500 km (4687 miles) or 6 months.Refer to “Oil change request light” in the “BEFORE DRIVING” section.
1-3.
Engine coolant
SUZUKI LLC:
Super (Blue) (#2)
First time only:
Replace at 160000 km (100000 miles) or 96 months.
Second time and after: Replace every 80000 km (50000 miles) or 48 months.
SUZUKI LLC:
Standard (Green)
Replace every 40000 km (25000 miles) or 36 months.
*1-4. Exhaust system (except catalyst) – I ––– I
IGNITION
2-1. Spark plugs Iridium plug Replace every 30000 km (18750 miles) or 24 months.FUEL
3-1. Air cleaner filter element*
1
Inspect every 2500 km (1562 miles).Replace every 30000 km (18750 miles) or 24 months.
*3-2. Fuel lines – I ––– I
*3-3.
Fuel tank
–
I
–
–
–
I
EMISSION CONTROL SYSTEM
*4-1.
PCV valve
Inspect every 80000 km (5 0000 miles) or 48 months.
*4-2.
Fuel evaporative emi ssion control system
––––– I

7-22
INSPECTION AND MAINTENANCE
75RM4-01E
NOTE:
4WD: 4-wheel drive
NOTE:
This table shows the service schedule up to 120000 km (75000 miles).
Beyond 120000 km (75000 miles), perform the same services at the same intervals shown in the chart.
*1 Inspect more frequently if the v ehicle is used under dusty conditions.
*2 Check or replace as necessary if you usually drive with high speed or high engine revolutions.
*3 Clean more frequently if the air flow from the air conditioner decreases.Interval: This interval should be judged by odometer reading or months, whichever
comes first. km (x1000) 70 80 90 100 110 120
miles (x1000) 43.75 50 56.25 62.5 68.75 75 months 42 48 54 60 66 72BRAKE*5-1. Brake discs and pads (front) –I–I–I
Brake drums and shoes (rear)
–
I
–
–
–
I
*5-2. Brake hoses and pipes –I–––I
5-3.
Brake fluid
Check, *Replacement
–
R
–
–
–
R
5-4. Brake lever and cable
Check, *Adjustment (1st 20000 km only)
––––––
CHASSIS AND BODY *6-1. Clutch (Cable control type) –I–I–I6-2.
Tires/Wheels
–
I
–
I
–
I
*6-3. Wheel bearings –I–I–I
*6-4.
Drive axle boots/Propeller shafts (4WD)
–
I
–
–
–
I
*6-5. Suspension system –I–––I
*6-6.
Steering system
–
I
–
–
–
I
*6-7.
Manual transaxle oil Genuine “SUZUKI GEAR OIL 75W”
Inspect every 20000 km (12500 miles) or 12 months.Replace every 80000 km (50000 miles) or 48 months.
Other than “SUZUKI GEAR OIL 75W”
–R–R–R
*6-8.
Auto Gear Shift oil
Genuine “SUZUKI GEAR OIL 75W”
Inspect every 20000 km (12500 miles) or 12 months.Replace every 80000 km (50000 miles) or 48 months.
Other than “SUZUKI GEAR OIL 75W”
–
R
–
R
–
R
6-9. Continuously variable transaxle (CVT) Fluid level – I – I – I
*Fluid deterioration check*
2
–
I
–
I
–
I
*Fluid change Replace every 70000 km (43750 miles).
*6-10.
Transfer oil (4WD)
Inspect every 20000 km (12500 miles) or 12 months.
Replace every 80000 km (50000 miles) or 48 months.
*6-11.
Rear differential oil (4WD)
Inspect every 20000 km (12500 miles) or 12 months.
Replace every 80000 km (50000 miles) or 48 months.
6-12.
All latches, hinges and locks
–
I
–
–
–
I
*6-13. Air conditioner filter element (if equipped)*
3
–I–I–R

7-23INSPECTION AND MAINTENANCE
75RM4-01E

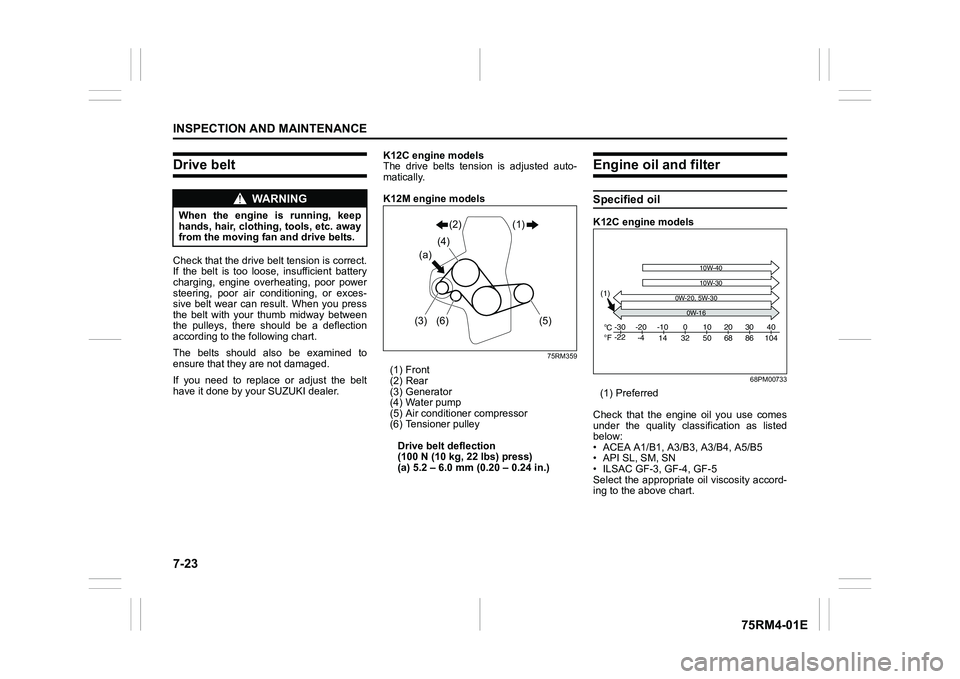

Drive beltCheck that the drive belt tension is correct.
If the belt is too loose, insufficient battery
charging, engine overheating, poor power
steering, poor air conditioning, or exces-
sive belt wear can result. When you press
the belt with your thumb midway between
the pulleys, there should be a deflection
according to the following chart.
The belts should also be examined to
ensure that they are not damaged.
If you need to replace or adjust the belt
have it done by your SUZUKI dealer.K12C engine models
The drive belts tension is adjusted auto-
matically.
K12M engine models
75RM359
(1) Front
(2) Rear
(3) Generator
(4) Water pump
(5) Air conditioner compressor
(6) Tensioner pulley
Drive belt deflection
(100 N (10 kg, 22 lbs) press)
(a) 5.2 – 6.0 mm (0.20 – 0.24 in.)
Engine oil and filterSpecified oil K12C engine models
68PM00733
(1) Preferred
Check that the engine oil you use comes
under the quality classification as listed
below:
• ACEA A1/B1, A3/ B3, A3/B4, A5/B5
• API SL, SM, SN
• ILSAC GF-3, GF-4, GF-5
Select the appropriate oil viscosity accord-
ing to the above chart.
WA R N I N G
When the engine is running, keep
hands, hair, clothing, tools, etc. away
from the moving fan and drive belts.
(a) (4)(2) (1)
(3) (6) (5)
C Fo
o-30
-22
-20
10W-40
-4-10
14 32 50 68 86 104 010203040
10W-30
(1)
0W-20, 5W-30
0W-16

7-24
INSPECTION AND MAINTENANCE
75RM4-01E
NOTE:
(For EU countries)
The replacement timing varies with the
type of engine oil that you choose.
Refer to “Maintenance schedule” in this
section for corresponding maintenance
schedule.
SAE 0W-16 (1) is the best choice for good
fuel economy and good starting in cold
weather.
NOTE:
We recommend that you use SUZUKI gen-
uine oil. To purchase it, see your SUZUKI
dealer. K12M engine models
71LST0701
(1) Preferred
Be sure that the engine oil you use comes
under the quality classification of SG, SH,
SJ, SL, SM or SN. Select the appropriate
oil viscosity according to the above chart.
SAE 0W-20 (1) is the best choice for good
fuel economy, and good starting in cold
weather.
Oil level check
80G064
52D084
EXAMPLE
UpperLower

7-25INSPECTION AND MAINTENANCE
75RM4-01E
It is important to keep the engine oil at the
correct level for proper lubrication of your
vehicle’s engine. Check the oil level with
the vehicle on a level surface. The oil level
indication may be inaccurate if the vehicle
is on a slope. The oil level should be
checked either before starting the engine
or at least 5 minutes after stopping the
engine.
The handle of the engine oil dipstick is col-
ored with yellow for ea sy identification.
Pull out the oil dipstick, wipe oil off with a
clean cloth, insert the dipstick all the way
into the engine, and then remove it again.
The oil on the stick should be between the
upper and lower limits shown on the stick.
If the oil level indication is near the lower
limit, add enough oil to raise the level to
the upper limit.
Refilling
81A147
Remove the oil filler cap and pour oil slowly
through the filler hole to bring the oil level
to the upper limit on the dipstick. Be careful
not to overfill the oil. Too much oil is almost
as bad as too little oil. A fter refilling, start the
engine and allow it to idle for about a min-
ute. Stop the engine, wait about 5 minutes
and check the oil level again.
Changing engine oil and filterDrain the engine oil while the engine is still
warm.
56KN054
1) Remove the oil filler cap.
2) Place a drain pan under the drain plug.
3) Using a wrench, remove the drain plug and drain the engine oil.
NOTICE
Failure to check the oil level regularly
could lead to serious engine trouble
due to insufficient oil.
EXAMPLEOpen Close
CAUTION
The engine oil temperature may be
high enough to burn your fingers
when the drain plug is loosened. Wait
until the drain plug is cool enough to
touch with your bare hands.EXAMPLE
Open Close
