2022 SUBARU BRZ lights

Installation of Accessories
373
Maintenance and Service11
– CONTINUED –
11-27. Installation of Acces-soriesAlways consult your SUBARU dealer
before installing fog lights or any other
electrical equipment in your vehicle. Such
accessories may cause the electronic
system to malfunction if they are incor-
rectly installed or if they are not suited for
the vehicle. We recommend that you
install only genuine SUBARU accessories
on your vehicle.
11-28. Replacing Bulbs
■
Headlights
The LED headlight warning light illumi-
nates if the LED headlights malfunction.
Have your vehicle inspected at a
SUBARU dealer as soon as possible.■
Backup Light
NOTE
 It may be difficult to replace the
bulbs. We recommend that you have
the bulbs replaced by your SUBARU
dealer if necessary.
 If a genuine SUBARU accessory has
been installed to the rear bumper,
check the manual included with the
accessory.
WARNING
Bulbs may become very hot while
illuminated. Before replacing bulbs,
turn off the lights and wait until the
bulbs cool down, Otherwise, there
is the risk of sustaining a burn
injury.
CAUTION
 Before replacing a backup light,
stop the engine and allow the
exhaust pipes and surrounding
parts to cool suffi ciently. As the
bulbs are near the exhaust pipes,
there is a risk of being burned. Replace any bulb only with a new
bulb of the specified wattage.
Using a bulb of different wattage
could result in a fire. For the spec-
ified wattage of each bulb, refer to
"Bulb Chart" 
P387. For replace-
ment, contact your SUBARU
dealer.
B02119
B5=B8.ERRN 33 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Bulb Chart
387
Specifications12
12-2. Bulb Chart■
Safety Precautions
WARNING
Bulbs may become very hot while
illuminated. Before replacing bulbs,
turn off the lights and wait until the
bulbs cool down. Otherwise, there
is a risk of sustaining a burn injury.
CAUTION
Replace any bulb only with a new
bulb of the specified wattage. Using
a bulb of different wattage could
result in a fire.
B5=B8.ERRN 3 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分
– CONTINUED –

Bulb Chart
388■

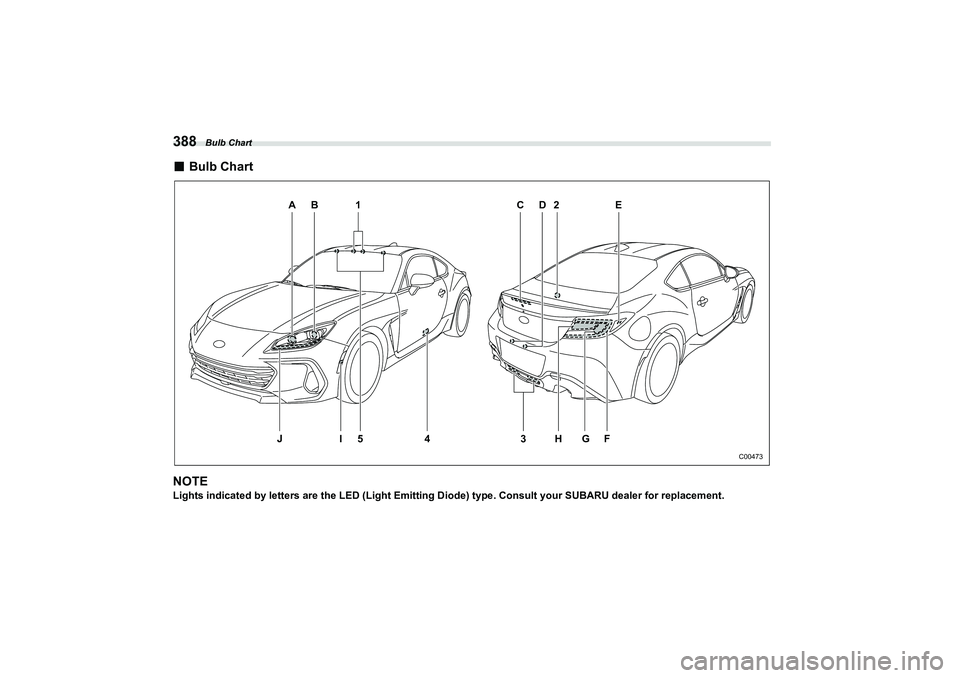

Bulb Chart
NOTE
Lights indicated by le tters are the LED (Light Emitting Diode) type . Consult your SUBARU dealer for replacement.
A
C
2
E
F
G
4
J
I
5
3
H
D
B
1
C00473
B5=B8.ERRN 3 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Bulb Chart
389
Specifications12
WattageBulb No.
1) Map lights 12 V-8 W―
2) Trunk light 12 V-3.8 WSAE #194
3) Backup lights 12 V-16 WW16W
4) Door step lights 12 V-5 WW5W
5) Vanity mirror lights 12 V-2 W―
A) Front turn signal lights ――
B) Low and high beam headlights ――
C) High-mounted stop light ――
D) License plate lights ――
E) Rear side marker lights ――
F) Tail and stop lights ――
G) Stop lights ――
H) Rear turn signal lights ――
I) Front side marker lights ――
J) Front position lights ――
Daytime running lights ――
B5=B8.ERRN 3 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分
