2022 SUBARU BRZ light

Windows
118blow and the windows will not be able
to be opened or closed. If the windows
cannot be opened or closed, check the
fuses and replace them as necessary.
Refer to "Fuses" 
P371.
Also, after replacing a fuse, make sure
to initialize the power windows. Refer
to "Initialization of Power Window"

P118.
▼Anti-entrapment function
While closing the window automatically, if
the window senses a substantial enough
object trapped between the window and
the roof side (between the front pillar and
a point over the rear seat), it automatically
moves down slightly and stops.
If a foreign object is caught while window
is opening automatical ly, the window will
stop.
NOTE If a window detects an impact
similar to that caused by trapping an
object (for example, when the vehicle
encounters a deep pothole), the anti-
entrapment func tion may operate.
 You cannot close the window for a
few seconds after the anti-entrapment
function operates.
▼
Off delay function
The windows can be operated for approx-
imately 40 seconds even after the ignition
switch is turned to the “ACC” or “OFF”
position. If a door is opened within 40
seconds, the off delay function is
canceled. ▼
Locking the passenger’s window1) Lock
2) UnlockWhen the lock switch is in the lock posi-
tion, the passenger’s window cannot be
opened or closed.■
Initialization of Power
Window
If the one-touch aut
o up and down func-
tion or off delay function does not operate
properly, operate each window according
to the following procedure in order to
initialize the pow er window system.
1. Close the door.
2. Turn the ignition switch to the “ON”
position.
CAUTION
 Never attempt to test the power
window operation using body
parts fingers, hands or other
parts of your body.If an object is caught just before
the window fully closes, the
system may not operate properly.
12
204139
B5=B8.ERRN 11 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

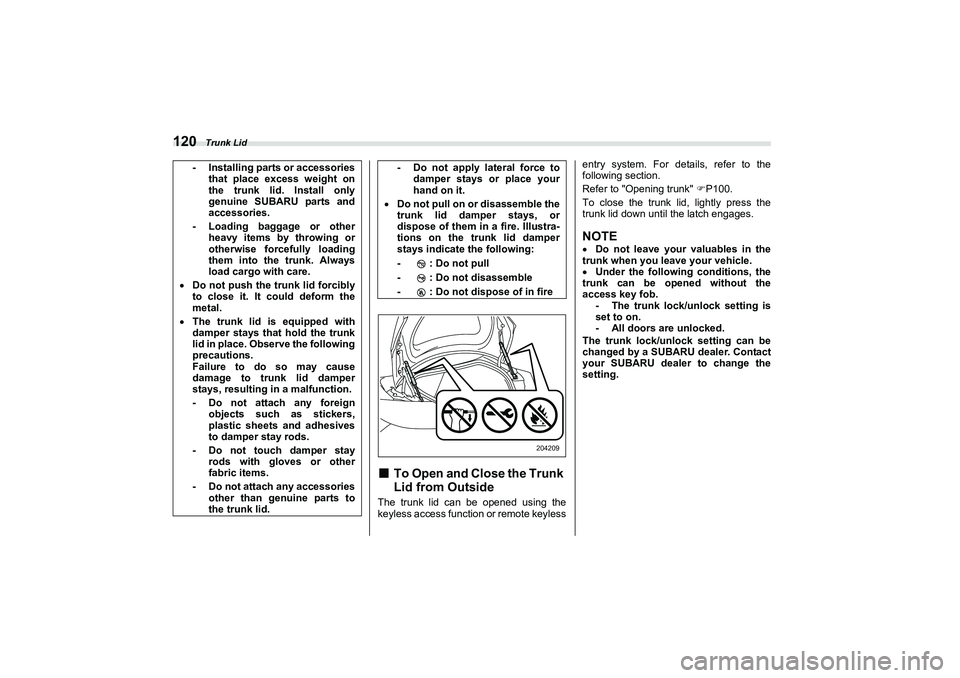

Trunk Lid
120
■
To Open and Close the Trunk
Lid from Outside
The trunk lid can be opened using the
keyless access function or remote keylessentry system. For details, refer to the
following section.
Refer to "Opening trunk"
P100.
To close the trunk lid, lightly press the
trunk lid down until the latch engages.
NOTE Do not leave your valuables in the
trunk when you leave your vehicle.
 Under the following conditions, the
trunk can be opened without the
access key fob. - The trunk lock/unlock setting is
set to on.
- All doors are unlocked.
The trunk lock/unlock setting can be
changed by a SUBARU dealer. Contact
your SUBARU dealer to change the
setting.
- Installing parts or accessories that place excess weight on
the trunk lid. Install only
genuine SUBARU parts and
accessories.- Loading baggage or otherheavy items by throwing or
otherwise forcefully loading
them into the trunk. Always
load cargo with care.
 Do not push the trunk lid forcibly
to close it. It could deform the
metal.The trunk lid is equipped with
damper stays that hold the trunk
lid in place. Observe the following
precautions.
Failure to do so may cause
damage to trunk lid damper
stays, resulting in a malfunction.
- Do not attach any foreign
objects such as stickers,
plastic sheets and adhesives
to damper stay rods.- Do not touch damper stayrods with gloves or other
fabric items.- Do not attach any accessoriesother than genuine parts to
the trunk lid.
- Do not apply la teral force to
damper stays or place your
hand on it.
 Do not pull on or disassemble the
trunk lid damper stays, or
dispose of them in a fire. Illustra-
tions on the trunk lid damper
stays indicate the following:
- : Do not pull- : Do not disassemble- : Do not dispose of in fire
204209
B5=B8.ERRN 120 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Trunk Lid
121
Keys and Doors2
– CONTINUED –
■
To Open the Trunk Lid from
Inside
Press and hold the trunk lid opener button
for more than 1 second.■
Internal Trunk Lid Release
Handle
The internal trunk lid release handle is a
device designed to open the trunk lid from
inside the trunk. In the event children or
adults become locked inside the trunk, the
handle allows them to open the lid. The
handle is located on the inside of the trunk
lid.To open the trunk lid from inside the trunk,
pull the yellow handle as indicated by the
arrow on the handle. This operation
unlocks the trunk lid. Then, push up the
lid.
The handle is made of material that
remains luminescent for approximately an
hour in the dark trunk space after it is
exposed to ambient light even for a short
time.
204140
204141
WARNING
Never allow any child to get in the
trunk and play with the release han-
dle. If the driver starts the vehicle
without knowing that a child is
inside the trunk and the child opens
the lid using the release handle, the
child could fall out and be killed or
seriously injured.
CAUTION

Do not close the lid while gripping
the release handle. The handle
may be damaged.Do not use the handle as a hook
to fasten straps or ropes to
secure your cargo in the trunk.
Such use may result in damage of
the handle.Load the trunk so that cargo
cannot strike the release handle.
If the cargo hits the handle while
the vehicle is being driven, the
handle may be pulled and the
trunk lid may open. That may
cause cargo to fall out of the
trunk, which could create a traffic
safety hazard.
B5=B8.ERRN 121 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Instruments and Controls3
Instruments and Controls
3-1. Push-Button Ignition Switch ..............................125
Safety Precautions ............................................ ...........125
Operating Range for Push-Button Start System .......125
Switching Power Status ...............................................125
When Access Key Fob Does Not Operate Properly.......................................................................126
3-2. Hazard Warning Flasher .....................................127
3-3. Meters and Gauges .............................................127
Speedometer .................................................................127
Tachometer ...................................................................127
Odometer and Double Trip Meter................................128
Fuel Gauge ....................................................................129
Engine Coolant Temperature Gauge ..........................129
Outside Temperature ...................................................129
Combination Meter Settings ........................................130
3-4. REV indicator light and buzzer ..........................130
3-5. Illumination Brightness Control ........................130
Auto Dimmer Cancel Function ....................................131
3-6. Warning and Indicator Lights ............................131
Seatbelt Warning Light and Chime .............................131
SRS Airbag System Warning Light .............................135
Front Passenger’s Frontal Airbag ON and OFF Indicators ....................................................................135
CHECK ENGINE Warning Light/Malfunction Indicator Light ............................................................136
Coolant Temperature Low Indicator Light/Coolant Temperature High Warning Light .............................136
Charge Warning Light ..................................................137
Oil Pressure Warning Light .........................................137
AT OIL TEMP Warning Light (AT Models) .................138
Low Tire Pressure Warning Light (If Equipped) ........138
ABS Warning Light .......................................................140
Brake System Warning Light... ....................................140Low Fuel Warning Light .............................................. 141
Door Open Indicator .................................................... 141
Power Steering Warning Light ................................... 141
TRAC OFF Indicator Light........................................... 142
Vehicle Stability Control (VSC) Warning Light/
Vehicle Stability Control (VSC) Operation
Indicator Light............................................................ 142
Vehicle Stability Control (VSC) OFF Indicator Light ........................................................................... 143
Warning Chimes and Warning Indicator of the Keyless Access with Push-Button Start System.... 143
Security Indicator Light............................................... 148
Drive Mode Indicator Light (If Equipped) .................. 148
Select Lever (AT Models Only)/Gear Position Indicator ..................................................................... 149
Cruise Control Indicator Light (White/Green)/ Cruise Control Warning Light (Yellow) (Models
without the EyeSight System) .................................. 149
Turn Signal Indicator Lights ....................................... 149
High Beam Indicator Light .......................................... 150
High Beam Assist Indicator (If Equipped) ................. 150
Automatic Headlight Beam Leveler Warning Light ............................................................................ 150
LED Headlight Warning Light ..................................... 150
Steering Responsive Headlight OFF Indicator Light (If Equipped) ..................................................... 150
Steering Responsive Headlight Warning Light (If Equipped)............................................................... 150
Headlight Indicator Light ............................................ 150
Hill Start Assist Indicator Light .................................. 150
BSD/RCTA Warning Indicator (If Equipped).............. 150
BSD/RCTA OFF Indicator (If Equipped) ..................... 150
Icy Road Surface Warning Indicator .......................... 151
B5=B8.ERRN 123 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Instruments and Controls
RAB Warning Indicator (If Equipped) ......................... 151
RAB OFF Indicator (If Equipped) ................................ 151
Master Warning Light .................................................. 151
3-7. Combination Meter Display (Color TFT) ...........151
Basic Operation............................................................ 152
Meter Information Screen ........ .................................... 152
Drive Information ......................................................... 153
Exclusive Content for SUBARU BRZ ......................... 154
Navigation System-Linked Disp lay ............................ 156
Audio System-Linked Display..................................... 156
Driving Support System Settings Display ................. 157
Settings Display ........................................................... 157
Warning Message Display ....... .................................... 159
Telltale Screen .............................................................. 159
3-8. Center Information Display (CID).......................160
Features ........................................................................ 160
Touch Screen Operations ........................................... 160
Main Screen .................................................................. 161
3-9. Clock ....................................................................172
Setting the Clock Manually ......................................... 172
Setting the Clock Automatically ................................. 173
3-10. Light Control Switch ........................................ 174
Headlights ..................................................................... 174
High/Low Beam Change (Dimmer) ............................. 176
Headlight Flasher ......................................................... 176
High Beam Assist Function (If Equipped).................. 177
Daytime Running Light System .................................. 180
3-11. Steering Responsive Headlight (SRH)
(If Equipped) ..................................................... 180
3-12. Headlight Beam Leveler .................................. 182
3-13. Turn Signal Le ver ............................................. 182
One-Touch Lane Changer ........................................... 182
3-14. Wiper and Washer ............................................ 183
Windshield Wiper and Washer Switches ................... 184
3-15. Defogger ........................................................... 185
3-16. Mirrors ............................................................... 186
Inside Mirror.................................................................. 186
Auto-Dimming Mirror/Compass with HomeLink
®
(Dealer Option) ........................................................... 186
Outside Mirrors............................................................. 194
3-17. Tilt/Telescopic Steering Wheel ....................... 195
3-18. Horn ................................................................... 195
A4600BEscusenvhch03.fm 124 ページ ２０２１年７月５日　月曜日　午後４時２２分

Hazard Warning Flasher
127
Instruments and Controls3
– CONTINUED –
3-2. Hazard Warning FlasherThe hazard warning flasher is used to
warn other drivers when you have to park
your vehicle under emergency conditions.
The hazard warning flasher works with the
ignition switch in any position.
To turn on the hazard warning flasher,
press the hazard warning button on the
instrument panel. All the turn signal lights
and the turn signal indicator lights will
flash. To turn off the flasher, press the
button again.NOTEWhen the hazard warning flasher is on,
the turn signals do not work.
3-3. Meters and GaugesNOTELiquid crystal displays are used in
some of the meters and gauges in the
combination meter. You will find their
indications hard to see if you wear
polarized glasses.■
Speedometer
The speedometer shows the vehicle
speed.
■
Tachometer
The tachometer shows the engine speed
in thousands of revolutions per minute.NOTEThe initial movement of the bar display
that occurs when the ignition switch is
turned to the “ON” position can be
activated or deactivated.
For details, refer to "General settings"
P161.
901197
CAUTION
 Do not operate the engine with
the pointer of the tachometer in
the red zone. In this range, fuel
injection will be cut by the engine
control module to protect the
engine from overrevving. The
engine will resume running
normally after the engine speed is
reduced below the red zone.Pay extra attention to the engine
speed when the engine is cold, as
the red zone will be lower than
normal.
B5=B8.ERRN 12 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Meters and Gauges
128■
Odometer and Double Trip
Meter1) TRIP RESET switch
2) Odometer
3) Trip meterThis meter displays the odometer/trip
meter when the ignition switch is in the
“ON” position.
The display can be switched as shown in
the following sequence by pressing the
TRIP RESET switch.To reset the trip meter, select either the A
trip or B trip meter, then press and hold the
TRIP RESET switch.
▼
Odometer
The odometer shows the total distance
that the vehicle has been driven.
NOTEIf you press the TRIP RESET switch
when the ignition switch is in the
“OFF” or “ACC” po sition, the odome-
ter/trip meter will light up. The indica-
tors will turn off when the TRIP RESET
switch is not operated for approxi-
mately 10 seconds. ▼
Double trip meter
The trip meter shows the distance that the
vehicle has been driven since you last set
it to zero.
NOTE If the connection between the
combination meter and battery is
broken for any reason such as vehicle
maintenance or fuse replacement, the
data recorded on the trip meter will be
lost.
 If you press the TRIP RESET switch
when the ignition switch is in the
“OFF” or “ACC” position, the odom-
eter/trip meter will light up. It is
possible to switch between the A trip
meter and B trip meter indications
while the odometer/trip meter is lit up.
1
23
306781
306961
CAUTION
To ensure safety, do not attempt to
change the function of the indicator
during driving, as an accident could
result.
B5=B8.ERRN 12 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Meters and Gauges
129
Instruments and Controls3
– CONTINUED –
■
Fuel Gauge
The fuel gauge shows the approximate
amount of fuel remaining in the tank.
When the ignition switch is in the “OFF” or
“ACC” position, the fuel gauge shows “E”
even if the fuel tank contains fuel.
The gauge may move slightly due to fuel
level movement in the tank (e.g., during
braking, turning or acceleration).NOTEYou will see the “ ” sign in the fuel
gauge. This indicates that the fuel filler
lid is located on the right side of the
vehicle.
■
Engine Coolant Temperature
Gauge
The temperature gauge shows engine
coolant temperature when the ignition
switch is in the “ON” position.
The coolant temperature will vary in
accordance with the outside temperature
and driving conditions.
We recommend that you drive moderately
until the pointer of the temperature gauge
reaches near the middle of the range.
Engine operation is optimum with the
engine coolant at this temperature range
and high revving operation when the
engine is not warmed up enough should
be avoided.
■
Outside Temperature
Displays the outside temperature within
the range of -40°F (-40°C) to 122°F
(50°C). Low outside temperature indicator
comes on when the ambient temperature
is 37°F (3°C) or lower.NOTEThe outside temperature indicator
shows the temperature around the
sensor. However, the temperature may
not be indicated correctly or the
update may be delayed in the follow-
ing conditions.
While parking or driving at low
speeds
 When the outside temperature
changes suddenly (example: when
going in and out of an underground
parking area or when passing through
a tunnel)
 When starting the engine after being
parked for a certain period of time
306783
B02099
CAUTION
If the pointer exceeds the normal
operating range, safely stop the
vehicle as soon as possible.Refer to "Engine Overheating"
P319.
B5=B8.ERRN 12 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分
