2022 SUBARU BRZ clock

Replacing Bulbs
3741. Remove the clips.
2. Remove the rear bumper cover.3. Turn the bulb socket counterclockwise
and remove it.
4. Pull the bulb out of the bulb socket and
replace it with a new one.
5. Install the bulb socket by turning it
clockwise.
6. Reconnect the electrical connector.
7. Reinstall the rear bumper cover.
■
Trunk Light■
Other Bulbs
It may be difficult to replace the bulbs.
We recommend that you have the
bulbs replaced by your SUBARU dealer
if necessary.■
Adjusting Headlight Aim1) Adjustment bolt A
2) Adjustment bolt B▼
Before checking the headlight
aiming
1. Make sure the vehicle has a full tank of
gasoline and the area around the head-
light is not deformed.
2. Park the vehicle on level ground.
3. Sit in the driver’s seat.
4. Bounce the vehicle several times.
B02120B02121
CAUTION
Replacing the bulb could cause
burns since the bulb may be very
hot. Have the bulb replaced by your
SUBARU dealer.
B02122
2
1
B02156
B5=B8.ERRN 34 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Replacing Battery
375
Maintenance and Service11
– CONTINUED –
▼

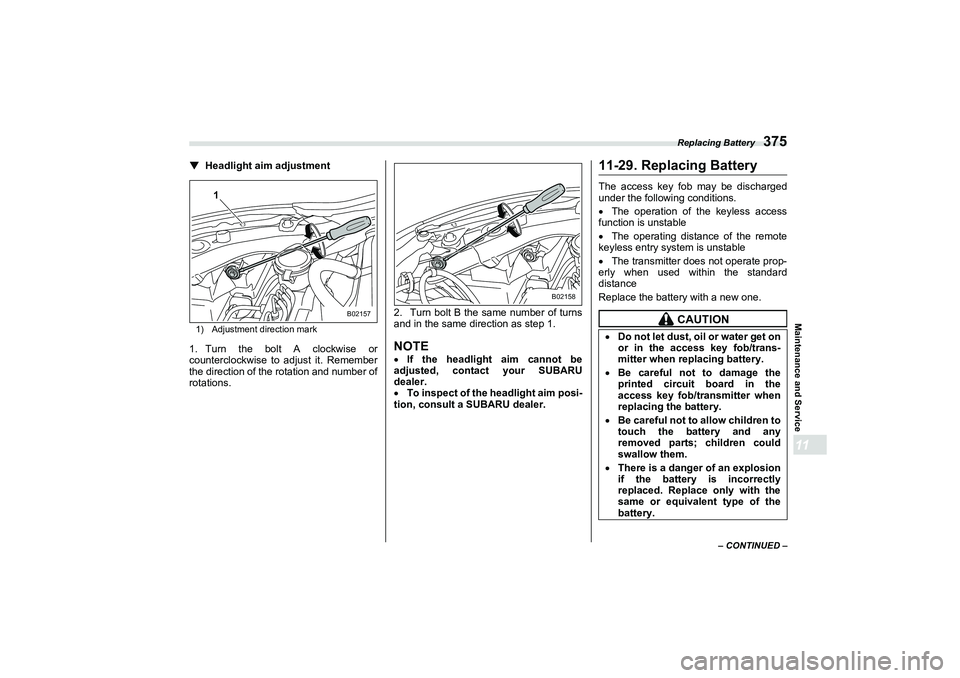

Headlight aim adjustment1) Adjustment direction mark1. Turn the bolt A clockwise or
counterclockwise to adjust it. Remember
the direction of the rotation and number of
rotations.2. Turn bolt B the same number of turns
and in the same direction as step 1.
NOTE
If the headlight aim cannot be
adjusted, contact your SUBARU
dealer.
 To inspect of the headlight aim posi-
tion, consult a SUBARU dealer.
11-29. Replacing BatteryThe access key fob may be discharged
under the following conditions.
 The operation of the keyless access
function is unstable
 The operating distance of the remote
keyless entry system is unstable
 The transmitter does not operate prop-
erly when used within the standard
distance
Replace the battery with a new one.
1
B02157
B02158
CAUTION
 Do not let dust, oil or water get on
or in the access key fob/trans-
mitter when replacing battery.Be careful not to damage the
printed circuit board in the
access key fob/transmitter when
replacing the battery.Be careful not to allow children to
touch the battery and any
removed parts; children could
swallow them.There is a danger of an explosion
if the battery is incorrectly
replaced. Replace only with the
same or equivalent type of the
battery.
B5=B8.ERRN 35 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Index
412ChimeLight .................................................................................P174
Seatbelt ...........................................................................P131
Cleaning
Alloy wheels............. ........................................................P333
Center information display ...............................................P336
Interior .............................................................................P335
Ventilation grille ...............................................................P204
Climate control system .........................................................P198 Automatic.........................................................................P200
Manual .............................................................................P201
Clock ....................................................................................P172
Clutch Fluid ...................................................................... P354, P383
Pedal ...............................................................................P356
Combination meter display (color TFT) ................................P151 Audio system-linked disp lay ............................................P156
Drive information .............................................................P153
Driving support system setting di splay ............................P157
Exclusive content for SUBARU BRZ ...............................P154
Navigation system-linke d display ....................................P156
Settings display ...............................................................P157
Warning message display ...............................................P159
Compass ..............................................................................P186
Console ................................................................................P214
Control switch light ...............................................................P174
Coolant ...................................................................... P349, P384
Cooling system.....................................................................P348
Corrosion protection .............................................................P334 Cruise control ...................................................................... P260
Indicator light .................................................................. P149
Set indicator light ............................................................ P149
Cup holder ........................................................................... P214
DDaytime running light (DRL) system ........................... ......... P180
Defogger.............................................................................. P185
Defrosting ............................................................................ P203
Differential gear oil ................. ................................... P353, P383
Dimensions.......................................................................... P380
Disc brake pad wear warning indicators.............................. P245
Door Door unlock selection function ........................................ P100
Locks .............................................................................. P111
Open indicator ................................................................ P141
Double trip meter ................................................................. P128
Drive belts ........................................................................... P352
Drive information ................................................................. P153
Driving Car phone/cell phone...... .......................................... .......... P9
Drinking............................................................................... P7
Drugs .................................................................................. P8
Foreign countries ............................................................ P292
Pets..................................................................................... P9
Snowy and icy roads....................................................... P295
Tips .............................................................P235, P240, P290
Tired or sleepy .................................................................... P8
Winter ............................................................................. P293
