2022 SUBARU BRZ towing

Driving Tips8
Driving Tips
8-1. New Vehicle Break-In Driving – the First 1,000 miles (1,600 km) ......................................290
8-2. Fuel Economy Hints ................................... ........290
8-3. Engine Exhaust Gas (Carbon Monoxide) .........290
8-4. Catalytic Converter .............................................291
8-5. Periodic Inspections ...........................................292
8-6. Driving in Foreign Coun tries .............................292
8-7. Driving Tips .........................................................292
8-8. Winter Driving .....................................................293
Operation during Cold Weather ..................................293 Driving on Snowy and Icy Roads ............................... 295
Corrosion Protection ................................................... 296
Snow Tires.................................................................... 296
Tire Chains ................................................................... 297
Rocking the Vehicle..................................................... 297
8-9. Loading Your Vehicle .........................................297
Vehicle Capacity Weight ............................................. 298
GVWR and GAWR (Gross Vehicle Weight Rating
and Gross Axle Weight Rating) ................................ 299
8-10. Trailer Towing ...................................................299
B5=B8.ERRN 2 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Trailer Towing
299
Driving Tips8
weight of the driver and all passengers,
their belongings, and any optional equip-
ment.■
GVWR and GAWR (Gross
Vehicle Weight Rating and
Gross Axle Weight Rating)Certification labelThe certification label attached to the
driver’s side center pillar shows GVWR
(Gross Vehicle Weight Rating) and
GAWR (Gross Axle Weight Rating).
The GVW (Gross Vehicle Weight) must
never exceed the GVWR. GVW is the
combined total of weight of the vehicle,
fuel, driver, all passengers, luggage, and
any optional equipment. Therefore, the
GVW changes depending on the situation.In addition, the tota
l weight applied to
each axle (GAW) must never exceed the
GAWR. The front and rear GAWs can be
adjusted by relocating luggage inside the
vehicle.
Even if the total weight of your luggage is
lower than the vehicl e capacity weight,
either front or rear GAW may exceed the
GAWR, depending on the distribution of
the luggage.
When possible, the load should be evenly
distributed throughout the vehicle.
If you carry heavy loads in the vehicle, you
should confirm that GVW and front and
rear GAWs are within the GVWR and
GAWR by putting your vehicle on a
vehicle scale, found at a commercial
weighing station.
Do not use replacement tires with a lower
load range than the originals because
they may lower the GVWR and GAWR
limitations. Replacement tires with a
higher load range than the originals do not
increase the GVWR and GAWR limita-
tions.
8-10. Trailer TowingSUBARU assumes no responsibility for
injuries or vehicle damage that may result
from trailer towing, from any trailer towing
equipment or from any errors or omissions
in the instructions accompanying such
equipment. SUBARU warranties do not
apply to vehicle damage or malfunction
caused by trailer towing.
801321
CAUTION
Your vehicle is neither designed nor
intended to be used for trailer tow-
ing. Therefore, never tow a trailer
with your vehicle.
B5=B8.ERRN 2 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

In Case of Emergency9
In Case of Emergency
9-1. If You Park Your Vehicle in an Emergency.......302
9-2. Maintenance Tools..............................................302
Models with Flat Tire Repair Kit ..................................303
Models with Spare Tire ................................................303
9-3. Flat Tires ..............................................................303
Changing a Flat Tire .....................................................303
Sealing a Flat Tire (Models with the Flat Tire Repair Kit) ...........................................................306
Tire Pressure Monitoring System (TPMS) (If Equipped) ...............................................................315
TPMS Screen (If Equipped)..........................................316
9-4. Jump Starting ......................................................316
Battery Precautions......................................................316
How to Jump Start ........................................................317
9-5. Engine Overheating ............................................319
If Steam Is Coming from the Engine Compartment ..............................................................319 If No Steam Is Coming from the Engine
Compartment ............................................................. 319
9-6. Towing .................................................................320
Towing Hook and Tie-Down Hooks/Holes ................. 320
Using a Flat-Bed Truck................................................ 324
Towing with All Wheels on the Ground ..................... 324
9-7. Access Key Fob – If Access Key Fob Does
Not Operate Properly ...... ..................................325
Locking and Unlocking ............................................... 326
Switching Power Status .............................................. 326
Starting Engine ............................................................ 326
9-8. Malfunctions of the Center Information
Display ...............................................................327
9-9. If Your Vehicle Is Invo lved in an Accident ........328
To Restart the Engine When Involved in an
Accident ..................................................................... 328
B5=B8.ERRN 301 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

If You Park Your Vehicle in an Emergency
3029-1. If You Park Your Vehiclein an EmergencyThe hazard warning flasher should be
used in day or night to warn other drivers
when you have to park your vehicle under
emergency conditions.
Avoid stopping on the road. It is best to
safely pull off the road if a problem occurs.
The hazard warning flasher can be acti-
vated regardless of the ignition switch
position.
Turn on the hazard warning by pressing
the hazard warning flasher switch. Turn it
off by pressing the switch again.
When the hazard warning flasher are
flashing, the corresponding turn signal
indicator will also flash.
NOTEWhen the hazard warning flasher is on,
the turn signals do not work.
9-2. Maintenance ToolsYour vehicle is equipped with the following
maintenance tools.
Jack
 Jack handle
 Screwdriver
 Towing hook (eye bolt)
 Wheel nut wrench
901197
B5=B8.ERRN 302 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Flat Tires
303
In Case of Emergency9
– CONTINUED –
■
Models with Flat Tire Repair
Kit1) Under-floor storage compartment
2) Jack handle
3) Wheel nut wrench
4) Jack
5) Towing hook (eye bolt)6) Screwdriver
7) Flat tire repair kit
■
Models with Spare Tire1) Spare tire
2) Jack handle
3) Wheel nut wrench
4) Jack
5) Towing hook (eye bolt)
6) Screwdriver
9-3. Flat TiresIf you have a flat tire while driving, never
brake suddenly; keep driving straight
ahead while gradually reducing speed.
Then slowly pull off the road to a safe
place.■
Changing a Flat Tire
1
6
4
7
5
2
3901198
1
6
45
2
3901216
WARNING

Use only the jack and the jack
handle provided with your
vehicle. The jack supplied with
the vehicle is designed only for
changing a tire. Never get under
the vehicle while supporting the
vehicle with this jack.Do not jack up the vehicle on an
incline or a loose road surface.
The jack can come out of the
jacking point or sink into the
ground and this can result in
serious injury or death.Before jacking up the vehicle, be
sure that there are no occupants
or cargo on board.Do not jack up the vehicle with an
object on or underneath the jack.
The jack can be unstable and this
can result in a severe accident.
B5=B8.ERRN 303 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Towing
3209-6. TowingIf towing is necessary, SUBARU recom-
mends it be done by your SUBARU dealer
or a commercial towing service.
■
Towing Hook and Tie-Down
Hooks/Holes
The towing hooks should be used only in
an emergency.
SUBARU recommends towing be done
by your SUBARU dealer or a commer-
cial towing service.
Front towing hook:
1. Take out the screwdriver, towing hook
and wheel nut wrench from the under-floor
storage compartment.
1) Upper cover
2) Lower cover2 Insert a screwdriver, with its tip covered with tape or a cloth to prevent damage
to the bumper, into the cutout of the
cover and pry up to separate the upper
WARNING
Never tow vehicles with the front
wheels raised off the ground while
the rear wheels are on the ground,
or with the rear wheels raised off
the ground while the front wheels
are on the ground.
This will cause the vehicle to dam-
age or cause an accident.
901277
CAUTION
Use only the specified towing
hook and tie-down hooks/holes.
Never use suspension parts or
other parts of the body for towing
or tie-down purposes.Never use the tie-down hole
closest to the muffler under the
vehicle for towing purposes.
1
2
901202
B5=B8.ERRN 320 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

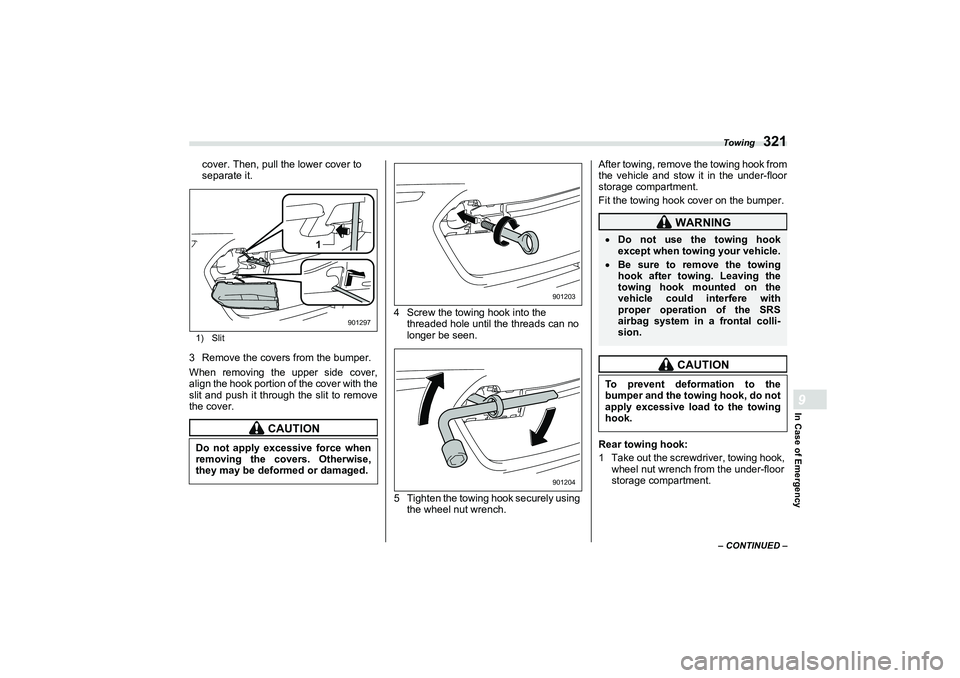

Towing
321
In Case of Emergency9
– CONTINUED –
cover. Then, pull the lower cover to
separate it.1) Slit3 Remove the covers from the bumper.
When removing the upper side cover,
align the hook portion of the cover with the
slit and push it through the slit to remove
the cover. 4 Screw the towing hook into the
threaded hole until the threads can no
longer be seen.
5 Tighten the towing hook securely using the wheel nut wrench. After towing, remove the towing hook from
the vehicle and stow it in the under-floor
storage compartment.
Fit the towing hook cover on the bumper.
Rear towing hook:
1 Take out the screwdriver, towing hook,
wheel nut wrench from the under-floor
storage compartment.
CAUTION
Do not apply excessive force when
removing the covers. Otherwise,
they may be deformed or damaged.
1
901297
901203901204
WARNING
Do not use the towing hook
except when towing your vehicle.Be sure to remove the towing
hook after towing. Leaving the
towing hook mounted on the
vehicle could interfere with
proper operation of the SRS
airbag system in a frontal colli-
sion.
CAUTION
To prevent deformation to the
bumper and the towing hook, do not
apply excessive load to the towing
hook.
B5=B8.ERRN 321 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

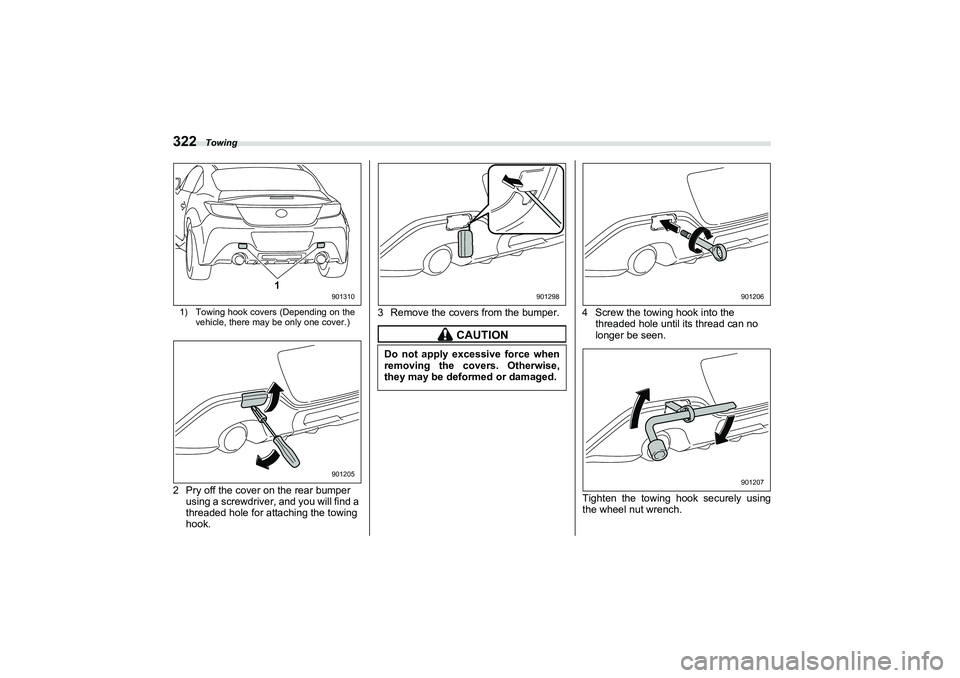

Towing
3221) Towing hook covers (Depending on thevehicle, there may be only one cover.)2 Pry off the cover on the rear bumper using a screwdriver, and you will find a
threaded hole for attaching the towing
hook. 3 Remove the covers from the bumper. 4 Screw the towing hook into the
threaded hole until its thread can no
longer be seen.
Tighten the towing hook securely using
the wheel nut wrench.
1
901310901205
CAUTION
Do not apply excessive force when
removing the covers. Otherwise,
they may be deformed or damaged.
901298
901206901207
