2022 SUBARU BRZ ECO mode

Meters and Gauges
129
Instruments and Controls3
– CONTINUED –
■
Fuel Gauge
The fuel gauge shows the approximate
amount of fuel remaining in the tank.
When the ignition switch is in the “OFF” or
“ACC” position, the fuel gauge shows “E”
even if the fuel tank contains fuel.
The gauge may move slightly due to fuel
level movement in the tank (e.g., during
braking, turning or acceleration).NOTEYou will see the “ ” sign in the fuel
gauge. This indicates that the fuel filler
lid is located on the right side of the
vehicle.
■
Engine Coolant Temperature
Gauge
The temperature gauge shows engine
coolant temperature when the ignition
switch is in the “ON” position.
The coolant temperature will vary in
accordance with the outside temperature
and driving conditions.
We recommend that you drive moderately
until the pointer of the temperature gauge
reaches near the middle of the range.
Engine operation is optimum with the
engine coolant at this temperature range
and high revving operation when the
engine is not warmed up enough should
be avoided.
■
Outside Temperature
Displays the outside temperature within
the range of -40°F (-40°C) to 122°F
(50°C). Low outside temperature indicator
comes on when the ambient temperature
is 37°F (3°C) or lower.NOTEThe outside temperature indicator
shows the temperature around the
sensor. However, the temperature may
not be indicated correctly or the
update may be delayed in the follow-
ing conditions.
While parking or driving at low
speeds
 When the outside temperature
changes suddenly (example: when
going in and out of an underground
parking area or when passing through
a tunnel)
 When starting the engine after being
parked for a certain period of time
306783
B02099
CAUTION
If the pointer exceeds the normal
operating range, safely stop the
vehicle as soon as possible.Refer to "Engine Overheating"
P319.
B5=B8.ERRN 12 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Warning and Indicator Lights
138engine at the first safe opportunity and
contact your nearest SUBARU dealer
immediately.■
AT OIL TEMP Warning
Light (AT Models)
If this light illuminates when the engine is
running, it may indicate that the transmis-
sion fluid temperature is too hot.
If the light illuminates while driving, imme-
diately stop the vehicle in a safe place and
let the engine idle until the warning light
turns off.■
Low Tire Pressure
Warning Light (If
Equipped)
When the ignition switch is turned to the
“ON” position, the low tire pressure
warning light will illuminate for approxi-
mately 2 seconds to check that the tire
pressure monitoring system (TPMS) is
functioning properly. If there is no problem
and all tires are properly inflated, the light
will go out.
Each tire, including the spare (if provided),
should be checked monthly when cold
and inflated to the inflation pressure
recommended by the vehicle manufac-
turer on the vehicle placard or tire inflation
pressure label. (If your vehicle has tires of
a different size than the size indicated on the vehicle placard or tire inflation pres-
sure label, you should determine the
proper tire inflation pressure for those
tires.)
As an added safety feature, your vehicle
has been equipped with a tire pressure
monitoring system (TPMS) that illumi-
nates a low tire pressure telltale when one
or more of your tires is significantly under-
inflated. Accordingly, when the low tire
pressure telltale illuminates, you should
stop and check your tires as soon as
possible, and inflate
them to the proper
pressure. Driving on a significantly under-
inflated tire causes the tire to overheat
and can lead to tire failure. Under-inflation
also reduces fuel efficiency and tire tread
life, and may affect the vehicle’s handling
and stopping ability.
Please note that the TP MS is not a substi-
tute for proper tire maintenance, and it is
the driver’s responsibility to maintain
correct tire pressure, even if under-infla-
tion has not reached the level to trigger
illumination of the TPMS low tire pressure
telltale.
Your vehicle has also been equipped with
a TPMS malfunction indicator to indicate
when the system is no t operating properly.
The TPMS malfunction indicator is
combined with the low tire pressure tell-
tale. When the system detects a malfunc-
tion, the telltale will flash for approximately one minute and then remain continuously
illuminated. This sequence will continue
upon subsequent vehicle start-ups as long
as the malfunction exists. When the
malfunction indicator is illuminated, the
system may not be able to detect or signal
low tire pressure as intended. TPMS
malfunctions may occur for a variety of
reasons, including the installation of
replacement or alternate tires or wheels
on the vehicle that prevent the TPMS from
functioning properly. Always check the
TPMS malfunction telltale after replacing
one or more tires or wheels on your
vehicle to ensure that the replacement or
alternate tires and wheels allow the TPMS
to continue to function properly.
Should the warning light illuminate
steadily after blinking for approximately
one minute, have the system inspected by
your nearest SUBARU dealer as soon as
possible.
WARNING
If this light does not illuminate
briefly after the ig
nition switch is
turned ON or the light illuminates
steadily after blinking for approxi-
mately one minute, you should have
your Tire Pressure Monitoring Sys-
tem checked at a SUBARU dealer as
soon as possible.
B5=B8.ERRN 13 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Warning and Indicator Lights
145
Instruments and Controls3
– CONTINUED –
Inside warning
chime Outside warning
chime Status
Action
Ding, ding ...
(intermittent) ―The driver’s door is opened while the push-button
ignition switch is “ACC”. (in AT models, when the
select lever is in the “P” position.) Switch the push-button ignition switch to “OFF”, or
close the driver’s door.
When exiting the vehicle, be sure to switch the
push-button ignition switch to “OFF”.
The push-button ignition switch is switched to
“OFF” while the driver’s door is open. Close the driver’s door.
Ding Short beep
(2 seconds) Lockout warning:
The doors are locked by following methods when
an access key fob is left in the car.

The door is closed when the lock lever of the
door is in the lock position.
 The door is closed when the power door locking
switch is in the lock position. Take out the access key fob from the vehicle, and
lock the doors.
The doors cannot be locked while the access key
fob is inside the vehicle.
A chirp sound will be heard, and all doors will be
unlocked.
― Short beep
(2 seconds) Access key lock-in warning:
The door lock sensor is touched while the push-
button ignition switch is “OFF” and the access key
fob is inside the vehicle. Take out the access key fob from the vehicle, and
lock the doors.
If the access key fob is inside the vehicle, the doors
cannot be locked.
― Short beep (5 sec-
onds) Door ajar warning:
The door lock sensor is touched while the ignition
switch is in the “OFF” position and one of the doors
is opened. Close the doors securely and lock them.
If one of the doors is opened, the doors cannot be
locked.
Ding Long beep (60 sec-
onds max.) Power warning:
For AT models, the door lock sensor is touched
while you are carrying t
he access key fob, the
push-button ignition switch is in a position other
than “OFF” and the select lever is in the “P” posi-
tion. Return the access key fob inside the vehicle, or
switch the push-button ignition switch to “OFF”.
If the push-button ignition switch is not switched to
“OFF”, the doors cannot be locked.
Ding, ding ... (7 seconds) ―Access key warning:
The vehicle is driven while the access key fob is not
inside the vehicle. Carry the access key f
ob, and drive the vehicle.
B5=B8.ERRN 145 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Warning and Indicator Lights
149
Instruments and Controls3
– CONTINUED –
■
Select Lever (AT Models
Only)/Gear Position Indicator1) Upshift indicator
2) Downshift indicator (AT models only)
3) Select lever (AT models only)/gear posi-tion indicatorThis indicator shows the position of the
shift lever (MT models)/select lever (AT
models).
▼
Gear shift indicator (MT models)
When shifting up is recommended for
good fuel economy, the upshift indicator
blinks. Refer to "G ear shift indicator"
 P234. ▼
Upshift/downshift indicator (AT
models)
When the manual mode is selected, the
gear position indicator (which shows the
current gear selection) and the available
upshift/downshift indicator light up. Refer
to "Selection of Manual Mode" P239
■
Cruise Control Indi -
cator Light (White/
Green)/Cruise Control
Warning Light (Yellow)
(Models without the EyeSight
System)
This light illuminates in white when the
cruise control main button is pressed to
activate the cruise control function. When
vehicle speed has been set to use the
cruise control function, this indicator is
lighting in green.
For details, refer to "Cruise Control
(Models without th e EyeSight system)"
 P260.
If this light illuminates in yellow, do not use
the cruise control. Contact your SUBARU
dealer for an inspection.
NOTEIf this indicator light does not illumi-
nate even when you press the cruise
control main button, the cruise control
system may not operate properly.
Have your vehicle checked by your
nearest SUBARU dealer.■
Turn Signal Indicator
Lights
These lights show the operation of the
turn signal or lane change signal.
If the indicator lights do not blink or blink
rapidly, the turn signal bulb may be
burned out. Have your vehicle inspected
by your SUBARU dealer as soon as
possible.
12
3
702774
CAUTION
If the malfunction indicator light
(Check Engine ligh
t) illuminates, the
cruise control indicator light illumi-
nates in yellow at the same time. At
this time, avoid driving at high
speeds and have your vehicle
inspected at a SUBARU dealer as
soon as possible.
B5=B8.ERRN 14 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Warning and Indicator Lights
150■
High Beam Indicator
Light
This light shows that the headlights are in
the high beam mode.
This indicator light also illuminates when
operating the headlight flasher.■
High Beam Assist Indi-
cator (If Equipped)
This indicator appears when the high
beam assist function is activated. For
details about the high beam assist func-
tion, refer to "High Beam Assist Function
(If Equipped)" P177.■
Automatic Headlight
Be am Leveler Warning
Light
This light illuminates when the automatic
headlight beam leveler does not operate
normally.
If this light illuminates while driving or
does not turn off approximately 3 seconds
after turning the ignition switch to the “ON”
position, have your vehicle inspected at
your SUBARU dealer.
■
LED Headlight
Wa rning Light
This light illuminates if the LED headlights
malfunction. Have your vehicle inspected
at a SUBARU dealer as soon as possible.■
Steering Responsive
Head light OFF Indica tor
Li ght (If Equipped)
This light illuminates when the Steering
Responsive Headlight function is off. For
details, refer to"Driving Support System
Settings Display" P157.■
Steering Responsive
Headlight Warning
Light (If Equipped)
The light illuminates when a malfunction
occurs in the Steering Responsive Head-
light. Refer to "Steering Responsive
Headlight (SRH) (If Equipped)" P180.■
Headlight Indicator
Light
This indicator light illuminates under the
following conditions.
 When the light switch is turned to the
“ ” or “ ” position 
When the light switch is in the “AUTO”
position and the headlights illuminate
automatically
■
Hill Start Assist Indi -
cator Light
When the hill start assist function is
enabled, this indicator light will be illumi-
nated. It will disappear when the hill start
assist function is deactivated.■
BSD/RCTA Warning
Indic ator (If Equipped)
This warning indicator appears on the
combination meter di splay (color TFT)
when the BSD (Blind Spot Detection) or
RCTA (Rear Cross Traffic Alert) is
malfunctioning for any reason. For further
details, refer to "BSD/RCTA Warning Indi-
cator" P274. If this indicator remains
displayed, have your vehicle inspected by
your SUBARU dealer as soon as possible.■
BSD/RCTA OFF Indi -
cator (If Equipped)
This indicator appears on the combination
meter display (color TFT) when “BSD/
RCTA” is selected to deactivate the BSD
(Blind Spot Detection) and RCTA (Rear
Cross Traffic Alert), or when the BSD/
RCTA is suspended temporarily. For
B5=B8.ERRN 150 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Combination Meter Display (Color TFT)
158*1: If equipped
*2: For details about EyeSight system, refer to the Owner’s Manual supplement for the EyeSight system.Item
SettingsPage reference for
the vehicle system
operation
EyeSight
*1
Acquisition Sound ON/OFF
*2
Start AlertON/OFF
Accel Lv. Lv.1 (Eco)/Lv.2 (Comfort)/Lv.3 (Standard)/Lv.4 (Dynamic)
Select Drive Lane Right Lane/Left Lane
Units km, km/h, l/100km / miles, MPH, MPG127, 151 and *2
Warning Volume *1
Max/Mid/Min 277 and *2
Screen Settings Startup Scrn
ON/OFF -
GSI (MT models) ON/OFF 234
R E V. Indicator
ON/OFF
130
RPM **00rpm
Buzzer ON/OFF
Car Settings Keyless Entry
Audible Signal
*1
ON/OFF
105 and 110
Hazard Flasher ON/OFF 106 and 110
Driver Door Unlock Driver Door Only/All 100
Defogger 15 minutes/Continuous 185
Interior Light 7.5 seconds/15 seconds/30 seconds 212
Auto Light Sensor Light Sensitivity Min/Low/Mid/High/Max
174
Wiper Link ON/OFF 175
Welcome Lighting Approaching Time Set 30 seconds/60 seconds/90 seconds/OFF
175
Leaving Time Set 30 seconds/60 seconds/90 seconds/OFF
1-Touch LN CHGR ON/OFF 182
B5=B8.ERRN 15 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

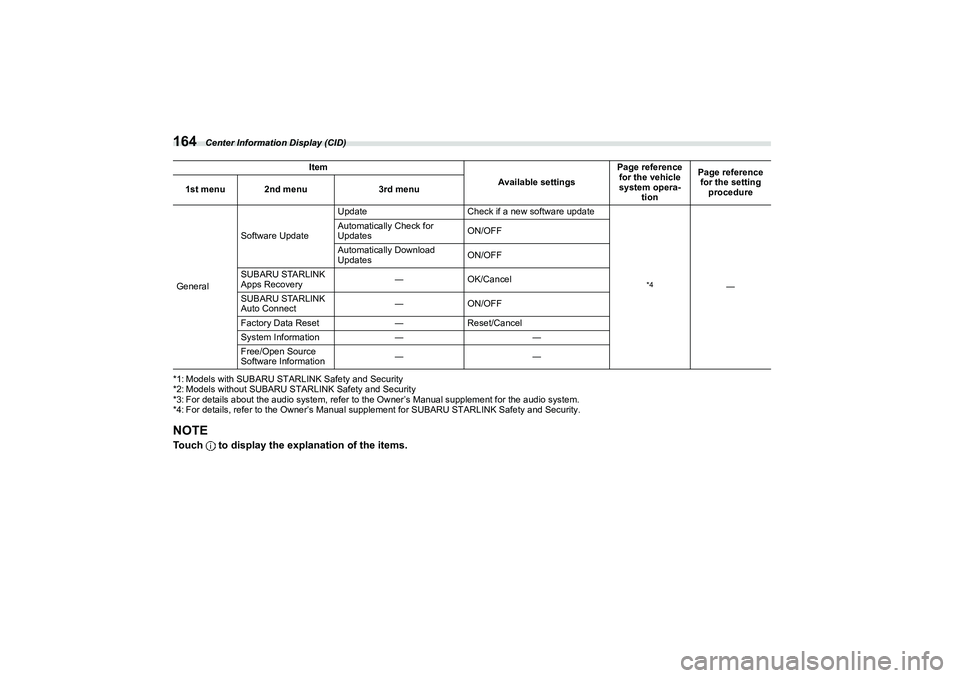

Center Information Display (CID)
164*1: Models with SUBARU STARLINK Safety and Security
*2: Models without SUBARU STARLINK Safety and Security
*3: For details about the audio system, refer to the Owner’s Manual supplement for the audio system.
*4: For details, refer to the Owner’s Manual supplement for SUBARU STARLINK Safety and Security.NOTETouch to display the explanation of the items.General Software Update
Update
Check if a new software update
*4
―
Automatically Check for
Updates
ON/OFF
Automatically Download
Updates ON/OFF
SUBARU STARLINK
Apps Recovery ―
OK/Cancel
SUBARU STARLINK
Auto Connect ―
ON/OFF
Factory Data Reset ―Reset/Cancel
System Information ――
Free/Open Source
Software Information ――
Item
Available settingsPage reference
for the vehicle
system opera- tion Page reference
for the setting procedure
1st menu 2nd menu
3rd menu
B5=B8.ERRN 164 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Light Control Switch
1743-10. Light Control SwitchThe light control switch operates when the
push-button ignition switch is in the “ACC”
or “ON” position.
Regardless of the position of the light
control switch, the illuminated lights are
turned off when the push-button ignition
switch is turned off.NOTEThe light control switch can be oper-
ated (except auto on/off headlights),
even the push-button ignition switch
is turned off.
If the driver’s door is opened while the
headlights are illuminated under such conditions, a chirp sound will inform
the driver that the lights are illumi-
nated.
■
Headlights
To turn on the headlights, turn the knob on
the end of the light control switch.
“OFF” position:
The headlights are all off.
*1,*2
*1: For Canada models, when the light switch is
switched to the “OFF” position while the
vehicle is stopped, the lights turn off. Then
the light switch will automatically return to
the “AUTO” position.
*2: For Canada models, the headlights will automatically change to the AUTO mode
when the following conditions are met:The engine is running.
 The parking brake is fully released. 
For AT models, the select lever is in a
position other than “P” position.
“ ” position:
Instrument panel illumination, headlights,
parking lights, side marker lights, tail lights
and license plate lights are on.
“ ” position:
Instrument panel illumination, parking
lights, side marker lights, tail lights and
license plate lights are on.
“AUTO” position: auto on/off head-
lights
When the ignition switch is in the “ON”
position, the instrum ent panel illumination,
headlights, parking lights, side marker
lights, tail lights and license plate lights
are automatically on or off depending on
the level of the ambient light.
The light sensitivity of the auto on/off
headlights can be changed by operating
the combination meter display (color TFT)
or the center information display. For
details, refer to "Settings Display" P157
or "Car settings" P165. Also, the setting
can be changed by a SUBARU dealer.
Consult your SUBARU dealer for details.
▼
Battery-saving function
If the headlights or tail lights are illumi-
nated when the push-button ignition
switch is off, in order to prevent the battery
from becoming discharg ed, the lights will
CAUTION
Use of any lights for a long period
of time while the engine is not
running can cause the battery to
discharge.Before leaving the vehicle, make
sure that the light control switch
is turned to the off position. If the
vehicle is left unattended for a
long time with the light control
switch set to a position other than
the off position, the battery may
be discharged.
306964
B5=B8.ERRN 14 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分
