2022 SUBARU BRZ engine

Specifications
38012-1. SpecificationsThese specifications are subject to change without notice.■
Dimensions
in (mm)
*1: Measured with vehicle emptyAT: Automatic transmission
MT: Manual transmission
RWD: Rear Wheel Drive■
Engine
Item Dimensions
Drive system RWD
Transmission type ATMT
Overall length 167.9 (4265)
Overall width 69.9 (1775)
Overall height 51.6 (1310)
Wheelbase 101.4 (2575)
Tread Front
59.8 (1520)
Rear 61.0 (1550)
Ground clearance*1
5.1 (130)
Engine model FA24 (2.4 L, DOHC, non-turbo)
Engine type Horizontally opposed, liquid cooled 4 cylinder,
4-stroke gasoline engine
Displacement cu-in (cc) 146 (2,387)
Bore × Stroke in (mm) 3.70 × 3.39 (94.0 × 86.0)
B5=B8.ERRN 30 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Specifications
381
Specifications12
– CONTINUED –
■
Fuel
*1: For details, refer to "Fuel" P223.■
Engine Oil
For the checking, adding and replacing procedure or other details, refer to "Engine Oil" P346.NOTEThe procedure for changing the engine oil and oil filter should be performed by a properly-trained expert. It is recom-
mended that you have this service performed by your SUBARU dealer.
▼
Approved engine oil
Always use the SUBARU approved engine oil. For fu rther details, please contact your SUBARU dealer.
If the approved engine oil is unavailable, use the alternative engine oil described on the next page.
▼Alternative engine oil
If the SUBARU approved oil is unavailable, the following alternative oil can be used.
NOTE Each quantity indicated is only a guideline. The necessary quantity for replacement may differ slightly depending on the
temperature and other factors.
 In choosing an oil, you want the proper quality and viscosity, as well as one that will enhance fuel economy. Oils of lower
viscosity provide better fuel economy. However, in hot weather, o il of higher viscosity is required to properly lubricate the
engine. The following table lists the recommended viscosities and applicable temperatures.Compression ratio 12.5 : 1
Firing order 1 – 3 – 2 – 4
Fuel requirement
*1
Unleaded gasoline with 93 AKI (98 RON) or higher
Fuel tank capacity 13.2 US gal (50 liters, 11 Imp gal)
Engine model
FA24 (2.4 L, DOHC, non-turbo)
B5=B8.ERRN 31 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Specifications
382When adding oil, different brands may be used together as long as they are the same AP I classification and SAE viscosity
as those recommended by SUBARU.
Oil grade SAE viscosity No. and
applicable temperature Engine oil capacity
API (American Petroleum Insti-
tute) classification SN with the
words “RESOURCE CON-
SERVING” or SN PLUS with the
words “RESOURCE CON-
SERVING” or
ILSAC (International Lubricant
Specification Advisory Commit-
tee) GF-5 , which can be identi-
fied with the ILSAC certification
mark (Starburst mark) 0W-20 synthetic oil is the required oil
for optimum engine performance and
protection. Conventional oil may be
used if synthetic oil is unavailable.
*: If 0W-20 synthetic oil is not avail-
able, 5W-30 conventional oil may
be used if you need to add oil.
However, you should change to
0W-20 synthetic oil at the next oil
change. Adding the oil from low level to full
level:
1.1 US qt (1.0 liter, 0.9 Imp qt)
Changing the oil:
5.1 US qt (4.8 liters, 4.2 Imp qt)
Changing the oil and oil filter:
5.3 US qt (5.0 liters, 4.4 Imp qt)
ZOM0754
ZOM0293
ZOM0294
0W-20*
-30 -20 -10 0 10 20 30 40
-20 0 60
20 80 100
40
B5=B8.ERRN 32 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Specifications

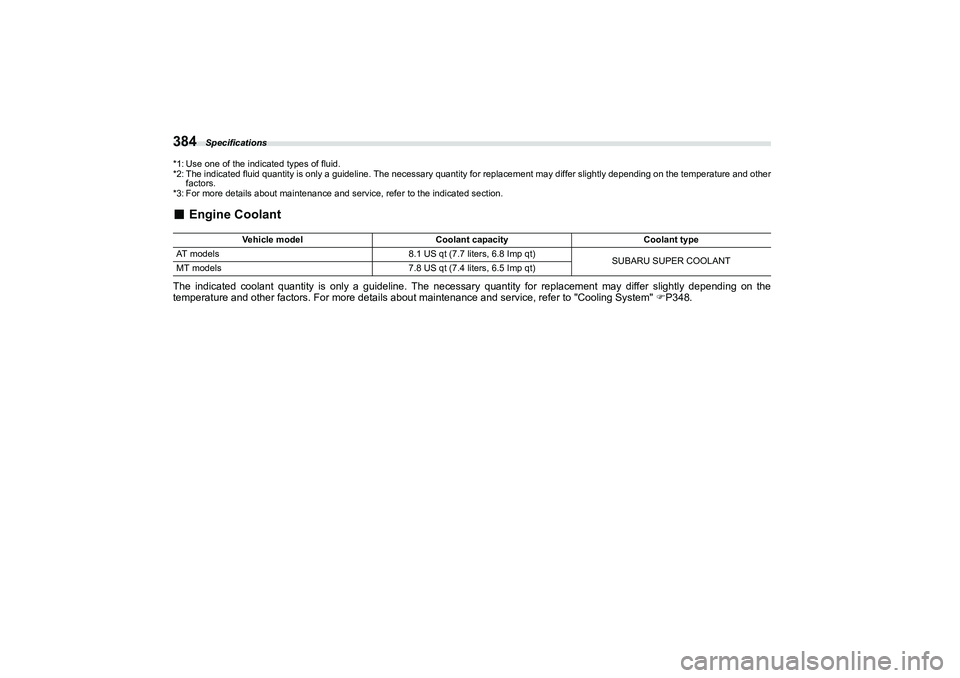

384*1: Use one of the indicated types of fluid.
*2: The indicated fluid quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other
factors.
*3: For more details about maintenance and service, refer to the indicated section.■
Engine Coolant
The indicated coolant quantity is only a guideline. The necessa ry quantity for replacement may differ slightly depending on the
temperature and other factors. For more details abou t maintenance and service, refer to "Cooling System" P348.
Vehicle model Coolant capacity Coolant type
AT models 8.1 US qt (7.7 liters, 6.8 Imp qt)
SUBARU SUPER COOLANT
MT models 7.8 US qt (7.4 liters, 6.5 Imp qt)
B5=B8.ERRN 34 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Specifications
385
Specifications12
– CONTINUED –
■
Electrical System
■Tires
*1: If equipped
*2: This torque is equivalent to applying approximately 88 to 110 lbf (40 to 50 kgf) at the end of the wheel nut wrench. If you have tightened the wheel nuts by yourself, have the tightening torque checked at the nearest automotive service facility as soon as possible. For the wh eel nut tightening
procedure, refer to "Changing a Flat Tire"  P303.■
Brake Pedal
in (mm)
*: Minimum value when pedal is operated with a force of 67.4 lbf (300 N, 30.6 kgf) while the engine is running.
Battery type
U.S. spec and Canada spec models
75D23L
Except U.S. spec and Canada spec models 55D23L
Alternator 12 V-150 A
Spark plugs ZXE27HBR8 (DENSO)
Tire size 215/45R17 87W215/40R18 85Y
Wheel size 17 × 7 1/2J18 × 7 1/2J
Pressure Front
35 psi (240 kPa, 2.4 kgf/cm
2)
Rear
Spare tire
*1
Size ―215/40R18 85Y
Pressure ―
35 psi (240 kPa, 2.4 kgf/cm
2)
Wheel nut tightening torque 88.5 lbf·ft (120 N·m, 12.2 kgf·m)
*2
Pedal clearance2.91 (74)*
Pedal free play 0.02 - 0.05 (0.5 - 1.5)
B5=B8.ERRN 35 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

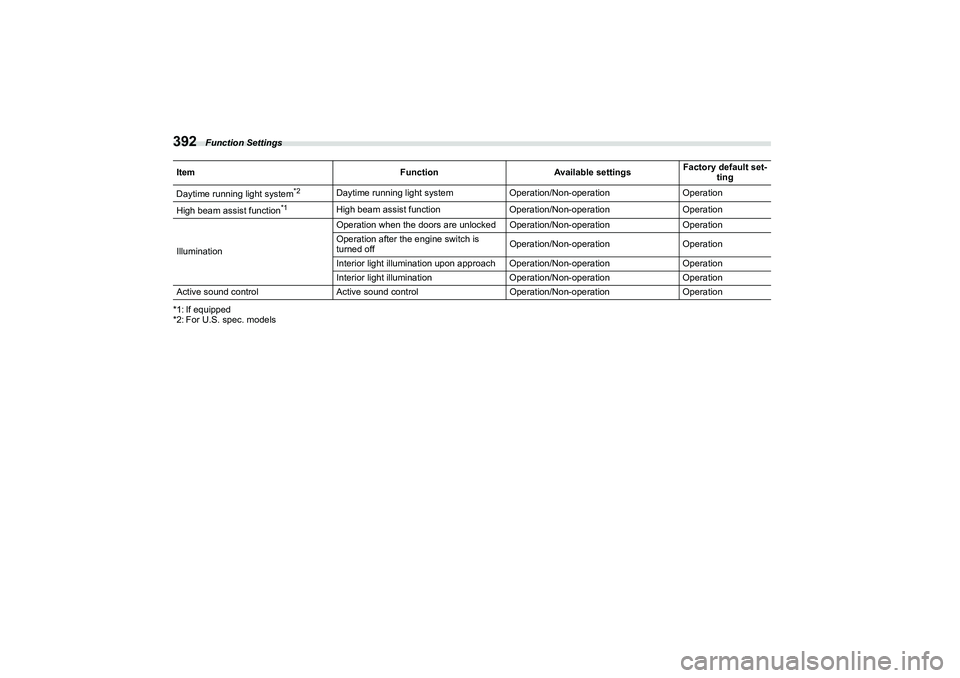

Function Settings
392*1: If equipped
*2: For U.S. spec. modelsDaytime running light system
*2
Daytime running light system
Operation/Non-operationOperation
High beam assist function
*1
High beam assist function Operation/Non-operation Operation
Illumination Operation when the doors are unlocked Operation/Non-operation
Operation
Operation after the engine switch is
turned off Operation/Non-operation
Operation
Interior light illumination upon appr oach Operation/Non-operation Operation
Interior light illumination Operation/Non-operation Operation
Active sound control Active sound control Operation/Non-operation Operation
Item
FunctionAvailable settingsFactory default set-
ting
B5=B8.ERRN 32 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Tire Information
398Cord separation
The parting of cords from adjacent
rubber compounds.
 Cracking
Any parting within the tread,
sidewall, or inner liner of the tire
extending to cord material.
 Curb weight
The weight of a motor vehicle with
standard equipment including the
maximum capacity of fuel, oil and
coolant, and if so equipped, air
conditioning and additional weight
optional engine.
 Extra load tire
A tire designed to operate at higher
loads and higher inflation pressure
than the corresponding standard
tire.
 Groove
The space between two adjacent
tread ribs.
 Innerliner
The layer(s) forming the inside
surface of a tubeless tire that contains the inflating medium within
the tire.

Innerliner separation
The parting of the innerliner from
cord material in the carcass.
 Intended outboard sidewall
(1) The sidewall that contains a
whitewall, bears white lettering or
bears manufacturer, brand, and/
or model name molding that is
higher or deeper than the same
molding on the other sidewall of
the tire, or
(2) The outward facing sidewall
of an asymmetrical tire that has a
particular side that must always
face outward when mounting on a
vehicle.
 Light truck (LT) tire
A tire designated by its manufac-
turer as primarily intended for use
on lightweight trucks or multipur-
pose passenger vehicles.
 Load rating
The maximum load that a tire is
rated to carry for a given inflation
pressure. 
Maximum inflation pressure
The maximum cold inflation pres-
sure to which a tire may be inflated.
 Maximum load rating
The load rating for a tire at the
maximum permissible inflation pres-
sure for that tire.
 Maximum loaded vehicle
weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
 Maximum permissible inflation
pressure
The maximum cold inflation pres-
sure to which a tire may be inflated.
 Measuring rim
The rim on which a tire is fitted for
physical dimension requirements.
 Normal occupant weight
150 lbs (68 kg) times the number of
occupants specified in the second
column of Table 1 that is appended
to the end of this section.A4600BEscusenvhch13.fm 398 ページ ２０２１年７月９日　金曜日　午後４時３９分

Index
411
Index14
Bottle holder ........................................................................ P215
BrakeAssist .............................................................................. P244
Booster............ .......................................... ............ P244, P355
Disc ................................................................................. P386
Fluid .......... ................................................... ......... P353, P383
Pad.................................................................................. P356
Parking ............ .......................................... ............ P256, P357
Pedal ............................................................................... P356
System ............................................................................ P244
Brake pedal Free play ......................................................................... P356
Reserve distance ............................................................ P356
Brake system .......... ........................................................ ..... P244
Warning light ................................................................... P140
Braking ................................................................................ P244 Tips ................................................................................. P244
Breaking-in of new brake pads ............................................ P357
BSD/RCTA .......................................................................... P268 Approach indicator light/warning buzzer ......................... P272
OFF indicator .................................................................. P273
OFF switch ...................................................................... P274
Warning indicator .... ..................................... ......... P150, P274
Warning light ................................................................... P274
Bulb Chart ............................................................................... P387
Replacing ........................................................................ P373
CCameraRear view camera ........................................................... P263
Catalytic converter ....................... ........................................ P291
Center console..................................................................... P214
Center information display (CID) . ........................................ P160
Cleaning .......................................................................... P336
Changing Coolant ............................................................................ P350
Flat tire ............................................................................ P303
Oil and oil filter ................................................................ P347
Charge warning light ............................................................ P137
CHECK ENGINE warning light/Malfunction indicator light... P136
Checking Brake pedal free play ...................................................... P356
Brake pedal reserve distance.......................................... P356
Clutch function ................................................................ P356
Clutch pedal free play ..................................................... P356
Coolant level ................................................................... P349
Fluid level (brake fluid) .................................................... P353
Fluid level (clutch fluid).................................................... P354
Fluid level (washer fluid) ................................................. P366
Oil level (engine oil)................. ........................................ P346
Child restraint systems .................................................... ...... P46
Installation of a booster seat ............................................. P54
Installation with ALR/ELR seatbel t .................................... P51
Lower and top tether anchorages ..................................... P55
Top tether anchorages ...................................................... P58
Child safety .............................................................................. P6
B5=B8.ERRN 411 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分
