SAFETY351
NOTE:Air bag covers may not be obvious in the interior
trim, but they will open during air bag deployment.
Rollover Events
Side Air Bags and seat belt pretensioners are
designed to activate in certain rollover events. The
Occupant Restraint Controller (ORC) determines
whether deployment in a particular rollover event
is appropriate, based on the severity and type of
collision. Vehicle damage by itself is not a good
indicator of whether or not Side Air Bags and seat
belt pretensioners should have deployed. The Side Air Bags and seat belt pretensioners will
not deploy in all rollover events. The rollover
sensing system determines if a rollover event may
be in progress and whether deployment is
appropriate. In the event the vehicle experiences a
rollover or near rollover event, and deployment is
appropriate, the rollover sensing system will deploy
the side air bags and seat belt pretensioners on
both sides of the vehicle.
The SABICs may help reduce the risk of partial or
complete ejection of vehicle occupants through
side windows in certain rollover or side impact
events.
Air Bag System Components
NOTE:The Occupant Restraint Controller (ORC) monitors
the internal circuits and interconnecting wiring
associated with electrical Air Bag System Compo
-
nents listed below:
Occupant Restraint Controller (ORC)
Air Bag Warning Light
Steering Wheel and Column
Instrument Panel
Knee Impact Bolsters
Driver and Front Passenger Air Bags
Seat Belt Buckle Switch
Supplemental Side Air Bags
Front and Side Impact Sensors
Seat Belt Pretensioners
Seat Track Position Sensors
Occupant Classification System
If A Deployment Occurs
The front air bags are designed to deflate
immediately after deployment.
NOTE:Front and/or side air bags will not deploy in all colli -
sions. This does not mean something is wrong with
the air bag system.
WARNING!
Side Air Bags need room to inflate. Do not lean
against the door or window. Sit upright in the
center of the seat.
Being too close to the Side Air Bags during
deployment could cause you to be severely
injured or killed.
Relying on the Side Air Bags alone could lead
to more severe injuries in a collision. The Side
Air Bags work with your seat belt to restrain
you properly. In some collisions, Side Air Bags
won’t deploy at all. Always wear your seat belt
even though you have Side Air Bags.
6

22_DT_OM_EN_USC_t.book Page 351

412SERVICING AND MAINTENANCE
G/T AIR FILTER MAINTENANCE
Clean Engine Air Filter
The scheduled air filter cleaning interval is 30,
000 miles (48,280 km), or if in a dusty
environment the engine air filter should be
checked periodically to ensure optimal air flow.

1. Spray the air filter with the recommended
Mopar® air filter cleaner or apply mild
dishwashing detergent and water and let sit
for at least 10 minutes to loosen dir before
rinsing.

NOTE:Never use strong detergents, high pressure, or
gasoline on the air filter.
2. Rinse the air filter with cool low-pressure water applied from the inside (clean side) out in
order to flush the dirt out of the filter. Continue
to rinse the filter until all traces of the cleaner
have been removed.
NOTE:It may be necessary to repeat steps 1 and 2 if the
air filter is not completely clean.
3. After rinsing the air filter, gently shake off the excess water and allow air filter to dry
naturally.
NOTE:Do not use forced air pressure as it may damage
the filtering capabilities of the filter’s microfibers
and also void its warranty.
DRAINING FUEL/WATER SEPARATOR
F
ILTER — DIESEL ENGINE
The fuel/water separator filter housing is located
inside the frame rail, behind the left front wheel.
The best access to this water drain valve is from
under the vehicle.
If water is detected in the water separator while the
engine is running, or while the ignition switch is in
the ON/RUN position, the Water In Fuel Indicator
Light will illuminate and an audible chime will be
heard. At this point, you should stop the engine
and drain the water from the filter housing.
Fuel Filter Assembly

If the Water In Fuel Indicator Light comes on and a
single chime is heard while you are driving, or with
the ignition in the ON position, there may be a
problem with your water separator wiring or
sensor. See an authorized dealer for service.
CAUTION!
Do not drain the fuel/water separator filter
when the engine is running.
Diesel fuel will damage blacktop paving
surfaces. Drain the filter into an appropriate
container.
1 — Water In Fuel Drain Valve
CAUTION!
If the Water In Fuel Indicator Light remains on,
DO NOT START the engine before you drain water
from the fuel filter to avoid engine damage.

22_DT_OM_EN_USC_t.book Page 412

430SERVICING AND MAINTENANCE
F05 ––Spare
F06 –10 Amp Red OUTPUT TO UPFITTER PDC *
F07 ––Spare
F08 20 Amp Blue –Trailer Tow Backup
F09 –20 Amp Yellow Trailer Stop / Turn Lamp Left
F10 –20 Amp Yellow Trailer Stop / Turn Lamp Right
F11 –15 Amp Blue ID/CLEARANCE LIGHTS *
F12 20 Amp Blue –Trailer Tow Park Lamp
F13 ––Spare
F14 –10 Amp Red AC Clutch
F15 –5 Amp Tan Intelligent Battery Sensor (IBS)
F16 ––Spare *
F17 –20 Amp Yellow Air Suspension
F18 –15 Amp Blue AGS / Rear Axle Cooling Valve / Active Air Dam
F19 ––Spare
F20 –20 Amp Yellow Adjustable Pedals *
F21 30 Amp Pink –Power Side Step *
F22 50 Amp Red –Air Module *
F23 ––Spare
F24 –20 Amp Yellow TCM SBW
Cavity Cartridge Fuse Micro Fuse Description
* If Equipped

22_DT_OM_EN_USC_t.book Page 430

SERVICING AND MAINTENANCE433
Internal Power Distribution Center
The Power Distribution Center is located under the
driver’s side instrument panel. This center
contains cartridge fuses, micro fuses, relays, and
circuit breakers.

Fuse Cover Panel
See below steps for accessing fuses:

1. Locate and remove the two screws from the
lower portion of the fuse panel cover.

Fuse Panel Screws Location
2. After removing the screws, gently pull both the
left and right side of the fuse panel cover to
release the fastener clips.

Interior Fuse Box Location

3. Reverse the procedure to reinstall the fuse panel cover.
F62
60 Amp Blue
–Glow Plug *
40 Amp Green LTR Coolant Pump *
F63 20 Amp Blue –NOx Sensor *
F64 –10 Amp Red PM Sensor *
CavityCartridge Fuse Micro Fuse Description
* If Equipped
8

22_DT_OM_EN_USC_t.book Page 433

436SERVICING AND MAINTENANCE
F37 ––Spare
F38 ––Spare
F39 ––Spare
F40 20 Amp Blue –Dome Pursuit Vehicle *
F41 A&B –15 Amp BlueLumbar Support & Pass SW / Steering Column Control
Module / HVAC Control Module / ICS Switch Bank / Upper
Switch Bank
F42 A&B –10 Amp RedMod Transfer Case Switch Module (TCSM) / SBW / Electric
Park Brake SW / Module TPM Trailer / Module Gateway Can-C
Trailer TPM / Seat LT & RT Vent
F43 A&B –10 Amp Red Port Diagnostics / Front & Rear USB
F44 –20 Amp YellowRadio / DCSD / Telematics Box Mod / Trailer Gateway Module
(360)
F45 30 Amp Pink –Mod Door MUX Driver
F46 30 Amp Pink –Mod Door MUX Passenger
F47 ––Spare
F48A –10 Amp RedRear View Mirror / SW Window Passenger / Rear USB /
Wireless Charging Pad Mod
F49 –15 Amp BlueMod CVPM / SNSR Blind Spot / HDLP Adaptive Front Lighting
Sensor (AFLS)
F50A –10 Amp Red Battery PACK Control Mod *
F51 A&B ––Spare
Cavity Cartridge Fuse Micro Fuse Description
* If Equipped

22_DT_OM_EN_USC_t.book Page 436

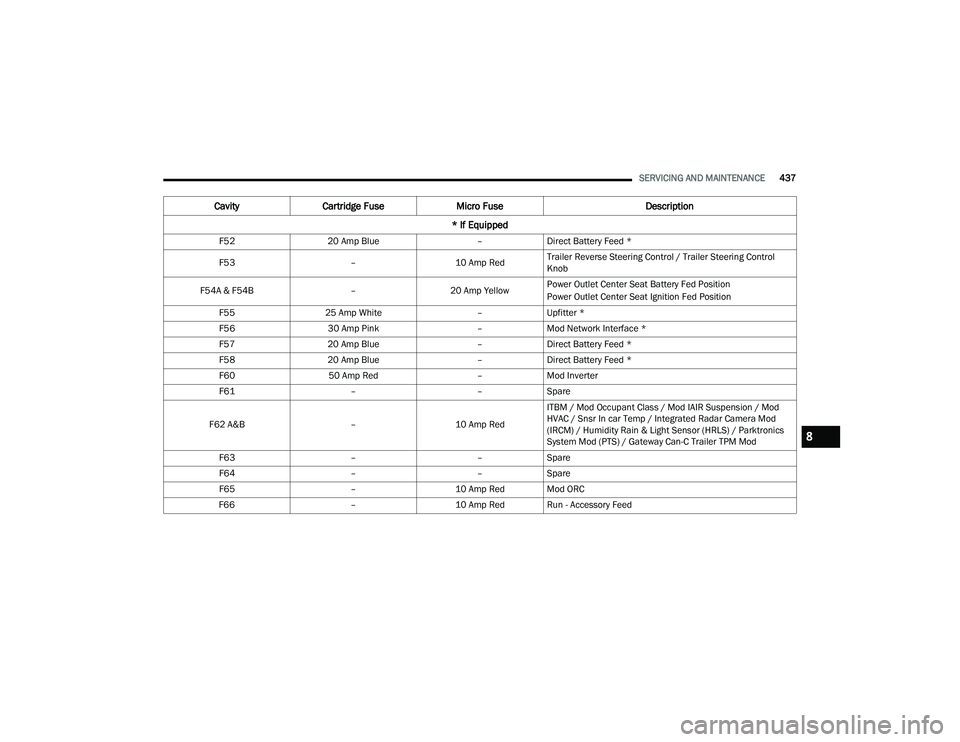

SERVICING AND MAINTENANCE437
F52 20 Amp Blue –Direct Battery Feed *
F53 –10 Amp RedTrailer Reverse Steering Control / Trailer Steering Control
Knob
F54A & F54B –20 Amp YellowPower Outlet Center Seat Battery Fed Position
Power Outlet Center Seat Ignition Fed Position
F55 25 Amp White –Upfitter *
F56 30 Amp Pink –Mod Network Interface *
F57 20 Amp Blue –Direct Battery Feed *
F58 20 Amp Blue –Direct Battery Feed *
F60 50 Amp Red –Mod Inverter
F61 ––Spare
F62 A&B –10 Amp RedITBM / Mod Occupant Class / Mod IAIR Suspension / Mod
HVAC / Snsr In car Temp / Integrated Radar Camera Mod
(IRCM) / Humidity Rain & Light Sensor (HRLS) / Parktronics
System Mod (PTS) / Gateway Can-C Trailer TPM Mod
F63 ––Spare
F64 ––Spare
F65 –10 Amp Red Mod ORC
F66 –10 Amp Red Run - Accessory Feed
CavityCartridge Fuse Micro Fuse Description
* If Equipped
8

22_DT_OM_EN_USC_t.book Page 437

SERVICING AND MAINTENANCE453
Consult an authorized tire dealer for tire repairs
and additional information.
Damaged Run Flat tires, or Run Flat tires that have
experienced a loss of pressure should be replaced
immediately with another Run Flat tire of identical
size and service description (Load Index and
Speed Symbol). Replace the tire pressure sensor
as well as it is not designed to be reused.
Run Flat Tires — If Equipped
Run Flat tires allow you the capability to drive
50 miles (80 km) at 50 mph (80 km/h) after a
rapid loss of inflation pressure. This rapid loss of
inflation is referred to as the Run Flat mode. A Run
Flat mode occurs when the tire inflation pressure is
of/or below 14 psi (96 kPa). Once a Run Flat tire
reaches the Run Flat mode it has limited driving
capabilities and needs to be replaced immediately.
A Run Flat tire is not repairable. When a Run Flat
tire is changed after driving with underinflated tire
condition, please replace the TPMS sensor as it is
not designed to be reused when driven under Run
Flat mode 14 psi (96 kPa) condition.
NOTE:The TPMS Sensor must be replaced after driving
the vehicle on a flat tire condition. It is not recommended driving a vehicle loaded at
full capacity or to tow a trailer while a tire is in the
Run Flat mode.
For more information Ú
page 328.
Tire Spinning
When stuck in mud, sand, snow, or ice conditions,
do not spin your vehicle's wheels above 30 mph
(48 km/h) or for longer than 30 seconds
continuously without stopping.
For further information Ú page 389.
Tread Wear Indicators
Tread wear indicators are in the original equipment
tires to help you in determining when your tires
should be replaced.

Tire Tread

These indicators are molded into the bottom of the
tread grooves. They will appear as bands when the
tread depth becomes a 1/16 of an inch (1.6 mm).
When the tread is worn to the tread wear
indicators, the tire should be replaced.
For further information Ú page 454.
WARNING!
Fast spinning tires can be dangerous. Forces
generated by excessive wheel speeds may
cause tire damage or failure. A tire could
explode and injure someone. Do not spin your
vehicle's wheels faster than 30 mph (48 km/h)
for more than 30 seconds continuously when
you are stuck, and do not let anyone near a
spinning wheel, no matter what the speed.
1 — Worn Tire
2 — New Tire
8

22_DT_OM_EN_USC_t.book Page 453

486 Air Suspension Payload Protection
............ 134Air Suspension Ride Height Lowering........ 135Air Suspension Ride Height Raising..........134Anti-Lock Brake System............................. 131Brake Assist Warning................................ 316Brake Warning.......................................... 128Bulb Replacement..................................... 438Cargo.................................................. 57, 135Center Mounted Stop................................ 443Courtesy/Reading....................................... 59Cruise.............................................. 136, 137Daytime Running......................................... 55ECO Mode................................................. 136Electric Power Steering............................. 130Electronic Park Brake................................ 131Electronic Stability Control........................ 131Electronic Throttle Control......................... 129Engine Coolant Temperature..................... 130Exterior............................................... 54, 370Fog.................................................. 136, 442Forward Collision Warning......................... 135Hazard Warning Flasher............................ 371Headlights............................................ 54, 56High Beam......................................... 55, 137High Beam/Low Beam Select..................... 55Hill Descent Control Indicator.......... 137, 316Hood Open................................................ 130Illuminated Entry......................................... 60Interior........................................................ 59LaneSense...................................... 136, 137
Lights On Reminder..................................... 56Low Diesel Exhaust Fluid.......................... 135Low Fuel................................................... 136Malfunction Indicator (Check Engine)....... 132NEUTRAL.................................................. 135Oil Temperature........................................ 130Passing........................................................ 55Rear Axle Lock.......................................... 135Rear Axle Lock Fault................................. 133Rear Tail Lamps....................................... 442Seat Belt Reminder.................................. 130Security Alarm.......................................... 131Service..................................................... 438Service Stop Start..................................... 133Stop Start Active....................................... 136TOW HAUL................................................ 135Traction Control........................................ 316Transmission Temperature....................... 131Turn Signals.................................... 137, 440Wait To Start............................................. 135Warning Instrument ClusterDescriptions......................................... 137Limited-Slip Differential....................... 173, 427Load Shed Battery Saver Mode.................... 127Load Shed Battery Saver On......................... 127Load Shed Electrical Load Reduction........... 127Load Shed Intelligent Battery Sensor............ 127Loading Vehicle............................................ 211Tires......................................................... 448
LocksAutomatic Door............................................32Child Protection...........................................32Power Door..................................................29Low Tire Pressure System............................. 328Lubrication, Body.......................................... 418Lug Nuts........................................................ 466Lug Nuts/Bolts.............................................. 466
M
Maintenance.............................................83, 85Maintenance Free Battery............................ 408Maintenance Schedule............... 393, 398, 399Malfunction Indicator Light
(Check Engine).............................................. 132ManualService...................................................... 480Media Hub.......................................................75Media Mode.................................................. 270Memory Seat....................................................34Memory Settings..............................................34Methanol....................................................... 468Mirrors.............................................................45Automatic Dimming.....................................45Digital..........................................................46Electric Powered..........................................48Heated.........................................................49Manual Dimming.........................................45Memory.......................................................34Outside........................................................47
