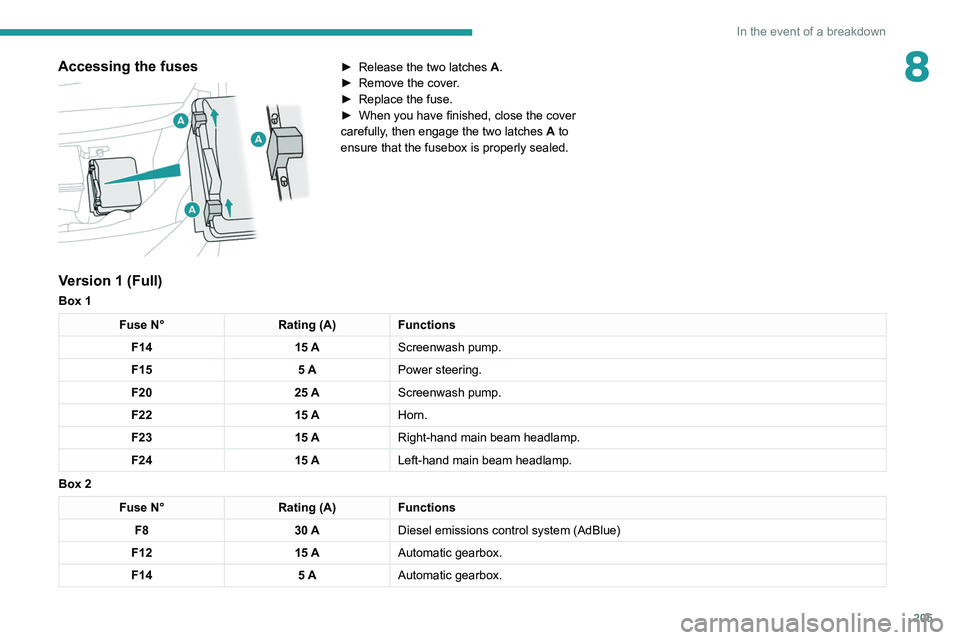

205
In the event of a breakdown
8Accessing the fuses

► Release the two latches A .
► Remove the cover .
►

Replace the fuse.
►


When you have finished, close the cover
carefully

, then engage the two latches A
to
ensure that the fusebox is properly sealed.
Version 1 (Full)
Box 1
Fuse N° Rating (A)Functions
F14 15 AScreenwash pump.
F15 5 APower steering.
F20 25 AScreenwash pump.
F22 15 AHorn.
F23 15 ARight-hand main beam headlamp.
F24 15 ALeft-hand main beam headlamp.
Box 2
Fuse N° Rating (A)Functions
F8 30 ADiesel emissions control system (AdBlue)
F12 15 AAutomatic gearbox.
F14 5 AAutomatic gearbox.

206

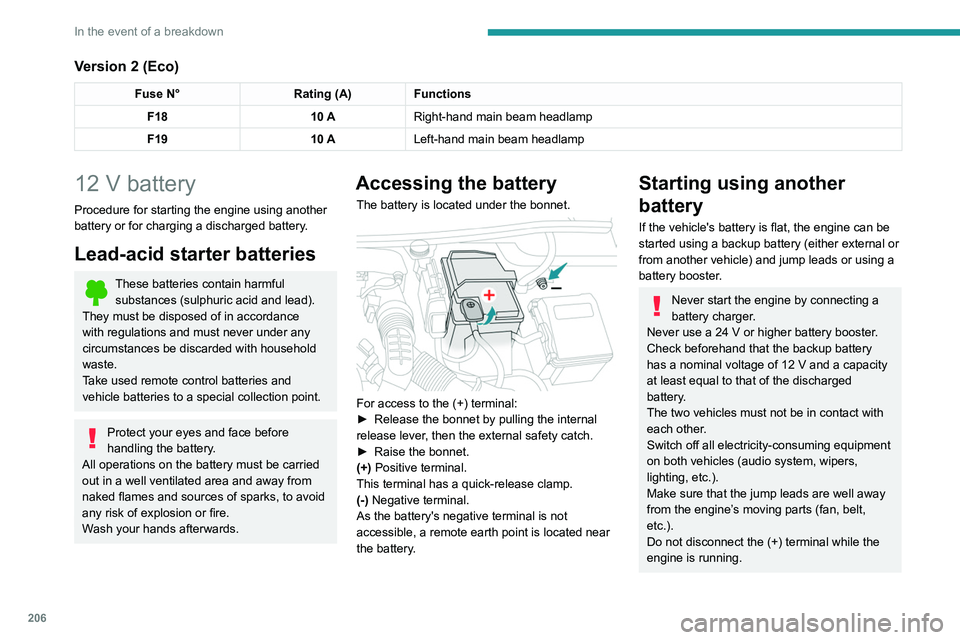

In the event of a breakdown
Version 2 (Eco)
Fuse N°Rating (A)Functions
F18 10 ARight-hand main beam headlamp
F19 10 ALeft-hand main beam headlamp
12 V battery
Procedure for starting the engine using another
battery or for charging a discharged battery.
Lead-acid starter batteries
These batteries contain harmful
substances (sulphuric acid and lead).
They must be disposed of in accordance
with regulations and must never under any
circumstances be discarded with household
waste.
Take used remote control batteries and
vehicle batteries to a special collection point.
Protect your eyes and face before
handling the battery.
All operations on the battery must be carried
out in a well ventilated area and away from
naked flames and sources of sparks, to avoid
any risk of explosion or fire.
Wash your hands afterwards.
Accessing the battery
The battery is located under the bonnet.

For access to the (+) terminal:
► Release the bonnet by pulling the internal
release lever
, then the external safety catch.
►

Raise the bonnet.
(+)

Positive terminal.
This terminal has a quick-release clamp.
(-) Negative terminal.
As the battery's negative terminal is not
accessible, a remote earth point is located near
the battery.
Starting using another
battery
If the vehicle's battery is flat, the engine can be
started using a backup battery (either external or
from another vehicle) and jump leads or using a
battery booster.
Never start the engine by connecting a
battery charger.
Never use a 24
V or higher battery booster.
Check beforehand that the backup battery
has a nominal voltage of 12
V and a capacity
at least equal to that of the discharged
battery.
The two vehicles must not be in contact with
each other.
Switch off all electricity-consuming equipment
on both vehicles (audio system, wipers,
lighting, etc.).
Make sure that the jump leads are well away
from the engine’s moving parts (fan, belt,
etc.).
Do not disconnect the (+) terminal while the
engine is running.

261
Alphabetical index
180° rear vision 157
A
ABS 87
Accelerated charging unit (Wallbox)
166
Accessories

84
Active Safety Brake

147–149
AdBlue®

18, 184
AdBlue® tank

186
Additive, Diesel

182–183
Adjusting headlamps

76
Adjusting head restraints

44
Adjusting seat

43, 45, 50–52
Adjusting the air distribution

58–60
Adjusting the air flow

58–60
Adjusting the date

234, 256
Adjusting the height and reach of
the steering wheel

47
Adjusting the lumbar support

43, 45
Adjusting the seat belt height

92
Adjusting the temperature

58
Adjusting the time

233, 257
Advanced Grip Control

89
Advice on care and maintenance

165, 187
Advice on driving

7, 110
Airbags

95–97, 99
Airbags, curtain

96–97
Airbags, front

95–97, 99
Airbags, lateral

96–97
Air conditioning

56, 59
Air conditioning, automatic 60
Air conditioning, digital
57
Air conditioning, dual-zone automatic

57
Air intake

58, 60
Air vents

56
Alarm

36–37
Amplifier, audio

63
Android Auto connection

230, 248
Anti-lock braking system (ABS)

87
Antitheft / Immobiliser

27
Apple CarPlay connection

230, 247
Applications

248
Armrest, front

64–65
Armrest, rear

67
Assistance call

85–86
Assistance, emergency braking

87, 149
Audible warning

85
Audio streaming (Bluetooth)

229, 252
B
Backrest, folding 44
Battery, 12 V
178, 183, 206–210
Battery, ancillaries

209
Battery, charging

207, 210
Battery, remote control

31
Blanking screen (snow shield)

178
Blind

39–41
Blind spot monitoring system, active

152
Blind spot sensors

151–152
Blinds, side

68
BlueHDi 18, 21, 182, 189
Bluetooth (hands-free)
231, 253
Bluetooth (telephone)

231–232, 253–254
Bodywork

188
Bonnet

179–180
Boot

32–33, 36, 73
Boot (fittings)

69
Brake discs

184
Brake lamps

201
Brakes

184
Braking

120
Braking assistance system

87
Braking, automatic emergency

147–149
Braking, dynamic emergency

114–116
Brightness

233
Bulbs (changing)

200–201
C
Cable, audio 251
Cable, Jack
251
Capacity, fuel tank

163
Care of the bodywork

188
Central locking

29–30
Changing a bulb

200–201
Changing a fuse

201–202, 204–205
Changing a wheel

190–191, 195–197
Changing a wiper blade

82–83
Changing the remote control battery

31
Charge level indicator
(Rechargeable hybrid)

20

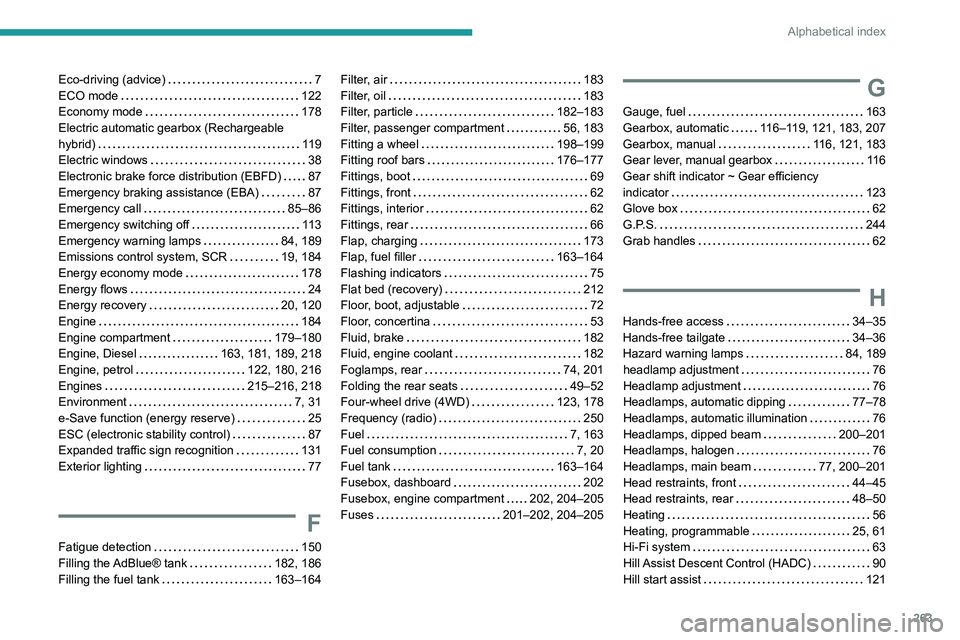

263
Alphabetical index
Eco-driving (advice) 7
ECO mode
122
Economy mode

178
Electric automatic gearbox (Rechargeable
hybrid)

119
Electric windows

38
Electronic brake force distribution (EBFD)

87
Emergency braking assistance (EBA)

87
Emergency call

85–86
Emergency switching off

11 3
Emergency warning lamps

84, 189
Emissions control system, SCR

19, 184
Energy economy mode

178
Energy flows

24
Energy recovery

20, 120
Engine

184
Engine compartment

179–180
Engine, Diesel

163, 181, 189, 218
Engine, petrol

122, 180, 216
Engines

215–216, 218
Environment

7, 31
e-Save function (energy reserve)

25
ESC (electronic stability control)

87
Expanded traffic sign recognition

131
Exterior lighting

77
F
Fatigue detection 150
Filling the AdBlue® tank
182, 186
Filling the fuel tank

163–164
Filter, air 183
Filter, oil
183
Filter, particle

182–183
Filter, passenger compartment

56, 183
Fitting a wheel

198–199
Fitting roof bars

176–177
Fittings, boot

69
Fittings, front

62
Fittings, interior

62
Fittings, rear

66
Flap, charging

173
Flap, fuel filler

163–164
Flashing indicators

75
Flat bed (recovery)

212
Floor, boot, adjustable

72
Floor, concertina

53
Fluid, brake

182
Fluid, engine coolant

182
Foglamps, rear

74, 201
Folding the rear seats

49–52
Four-wheel drive (4WD)

123, 178
Frequency (radio)

250
Fuel

7, 163
Fuel consumption

7, 20
Fuel tank

163–164
Fusebox, dashboard

202
Fusebox, engine compartment

202, 204–205
Fuses

201–202, 204–205G
Gauge, fuel 163
Gearbox, automatic
116–119, 121, 183, 207
Gearbox, manual

116, 121, 183
Gear lever, manual gearbox

11 6
Gear shift indicator ~ Gear efficiency
indicator

123
Glove box

62
G.P.S.

244
Grab handles

62
H
Hands-free access 34–35
Hands-free tailgate
34–36
Hazard warning lamps

84, 189
headlamp adjustment

76
Headlamp adjustment

76
Headlamps, automatic dipping

77–78
Headlamps, automatic illumination

76
Headlamps, dipped beam

200–201
Headlamps, halogen

76
Headlamps, main beam

77, 200–201
Head restraints, front

44–45
Head restraints, rear

48–50
Heating

56
Heating, programmable

25, 61
Hi-Fi system

63
Hill Assist Descent Control (HADC)

90
Hill start assist

121
