Practical information
7► If the vehicle is unlocked, lock it and then
unlock it .
If selective unlocking of the doors is
activated, press the unlocking button on
the remote control twice to disconnect the
nozzle.
The red indicator lamp in the flap goes out to
confirm that the nozzle is unlocked.
►

Within
30 seconds, remove the charging
nozzle.
Domestic charging (mode 2)
The end of charging is confirmed when the
green CHARGE indicator lamp on the control
unit comes on fixed and the green light guides in
the flap come on fixed.
►

After disconnection, replace the protective
cover over the nozzle and close the charging
flap.
►


Disconnect the control unit's charging cable
from the domestic socket.
Accelerated charging (mode 3)
The end of charging is confirmed by the
accelerated charging unit (Wallbox) and when
the green light guides in the flap come on fixed.
►

After disconnection, replace the nozzle on to
the charging unit and close the charging flap.
Deferred charging
Settings
► In the Energy touch screen
application, select the Charging tab.
►

Set the charging start time.
►


Press
OK.
The setting is saved in the system.
You can also programme the deferred charging function using a smartphone, via
the MYPEUGEOT APP application.
For more information on Remote functions,
refer to the corresponding section.
Activation
► Connect the vehicle to the desired charging
equipment.
► Press this button in the flap within one
minute to activate deferred charging
(confirmed by the light guides coming on in
blue).
Towing device
Load distribution
► Distribute the load in the trailer so that the
heaviest items are as close as possible to the
axle, and the nose weight approaches the
maximum permitted without exceeding it.
Air density decreases with altitude, thus reducing
engine performance.
The maximum towable load
must be reduced by 10% per 1,000
metres of
altitude.
Use genuine towing devices and wiring
harnesses approved by PEUGEOT. We
recommend having them fitted by a
PEUGEOT dealer or a qualified workshop.
If not fitted by a PEUGEOT dealer, they must
still be fitted in accordance with the vehicle
manufacturer's instructions.
Important: if the vehicle has a motorised
tailgate and Hands-Free Tailgate Access
function, and a towing device has been fitted
outside the PEUGEOT dealer network, it
is essential to visit a PEUGEOT dealer or
a qualified workshop to have the detection
system recalibrated
- risk of malfunction of the
Hands-Free Tailgate Access function.
Certain driving or manoeuvring aid functions
are automatically deactivated while an
approved towing system is in use.
For more information about driving with a
towing device fitted to a trailer and associated
with the Trailer stability assist, refer to the
corresponding section.
Comply with the maximum authorised
towable weight, as indicated on your
vehicle's registration certificate, on the
manufacturer's label and in the Technical
data section of this guide.

189
In the event of a breakdown
8► Remove the fixing screw(s) from the access
flap located under the bumper using a Torx
screwdriver.
►

Unclip the access flap.
►


T
urn the bulb holder a quarter turn and
remove it.
►

For the foglamp: turn the bulb a quarter turn
and replace it.
►


For the reversing lamp: pull out the bulb and
replace it.
When changing the bulb within a few
minutes of switching off the ignition, take
care not to touch the exhaust - risk of burns!
Fuses
Changing a fuse
All work must be carried out only by a
PEUGEOT dealer or a qualified workshop
The replacement of a fuse by a third party
could cause a serious malfunction of the
vehicle.
Installing electrical accessories
The vehicle's electrical system is
designed to operate with standard or optional
equipment.
Before fitting other electrical equipment
or accessories to your vehicle, contact a
PEUGEOT dealer or a qualified workshop.
PEUGEOT accepts no responsibility for
the cost incurred in repairing the vehicle
or for rectifying malfunctions resulting from
the installation of accessories not supplied or
not recommended by PEUGEOT and not
installed in accordance with its
recommendations, in particular when the
combined power consumption of all of the
additional equipment connected exceeds 10
milliamperes.
12 V battery/Accessory
batteries
Lead-acid starter batteries
These batteries contain harmful
substances (sulphuric acid and lead).
They must be disposed of in accordance
with regulations and must never under any
circumstances be discarded with household
waste.
Dispose of used batteries at a designated
collection point.
Protect your eyes and face before
handling the battery.
All operations on the battery must be carried
out in a well ventilated area and away from
naked flames and sources of sparks, to avoid
any risk of explosion or fire.
Wash your hands afterwards.
Electronic control units/LED
technology headlamps
Never connect the negative jump lead to the
metal part of the electronic control units
or at
the back of the headlamps.
Risk of destroying the electronic control
units
and/or headlamps!
Connect to the remote earth point provided
for this purpose.
Frozen battery
Never try to charge a frozen battery - risk
of explosion!
If the battery has frozen, have it checked by a
PEUGEOT dealer or by a qualified workshop,
who will verify that the internal components
have not been damaged and that the case
has not cracked, which could lead to a risk of
leakage of toxic and corrosive acid.
Automatic gearbox
Never try to start the engine by pushing
the vehicle.
Symbols
No sparks or naked flames, no smoking.
Always protect your eyes. Explosive gases can cause blindness and injury.

190
In the event of a breakdown
Keep the vehicle's battery out of the reach
of children.
The vehicle's battery contains sulphuric acid which can make you go blind or
cause severe burns.
For more information, refer to the
handbook.
Explosive gases can be present close to
the battery.
With petrol/Diesel engines
Procedure for starting the engine using another
battery or for charging a discharged battery.
Accessing the battery
The battery is located under the bonnet.

For access to the (+) terminal:
► Release the bonnet by pulling the internal
release lever
, then the external safety catch.
►

Raise the bonnet.
(+)

Positive terminal with a quick-release
terminal.
(-) Negative terminal.
As the battery's negative terminal is not
accessible, a remote earth point is located near
the battery.
Starting using another battery
If the vehicle's battery is flat, the engine can be
started using a backup battery (either external or
from another vehicle) and jump leads or using a
battery booster.
Never start the engine by connecting a
battery charger.
Never use a 24
V or higher battery booster.
Check beforehand that the backup battery
has a nominal voltage of 12
V and a capacity
at least equal to that of the discharged
battery.
The two vehicles must not be in contact with
each other.
Switch off all electricity-consuming equipment
on both vehicles (audio system, wipers,
lighting, etc.).
Make sure that the jump leads are well away
from the engine’s moving parts (fan, belt,
etc.).
Do not disconnect the (+) terminal while the
engine is running.


► Lift the plastic cover on the (+) terminal, if the
vehicle has one.
►

Connect the red cable to the (+) terminal of
flat battery

A (at the metal elbow), then to the
(+) terminal of the backup battery
B or of the
booster.
►

Connect one end of the green or black cable
to the (-) terminal of the backup battery

B or of
the booster (or to an earth point on the assisting
vehicle).
►

Connect the other end of the green or black
cable to the earth point


C
.
►

Start the engine on the assisting vehicle and
leave it running for a few minutes.
►


Operate the starter on the broken down
vehicle and let the engine run.
If the engine does not start immediately

, switch
off the ignition and wait a few moments before
trying again.
►

W
ait for it to return to idle.
►

Disconnect the jump leads in reverse order.
►


Refit the plastic cover to the (+) terminal, if
the vehicle has one.

192
In the event of a breakdown

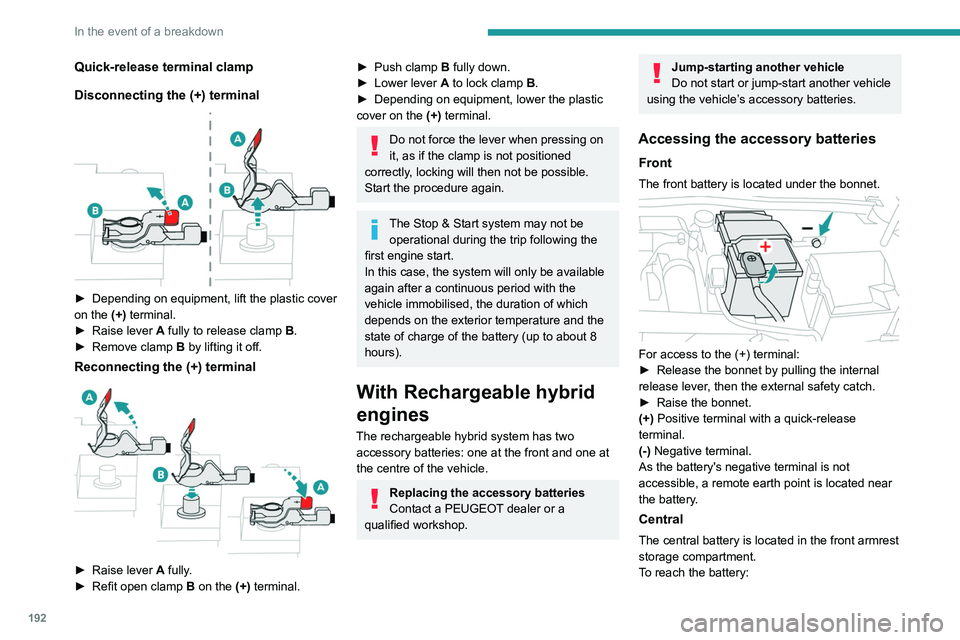

Quick-release terminal clamp
Disconnecting the (+) terminal


► Depending on equipment, lift the plastic cover
on the (+) terminal.
►

Raise lever

A
fully to release clamp
B
.
►

Remove clamp

B
by lifting it off.
Reconnecting the (+) terminal

► Raise lever A fully.
► Refit open clamp B on the (+) terminal.
► Push clamp B fully down.
► Lower lever A to lock clamp B.
►

Depending on equipment, lower the plastic
cover on the

(+) terminal.
Do not force the lever when pressing on
it, as if the clamp is not positioned
correctly, locking will then not be possible.
Start the procedure again.
The Stop & Start system may not be operational during the trip following the
first engine start.
In this case, the system will only be available
again after a continuous period with the
vehicle immobilised, the duration of which
depends on the exterior temperature and the
state of charge of the battery (up to about 8
hours).
With Rechargeable hybrid
engines
The rechargeable hybrid system has two accessory batteries: one at the front and one at
the centre of the vehicle.
Replacing the accessory batteries
Contact a PEUGEOT dealer or a
qualified workshop.
Jump-starting another vehicle
Do not start or jump-start another vehicle
using the vehicle’s accessory batteries.
Accessing the accessory batteries
Front
The front battery is located under the bonnet.

For access to the (+) terminal:
► Release the bonnet by pulling the internal
release lever
, then the external safety catch.
►

Raise the bonnet.
(+)

Positive terminal with a quick-release
terminal.
(-) Negative terminal.
As the battery's negative terminal is not
accessible, a remote earth point is located near
the battery.
Central
The central battery is located in the front armrest
storage compartment.
To reach the battery:

194
In the event of a breakdown
accessory batteries - risk of irreversible
damage!

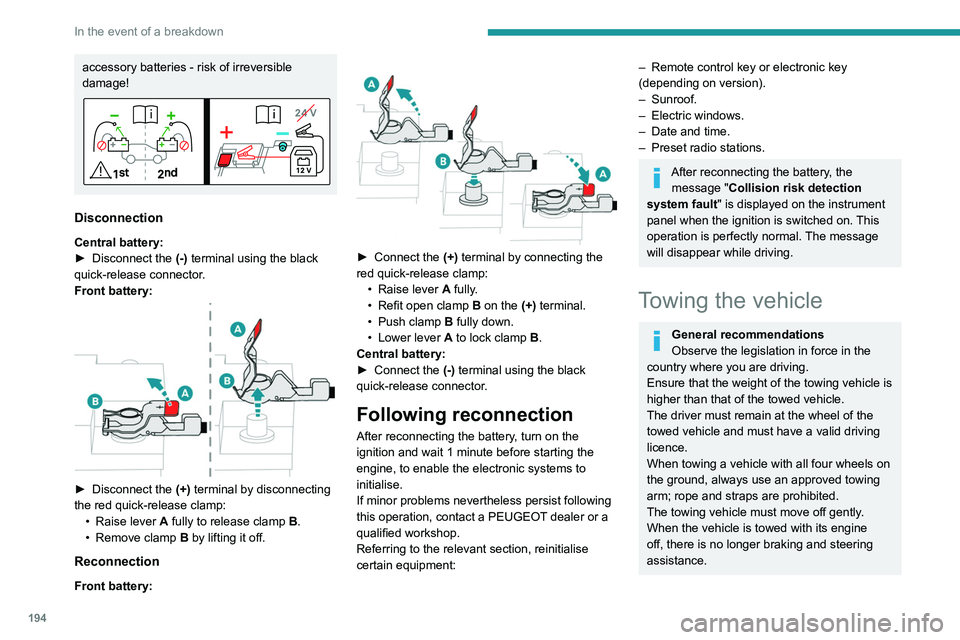

Disconnection
Central battery:
► Disconnect the (-)
terminal using the black
quick-release connector.
Front battery:


► Disconnect the (+) terminal by disconnecting
the red quick-release clamp: •

Raise lever

A
fully to release clamp
B
.
•

Remove clamp

B
by lifting it off.
Reconnection
Front battery:


► Connect the (+) terminal by connecting the
red quick-release clamp: •

Raise lever

A
fully.
•

Refit open clamp

B
on the (+) terminal.
•

Push clamp
B fully down.
•

Lower lever

A
to lock clamp B.
Central battery:
►

Connect the
(-) terminal using the black
quick-release connector.
Following reconnection
After reconnecting the battery, turn on the
ignition and wait 1 minute before starting the
engine, to enable the electronic systems to
initialise.
If minor problems nevertheless persist following
this operation, contact a PEUGEOT dealer or a
qualified workshop.
Referring to the relevant section, reinitialise
certain equipment:
– Remote control key or electronic key
(depending on version).
–
Sunroof.
–

Electric windows.
–


Date and time.
–


Preset radio stations.
After reconnecting the battery, the message "Collision risk detection
system fault" is displayed on the instrument
panel when the ignition is switched on. This
operation is perfectly normal. The message
will disappear while driving.
Towing the vehicle
General recommendations
Observe the legislation in force in the
country where you are driving.
Ensure that the weight of the towing vehicle is
higher than that of the towed vehicle.
The driver must remain at the wheel of the
towed vehicle and must have a valid driving
licence.
When towing a vehicle with all four wheels on
the ground, always use an approved towing
arm; rope and straps are prohibited.
The towing vehicle must move off gently.
When the vehicle is towed with its engine
off, there is no longer braking and steering
assistance.

207

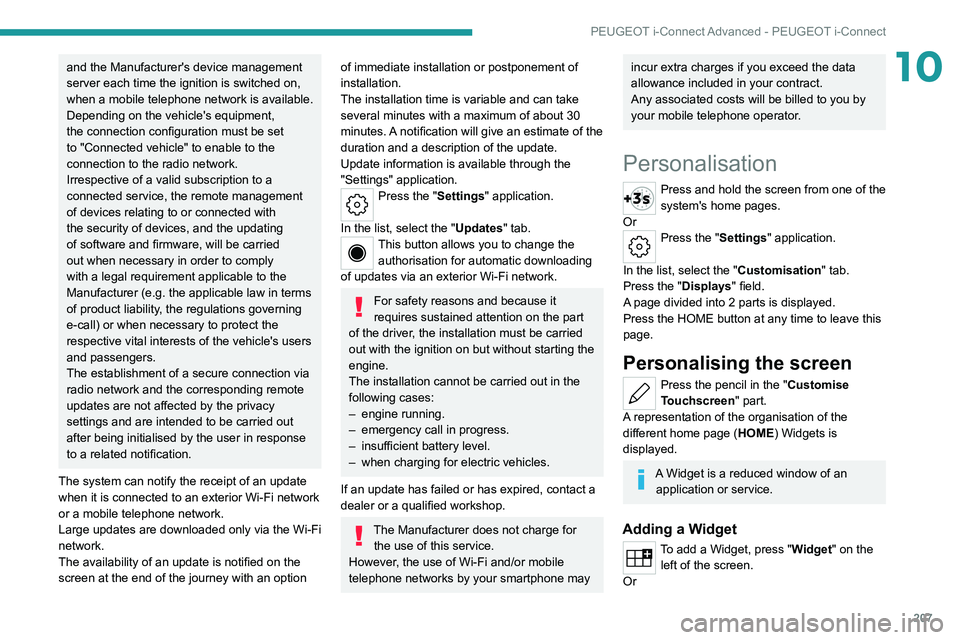

PEUGEOT i-Connect Advanced - PEUGEOT i-Connect
10and the Manufacturer's device management
server each time the ignition is switched on,
when a mobile telephone network is available.
Depending on the vehicle's equipment,
the connection configuration must be set
to "Connected vehicle" to enable to the
connection to the radio network.
Irrespective of a valid subscription to a
connected service, the remote management
of devices relating to or connected with
the security of devices, and the updating
of software and firmware, will be carried
out when necessary in order to comply
with a legal requirement applicable to the
Manufacturer (e.g. the applicable law in terms
of product liability, the regulations governing
e-call) or when necessary to protect the
respective vital interests of the vehicle's users
and passengers.
The establishment of a secure connection via
radio network and the corresponding remote
updates are not affected by the privacy
settings and are intended to be carried out
after being initialised by the user in response
to a related notification.
The system can notify the receipt of an update
when it is connected to an exterior Wi-Fi network
or a mobile telephone network.
Large updates are downloaded only via the Wi-Fi
network.
The availability of an update is notified on the
screen at the end of the journey with an option of immediate installation or postponement of
installation.
The installation time is variable and can take
several minutes with a maximum of about 30
minutes. A notification will give an estimate of the
duration and a description of the update.
Update information is available through the
"Settings" application.
Press the "Settings" application.
In the list, select the "Updates" tab.
This button allows you to change the authorisation for automatic downloading
of updates via an exterior Wi-Fi network.
For safety reasons and because it
requires sustained attention on the part
of the driver, the installation must be carried
out with the ignition on but without starting the
engine.
The installation cannot be carried out in the
following cases:
–

engine running.
–


emergency call in progress.
–


insufficient battery level.
–


when charging for electric vehicles.
If an update has failed or has expired, contact a
dealer or a qualified workshop.
The Manufacturer does not charge for the use of this service.
However, the use of Wi-Fi and/or mobile
telephone networks by your smartphone may
incur extra charges if you exceed the data
allowance included in your contract.
Any associated costs will be billed to you by
your mobile telephone operator.
Personalisation
Press and hold the screen from one of the
system's home pages.
Or
Press the "Settings" application.
In the list, select the "Customisation" tab.
Press the "Displays" field.
A page divided into 2 parts is displayed.
Press the HOME button at any time to leave this
page.
Personalising the screen
Press the pencil in the "Customise
Touchscreen" part.
A representation of the organisation of the
different home page ( HOME) Widgets
is
displayed.
A Widget is a reduced window of an application or service.
Adding a Widget
To add a Widget, press "Widget" on the left of the screen.
Or

226
Alphabetical index
K
Key 14, 16, 19
Key, electronic
30–31
Keyless Entry and Starting

29–30, 100–101
Key not recognised

101–102
Key with remote control

14, 98–99
Kit, hands-free

163
Kit, puncture repair

180–181
Kit, temporary puncture repair

180–183
L
Labels 6
Labels, identification
153
Lamp, boot

42
Lamps, parking

25
Lamps, rear

139
Lams with Full LED technology

26, 28
Lane assist

122–123, 127–129
Lane departure warning active

90
Leather (care)

129
LEDs - Light-emitting diodes

25, 139
Level, AdBlue®

122
Level, brake fluid

122
Level, Diesel additive

171–172
Level, engine coolant

18, 122
Level, engine oil

18, 121
Levels and checks

169–171
Level, screenwash fluid

31, 122
Light-emitting diodes - LEDs

25, 139
Lighting dimmer 21
Lighting, exterior
24, 27
Lighting, guide-me home

16, 26
Lighting, interior

61–62
Lighting, mood

38
Lighting, welcome

69–70
Loading

11 6
Load reduction mode

119
Locating your vehicle

15
Locking

28–30
Locking from the inside

18
Locking the doors

18
Log, alerts

20
Long-distance blind spot monitoring

93
Long objects, transporting

38
Low fuel level

102
Lumbar

21
M
Mains socket (domestic network) 154–155
Maintenance (advice)
104, 127
Maintenance, routine

65, 122, 124
Manoeuvring aids (recommendations)

64
Map reading lamps

37
Markings, identification

153
Massage function

23
Massage, multi-point

23
Mat

37, 65
Menu short cuts

23
Mirror, rear view

25
Mirrors, door 48–49, 32, 93
Mirror, vanity
34
Misfuel prevention

103
Mobile application

24, 33, 110, 112
Motor, electric

108–109, 103, 152
Motorised tailgate

22, 24
Mountings, ISOFIX

42, 44, 46
N
Net, high load retaining 40
Net, luggage retaining
39
O
Obstacle detection 94
Oil change
121
Oil consumption

121
OIl, engine

121
On-board tools

42, 179–181
Opening the bonnet

168–169
Opening the boot

17, 21
Opening the doors

17, 21
Opening the windows

14
P
Pads, brake 123
Paint
128, 153

227
Alphabetical index
Paint colour code 153
Parking brake, electric
102–104, 124
Parking sensors, audible and visual

94
Parking sensors, front

95
Parking sensors, rear

94
Passenger compartment temperature pre-
conditioning (Rechargeable hybrid)

24, 33
Pedestrian horn (Rechargeable hybrid)

30
Personalisation

10, 24
Plates, identification

153
Port, USB

58–59, 38
Post Collision Safety Brake

33
Power

20
Power indicator (Rechargeable hybrid)

8, 20
Pressures, tyres

124, 133, 154
Pre-tensioning seat belts

36
Priming the fuel system

130
Profiles

156
Protecting children

87–93
Proximity Keyless Entry & Start

16
Puncture

181–182, 135
R
Radar (warnings) 64
Radio
214–215
Range, AdBlue®

18, 122
Reading lamps

37
READY lamp

119
Rear screen, demisting

32
Rear traffic alert

99
Rechargeable hybrid engine 8, 23, 119,
146, 152
Rechargeable hybrid system

6, 8, 23,
52, 60, 103
Recharging the battery

140, 142, 144
Recharging the traction battery

107
Recharging the traction battery
(Rechargeable hybrid)

103, 159–160
Recirculation, air

55–56
Recovery

194–196
Recovery of the vehicle

195–196
Reduction of electrical load

119
Regeneration of the particle filter

123
Regenerative braking (deceleration
by engine braking)

57
Reinitialisation of the under-inflation
detection system

63
Reinitialising the remote control

20
Reminder, key in ignition

51
Reminder, lighting on

24
Remote control

27–32
Remote functions

11 2
Remotely operable functions
(Rechargeable hybrid)

24, 33
Removing a wheel

185–186
Removing the mat

37
Replacing bulbs

187–188
Replacing fuses

140
Replacing the air filter

123
Replacing the oil filter

123
Replacing the passenger compartment
filter

123Reservoir, screenwash 122
Reset trip
21
Reversing camera

65, 145–146
Reversing lamps

139
Roof bars

11 6
Roof, opening

28
Running out of fuel (Diesel)

130
S
Safety, children 87–93
Saturation of the particle filter (Diesel)
123
Screens, very cold conditions

11 7
Screenwash

31
Screenwash, front

31
Screenwash, rear

31
SCR (Selective Catalytic Reduction)

19, 124
Seat angle

21
Seat belts

84–85, 42
Seat belts, rear

35
Seat, rear bench

26
Seats, electric

45–46
Seats, front

44–46
Seats, heated

46–47
Seats, rear

50–52, 40
Selector, gear

105–107
Semi-automatic lane changing

82
Sensors (warnings)

65
Serial number, vehicle

153
Service indicator

17
Servicing

17, 122, 124
