2022 MERCEDES-BENZ E-CLASS ESTATE ESP

When
Active Parking Assist is activated, the turn
signal indicators are activated based on the calcu-
lated path of your vehicle.
The parking procedu reis assisted byaccelerating,
braking, steering and gear changes.
Ac tive Parking Assist is only an aid. It is not a sub-
stitute foryo ur attention tothe sur roundings. The
re sponsibility for safe manoeuvring and parking
re mains with you. Make sure that no persons, ani-
mals or objects etc. are in the manoeuvring
ra nge.
Ac tive Parking Assist will be cancelled in thefo l-
lowing situations:
R Parking Assist PARKTRONIC is deactivated.
R You begin steering.
R You engage transmission position j.
R ESP ®
inter venes.
R You open the driver's door.
R ATer activating Active Parking Assist, you
press thec button again (/ page 283).Syst Syst
em limits em limits
If th eex terior lighting is malfunctioning, Active
Pa rking Assist is not available.
Objects located abo veor below the de tection
ra nge of the sensors, e.g. overhanging loads,
ove rhangs or loading ramp s of goods vehicles, or
th e borders of parking spaces, are not de tected
during measurement of the parking space. These
are also then not take n into account when calcu-
lating the parking procedure. In some circumstan-
ces, Active Parking Assist may therefore guide
yo u into the parking space incor rectl y. &
W
WARNI NG
ARNI NGRisk of accident due toobjects
located abo veor below the de tection
ra nge of Active Parking Assist
If th ere are objects abo veor below the de tec-
tion range, thefo llowing situations may arise:
R Active Parking Assist may steer too ear ly.
R The vehicle may not stop in front of these
objects.
There is a danger of collision! #
Inthese situations, do not use Active
Pa rking Assist. Extreme
weather conditions, suc has snow or
heavy rain, may lead toa parking space being
measured inaccuratel y.Pa rking spaces that are
partial lyoccupied bytrailer dr awbars might not be
identi/ed as such or be measured incor rectl y.
Only use Active Parking Assist on le vel, high-g rip
gr ound.
Do not use Active Parking Assist in thefo llowing
situations:
R Inextreme weather conditions suc has ice,
pac ked snow or in heavy rain.
R When transporting a load that pr otru des
be yond theve hicle.
R On steep uphill or downhill gradients of more
th an appr oximately 15 %.
R When snow chains are /tted.
R When a trailer or bicycle rack is attached.
R Directly aTer a tyre change or when spare
tyres are /tted.
R Ifth e tyre pressure is too low or too high. 282
282
Driving and parking

select
the cor responding transmission posi-
tion.
The vehicle drives into the selected parking
space.
% During the parking procedure with Active
Pa rking Assist, the lane markings are dis-
pla yed in green in the camera image.
On completion of the parking procedure, the
Parking Assist finished, take control of vehicle
message appears. Further manoeuvring may still
be necessar y. #
Secure theve hicle against rolling away.When
re qu ired bylegal requ irements or local condi-
tions: turn the wheels towa rdsth eke rb.
% You can stop theve hicle and change the
transmission position during the parking pro-
cedure. The system then calculates a new
ve hicle path. If no new vehicle path is availa-
ble, the transmission position can be changed
again, or the process can be cancelled.
Exiting a par
Exiting a par king space wit king space wit h A
h Activ
ctiv e P
e Par
arking Assist
king Assist
R
R eq
eq uir
uir ements:
ements:
R The vehicle is equipped with a 360° Camera. R
The vehicle has been par ked with Active Park-
ing Assist.
Please no tethat you are responsible forth eve hi-
cle and sur roundings during the entire parking
procedure. #
Start theve hicle. #
Press but ton1.
The media display sh owsth e view of Active
Pa rking Assist. #
Select Exit space 2.
or #
Ifth eve hicle has been par ked perpendicular
to the direction of tr avel: select direction of
tr av el 3. #
If,fore xamp le,the message Please engage
forward gear appears inthe media displa y:
select the cor responding transmission posi-
tion.
The vehicle mo ves out of the parking space
and is brought toa standstill byActive Parking
Assist (at an angle tothe direction of tr avel).
The Ø Parking Assist finished, take con-
trol of vehicle message appears.284 284
Driving and parking

#
Take cont rol of theve hicle and comple tethe
parking process.
% The vehicle path shown on the media display
may di.er from the actual vehicle path. The
turn signal indicator is switched on automati-
cally when theex iting procedure begins.
Yo u are responsible for selecting the turn signal
indicator in accordance with the tra1c condi-
tions. If necessar y,select the turn signal indicator
accordingl y.
P
P ausing A ausing A ctiv
ctive P
e Par
arking Assist
king Assist
Yo u can inter rupt the parking or exiting procedure
of Active Parking Assist byper form ing one of the
fo llowing actions, fore xamp le: #
Depress the brake pedal. #
Open the front passenger door, a rear door,
th e boot or the bonnet. #
Apply the electric parking brake or activating
th e HOLD function. #
T
To r
o r esume t
esume t he par
he parking or e
king or e xiting pr
xiting procedur
ocedure:
e:
ge ntly dep ress the accelerator pedal.
% Ifth e electric parking brake was applied
before Active Parking Assist was activated, depress
the accelerator pedal lightly tostart
th e parking or exiting procedure.
Check the area around your vehicle again before
re suming a paused parking procedure. Make sure
th at persons, animals or objects are no lon ger in
th e manoeuvring range. Also obser vethe system
limitations of Active Parking Assist.
A
A ut
ut omatic br
omatic br aking function of A
aking function of A ctiv
ctive P
e Par
arking
king
Assist
Assist
Pe rsons or objects de tected in the manoeuvring
ra nge could cause theve hicle tobrake sharply
and inter rupt the parking or exiting procedure.
The vehicle will then be held at a standstill. If you
depress the accelerator pedal, the parking or exit-
ing procedure is resumed.
Check the area around your vehicle again before
re suming the parking or exiting procedure. Make
sure that persons, animals or objects are no lon-
ge r in the manoeuvring range. Also obser vethe
system limi tations of Active Parking Assist. Manoeuvr Manoeuvr
ing assist
ing assistant
ant F
F
unction of Dr
unction of Dr iv
ive Awa
e Away Assi st
y Assi st
Drive Away Assist can reduce the se verity of an
impact when pulling away.If an obs tacle is de tec-
te d in the direction of tr avel, theve hicle's speed
is brie0y reduced toappr ox. 2 km/h. If a critical
situation is de tected, theÉ symbol appears in
th e media displa y.
Drive Away Assist can be deactivated or activated
in theManoeuvring assistance menu
(/ page 287).
% You can cancel an inter vention byDrive Away
Assist at any time bydeactivating Parking
Assist PARKTRONIC (/ page 280). &
W
WARNI NG
ARNI NGRisk of accident caused bylimi-
te d de tection per form ance of Drive Away
Assist
Drive Away Assist cannot alw ays clear lyiden-
tify objects and tra1c situations. #
Always pay careful attention tothe tra1c
situation; do not relyon Drive Away
Assist alone. Driving and parking
285
285

R
The camera ima geis shown in the media dis-
play (/ page 277).
Yo u can activate and deactivate the manoeuvring
brake function in theManoeuvring assistance
menu (/ page 287).
If th e manoeuvring brake function is triggered, the
fo llowing symbol appears in red in the selected
view in theCamera & parkingmenu: %
Ifth e manoeuvring brake function is not avail-
able, the same symbol appears in grey.
The manoeuvring brake function is only an aid. It
is not a substitute foryo ur attention tothe sur-
ro undings. The responsibility for safe manoeuvring
and parking remains with you. Make sure that no
persons, animals or objects etc. are in the
manoeuv ring range. &
W WARNI NG
ARNI NGRisk of accident caused bylimi-
te d de tection bythe manoeuvring brake
function
The manoeuvring brake function cannot
alw ays clear lyde tect people. Other obs tacles
are not de tected bythe function.
In these cases, the function may brake unnec-
essarily or not brake at all. #
Always pay careful attention tothe tra1c
situation; do not relyonthe manoeuvring
brake function alone. #
Beready tobrake. Syst Syst
em limits
em limits
Obser vethe system limits of thefo llowing func-
tions:
R Active Parking Assist (/ page 281)
R 360° Camera (/ page 273)
R Reversing camera (/ page 270)
The manoeuvring brake function is not available in
th efo llowing situations:
R on inclines R
if transport equipment, fore xamp le a trailer or
bicycle rack , is attached tothe trailer hitch
and the electrical connection has been cor-
re ctly es tablished
A
A ctiv
ctiv ating/deactiv
ating/deactiv ating manoeuvr
ating manoeuvr ing assist
ing assistance
ance
Multimedia system:
4 © 5
Settings 5
Assistance
5 Camera & parking #
Activate/deactivate Manoeuvring assistance. T
T
r
railer Manoeuvr
ailer Manoeuvr ing Assist
ing Assist F
F
unction of Tr
unction of Trailer Manoeuvr
ailer Manoeuvr ing Assist
ing Assist &
W
WARNING
ARNING Risk of accident due tounsuita-
ble trailers
Tr ailers with a steered axle or a /Th wheel
cann otbe used with Trailer Manoeuv ring
Assist.
Due tothis, the trailer cannot be manoeuvred
in the desired direction and you can cause a
collision or the trailer can overturn. Driving and parking
287 287

#
Only use Trailer Manoeuv ring Assist with
trailers with /xed dr awbars and axles. *
N
NOOTE
TE Damage due toove rhanging loads
in front or dr awbar ins tallations The
vehicle and the trailer may be damaged
during manoeuvring due toove rhanging loads
at the front of the trailer or dr awbar ins talla-
tions. #
Pay attention toove rhanging loads or
dr aw bar ins tallations while manoeuvring. Tr
ailer Manoeuv ring Assist assists you when
re ve rsing with a trailer. Using there ve rsing cam-
era, it monitors the articulation angle between the
ve hicle and trailer and adjusts it toa speci/ed
va lue. Trailer Manoeuv ring Assist also limits your
speed.
Tr ailer Manoeuv ring Assist is only an aid. It is not
a substitute foryo ur attention tothe sur round-
ings. The responsibility for safe manoeuvring and
parking remains with you. Make sure that there
are no persons, animals or objects in the manoeu- vring area while manoeuvring and parking in/exit-
ing parking spaces.
Yo u can either enter the articulation angle value
directly via the multimedia system or use a
straightening manoeuvre. When car rying out a
straightening manoeuvre, the system calculates
th e articulation angle automatically and straight-
ens theve hicle/trailer combination tothe trailer's
cur rent direction.
Obser vethe no tes on towing a trailer
(/ page 289).
Syst
Syst em limits em limits
Obser vethe system limits of thefo llowing func-
tions:
R Active Parking Assist (/ page 281)
R 360° Camera (/ page 273)
R Reversing camera (/ page 270)
The system may be impaired or may not function
in thefo llowing situations:
R The gradient is greater than appr oximately
15 %. Using
Tr

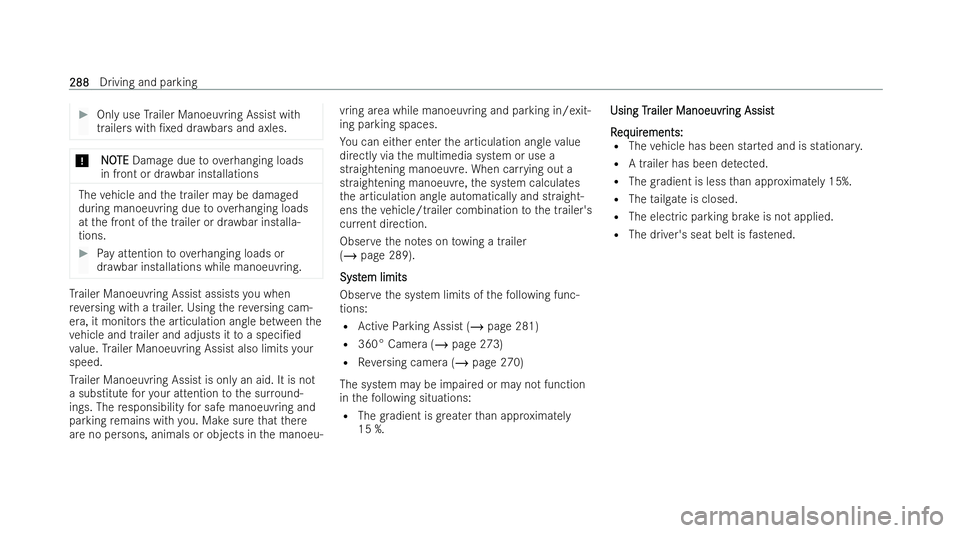

Using Trailer Manoeuvr ailer Manoeuvr ing Assist
ing Assist
R
R eq
eq uir
uir ements:
ements:
R The vehicle has been star ted and is stationar y.
R A trailer has been de tected.
R The gradient is less than appr oximately 15%.
R The tailgate is closed.
R The electric parking brake is not applied.
R The driver's seat belt is fastened. 288
288
Driving and pa
rking

#
Do not lock or unlock theve hicle. R
R
eq
eq uir
uir ements:
ements:
R The ball neck is extended and engaged in a
securely loc ked position.
R All-T
All-T err
errain v
ain v ehicles:
ehicles: couple up the trailer in the
Comfort drive prog ram A(/ page 200).
R All-T
All-T err
errain v
ain v ehicles:
ehicles: ensuretheve hicle is at
th e normal le vel (/ page 268).
Tr ailers with a 7-pin plug can be connected tothe
ve hicle with thefo llowing adap ters:
R Adapter plug
R Adapter cable
The trailer will be cor rectly de tected bytheve hi-
cle only if thefo llowing conditions are met:
R The trailer is connected cor rectl y.
R The trailer lighting system is in working order.
The functions of thefo llowing systems will be
a.ec tedbya cor rectly connected trailer:
R ESP ®
trailer stabilisation
R Trailer Manoeuvering Assist R
Active Lane Keeping Assist
R Parking Assist PARKTRONIC
R Active Parking Assist
R Blind Spot Assist or Active Blind Spot Assist
R Drive Away Assist
R Cross Tra1c Ale rt
R Reversing camera
R 360° camera
R AIR BODY CONTROL

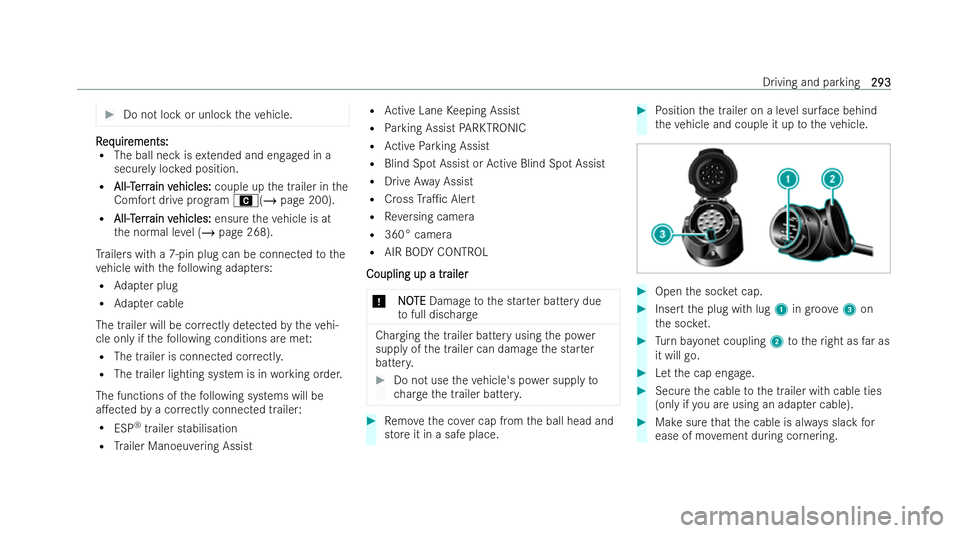

Coupling up a tr
Coupling up a tr ailer
ailer
* NO
NOTE
TEDamage tothe star ter battery due
to full dis charge Charging
the trailer battery using the po wer
supply of the trailer can damage the star ter
batter y. #
Do not use theve hicle's po wer supply to
ch arge the trailer batter y. #
Remo vethe co ver cap from the ball head and
store it in a safe place. #
Position the trailer on a le vel sur face behind
th eve hicle and couple it up totheve hicle. #
Open the soc ket cap. #
Inse rtthe plug with lug 1ingroo ve 3 on
th e soc ket. #
Turn bayonet coupling 2totheright as far as
it will go. #
Let the cap engage. #
Secure the cable tothe trailer with cable ties
(only if you are using an adap ter cable). #
Make sure that the cable is alw ays slack for
ease of mo vement during cornering. Driving and parking
293
293

#
Onthe cor responding menu, use the leT-hand
To uch Control toscroll tothe end of the list. #
Press the leT-hand Touch Control.
The selected menu will be displa yed full-
screen. F
F

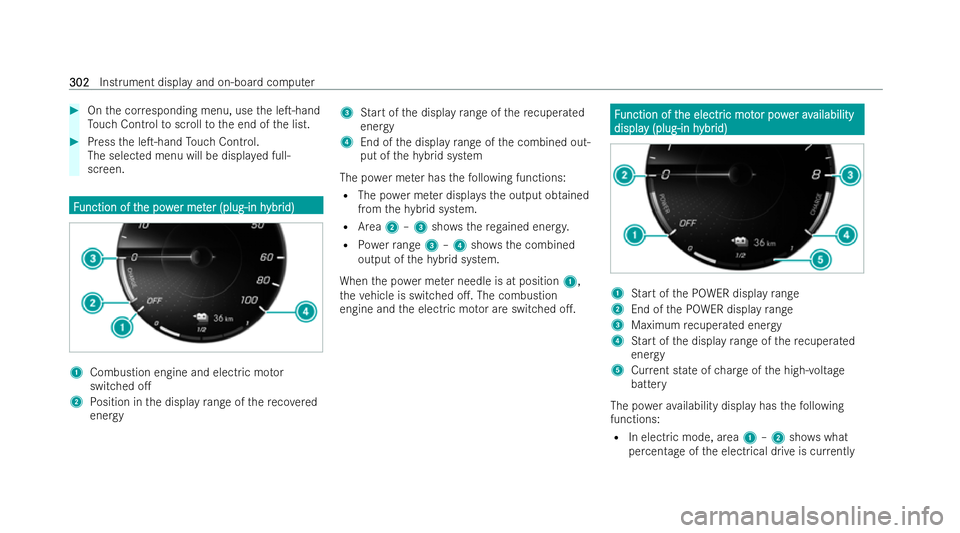

unction of t
unction of t he pow
he power met
er meter (plug-in h
er (plug-in h ybr
ybrid)
id) 1
Combustion engine and electric mo tor
switched o.
2 Position in the display range of there co vered
energy 3
Start of the display range of there cuperated
energy
4 End of the display range of the combined out-
put of thehy brid system
The po wer me ter has thefo llowing functions:
R The po wer me ter displa ys the output obtained
from thehy brid system.
R Area 2–3 shows th ere ga ined energy.
R Pow errange 3–4 show sth e combined
output of thehy brid system.
When the po wer me ter needle is at position 1,
th eve hicle is switched o.. The combustion
engine and the electric mo tor are switched o.. F
F
unction of t
unction of t he electr
he electric mot
ic motor pow
or pow erav
er availability
ailability
displa
displa y (plug-in h
y (plug-in h ybr
ybrid)
id) 1
Start of the POWER display range
2 End of the POWER display range
3 Maximum recuperated energy
4 Start of the display range of there cuperated
energy
5 Current state of charge ofthe high-voltage
battery
The po werav ailability displ ayhas thefo llowing
functions:
R In electric mode, area 1–2 showswhat
percentage of the electrical drive is cur rently 302
302
Instrument display and on-board computer

%
The equipment with touchpad and controller
is not available in all countries. #
Perform the operation according tothe equip-
ment.
Operating theto uchpad (e xamples):
R Toselect a menu option, swipe and press.
R If handwriting recognition is active, write a
ch aracter on theto uchpad.
R Swipe down or up with two /n gers.
The No ti/cations Cent reis opened or closed.
R Movetwo /n gers apart or toget her on the
map.
The map scale is increased or decreased.
Operating the controller:
R Turn 3 anti-clockwise or clockwise.
R Slide 1 leT orright.
R Slide 4 up or down.
R Slide 2 diagonal ly.
R Press 7brie0y or press and hold. Calling up applications using butt Calling up applications using butt
ons ons 1
% button calls up thete lephone
2 z button calls up navigation
3 | button calls up radio or media
4 y button calls up vehicle functions
5 ß button
Press brie0 y:calls up favo urites
Press and hold: adds a favo urite or creates a
new theme #
Alternativel y,tap© ontheto uchscreen. #
Call up the application (/ page 309). F
F
unctions of LIN
unctions of LIN GUA
GUATR
TRONIC
ONIC &
W
WARNING
ARNING Risk of distraction from infor-
mation systems and communications
equipment
If yo u operate information systems and com-
munication devices integ rated in theve hicle
when driving, you could be distracted from the
tra1c situation. This could also cause youto
lose control of theve hicle. #
Only operate this equipment when the
tra1c situation pe rmits. #
Ifyo u cannot be sure of this, stop the
ve hicle whilst paying attention toroad
and tra1c conditions and operate the
equipment with theve hicle stationar y. Fo
ryo ur ow n sa fety, alw ays obser vethefo llowing
points when operating mobile communications
equipment and especially your voice control sys-
te m:
R Obser vethe legal requ irements forth e coun-
try in which you are driving. 312 312
MBUX multimedia system
