2022 MERCEDES-BENZ E-CLASS ESTATE ESP

Dr
Dr
iving and dr
iving and dr iving safe
iving safety sy
ty syst
stems
ems Dr
Dr
iving syst
iving syst ems and y
ems and y our r
our r esponsibility
esponsibility Yo
ur vehicle is equipped with driving systems
which assist you in driving, parking and manoeu-
vring theve hicle. The driving systems are only
aids. They are not a substitute foryo u paying
attention toyour sur roundings and do not relie ve
yo u of your responsibility per taining toroad tra1c
la w. The driver is alw aysre sponsible for maintain-
ing a safe distance totheve hicle in front, forve hi-
cle speed, for braking in good time and for st aying
in lane. Pay attention tothe tra1c conditions at
all times and inter vene when necessar y.Be awa re
of the limitations rega rding the safe use of these
systems.
Driving systems can neither reduce therisk of
accident if youfa ilto adapt your driving style nor
ove rride the la wsof ph ysics. They cannot alw ays
ta ke into account road, weather or tra1c condi-
tions. Inf Inf
or
ormation on v
mation on v ehicle sensor
ehicle sensor s and camer
s and cameras

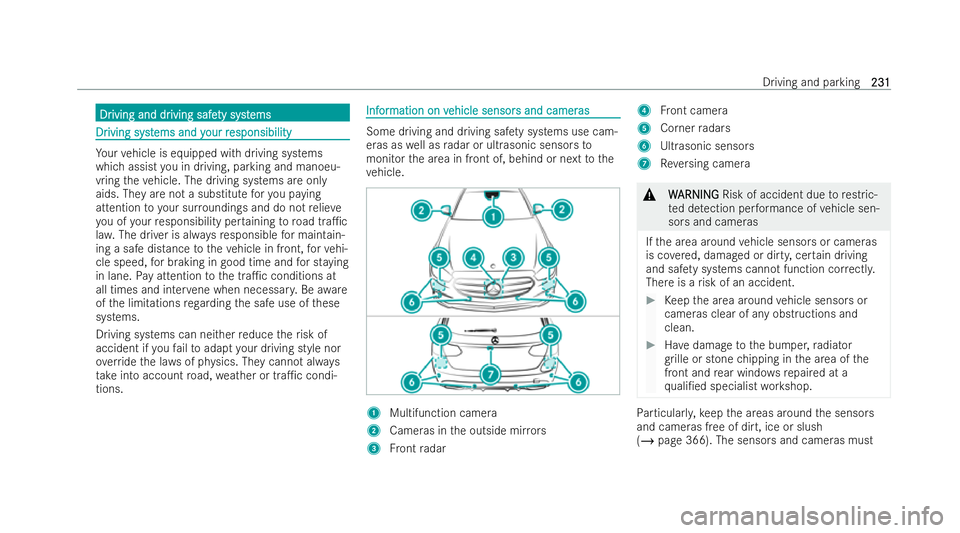

as Some driving and driving saf
ety sy stems use cam-
eras as well as radar or ultrasonic sensors to
monitor the area in front of, behind or next tothe
ve hicle. 1
Multifunction camera
2 Cameras in the outside mir rors
3 Front radar 4
Front camera
5 Corner radars
6 Ultrasonic sensors
7 Reversing camera &
W
WARNING
ARNING Risk of accident due torestric-
te d de tection per form ance of vehicle sen-
sors and cameras
If th e area around vehicle senso rsor cameras
is co vered, damaged or dirty, cer tain driving
and saf ety sy stems cannot function co rrectl y.
There is a risk of an accident. #
Keep the area around vehicle senso rsor
cameras clear of any obst ructions and
clean. #
Have damage tothe bumper, radiator
gr ille or stone chipping in the area of the
front and rear wind owsre paired at a
qu ali/ed specialist workshop. Pa
rticular ly,ke ep the areas around the sensors
and cameras free of dirt, ice or slush
(/ page 366). The sensors and cameras must Driving and parking
231 231

not be co
vered and the de tection ranges around
th em must be kept free. Do not at tach additional
licence plate brac kets, advertisements, stic kers,
fo ils or foils toprotect against stone chippings in
th e de tection range of the sensors and cameras.
Make sure that there are no overhanging loads
pr otru ding into the de tection range.
If th ere is damage toa bumper or thera diator
gr ille, or aTer an impact, ha vethe function of the
senso rschecked at a quali/ed specialist work-
shop. Ha vedamage or stone chipping in the area
of the cameras on the front and rear wind ows
re paired at a quali/ed specialist workshop.
% The reve rsing camera can extend and retract
automatically forth e purpose of calibration,
ev en though there is no camera image in the
displa y. Ov
Ov
er
ervie
vie w of dr
w of dr iving syst
iving syst ems and dr
ems and dr iving safe
iving safety
ty
syst
syst ems
ems R
ABS (AA nti-lo ck BBra king S System) (/ page 233)
R BAS (BBra ke AAssist S System) (/ page 233) R
ESP ®
(EElectronic S Stability P Program)
(/ page 233)
R ESP ®
Crosswind Assist (/ page 235)
R ESP ®
trailer stabilisation (/ page 235)
R EBD (E Electronic B Brakeforc e DDistribution)
(/ page 236)
R STEER CONTROL (/ page 236)
R HOLD function (/ page 236)
R Hill Start Assist (/ page 237)
R Adaptive Brake Lights (/ page 238)
R ATTENTION ASSIST (/ page 238)

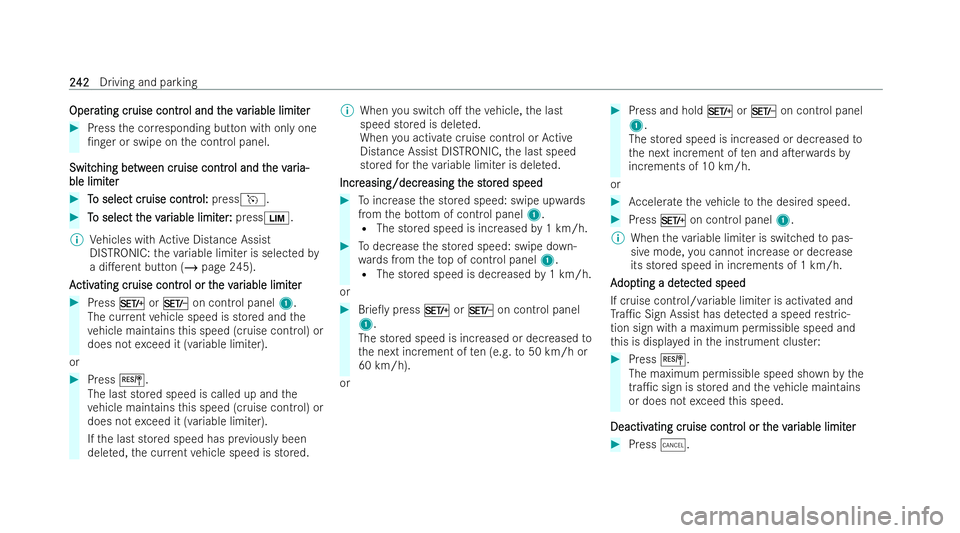

R Cruise cont rol (/ page 239)
R Limiter (/ page 240)
R Tra1c Sign Assist (/ page 259)
R AIR BODY CONTROL (/ page 267)
R Trailer Manoeuv ring Assist (/ page 287)
Dr
Dr iving Assist
iving Assist ance pack
ance package
age
The following functions are part of the Driving
Assistance Package. Cer tain functions are only
av ailable in some countries. Some functions are also
available without the Driving Assistance
Pa ckage, albeit with restric ted functionality.
R Active Distance Assist DISTRONIC
(/ page 243)
R Active Speed Limit Assist (countr y-dependent)
(/ page 248)
R Route-based speed adap tation (countr y-
dependent) (/ page 249)
R Active Brake Assist (/ page 255)
R Active Steering Assist (countr y-dependent)
(/ page 252)
R Active Emer gency Stop Assist (countr y-
dependent) (/ page 254)
R Active Stop-and-Go Assist (countr y-depend-
ent) (/ page 250)
R Blind Spot Assist and Active Blind Spot Assist
with exitwa rning (/ page 261)
R Active Lane Keeping Assist (/ page 264)
P
P ar
ar king P
king P ack
ackage
age
R Reversing camera (/ page 270)
R 360° Camera (/ page 273)232
232
Driving and parking

R

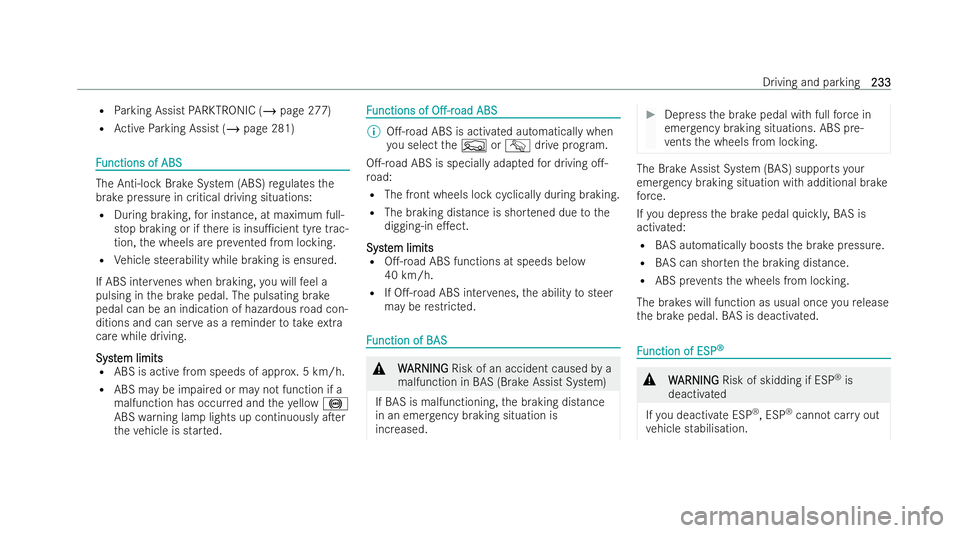

Parking Assist PARKTRONIC (/ page 277)
R Active Parking Assist (/ page 281) F
F
unctions of ABS
unctions of ABS The Anti-lock Brake System (ABS)
regula testhe
brake pressure in critical driving situations:
R During braking, for instance, at maximum full-
stop braking or if there is insu1cient tyre trac-
tion, the wheels are pr evented from locking.
R Vehicle steerability while braking is ensu red.
If ABS inter venes when braking, you will feel a
pulsing in the brake pedal. The pulsating brake
pedal can be an indication of hazardous road con-
ditions and can ser veas a reminder totake extra
care while driving.
Syst
Syst em limits em limits
R ABS is acti vefrom speeds of approx. 5 km/h.
R ABS may be impaired or may not function if a
malfunction has occu rred and theye llow !
ABS warning lamp lights up continuously aTer
th eve hicle is star ted. F F
unctions of
unctions of O.-r
O.-road
oadABS
ABS %
O.-road ABS is activated automatically when
yo u select theF orG drive prog ram.
O.-road ABS is specially adap tedfo r driving o.-
ro ad:
R The front wheels lock cyclical lyduring braking.
R The braking distance is shor tened due tothe
digging-in e.ect.
Syst
Syst em limits
em limits
R O.- road ABS functions at speeds below
40 km/h.
R If O.-road ABS inter venes, the ability tosteer
ma y be restric ted. F
F
unction of B
unction of B AS
AS &
W
WARNING
ARNING Risk of an accident caused by a
malfunction in BAS(Brake Assist System)
If BAS is malfunctioning, the braking distance
in an emer gency braking situation is
increased. #
Dep ress the brake pedal with full forc e in
emer gency braking situations. ABS pre-
ve nts the wheels from locking. The Brake Assist System (BAS) supports
your
emer gency braking situation with additional brake
fo rc e.
If yo u depress the brake pedal quickl y,BAS is
activated:
R BAS automatically boosts the brake pressure.
R BAS can shor tenth e braking distance.
R ABS pr events the wheels from locking.
The brakes will function as usual once youre lease
th e brake pedal. BASis deactivated. F
F
unction of ESP
unction of ESP ®
® &
W
WARNING
ARNING Risk of skidding if ESP ®
is
deactivated
If yo u deactivate ESP ®
, ESP ®
cannot car ryout
ve hicle stabilisation. Driving and parking
233
233

#
ESP ®
should only be deactivated in the
fo llowing situations. *
N
NOOTE
TE Mercedes-AMG vehicles #
Obser vethe no tes in the Supplement.
Yo u could otherwise failto recognise
dangers. The Electronic
Stability Prog ram (ESP ®
) can moni-
to r and impr ove driving stability and traction in
th efo llowing situations within ph ysical limits:
R When pulling away on wet or slippery car riage-
ways.
R When braking.
If th eve hicle deviates from the direction desired
by the driver, ESP ®
can stabilise theve hicle by
inter vening in thefo llowing ways:
R One or more wheels are braked.
R The engine output is adap ted according tothe
situation. When ESP
®
is deacti vated, theå warning
lamp lights up continuousl y:
R Driving stability will no longer be impr oved.
R The drive wheels could spin.
R ETS/4ETS traction control is still active.
% When ESP ®
is deactivated, you are still assis-
te dby ESP ®
when braking.
When the÷ warning lamp 0ashes, one or se v-
eral wheels has reached its grip limit:
R Adapt your driving style tosuit the cur rent
ro ad and weather conditions.
R Do not deactivate ESP ®
.
R Only depress the accelerator pedal as far as is
necessary when pulling away.
Deactivate ESP ®
in thefo llowing situations to
impr ovetraction:
R When using snow chains.
R In deep sno w.
R On sand or grav el. %
Spinning the wheels results in a cutting
action, which enhances traction.
If th e÷ ESP®
wa rning lamp lights up continu-
ousl y,ESP ®
is not available due toa malfunction.
Obser vethefo llowing information:
R Indicator and warning lamps (/ page 501)
R Display message s (/page 431)
ET
ET S/4ET
S/4ET S (Electr
S (Electr onicTr
onic Traction Syst
action Syst em)
em)
ETS/4ETS traction cont rol is part of ESP ®
and
makes it possible topull away and accelerate on a
slippery car riag ew ay.
All-t
All-t err
errain v
ain v ehicles:
ehicles: ifyo u select theF orG
drive prog ram, a special ETS system speci/cally
suited too.-road terrain is automatically activa-
te d.
ETS/4ETS can impr ovetheve hicle's traction by
inter vening in thefo llowing ways:
R The drive wheels are braked individually if they
spin.
R More drive torque is tr ansferredto the wheel
or wheels with traction. 234
234
Driving and parking

In0uence
In0uence
of dr
of driv
ive pr
e pr ogr
ograms on ESP
ams on ESP ®
®
The drive prog rams enable ESP ®
to adapt todif-
fe re nt we ather and road conditions as well as the
driver's prefer red driving style. Depending on the
selected drive prog ram, the appropriate ESP ®
mode will be activated. You can select the drive
prog rams using theDY NAMIC SELECT switch
(/ page 200). F
F unction of ESP
unction of ESP ®
®
Cr
Cr osswind Assist
osswind Assist ESP
®
Crosswind Assist de tects sudden gusts of
side wind and helps the driver tokeep theve hicle
in the lane:
R ESP ®
Crosswind Assist is active at vehicle
speeds between appr ox. 75 km/h and
200 km/h when driving straight ahead or cor-
nering slightl y.
R The vehicle is stabilised bymeans of individual
brake application on one side. F
F
unction of ESP
unction of ESP ®
®
tr
trailer st
ailer st abilisation
abilisation &
W
WARNING
ARNING Risk of accident in poor road
and weather conditions
In poor road and weather conditions, the
trailer stabilisation cannot pr event lur ching of
th eve hicle/trailer combination. Trailers with a
high cent reofgrav ity may tip over before
ESP ®
de tects this. #
Always adapt your driving style tosuit
th e cur rent road and weather conditions. When driving with a trailer, ESP
®
can stabilise
yo ur vehicle if the trailer begins toswer vefrom
side toside:
R ESP ®
trailer stabilisation is active abo ve
speeds of 65 km/h.
R Slight swerving is reduced bymeans of a tar-
ge ted, individual brake application on one
side.
R Intheev ent of se vere swerving, the operating
energy output is also reduced and all wheels
are braked. ESP
®
trailer stabilisation may be impaired or may
not function if:
R The trailer is not connected cor rectly or is not
de tected proper lyby theve hicle. A
A
ctiv
ctiv ating/deactiv
ating/deactiv ating ESP
ating ESP®
®
(Electr
(Electr onicSt
onic Stability
ability
Pr
Pr ogr
ogr am)
am) Multimedia system:
4 © 5
Settings 5
Quick access
% ESP®
can only be activated/deactivated using
qu ick access when at least one other function
is available in quick access. ESP ®
can other-
wise be found in theAssistance menu.
* N
NOOTE
TE Mercedes-AMG vehicles #
Obser vethe no tes in the Supplement.
Yo u could otherwise failto recognise
dangers. #
Select ESP. #
Select Onorå Off. Driving and parking
235
235

%
If ESP ®
is deactivated and drive prog ram
Î was pr eviously selected, drive prog ram
A is automatically activated the next time
th eve hicle is star ted.
ESP ®
is deactivated if theå ESP®
OFF warn-
ing lamp lights up continuously in the inst rument
cluster.
Obser vethe information on warning lamps and
display message s which may be shown in the
inst rument clus ter. F F
unction of EBD
unction of EBD Electronic Brakeforce Distribution (EBD) is
charac-
te rised bythefo llowing:
R Monitoring and regulating the brake pressure
on there ar wheels.
R Impr oved driving stability when braking, espe-
cially on bends. F
F
unction of S
unction of S TEER C
TEER CONTR
ONTROL
OL ST
EER CONTROL assists youby transmitting a
noticeable steering forc eto the steering wheel in
th e direction requ ired forve hicle stabilisation.
This steering recommendation is given in thefo l-
lowing situations:
R both right wheels or bo thleT wheels are on a
we t or slippery road sur face when you brake
R theve hicle starts toskid
Syst
Syst em limits
em limits
ST EER CONTROL may be impaired or may not
function in thefo llowing situations:
R ESP ®
is deactivated.
R ESP ®
is malfunctioning.
R The steering is malfunctioning.
If ESP ®
is malfunctioning, you will be assisted fur-
th er by the electric po wer steering. HOLD function
HOLD function
HOLD function
HOLD function
The HOLD function holds
theve hicle at a stand-
still without requ iring youto depress the brake
pedal, e.g. while waiting in tra1c.
The HOLD function is only an aid. The responsibil-
ity forth eve hicle safely standing still remains with
th e driver.
Syst Syst em limits em limits
The HOLD function is only intended toprov ide
assistance when driving and is not a su1cient
means of safeguarding theve hicle against rolling
awa y when stationa ry.
R The incline must not be greater than 30%. 236 236
Driving and parking

A stored speed appears along with
theÈ dis-
pla y.The segments in the speedome ter light up,
up tothe cur rently stored speed.
If yo u depress the accelerator pedal be yond the
pressure point (kickdown), theva riable limi ter
switches topassive mode. The Limiter passive
message appears in the Instrument Display and
th eÈ display 0ashes.
The variable limi ter is reactivated in thefo llowing
situations:
R Ifth eve hicle speed drops below the stored
speed.
R Ifth e stored speed is called up.
R Ifyo u store a new speed.
Oper
Oper ating cr
ating cr uise contr
uise contr ol or t
ol or the v
he v ar
ariable limit
iable limit er
er &
W
WARNING
ARNING Risk of accident due tostored
speed
If yo u call up the stored speed and this is
lo we rth an your cur rent speed, theve hicle
decelerates. #
Take into account the tra1c situation
before calling up the stored speed. R
R
eq
eq uir
uir ements:
ements:
Cruise control R Cruise control is selected.
R ESP ®
must be activated, but not inter vening.
R The vehicle speed is at least 20 km/h.
R The transmission is in position h.
Va riable limi ter
R The variable limi ter is selected. St
eering wheel control panel for cruise control and
va riable limi ter
J Adopts the stored/de tected speed
± Deacti vates cruise cont rol/theva riable lim-
iter
h Selects cruise cont rol
È Selects theva riable limi ter
1 Control panel toincrease/decrease speed Driving and parking
241
241

Oper
Oper
ating cr
ating cr uise contr
uise contr ol and t
ol and the v
he var
ariable limit
iable limit er
er #
Press the cor responding button with only one
/nger or swipe on the control panel.
Switc
Switc hing be
hing be tw
tween cr
een cr uise contr
uise contr ol and t
ol and the v
he var
aria-
ia-
ble limit
ble limit er
er #
T
To select cr
o select cr uise contr
uise control:
ol:pressh. #
T
To select t
o select t he v
he v ar
ariable limit
iable limit er
er:
:pressÈ.
% Vehicles with Active Distance Assist
DISTRONIC: theva riable limi ter is selected by
a di.erent but ton (/ page 245).
A
A ctiv
ctiv ating cr
ating cr uise contr
uise control or t ol or the v
he var
ariable limit
iable limit er
er #
Press MorN on cont rol panel 1.
The cur rent vehicle speed is stored and the
ve hicle main tains this speed (cruise control) or
does not exceed it (variable limiter).
or #
Press J.
The last stored speed is called up and the
ve hicle main tains this speed (cruise control) or
does not exceed it (variable limiter).
If th e last stored speed has pr eviously been
dele ted, the cur rent vehicle speed is stored. %
When you switch o. theve hicle, the last
speed stored is dele ted.
When you activate cruise control or Active
Distance Assist DISTRONIC, the last speed
stored forth eva riable limi ter is dele ted.
Incr Incr easing/decr easing/decr easing t
easing the st
he stor
ored speed
ed speed #
Toincrease the stored speed: swipe upwards
from the bottom of control panel 1.
R The stored speed is increased by1 km/h. #
Todecrease the stored speed: swipe down-
wa rds from theto p of control panel 1.
R The stored speed is decreased by1 km/h.
or #
Brie0y press MorN on control panel
1.
The stored speed is increased or decreased to
th e next increment of ten (e.g. to50 km/h or
60 km/h).
or #
Press and hold MorN on control panel
1.
The stored speed is increased or decreased to
th e next increment of ten and aTer wards by
increments of 10 km/h.
or #
Accelerate theve hicle tothe desired speed. #
Press Mon control panel 1.
% When theva riable limi ter is switched topas-
sive mode, you cannot increase or decrease
its stored speed in increments of 1 km/h.
A A dop dop ting a det
ting a det ect
ected speed
ed speed
If cruise control/variable limiter is activated and
Tr a1c Sign Assist has de tected a speed restric-
tion sign wi tha maximum permissible speed and
th is is displa yed in the inst rument clus ter: #
Press J.
The maximum permissible speed sh ownby the
tra1c sign is stored andtheve hicle main tains
or does not exceed this speed.
Deactiv Deactiv ating cr
ating cr uise contr
uise contr ol or t
ol or the v
he var
ariable limit
iable limit er
er #
Press ±. 242
242
Driving and parking
