decrease
over the course of its life. As a
re sult, the maximum electrical range that can
be achie vedby theve hicle is reduced and its
maximum electrical output can be impaired.
The following factors could accelerate the age-
ing of the high-voltage batter y:
R a high le vel of charge , especially if the
ve hicle is idle for a lengt hyperiod of time
R leaving theve hicle idle for lengt hyperiods
at high ambient temp eratures #
Toavo id accelerated ageing, please
obser vethefo llowing recommendations
when handling the high-voltage batter y.Re
commendations when handling the high-voltage
batter y:
R If leaving theve hicle idle for lengt hyperiods,
park up theve hicle with a high- voltage battery
ch arge leve l between 30% and 50%. Do not
ke ep the high-voltage battery continuously
connected topowe r supply equipment. R
If leaving theve hicle idle for lengt hyperiods of
time avoid, if possible, high ambient temp era-
tures.
R Check the high-voltage battery's charge level
ev ery six weeks (/ page 225).
R Char gethe high-voltage battery if thech arge
le ve l is below 20%.
R Do not disconnect the 12 V battery even if the
ve hicle is leT idle for a lengt hyperiod. Other-
wise, the condition of theve hicle's high- volt-
age battery cannot be monitored.
Yo u can contribute toreducing theve hicle's
ene rgy consum ption in thefo llowing ways:
R An anticipatory driving style (/ page 192)
R Reduced use of electrical consumers
R Having theve hicle regula rly main tained
Char
Char ging op
ging op tions f
tions for t
or the high-v
he high-v olt
oltag
age batt
e batt ery
ery
(mode 2 and 3)
(mode 2 and 3)
The high-voltage battery will be charge dby recu-
peration while you are driving. The electric mo tor
ser ves as an alternator when in overrun mode and
during braking. Yo
u ha vethefo llowing options tocharge while
stationar y:
R Ata mains soc ket (mode 2)
R Atawa llbox or charging station (mode 3)
Depending on the count ry-speci/c vehicle equip-
ment and your vehicle's charging cable, single
phase ACcharging is also possible.
Obser vethe di.erent grid requ irements of your
cur rent location when charging. Only use charging
cables which conform tothegr id requ irements.
Consult a quali/ed electrician or your local grid
operator if you ha veany questions.
It is recommended that youch arge the high-volt-
age battery at a wallbox or charging station due to
th e impr ovedch arging per form ance and better
ch arging e1ciency o.ered.
S
S t to
o wing t
wing t he c
he char
harging cable
ging cable
Alw ays st owtheve hicle charging cable in the
ch arging cable bag pr ovided and secure it in the
boot or load compartment of your vehicle.
Otherwise, thech arging cable is not su1ciently
secured. 214
214
Driving and parking

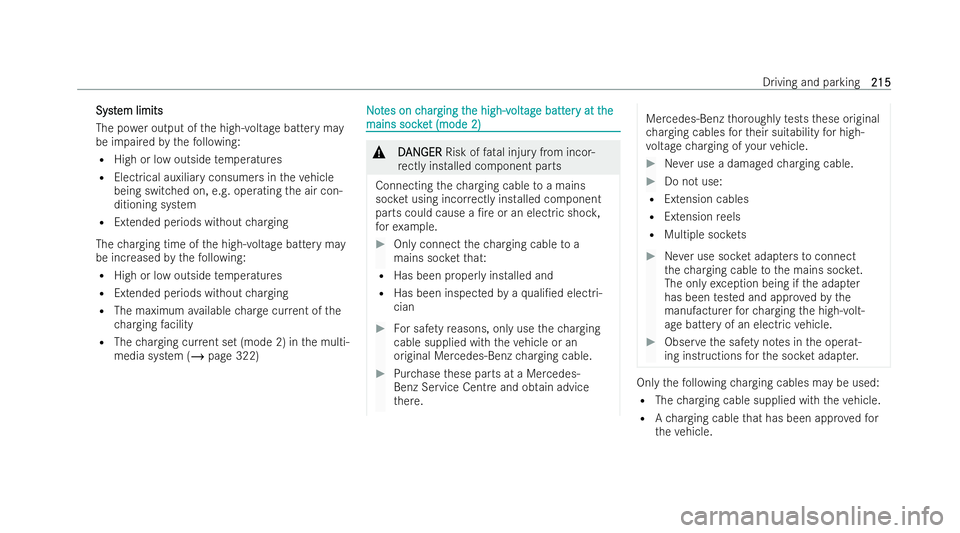

Syst
Syst
em limits
em limits
The po wer output of the high-voltage battery may
be impaired bythefo llowing:
R High or low outside temp eratures
R Electrical auxiliary consumers in theve hicle
being switched on, e.g. operating the air con-
ditioning system
R Extended periods without charging
The charging time of the high-voltage battery may
be increased bythefo llowing:
R High or low outside temp eratures
R Extended periods without charging
R The maximum available charge cur rent of the
ch arging facility
R The charging cur rent set (mode 2) in the multi-
media system (/ page 322) N
No
ot
tes on c
es on c har
harging t
ging t he high-v
he high-v olt
oltag
age batt
e batt er
ery at t
y at t he
he
mains soc ke
mains soc ket (mode 2)
t (mode 2) &
D
DAN
AN GER
GER Risk of fatal injury from incor-
re ctly ins talled component parts
Connecting thech arging cable toa mains
soc ket using incor rectly ins talled component
parts could cause a /re or an electric shoc k,
fo rex ample. #
Only connect thech arging cable to a
mains soc ketth at:
R Has been proper lyinstalled and
R Has been inspected byaqu ali/ed elect ri-
cian #
For saf etyre asons, only use thech arging
cable supplied with theve hicle or an
original Mercedes-Benz charging cable. #
Purchase these parts at a Mercedes-
Benz Service Centre and obtain advice
th ere. Mercedes-Benz
thoroughly tests these original
ch arging cables forth eir suitability for high-
vo ltage charging of your vehicle. #
Never use a damaged charging cable. #
Do not use:
R Extension cables
R Extension reels
R Multiple soc kets #
Never use soc ket ada pters toconnect
th ech arging cable tothe mains soc ket.
The only exception being if the adap ter
has been tested and appro vedby the
manufacturer forch arging the high-volt-
age battery of an electric vehicle. #
Obser vethe saf ety no tes in the operat-
ing inst ructions forth e soc ket ada pter. Only
thefo llowing charging cables may be used:
R The charging cable supplied with theve hicle.
R Ach arging cable that has been appr ovedfor
th eve hicle. Driving and parking
215 215

The
charging process can vary depending on the
po we r supply equipment. The charging times
when charging the high-voltage battery at the
mains soc ket are considerably longer than when
ch arging at a wallbox or charging station.
When doing so, alw ays obser vethe local informa-
tion.
Do not lea vethech arging cable cont rols hanging
loose from a mains soc ket.
Do not liT the controls bythefo llowing compo-
nent parts:
R thech arging cable connector
R the mains plug
When charging, pr otect thech arging cable cont rol
element from excessive heat such as direct sun-
light. Otherwise, thech arging process may be
cancelled. N No
ot
tes on c
es on c har
harging t
ging t he high-v
he high-v olt
oltag
age batt
e batt er
ery at a
y at a
w
w allbo
allbo x or c
x or c har
harging st
ging st ation (mode 3)
ation (mode 3) &
D
DAN
AN GER
GER Risk of fatal injury from incor-
re ctly ins talled component parts
Connecting thech arging cable toawa llbox
using incor rectly ins talled component parts
could cause a /re or an electric shoc k,for
ex ample. #
Only connect thech arging cable to a
wa llbox that:
R Has been proper lyinstalled and
R Has been inspected byaqu ali/ed elect ri-
cian #
For saf etyre asons, only use charging
cables that ha vebeen tested and
appro vedby the manufacturer forch arg-
ing the high-voltage battery in an electric
ve hicle. #
Never use damaged charging cables. #
Do not extend thech arging cable. #
Do not use adap ters. #
Obser vethe saf ety no tes in the operat-
ing inst ructions forth ewa llbox. If
ch arging at a wallbox without pre-ins talled
cable, use the optionally available charging cable
fo rwa llbox and charging station (mode 3). The
ch arging cable is st owed in a bag in the boot/
luggage compartment.
Only use charging cables that ha vebeen tested
and appro vedby the manufacturer forch arging
th e high-voltage battery in an electric vehicle. &
D DAN
AN GER
GER Risk of fatal injuries due todam-
aged components
Connecting thech arging cable toach arging
station using a damaged component part
could cause a /re or an elect ric shoc k,for
ex ample. #
Forch arging stations with a preinstalled
ch arging cable:
R Perform a visual check of thech arg-
ing station for obvious faults, such as
massive damage tothe housing or
ch arging cable. 216 216
Driving and parking

#
Forch arging stations without a preinstal-
led charging cable:
R For saf etyre asons, only use charging
cables that ha vebeen tested and
appro vedby the manufacturer for
ch arging the high-voltage battery in
an electric vehicle.
R Never use damaged charging cables.
R Do not extend thech arging cable.
R Do not use adap ters. #
Make sure toobser vethe saf ety in form a-
tion on thech arging station. Most
charging stations must be activated before
th ech arging process, e.g. using an RFID card.
Obser vethe on-site operator's inst ructions forthe
ch arging station.
The amount of ene rgy dispensed forth ech arging
process, shown bythech arging station, may be
higher than the amount of energy actually absor-
bed bythe high-voltage batter y.This is there sult
of di.erent le vels of charging losses and is descri-
bed as rech arge e1ciency. Charging losses occur,
fo rex ample, due toheat that builds up when ch
arging or from auxiliary consumers that are
switched on. Further information on rech arge e1-
ciency can be obtained at a quali/ed specialist
wo rkshop. Se
Se
tting t
tting t he maximum per
he maximum per missible c
missible char
harging cur-
ging cur-
r
r ent f
ent f or c
or char
harging at a mains soc ket
ging at a mains soc ket *
N
NO
OTE
TE Overloading the mains soc ket due
to excessive charging cur rent If
th ech arging cur rent is too high, the fuse
could be tripped or theex tern al mains supply
could overheat. #
Make sure that theex tern al mains supply
has been designed tohandle the set
ch arging cur rent. #
If necessar y,reduce the set charging
cur rent or use a di.erent mains soc ket. #
For saf etyre asons, only use thech arging
cable supplied with theve hicle or an
original Mercedes-Benz charging cable.
Mercedes-Benz thoroughly tests these
original charging cables forth eir suitabil-
ity for high-voltage charging of your vehi- cle. Pur
chase these parts at a Mercedes-
Benz Service Centre and obtain advice
th ere. #
Check the setting of the maximum
ch arge cur rent using thech arging capa-
city shown in the Instrument Displa y. Before
charging at a mains soc ket, ha vethe maxi-
mum permissible charging cur rent forth ere leva nt
mains soc ket or the building inspected byaqu ali-
/ed elect rician. The charging cable supplied is set
to a countr y-speci/c maximum charging cur rent
va lue. When charging abroad, the maximum value
may exceed the permitted value forth at countr y.
When abroad, obser vethe count ry-speci/c la ws
when charging. If you ha vequestions concerning
setting thech arging cur rent or if there is a mal-
function, please contact a quali/ed specialist
wo rkshop. #
Set the maximum permissible charging cur-
re nt in the multimedia system menu
(/ page 322). Driving and parking
217 217

If
th eex act value of the maximum permissible
ch arging cur rent cannot be set, select the next
smaller adjustable value.
% Ifth eve hicle requ ires more time than usual to
ch arge the high-voltage batter y,ch eck the
maximum charging cur rent settings in the
multimedia system menu. Ov
Ov
er
ervie
vie w of t
w of t he c
he char
harging cable contr
ging cable contr ol panel
ol panelThe
charging cable cont rol panel sho ws the cur-
re nt status of thech arging process. 1
Supply voltage indicator
2 Charging process indicator 3
Temp erature monitor indicator
4 Safety sy stem indicator
Suppl
Suppl y v
y volt
oltag
age indicat
e indicat or
or1
1 Display
Display
Meaning
Meaning
Lights up whit eThe supplyvoltage is
connected. Char
Char
ging pr
ging pr ocess indicat
ocess indicat or
or2
2 Display Display
Meaning Meaning
Flashes green The high-voltage bat-
tery isch arging. T
T
em
em per
per atur
atur e contr
e contr ol indicat
ol indicat or
or3
3 Displ
ay
Display Meaning
Meaning
Lights up redT hegreen LED 0ashes
simultaneousl y:ove r-
te mp erature – the
ch arging per form ance
is reduced.
The green LED does
not 0ash: overtemper-
ature – thech arging
process is stopped.
Flashes redO vertemperature at
th e mains plug – the
ch arging process is
stopped. 218
218
Driving and parking

Safe
Safe
ty syst
ty syst em indicat
em indicat or
or4
4 Display
Display
Meaning
Meaning
Flashes redC harging cable mal-
function – cann ot
car ryout thech arging
process, reset the
ch arging cable operat-
ing unit.
Lights up redW hite LED is o.:
po we r supply malfunc-
tion – cannot car ry
out thech arging proc-
ess, replace the mains
soc ket.
White LED is on: vehi-
cle malfunction – can-
not car ryout the
ch arging process,
re set thech arging
cable operating unit. When all
four displa yslight up, thech arging cable
operating unit per form s a self-test. If
te mp erature monitor 3indicates a malfunc-
tion, it may help toprotect thech arging cable
from direct sunlight.
T
T o r o r ese
ese t t
t the c
he c har
harging cable oper
ging cable oper ating unit:
ating unit:if
saf ety sy stem 4indicates a charging cable mal-
function or a vehicle malfunction, /rst reset the
ch arging cable operating unit. Todo this, discon-
nect thech arging cable from theve hicle and from
th e mains soc ket and waitfor appr oximately /ve
seconds. If the malfunction persists aTer the
ch arging cable is reconnected, charging at the
mains soc ket is not possible. The charging cable
must be replaced or theve hicle plug must be
ch ecked at a quali/ed specialist workshop,
depending on the indicator. F
F
unctions of t
unctions of t he indicat
he indicator lam
or lam ps on t
ps on t he v
he vehicle
ehicle
soc ket
soc ket R
Depending on the national version, one of the
fo llowing vehicle soc kets is loca ted on the
ri ght-hand side of there ar bumper.
R The soc ket 0ap is centrally loc ked and
unloc kedto get her with theve hicle. T
T
ype 1 v
ype 1 v ehicle soc ket
ehicle soc ket 1
Status of thech arging process Driving and parking
219
219

Ov
Ov
er
ervie
vie w of t
w of t he indicat
he indicat or lam
or lamp st
p status
atus Indicat
Indicat
or lamp
or lamp Meaning
Meaning
Flashes orang eConnection is being
established
Flashes green Charging process
Lights up orang eInterruption in charg-
ing
Lights up green High-voltage battery
fullycharged
Flashes redM alfunction T
T
ype 2 v
ype 2 v ehicle soc ket
ehicle soc ket 1
Locking status
2 Status of thech arging process Ov
Ov
er
ervie
vie w of t
w of t he loc
he loc king st
king st atus
atus Loc
Loc
king st
king st a-
a-
tus
tus 1
1 Displ
ay
Display Meaning
Meaning
% Lights up
whiteR
The vehi-
cle soc ket
is
unloc ked
R Connect
orremo ve
ch arging
cable Ov Ov
er
ervie
vie w of t
w of t he c
he char
harging pr
ging pr ocess st
ocess st atus
atus S
S
t
tatus of t
atus of t he
he
c
c har
har ging
ging
pr
pr ocess
ocess 2
2 Displ
ay
Display Meaning
Meaning
# Flashes
orangeConnection is
being estab-
lished
# Flashesgreen Active energy
0ow 220 220
Driving and parking

S
S
t
tatus of t
atus of t he
he
c
c har
har ging
ging
pr
pr ocess
ocess 2
2 Displ
ay
Display Meaning
Meaning
# Lights up
orangeInter
ruption in
ch arging
# Lights up
green Charging
process com-
ple
ted
# FlashesredA malfunction
has occur red
during charg-
ing. The indi-
cator lamp
goes out aTer
appr oximately
90 seconds. %
Ifth e indicator lamps are o., lock or unlock
th eve hicle using thekey. The indicator lamps
will then display the cur rent status of the
ch arging process. S S
t
tar
ar ting t
ting t he c
he char
harging pr
ging pr ocess
ocess &
D
DAN
AN GER
GER Risk of death when charging at a
damaged soc ket
The charging process uses high voltage.
If th ech arging cable, theve hicle soc ket or the
mains soc ket are damaged, you could receive
an elect ric shoc k. #
Only use an undamaged charging cable. #
Avoid mechanical damage such as crush-
ing, abrading or driving overth e cable. #
Have a damaged vehicle soc ketre placed
at a quali/ed specialist workshop as
soon as possible. #
Never connect thech arging cable to a
damaged vehicle soc ket. *
N
NOOTE
TE Damage totheve hicle due toove r-
vo ltage in the mains supply The
vehicle is equipped with an elect rical fuse
which pr otects it against overvoltage in the
mains suppl y.This electrical fuse may trip dur- ing se
vere thunderstorms, forex ample, and
may cause the fuse in the building totrip or
may inter rupt thech arging process. These
functions pr otect theve hicle.
ATer the fuse in the building is switched on
again, thech arging process resumes automat-
icall y.
Fo llowing an inter ruption in the po wer supply
without the fuse in the building being tripped,
it may take up to te n minutes forch arging to
re sume automaticall y. *
N
NO
OTE
TE Damage due toove rheating of
ch arging cable and charging cable con-
nector During
thech arging process, thech arging
cable and charging cable connector can heat
up within their permissible limit values.
The permissible limit values are in0uenced by
th efo llowing factors:
R the po wer supply system and thech arging
cable are not damaged Driving and parking
221
221
