2022 MERCEDES-BENZ CLA SHOOTING BRAKE Owners Manual

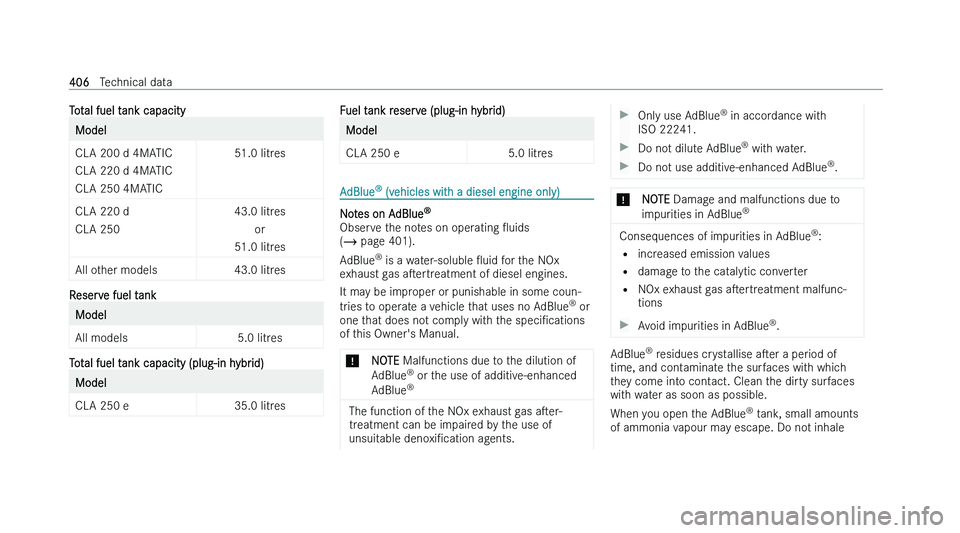

Total fuel tank capacity
Model
CLA 200 d 4MATIC
CL
A 220 d 4MATIC
CLA 250 4MATIC 51.0 litres
CLA 220 d
CL
A 250 43.0 litres
or
51.0 litr
es
All other models 43.0 litresReserve fuel tank
Model
All models
5.0 litresTotal fuel tank capacity (plug-in hybrid)
Model
CLA 250 e
35.0 litres Fuel tank reserve (plug-in hybrid)
Model
CLA 250 e
5.0 litres AdBlue
n
(v
ehicles with a diesel engine only) Notes on AdBlue
n
Obser
ve the notes on operating Ouids
(  page 401).
AdBlue n
is a water-soluble Ouid for the NOx
exhaust gas asertreatment of diesel engines.
It may be improper or punishable in some coun-
tries to operate a vehicle that uses no AdBlue n
or
one that does not comply with the speciNcations
of this Owner's Manual.
* NOTE Malfunctions due t
o the dilution of
AdBlue n
or the use of additive-enhanced
AdBlue n The function of the NOx exhaust gas
aser
-
treatment can be impaired by the use of
unsuitable denoxiNcation agents.
Only use AdBlue n
in accor
dance with
ISO 22241.
Do not dilute AdBlue n
wit
h water.
Do not use additive-enhanced AdBlue n
. *
NOTE Damag
e and malfunctions due to
impurities in AdBlue n Consequences of impurities in AdBlue
n
:
= incr

eased emission values
= damage to the catalytic converter
= NOx exhaust gas asertreatment malfunc-
tions
Avoid impurities in AdBlue n
. AdBlue
n
r
esidues crystallise aser a period of
time, and contaminate the surfaces with which
they come into contact. Clean the dirty surfaces
with water as soon as possible.
When you open the AdBlue n
tank, small amounts

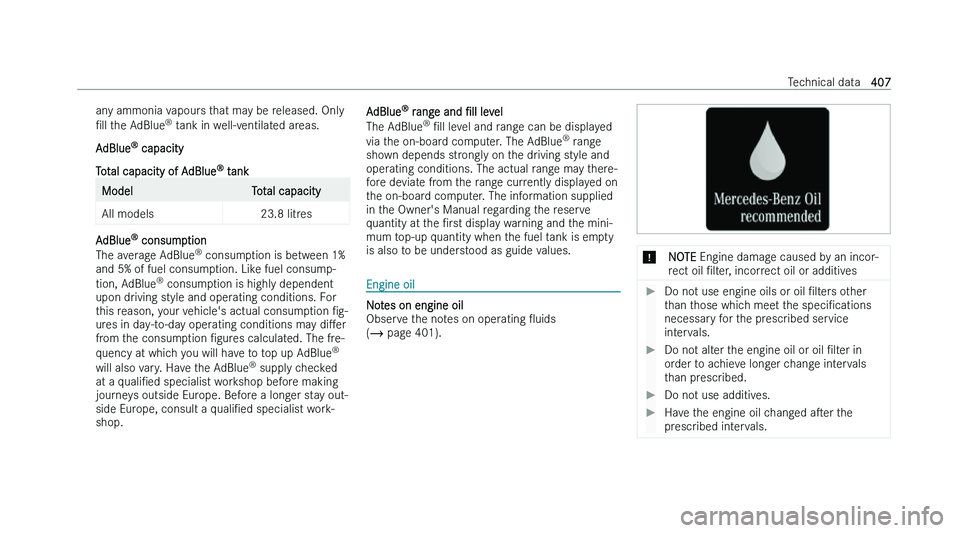

of ammonia vapour may escape. Do not inhale 406
Technical data

any ammonia vapours that may be released. Only
Nll
t
he AdBlue n
tank in well-ventilated areas.
AdBlue n
capacity
Total capacity of AdBlue n
tank Model
Total capacity
All models 23.8 litresAdBlue
n
consum
ption
The average AdBlue n
consumption is between 1%
and 5% of fuel consumption. Like fuel consump-
tion, AdBlue n
consumption is highly dependent
upon driving style and operating conditions. For
this reason, your vehicle's actual consumption Ng-
ures in day-to-day operating conditions may diMer
from the consumption Ngures calculated. The fre-
quency at which you will have to top up AdBlue n
will also vary. Have the AdBlue n
supply checked
at a qualiNed specialist workshop before making
journeys outside Europe. Before a longer stay out-
side Europe, consult a qualiNed specialist work-
shop. AdBlue
n
r
ange and Nll level
The AdBlue n
Nll level and range can be displayed
via the on-board computer. The AdBlue n
range
shown depends strongly on the driving style and
operating conditions. The actual range may there-
fore deviate from the range currently displayed on
the on-board computer. The information supplied
in the Owner's Manual regarding the reserve
quantity at the Nrst display warning and the mini-
mum top-up quantity when the fuel tank is empty
is also to be understood as guide values. Engine oil
Notes on engine oil
Obser

ve the notes on operating Ouids
(  page 401). *
NOTE Engine damag
e caused by an incor-
rect oil Nlter, incorrect oil or additives
Do not use engine oils or oil Nlt
ers other
than those which meet the speciNcations
necessary for the prescribed service
intervals.
Do not alter the engine oil or oil Nlt
er in
order to achieve longer change intervals
than prescribed.
Do not use additives.
Have the engine oil changed aser t
he
prescribed intervals. Technical data
407

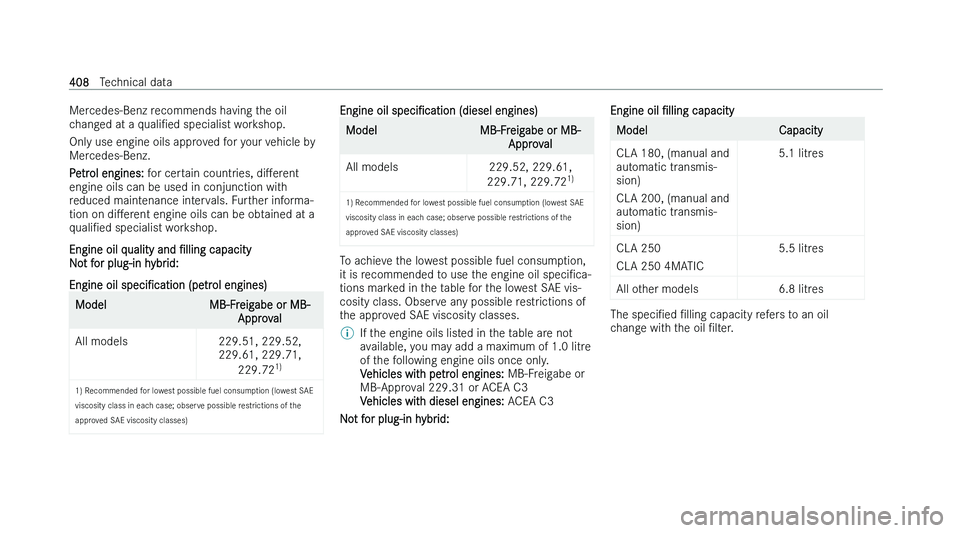

Mercedes-Benz recommends having the oil
c
hanged at a qualiNed specialist workshop.
Only use engine oils approved for your vehicle by
Mercedes-Benz.
Petrol engines: for certain countries, diMerent
engine oils can be used in conjunction with
reduced maintenance intervals. Further informa-
tion on diMerent engine oils can be obtained at a
qualiNed specialist workshop.
Engine oil quality and Nlling capacity
Not for plug-in hybrid:
Engine oil speciNcation (petrol engines)Model
MB-Freigabe or MB-
Appr
oval
All models 229.51, 229.52,
229.61, 229.71,
229.72 1)
1) Recommended for lowest possible fuel consumption (lowest SAE
viscosity class in eac
h case; observe possible restrictions of the
approved SAE viscosity classes) Engine oil speciNcation
(diesel engines) Model
MB-Freigabe or MB-
Appr
oval
All models 229.52, 229.61,
229.71, 229.72 1)
1) Recommended for lowest possible fuel consumption (lowest SAE
viscosity class in eac
h case; observe possible restrictions of the
approved SAE viscosity classes) To achieve the lowest possible fuel consumption,
it is r
ecommended to use the engine oil speciNca-
tions marked in the table for the lowest SAE vis-
cosity class. Observe any possible restrictions of
the approved SAE viscosity classes.
% If the engine oils listed in the table are not
a

vailable, you may add a maximum of 1.0 litre
of the following engine oils once only.
Vehicles with petrol engines: MB-Freigabe or
MB-Approval 229.31 or ACEA C3
Vehicles with diesel engines: ACEA C3
Not for plug-in hybrid: Engine oil Nlling
capacity Model
Capacity
CLA 180, (manual and
aut
omatic transmis-
sion)
CLA 200, (manual and
automatic transmis-
sion) 5.1 litres
CLA 250
CL
A 250 4MATIC 5.5 litres
All other models 6.8 litres The speciNed
Nlling capacity r
efers to an oil
change with the oil Nlter.408
Technical data

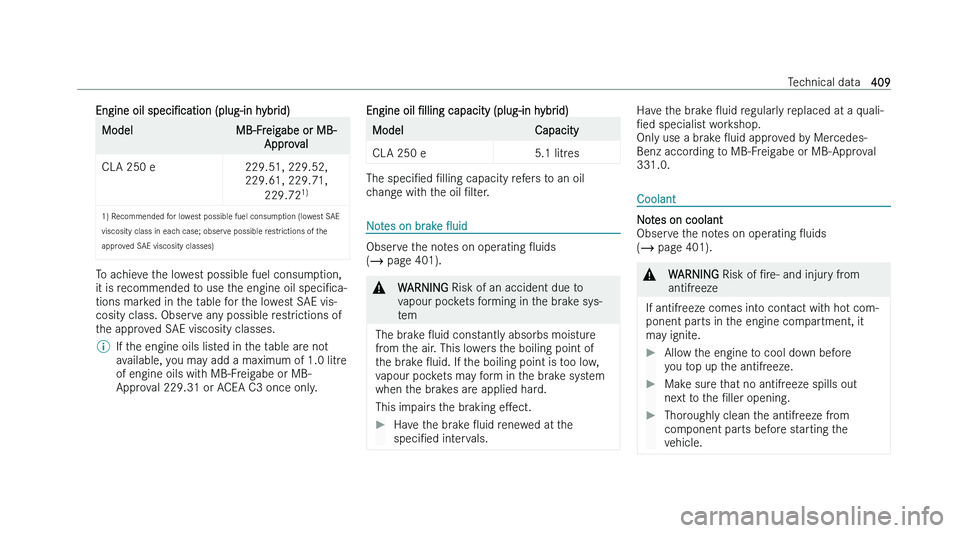

Engine oil speciNcation
(plug-in h ybrid)Model
MB-Freigabe or MB-
Appr
oval
CLA 250 e 229.51, 229.52,
229.61, 229.71,
229.72 1)
1) Recommended for lowest possible fuel consumption (lowest SAE
viscosity class in eac
h case; observe possible restrictions of the
approved SAE viscosity classes) To achieve the lowest possible fuel consumption,
it is r
ecommended to use the engine oil speciNca-
tions marked in the table for the lowest SAE vis-
cosity class. Observe any possible restrictions of
the approved SAE viscosity classes.
% If the engine oils listed in the table are not
a

vailable, you may add a maximum of 1.0 litre
of engine oils with MB-Freigabe or MB-
Approval 229.31 or ACEA C3 once only. Engine oil Nlling
capacity (plug-in h
ybrid) Model
Capacity
CLA 250 e 5.1 litres The speciNed
Nlling capacity r
efers to an oil
change with the oil Nlter. Notes on brake
Ouid Observe the notes on operating
Ouids
(  pag

e 401). &
WARNING Risk of an accident due t
o
vapour pockets forming in the brake sys-
tem
The brake Ouid cons
tantly absorbs moisture
from the air. This lowers the boiling point of
the brake Ouid. If the boiling point is too low,
vapour pockets may form in the brake system
when the brakes are applied hard.
This impairs the braking eMect.
Have the brake Ouid r
enewed at the
speciNed intervals. Have the brake
Ouid r
egularly replaced at a quali-
Ned specialist workshop.
Only use a brake Ouid approved by Mercedes-
Benz according to MB-Freigabe or MB-Approval
331.0. Coolant
Notes on coolant
Obser

ve the notes on operating Ouids
(  page 401). &
WARNING Risk of Nr
e

*

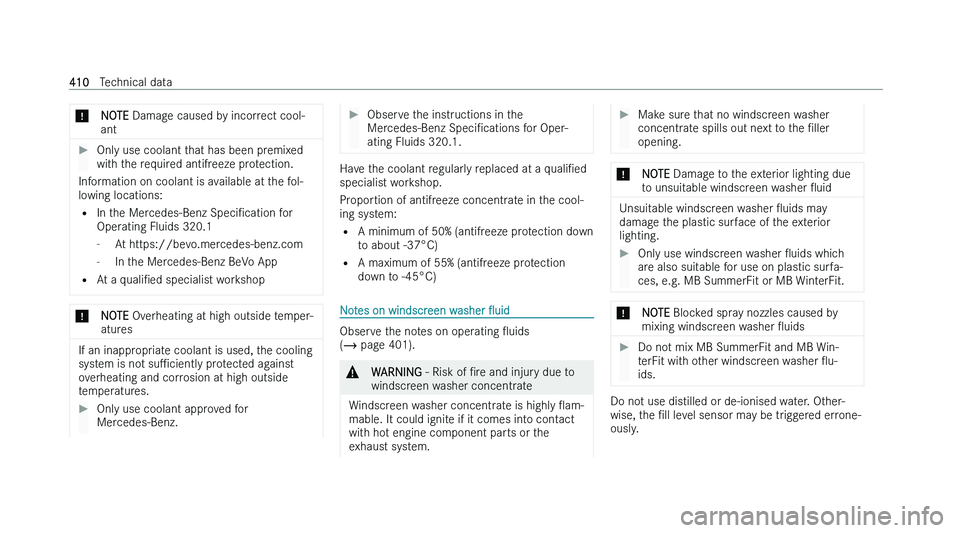

NOTE Damag e caused by incorrect cool-
ant
Only use coolant that has been premixed
wit
h the required antifreeze protection.
Information on coolant is available at the fol-
lo
wing locations:
= In the Mercedes-Benz SpeciNcation for
Operating Fluids 320.1
- At https://bevo.mercedes-benz.com
- In the Mercedes-Benz BeVo App
= At a qualiNed specialist workshop *
NOTE Ov
erheating at high outside temper-
atures If an inappropriate coolant is used, the cooling
sy

stem is not suPciently protected against
overheating and corrosion at high outside
temperatures.
Only use coolant approved for
Mer

cedes-Benz.
Observe the instructions in the
Mer
cedes-Benz SpeciNcations for Oper-
ating Fluids 320.1. Have the coolant regularly replaced at a
q
ualiNed
specialist workshop.
Proportion of antifreeze concentrate in the cool-
ing system:
= A minimum of 50% (antifreeze protection down
to about -37°C)
= A maximum of 55% (antifreeze protection
down to -45°C) Notes on windscreen washer
Ouid Observe the notes on operating
Ouids
( pag
e 401). &
WARNING !

Recommended windscreen washer
Ouid:
= abo
ve freezing point: e.g. MB SummerFit
= below freezing point: e.g. MB WinterFit
For the correct mixing ratio, refer to the informa-
tion on the antifreeze container.
Mix washer Ouid with windscreen washer Ouid all

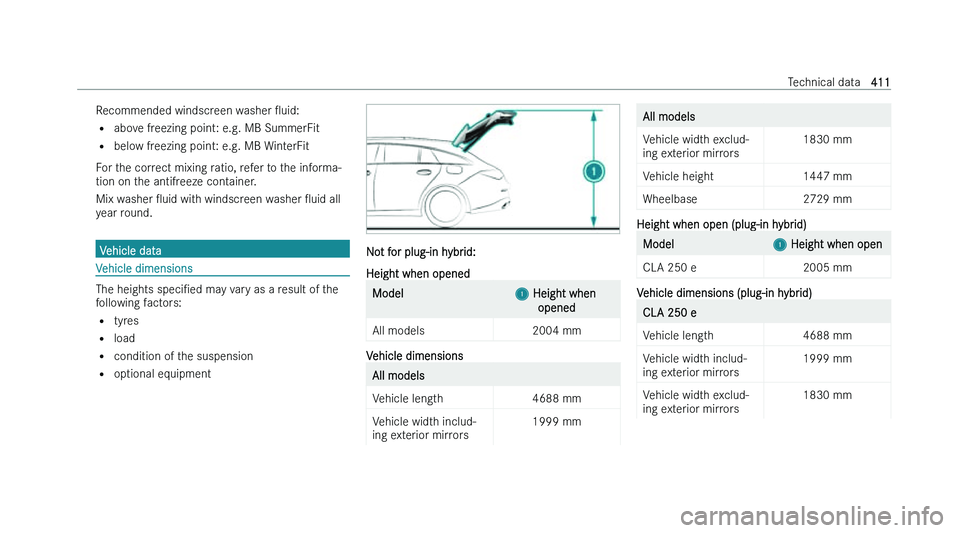

year round. Vehicle data
Vehicle dimensions
The heights
speciNed ma
y vary as a result of the
following factors:
= tyres
= load
= condition of the suspension
= optional equipment Not for plug-in hybrid:
Height when opened
Model
1 Height when
opened
All models 2004 mm Vehicle dimensions
All models
Vehicle length
4688 mm
Vehicle width includ-
ing e
xterior mirrors 1999 mm All models
Vehicle width exclud-
ing e

xterior mirrors 1830 mm
Vehicle height 1447 mm
Wheelbase 2729 mm Height when open (plug-in hybrid)
Model
1 Height when open
CLA 250 e 2005 mm Vehicle dimensions (plug-in hybrid)
CLA 250 e
Vehicle length
4688 mm
Vehicle width includ-
ing e
xterior mirrors 1999 mm
Vehicle width exclud-
ing e
xterior mirrors 1830 mm Technical data
411

CLA 250 e
Vehicle height
1453 mm

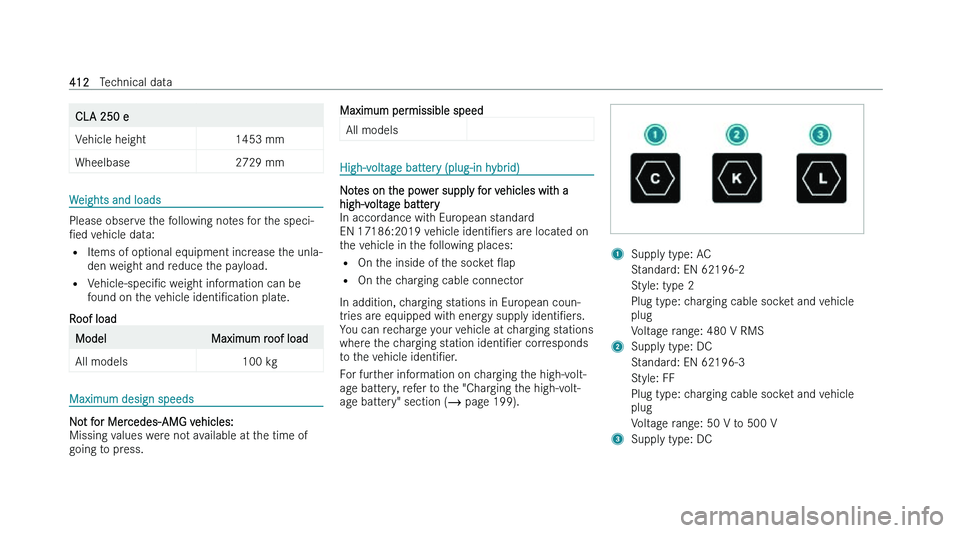

Wheelbase 2729 mmWeights and loads
Please observe the following notes for the speci-
Ned
v
ehicle data:
= Items of optional equipment increase the unla-
den weight and reduce the payload.
= Vehicle-speciNc weight information can be
found on the vehicle identiNcation plate.
Roof load Model
Maximum roof load
All models 100 kgMaximum design speeds
Not for Mercedes-AMG vehicles:
Missing v

alues were not available at the time of
going to press. Maximum permissible speed
All models High-voltage battery (plug-in hybrid)
Notes on the power supply for vehicles with a
high-v
oltage battery
In accordance with European standard
EN 17186:2019 vehicle identiNers are located on
the vehicle in the following places:
= On the inside of the socket Oap
= On the charging cable connector
In addition, charging stations in European coun-
tries are equipped with energy supply identiNers.
You can recharge your vehicle at charging stations
where the charging station identiNer corresponds
to the vehicle identiNer.
For further information on charging the high-volt-
age battery, refer to the "Charging the high-volt-
age battery" section ( page 199). 1
Supply type: AC
Standard: EN 62196-2
Style: type 2
Plug type: charging cable socket and vehicle
plug
Voltage range: 480 V RMS
2 Supply type: DC
Standard: EN 62196-3
Style: FF
Plug type: charging cable socket and vehicle
plug
Voltage range: 50 V to 500 V

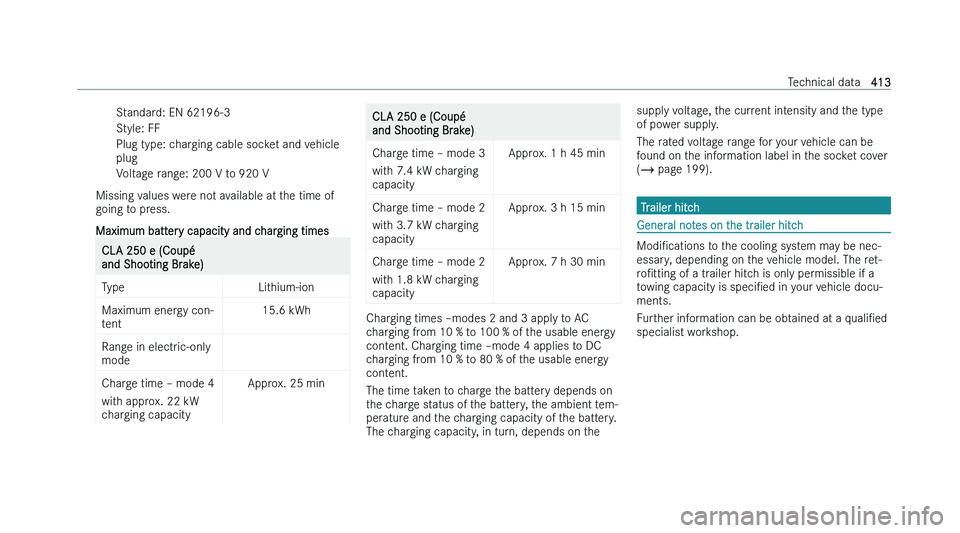

3 Supply type: DC 412
Technical data

Standard: EN 62196-3
Style: FF
Plug type: charging cable socket and vehicle
plug
Voltage range: 200 V to 920 V
Missing values were not available at the time of
going t o press.
Maximum battery capacity and charging times CLA 250 e (Coup
