2022 MAZDA MODEL MX-30 EV fuse

No.FUSE RAT
-
ING PROTECTED COMPONENT
F41 ――
F42 20 A Windshield wiper
F43 ――
F44 30 A Accessory sockets
F45 10 A BEV control system
F46 15 A Audio
F47 15 A For protection of various circuits
F48 7.5 A Air bag
F49 15 A Instrument cluster
F50 15 A Room light
F51 25 A Audio
F52 10 A
Moonroof
*
F53 15 A BEV control system
F54 10 A i-ACTIVSENSE
F55 ――
F56 ――
Maintenance and Care
Owner Maintenance
*Some models.6-31
MX-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

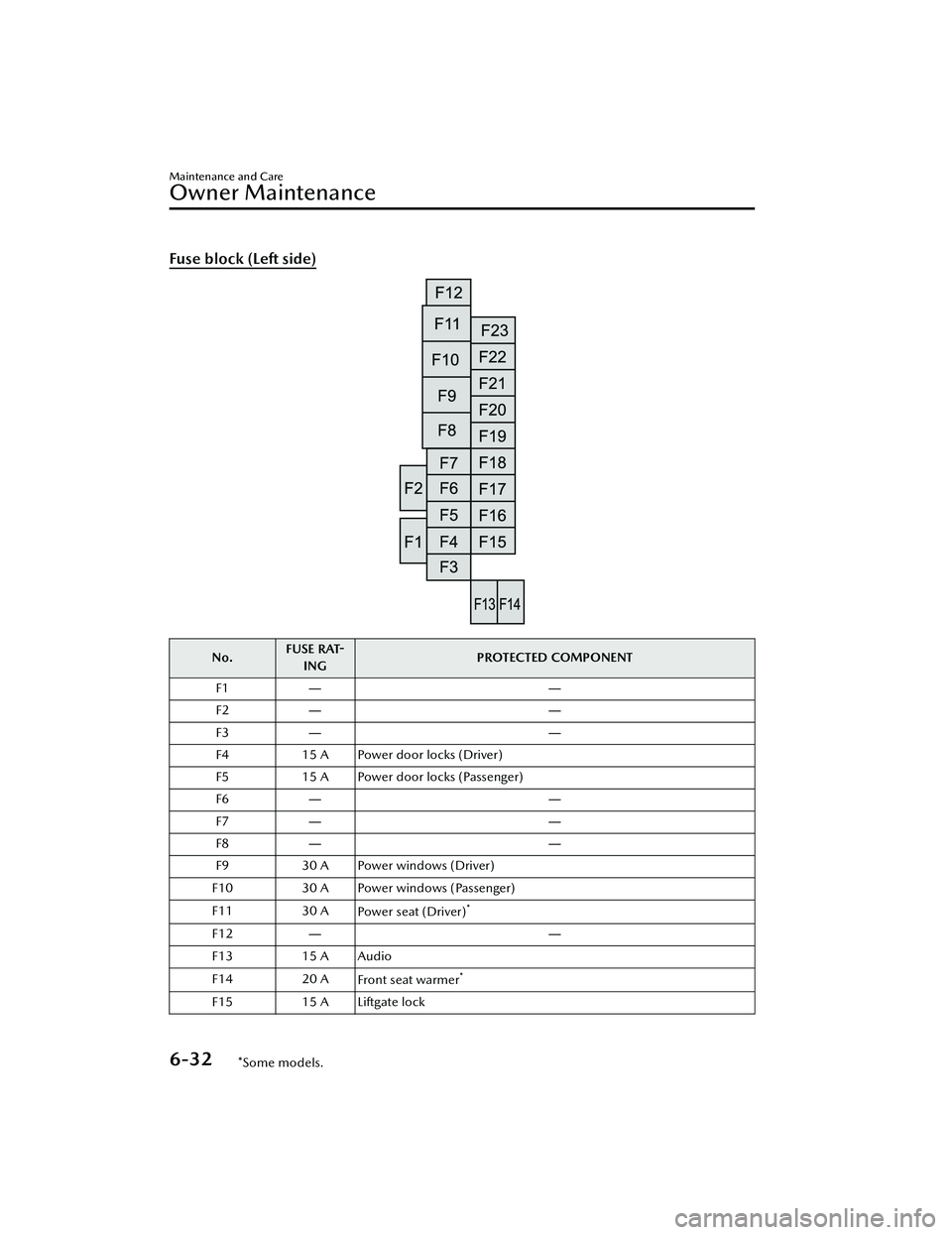

Fuse block (Left side)
No.FUSE RAT
-
ING PROTECTED COMPONENT
F1 ――
F2 ――
F3 ――
F4 15 A Power door locks (Driver)
F5 15 A Power door locks (Passenger)
F6 ――
F7 ――
F8 ――
F9 30 A Power windows (Driver)
F10 30 A Power windows (Passenger)
F11 30 A
Power seat (Driver)
*
F12 ――
F13 15 A Audio
F14 20 A
Front seat warmer
*
F15 15 A Liftgate lock
Maintenance and Care
Owner Maintenance
6-32*Some models.
MX-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

No.FUSE RAT
-
ING PROTECTED COMPONENT
F16 15 A Illumination
F17 10 A Brake lights
F18 10 A Reverse lights
F19 10 A Rear turn signal lights
F20 10 A Taillights
F21 10 A Taillights
F22 7.5 A Air Bag
F23 ――
Maintenance and Care
Owner Maintenance
6-33
MX-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

▼We igh ts
Item
Weight
GVWR (Gross Vehicle Weight Rating) 2,087 kg (4,601 lbs)
GAWR (Gross Axle Weight Rating) Front
1,047 kg (2,308 lbs)
Rear 1,042 kg (2,297 lbs)
▼Light Bulbs
Exterior light/Interior light
All the light bulbs are the LED type.
The LED bulb cannot be replaced. We recommend an Authorized Mazda Dealer
when the replacement is necessary.
▼Tires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type
originally
fitted to your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Pressure Label on page 9-2.
Standard tire
Tire size In
flation pressure
Front Rear
215/55R18 95H M+S 250 kPa (36 psi)250 kPa (36 psi)
Lug nut tightening torque
When installing a tire, tighten the lug nut to the following torque.
108―147 N·m (12―14 kgf·m, 80 ―108 ft·lbf)
▼Fuses
Refer to Fuses on page 6-27.
Speci
fications
Speci fications
9-5
MX-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Index
Starting the EV System............ 4-5
Starting the EV System When the
Key Battery is Dead................ 4-6
When Stopping the EV
System................................... 4-8
Excessive Speed Warning........... 7-40
Exterior Care............................. 6-34 Aluminum wheel
maintenance........................ 6-39
Bright-metal maintenance..... 6-38
Camera and Lens
Maintenance........................ 6-38
Maintaining the finish........... 6-35
Plastic part maintenance....... 6-39
F
Flasher Hazard warning.................... 4-47
Headlights............................4-35
Flat Tire...................................... 7-3
Floor Mat................................. 3-57
Fluids Brake................................... 6-12
Classi fication.......................... 9-4
Washer................................ 6-13
Foot Brake................................ 4-52
Forward Sensing Camera (FSC)... 4-71
Front Camera/Side Cameras/Rear
Camera.................................... 4-81
Front Cross Tra ffic Alert (FCTA) ..........
.............................................. 4-104
Front Cross Tra ffic Alert (FCTA)
Warning Beep........................... 7-40
Front Radar Sensor.................... 4-75
Front Side Radar Sensor............. 4-77
Fully Discharged High Voltage Battery Actions to take if the remaining
high voltage battery power is
completely depleted............. 7-16
Fuses........................................ 6-27
Panel description.................. 6-29
Replacement........................ 6-27
G
Gauges....................................... 4-9
Glove Compartment..................5-45
H
Hazardous Driving.....................3-56
Hazard Warning Flasher............. 4-47
Headlights Coming home light...............4-37
Flashing................................4-37
High-low beam.................... 4-37
Leaving home light............... 4-37
Leveling................................4-38
Head Restraint.......................... 2-18
High Beam Control System
(HBC)....................................... 4-83 High Beam Control System (HBC)
indicator light (green)........... 4-83
High Voltage Battery.................... 9-3
Hill Launch Assist (HLA)............. 4-61
HomeLink Wireless Control
System...................................... 4-47
Hood Release............................. 6-8
Horn........................................ 4-46
I
If a Warning Light Turns On or
Flashes......................................7-21
If the Active Driving Display Does Not
Operate.................................... 7-43
Illuminated Entry System............ 5-38
Immobilizer System................... 3-54
Inspecting Brake Fl uid Level........6-12
Inspecting Coolan t Level............ 6-11
Inspecting Washer Fluid Level..... 6-13
Instrument Cluster.......................4-9 Average Energy E fficiency.......4-16
10-4
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Index
Registering Your Vehicle in A Foreign
Country.................................... 8-14
Remaining High Voltage Battery
Power Warning Beep................. 7-38
ReplacementFuse..................................... 6-27
Key battery........................... 6-21
Light bulbs........................... 6-26
Tires.....................................6-24
Wheel.................................. 6-25
Wiper.................................. 6-14
Reverse Position Warning Beep... 7-39
Road Keep Assist.....................4-133
Rocking the Vehicle................... 3-57
S
Safety Defects, Reporting
(Canada).................................. 8-12
Safety Defects, Reporting
(U.S.A.).................................... 8-11
Scheduled Maintenance Canada.................................. 6-5
U.S.A. and Puerto Rico........... 6-4
Seats Driver's seat........................... 2-4
Driving position memory....... 2-10
Front passenger's seat........... 2-12
Front seat............................... 2-4
Head restraint...................... 2-18
Rear seat.............................. 2-15
Seat warmer......................... 2-21
Seat Belt System Automatic locking................ 2-28
Emergency locking................ 2-28
Extender.............................. 2-33
Pregnant women.................. 2-27
Seat belt precautions............ 2-26
Seat Belt Warning Beep............. 7-37
Security System Immobilizer system............... 3-54
Selector lever not in P reminder
warning beep............................ 7-39
Shift Control SystemDriving tips.......................... 4-32
Selector lever operation........ 4-28
Selector lever position
functions.............................. 4-26
Shift-lock system...................4-32
Shift Position Warning Beep....... 7-39
Smart Brake Support (SBS)....... 4-136 Stopping the Smart Brake Support
(SBS) system operation........4-143
Speci fications
Capacities.............................. 9-4
Charge System....................... 9-3
Dimensions............................ 9-4
Electrical system..................... 9-4
High Voltage Battery............... 9-3
Light bulbs............................. 9-5
Lubricant quality..................... 9-4
Tires.......................................9-5
Weights................................. 9-5
SRS Air Bags Driver and front passenger
occupant classification
system................................. 2-64
How the SRS air bags work.... 2-58
Limitations to SRS air bag...... 2-63
Monitoring........................... 2-69
SRS air bag deployment
criteria................................. 2-61
Supplemental restraint system
components......................... 2-57
Supplemental restraint system
(SRS) precautions................. 2-52
Steering Wheel Heated steering wheel.......... 2-23
Horn.................................... 4-46
Storage Compartments.............. 5-45 Center console..................... 5-46
Glove compartment..............5-45
10-8
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07
