CAUTION
If your Mazda is damaged and needs
metal parts repaired or replaced, make
sure the body shop applies
anti-corrosion materials to all parts,
both repaired and new. This will
prevent them from rusting.
▼Bright-Metal Maintenance
Use tar remover to remove road tar
and insects. Never do this with a
knife or similar tool.
To prevent corrosion on bright-metal
surfaces, apply wax or chrome
preservative and rub it to a high
luster.
During cold weather or in coastal
areas, cover bright-metal parts with a
coating of wax or preservative
heavier than usual. It would also help
to coat them with noncorrosive
petroleum jelly or some other
protective compound.
CAUTION
Do not use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or caustic
agents on chrome-plated or anodized
aluminum parts. This may result in
damage to the protective coating and
cause discoloration or paint
deterioration.
▼Underbody Maintenance
Road chemicals and salt used for ice
and snow removal and solvents used
for dust control may collect on the
underbody. If not removed, they will
speed up rusting and deterioration of
such underbody parts as frame and
fl
oor pan, even though these parts may
be coated with anti-corrosive material.

Thoroughly flush the underbody and
wheel housings with lukewarm or cold
water at the end of each winter. Try
also to do this every month.

Pay special attention to these areas
because they easily hide mud and dirt.
It will do more harm than good to wet
down the road grime without
removing it.

The lower edges of doors, rocker
panels, and frame members have drain
holes that should not be clogged.
Water trapped there will cause rusting.
WARNING
Dry o ff brakes that have become wet
by driving slowly, releasing the
accelerator pedal and lightly applying
the brakes several times until the
brake performance returns to normal:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been
a ff ected.
▼ Camera and Lens Maintenance
CAUTION

The camera cover is made of hard
plastic, therefore do not apply oil
fi lm remover, organic solvents, wax,
or coating agents. If any such agent is
applied, wipe it using a soft cloth
immediately.
Maintenance and Care
Appearance Care
6-38
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

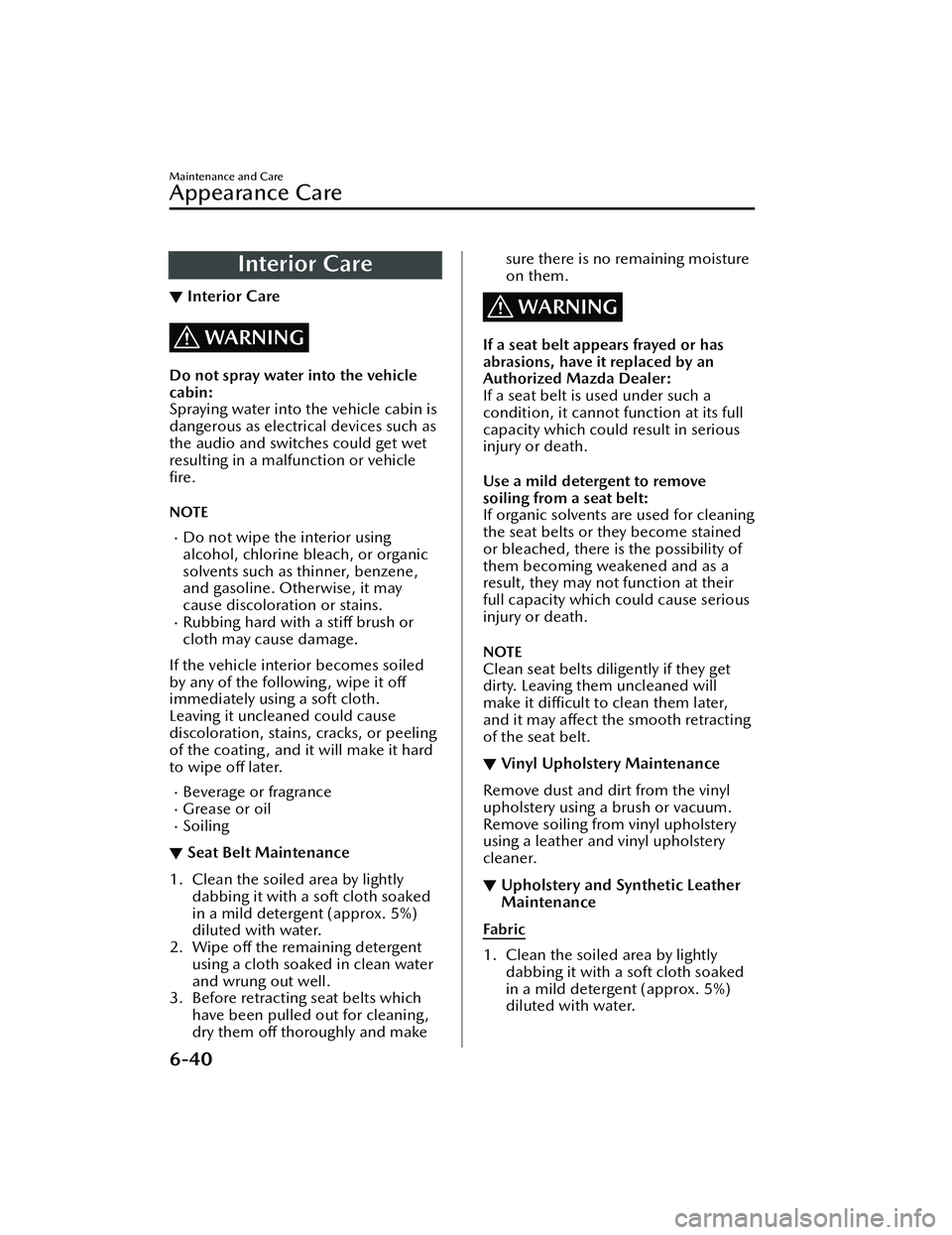

Interior Care
▼Interior Care
WARNING
Do not spray water into the vehicle
cabin:
Spraying water into the vehicle cabin is
dangerous as electrical devices such as
the audio and switches could get wet
resulting in a malfunction or vehicle
fire.
NOTE
Do not wipe the interior using
alcohol, chlorine bleach, or organic
solvents such as thinner, benzene,
and gasoline. Otherwise, it may
cause discoloration or stains.
Rubbing hard with a sti
ff brush or
cloth may cause damage.
If the vehicle interior becomes soiled
by any of the following, wipe it o ff
immediately using a soft cloth.
Leaving it uncleaned could cause
discoloration, stains, cracks, or peeling
of the coating , and it will make it hard
to wipe o ff later.
Beverage or fragranceGrease or oilSoiling
▼ Seat Belt Maintenance
1. Clean the soiled area by lightly
dabbing it with a soft cloth soaked
in a mild detergent (approx. 5%)
diluted with water.
2. Wipe o ff the remaining detergent
using a cloth soaked in clean water
and wrung out well.
3. Before retracting seat belts which have been pulled out for cleaning,
dry them o ff thoroughly and make
sure there is no remaining moisture
on them.
WARNING
If a seat belt appears frayed or has
abrasions, have it replaced by an
Authorized Mazda Dealer:
If a seat belt is used under such a
condition, it cannot function at its full
capacity which could result in serious
injury or death.
Use a mild detergent to remove
soiling from a seat belt:
If organic solvents are used for cleaning
the seat belts or they become stained
or bleached, there is the possibility of
them becoming weakened and as a
result, they may not function at their
full capacity which could cause serious
injury or death.
NOTE
Clean seat belts diligently if they get
dirty. Leaving them uncleaned will
make it
difficult to clean them later,
and it may a ffect the smooth retracting
of the seat belt.
▼ Vinyl Upholstery Maintenance
Remove dust and dirt from the vinyl
upholstery using a brush or vacuum.
Remove soiling from vinyl upholstery
using a leather and vinyl upholstery
cleaner.
▼Upholstery and Synthetic Leather
Maintenance
Fabric
1. Clean the soiled area by lightly
dabbing it with a soft cloth soaked
in a mild detergent (approx. 5%)
diluted with water.
Maintenance and Care
Appearance Care
6-40
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

▼Active Driving Display
Maintenance
The dust-proof sheet has a coating.
When cleaning , do
not use a hard or
rough-surface cloth, or cleaning
detergent. In addition, if a chemical
solvent gets on the active driving
display, wipe it o ff immediately. The
dust-proof sheet could be damaged
and the surface coating could be
scratched. Use a fine, soft cloth such as
those used for cleaning eyeglasses.
NOTE
Use of compressed air when cleaning
the dust-proof sheet is recommended.
▼ Panel and Cork Area Maintenance
If a panel or cork area becomes soiled,
gently wipe it o
ff with a soft cloth
soaked in clean water and thoroughly
wrung out.
If some areas require further cleaning ,
use the following procedure:
1. Wipe the soiled area with a soft cloth soaked in a mild detergent
(approx. 5 %) diluted with water.
2. Wipe o ff the remaining detergent
using a cloth soaked in clean water
and wrung out well.
NOTE
Be particularly careful when cleaning
shiny surface panels and metallic
parts such as plating as they can be
scratched easily.
(Cork area)
Do not apply items with adhesive
properties to the cork area.
Otherwise, the cork could be
damaged.
▼ Glass and Mirror Maintenance
Use Mazda genuine glass cleaner to
remove oil
film from the glass or
mirror.
When cleaning the interior side of the
window glass, gently wipe it with a soft
cloth soaked in clean water and
thoroughly wrung out.
If there is oil film on the windshield,
headlight beams from on-coming
vehicles may re flect irregularly
especially on a rainy night, and your
front vision might be obstructed.
If an antenna or filament is printed on
the window glass, gently wipe along
the antenna or filament to clean that
area.
CAUTION
If some areas require further cleaning,
a glass cleaning agent can be used.
However, be careful of the following
points.
 Follow the instructions on the glass
cleaner container.
 Do not use a glass cleaning agent on
a window antenna and filaments,
and on a rearview mirror equipped
with the automatic glare prevention
function.
Using a glass cleaning agent may
damage the window antenna or
fi laments, and the automatic glare
prevention function may not operate
normally.
▼ Cleaning the Floor Mats
Rubber
floor mats should be cleaned
with mild soap and water only.
WARNING
Do not use rubber cleaners, such as
tire cleaner or tire shine, when
cleaning rubber floor mats:
Cleaning the rubber floor mats with
rubber cleaning products makes the
fl oor mats slippery.
Maintenance and Care
Appearance Care
6-42
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

7If Trouble Arises
Helpful information on what to do if a problem arises with the
vehicle.
Parking in an Emergency............ 7-2 Parking in an Emergency......... 7-2
Flat Tire................................... 7-3 Tool Storage.......................... 7-3
Emergency Flat Tire Repair
Kit........................................ 7-4
Changing a Flat Tire..............7-10
Troubleshooting for Charging ..........
............................................ 7-11 What to do when charging is not
possible.............................. 7-11
Depleted Lead-acid Battery...... 7-12 Jump-Starting...................... 7-12
Fully Discharged High Voltage
Battery...................................7-16 Fully Discharged High Voltage
Battery................................ 7-16
Emergency Starting................. 7-17 Push-Starting....................... 7-17
Emergency Towing.................. 7-18 Towing Description.............. 7-18
Tiedown Hooks*.................. 7-19
Warning/Indicator Lights and
Warning Sounds..................... 7-21 If a Warning Light Turns On or
Flashes................................ 7-21
Message Indicated on Multi-
information Display............. 7-33
Warning Sound is
Activated.............................7-37
When Liftgate Cannot be
Opened................................. 7-42 When Liftgate Cannot be
Opened.............................. 7-42
Active Driving Display Does Not
Operate................................. 7-43 If the Active Driving Display Does
Not Operate........................ 7-43
Windshield Wipers Operate at High
Speed.................................... 7-44 Windshield Wipers Operate at
High Speed......................... 7-44
*Some models.7-1
MX-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Parking in an Emergency
▼Parking in an Emergency
The hazard warning lights should
always be used when you stop on or
near a roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a
traffic
hazard and that they must take
extreme caution when near it.

Depress the hazard warning flasher
and all the turn signals will flash. The
hazard warning indicator lights in the
instrument cluster flash simultaneously.
NOTE
The turn signals do not work when
the hazard warning lights are on.
Check local regulations about the
use of hazard warning lights while
the vehicle is being towed to verify
that it is not in violation of the law.
If Trouble Arises
Parking in an Emergency
7-2
MX
-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Emergency Flat TireRepair Kit
▼Emergency Flat Tire Repair Kit
The emergency
flat tire repair kit
included with your Mazda is for a
temporary repair of a slightly damaged
fl at tire resulting from running over
nails or similar sharp objects on the
road surface.
Perform the emergency flat tire repair
without removing the nail or similar
sharp object which punctured the tire.
NOTE
Your vehicle is not equipped with a
spare tire. In the event of a flat tire, use
the emergency flat tire repair kit to
repair the tire temporarily. When doing
the repair, refer to the instructions
included in the emergency flat tire
repair kit. If an emergency repair was
performed on a flat tire using the
emergency flat tire repair kit, have an
Authorized Mazda Dealer, repair or
replace the tire as soon as possible.
▼ About the Emergency Flat Tire
Repair Kit
The emergency fl
at tire repair kit
includes the following items.

1. Sealant bottle
2. Compressor
3. Speed restriction sticker
4. Repaired tire sticker
5. Instructions
WARNING
Do not allow children to touch the
tire sealant:
 Ingestion of tire sealant is dangerous.
In the event tire sealant is
accidentally swallowed, drink large
amounts of water immediately and
seek medical assistance.
 Tire sealant that comes into contact
with the eyes and skin is dangerous.
If tire sealant enters the eyes or
contacts the skin, flush immediately
with large amounts of water and
seek medical assistance.
If Trouble Arises
Flat Tire
7-4
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

12.Adhere the speed restriction stickerto an area where it can be viewed
easily by the driver.

13.Adhere the repaired tire sticker tothe wheel of the flat tire.

WARNING
Do not adhere the speed
restriction sticker to the padded
area on the steering wheel:
Adhering the speed restriction
sticker to the padded area on the
steering wheel is dangerous
because the air bag may not
operate (deploy) normally resulting
in serious injury. In addition, do not
adhere the sticker to areas where
warning lights or the speedometer
cannot be viewed.
14.When the tire in flates to the
specified tire in flation pressure, turn
the air compressor switch o ff, turn
the sleeve of the injection hose to
the left, and pull it out of the tire
valve.
15.Remove the air compressor hose from the injection valve of the
bottle. After that, install the
injection hose to the injection valve
of the bottle to prevent leakage of
any remaining sealant.

CAUTION
The remaining sealant in the hose
may spray out when the hose is
removed. Remove the hose
carefully because you may not be
able to remove the sealant
contacting clothing or other
objects.
16.Install the tire valve cap.
17.Put the emergency flat tire repair kit
into the trunk.
18.Start driving immediately to spread the sealant in the tire.
CAUTION
Carefully drive the vehicle at a
speed of 80 km/h (50 mph) or less.
If the vehicle is driven at a speed of
80 km/h (50 mph) or more, the
vehicle may vibrate.
If Trouble Arises
Flat Tire
7-8
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

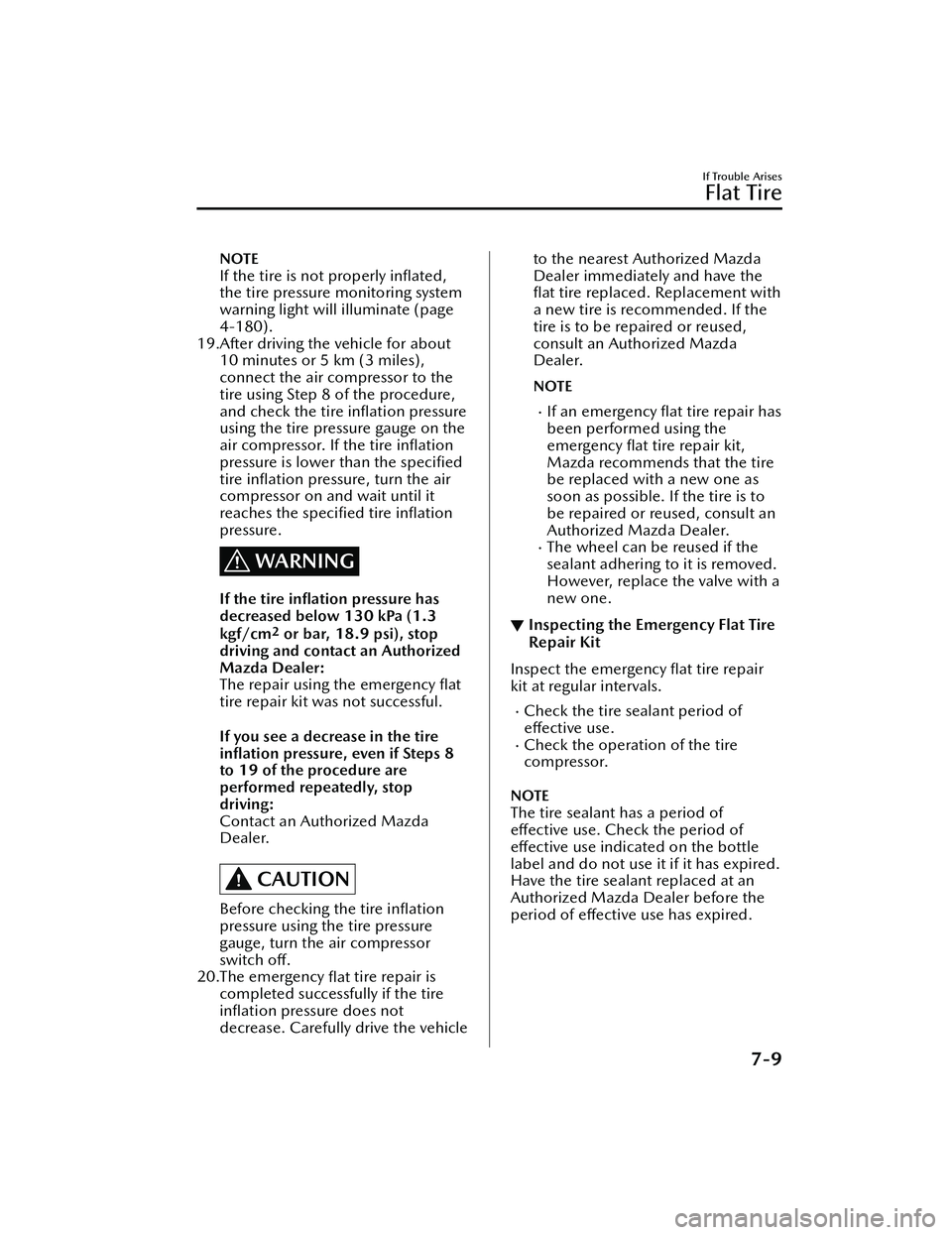

NOTE
If the tire is not properly inflated,
the tire pressure monitoring system
warning light will illuminate (page
4-180).
19.After driving the vehicle for about 10 minutes or 5 km (3 miles),
connect the air compressor to the
tire using Step 8 of the procedure,
and check the tire in flation pressure
using the tire pressure gauge on the
air compressor. If the tire in flation
pressure is lower than the speci fied
tire in flation pressure, turn the air
compressor on and wait until it
reaches the speci fied tire inflation
pressure.
WARNING
If the tire in flation pressure has
decreased below 130 kPa (1.3
kgf/cm
2 or bar, 18.9 psi), stop
driving and contact an Authorized
Mazda Dealer:
The repair using the emergency flat
tire repair kit was not successful.
If you see a decrease in the tire
infl ation pressure, even if Steps 8
to 19 of the procedure are
performed repeatedly, stop
driving:
Contact an Authorized Mazda
Dealer.
CAUTION
Before checking the tire in flation
pressure using the tire pressure
gauge, turn the air compressor
switch o ff.
20.The emergency flat tire repair is
completed successfully if the tire
in flation pressure does not
decrease. Carefully drive the vehicle
to the nearest Authorized Mazda
Dealer immediately and have the
fl at tire replaced. Replacement with
a new tire is recommended. If the
tire is to be repaired or reused,
consult an Authorized Mazda
Dealer.
NOTE
If an emergency flat tire repair has
been performed using the
emergency flat tire repair kit,
Mazda recommends that the tire
be replaced with a new one as
soon as possible. If the tire is to
be repaired or reused, consult an
Authorized Mazda Dealer.
The wheel can be reused if the
sealant adhering to it is removed.
However, replace the valve with a
new one.
▼ Inspecting the Emergency Flat Tire
Repair Kit
Inspect the emergency
flat tire repair
kit at regular intervals.
Check the tire sealant period of
e ff ective use.
Check the operation of the tire
compressor.
NOTE
The tire sealant has a period of
e
ff ective use. Check the period of
e ff ective use indicated on the bottle
label and do not use it if it has expired.
Have the tire sealant replaced at an
Authorized Mazda Dealer before the
period of eff ective use has expired.
If Trouble Arises
Flat Tire
7-9
MX-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07
