2022 MAZDA MODEL CX-5 stop start

SignalWarning Action to be taken
Seat Belt Warning
Light (Front seat) Mexico
The seat belt warning light turns on if the
driver or front passenger's seat is occupied
and the seat belt is not fastened with the ig
‐
nition switched ON.
If the driver or front passenger's seat belt is
unfastened (only when the front passenger's
seat is occupied) and the vehicle is driven at
a speed faster than about 20 km/h (12 mph),
the warning light flashes. After a short time,
the warning light stops flashing, but re ‐
mains illuminated. If a seat belt remains un ‐
fastened, the warning light flashes again for
a given period of time.
NOTE
Placing heavy items on the front pas‐
senger's seat may cause the front pas ‐
senger's seat belt warning function to op ‐
erate depending on the weight of the
item.
To allow the front passenger seat weight
sensor to function properly, do not place
and sit on an additional seat cushion on
the front passenger's seat. The sensor
may not function properly because the
additional seat cushion could cause sen ‐
sor interference.
If a small child is seated on the front pas ‐
senger's seat, the warning light may not
operate. Fasten the seat belts.
(Red)
Seat Belt Warning Light (Rear seat) If the rear seat belts are not fastened while
the ignition is switched
ON , the driver and
the passenger are alerted by the warning
light.
The warning light operates even if there is
no passenger on the rear seat.
NOTE
If a rear seat belt is not fastened by a cer ‐
tain period of time after the engine has
been started, the warning light turns off. Fasten the seat belts.
Low Washer Fluid
Level Warning Indica ‐
tion/Warning Light
*
This warning light indicates that little wash ‐
er fluid remains. Add washer fluid (page 6-24).
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-33
CX-5_8KN5-EA-21K_Edition1_old
2021-9-9 8:35:12

Message Indicated on Multi-information Display*
If there is a notification from the vehicle, a message is displayed in the multi-information
display. Check the information and take the necessary action.

(Display example) Instrument Cluster
Type A
Type B
If the warning light turns on/flashes simultaneous ly or a symbol is indicated in the display,
check the information regarding the warning light or symbol.
Refer to If a Warning Light Turns On or Flashes on page 7-22.
Display Content Action to be taken
Indicated when the push button start is
pressed while the selector lever is not in
the P position. Shift the selector lever to the P position.
Indicated when the push button start is
pressed without depressing the brake
pedal.Depress the brake pedal and press the
push button start.
Indicates when the Electric Parking
Brake (EPB) switch is operated without
depressing the brake pedal.Operate the Electric Parking Brake
(EPB) switch while depressing the brake
pedal.
Indicates when there is a problem with
the brake related system while the vehi
‐
cle is being held in a stop position by the
AUTOHOLD function or during the
Mazda Radar Cruise Control with Stop
& Go function (MRCC with Stop & Go
function) stop hold control. Depress the brake pedal.
Cancel the AUTOHOLD function or the
Mazda Radar Cruise Control with Stop
& Go function (MRCC with Stop & Go
function), and have your vehicle inspect
‐
ed at an Authorized Mazda Dealer.
Indicates the possibility of the vehicle
not being held in the stopped position by
the AUTOHOLD function or the Mazda
Radar Cruise Control with Stop & Go
function (MRCC with Stop & Go func ‐
tion) stop hold control, such as on steep
slopes. Depress and hold your foot on the brake
pedal.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-37
CX-5_8KN5-EA-21K_Edition1_old
2021-9-9 8:35:12

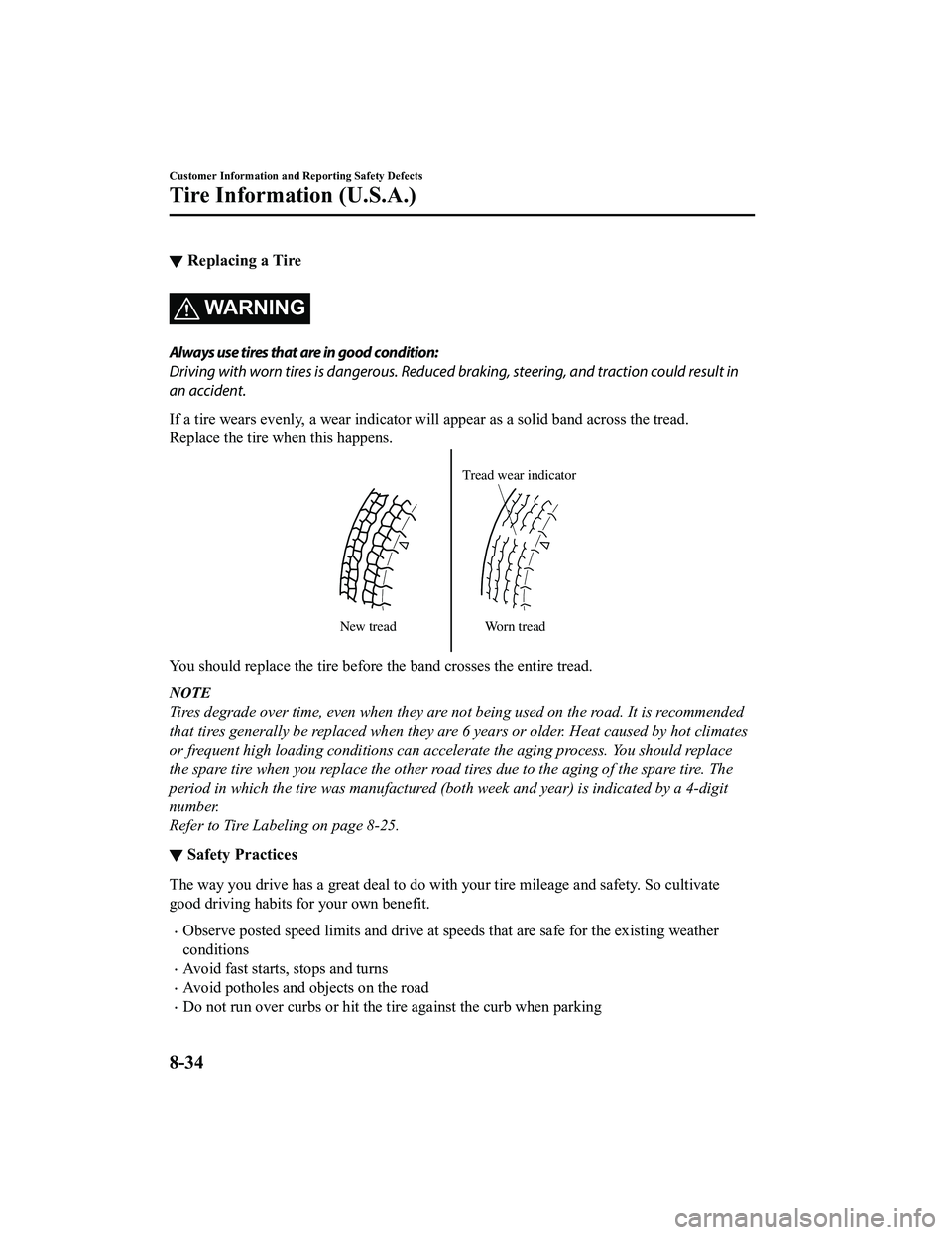

▼Replacing a Tire
WA R N I N G
Always use tires that are in good condition:
Driving with worn tires is dangerous. Reduce
d braking, steering, and traction could result in
an accident.
If a tire wears evenly, a wear indicator will appear as a solid band across the tread.
Replace the tire when this happens.
New tread Tread wear indicator
Worn tread
You should replace the tire before the band crosses the entire tread.
NOTE
Tires degrade over time, even when they are not being used on the road. It is recommended
that tires generally be replaced when they are 6 years or older. Heat caused by hot climates
or frequent high load ing conditions can accelerate the aging proc ess. You should replace
the spare tire when you replace the other road tires due to the aging of the spare tire. The
period in which the tire was manufactured (both week and year) is indicated by a 4-digit
number.
Refer to Tire Labeling on page 8-25.
▼ Safety Practices
The way you drive has a great deal to do with
your tire mileage and safety. So cultivate
good driving habits for your own benefit.
Observe posted speed limits and drive at speeds that are safe for the existing weather
conditions
Avoid fast starts, stops and turns
Avoid potholes and objects on the road
Do not run over curbs or hit the ti re against the curb when parking
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-34
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Index
A
Accessory Socket.............................. 5-60
Active Driving Display..................... 4-58
Adaptive Front Lighting System
(AFS)............................................... 4-120
Add-On Non-Genuine Parts and
Accessories........................................ 8-19
Advanced Key
Advanced keyless entry system... 3-10
Operational range........................ 3-11
Advanced Key Removed from Vehicle
Warning Beep.................................... 7-42
Advanced Smart City Brake Support
(Advanced SCBS)........................... 4-190
Collision warning.... .................. 4-192
Stopping the Advanced Smart City
Brake Support (Advanced SCBS)
system operation........................ 4-192
Air Bag Systems............................... 2-56
Air Bag/Front Seat Belt Pretensioner
System Warning Beep....................... 7-41
Antilock Brake System (ABS)........ 4-105
Armrest Box...................................... 5-69
AUTOHOLD..................................... 4-99
AUTOHOLD Warning Beep.............7-43
Automatic Transaxle......................... 4-60
Active Adaptive Shift (AAS)...... 4-62
Automatic transaxle controls....... 4-60
Direct mode................................. 4-69
Driving tips..................................4-70
Manual shift mode.......................4-63
Shift-lock system...... ................... 4-61
Transaxle ranges.......................... 4-61
B
Battery............................................... 6-31 Maintenance.................................6-32
Replacement................................ 6-32
Specifications.................................9-4
Battery Runs Out.............................. 7-13
Jump-starting............................... 7-13
Blind Spot Monitoring (BSM)........ 4-124 Canceling operation of Blind Spot
Monitoring (BSM).....................4-128
Blind Spot Monitoring (BSM) Warning
Beep...................................................7-44
Body Lubrication.............................. 6-25
Bottle Holder..................................... 5-67
Brakes
Brake assist.................................. 4-98
Electric parking brake (EPB)...... 4-95
Foot brake....................................4-95
Pad wear indicator....................... 4-98
Warning light............................... 4-97
Break-In Period................................. 3-45
C
Capacities............................................ 9-5
Carbon Monoxide......... .................... 3-26
Cell Phones....................................... 8-20
Center Console.................................. 5-69
Child Restraint Categories of child-restraint
systems.........................................2-40
Child-restraint precautions.......... 2-35
Child-restraint system
installation................................... 2-40
Child-restraint system suitability for
various seat positions table..........2-42
Installing child-restraint
systems.........................................2-45
ISOFIX child-restraint systems
(Mexico)...................................... 2-52
LATCH child-restraint systems
(Except Mexico).......................... 2-52
Child Safety Locks for Rear Doors... 3-18
Climate Control System...................... 5-2 Fully Automatic Type....................5-9
Manual Type.................................. 5-5
10-2
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Index
Cleaning the window interiors.....6-57
Instrument panel top (Soft pad)
maintenance................................. 6-56
Leather upholstery
maintenance................................. 6-56
Panel maintenance....................... 6-57
Plastic part maintenance.............. 6-56
Seat belt maintenance..................6-55
Upholstery maintenance.............. 6-55
Vinyl upholstery maintenance..... 6-55
Interior Lights................................... 5-56 Luggage compartment light.........5-56
Map lights....................................5-56
Overhead lights............................5-56
i-ACTIVSENSE.............................. 4-117 Active safety technology........... 4-117
Adaptive Front Lighting System
(AFS)......................................... 4-120
Advanced Smart City Brake Support
(Advanced SCBS)..................... 4-190
Blind Spot Monitoring (BSM) ............
................................................... 4-124
Camera and sensors................... 4-118
Distance Recognition Support System
(DRSS).......................................4-135
Driver Attention Alert (DAA)... 4-139
Forward Sensing Camera
(FSC)......................................... 4-256
High Beam Control System
(HBC)........................................ 4-121
Lane-keep Assist System (LAS) &
Lane Departure Warning System
(LDWS)..................................... 4-176
Mazda Radar Cruise Control with
Stop & Go function (MRCC with
Stop & Go function)..................4-145
Pre-crash safety technology....... 4-118
Radar sensors (rear)...................4-264
Radar sensor (front)...................4-261
Rear Cross Traffic Alert
(RCTA)...................................... 4-141Smart Brake Suppor t (SBS)...... 4-200
Smart City Brake Support [Forward]
(SCBS F)................................... 4-193
Smart City Brake Support [Reverse]
(SCBS R)................................... 4-196
Traffic Sign Recognition System
(TSR)......................................... 4-129
Ultrasonic sensor (rear)............. 4-266
360°View Monitor (Mazda Connect
(Type A))................................... 4-202
360°view monitor (Mazda Connect
(Type B))................................... 4-228
i-ACTIV AWD Operation............... 4-114
J
Jack...................................................... 7-4
Jump-Starting.................................... 7-13
K
Keyless Entry System......................... 3-4
Keys.....................................................3-2 Key suspend function.................... 3-9
Transmitter..................................... 3-5
Key Left-in-luggage Compartment
Warning beep (With the advanced
keyless function)............................... 7-43
Key Left-in-vehicle Warning Beep (With
the advanced keyless function)......... 7-43
Key Removed from Vehicle Warning
Beep...................................................7-42
Key Suspend Function........................ 3-9
L
Label Information............................... 9-2
Lane Departure Warning sound........ 7-44
Lane-change Signals......................... 4-79
Lane-keep Assist System (LAS) & Lane
Departure Warning System
(LDWS)........................................... 4-176
Leaving Home Light......................... 4-76
10-6
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Index
Rocking the Vehicle.......................... 3-47
S
Safety Defects, Reporting................. 8-14
Saving Fuel and Protection of the
Environment...................................... 3-45
Scheduled Maintenance...................... 6-4
Seats.................................................... 2-5Driving position memory............ 2-11
Front seat....................................... 2-5
Head restraint.............................. 2-20
Rear seat...................................... 2-15
Seat ventilation....... ..................... 2-23
Seat warmer................................. 2-22
Seat Belt System Automatic locking....................... 2-28
Emergency locking...................... 2-28
Extender....................................... 2-33
Pregnant women.......................... 2-28
Seat belt precautions................... 2-26
3-point type................................. 2-29
Seat Belt Warning Beep.................... 7-41
Security System Immobilizer system..................... 3-41
Theft-deterrent system................. 3-43
Smart Brake Support (SBS)............ 4-200 Collision warning...................... 4-201
Stopping the Smart Brake Support
(SBS) system operation............. 4-201
Smart City Brake Support (SCBS) Collision warning...................... 4-195
Smart City Brake Support (SCBS)
Indicator Light (Red).................4-195
Stopping the Smart City Brake
Support (SCBS) System
Operation................................... 4-195
Smart City Brake Support [Forward]
(SCBS F)......................................... 4-193
Smart City Brake Support [Reverse]
(SCBS R)........................................ 4-196
Stopping the Smart City Brake
Support [Reverse] (SCBS R) system
operation.................................... 4-199
Spare Tire............................................ 7-4
Specifications...................................... 9-4
SRS Air Bags Front passenger occupant
classification system.................... 2-71
How the SRS air bags work........ 2-65
Limitations to SRS air bag.......... 2-69
Monitoring................................... 2-75
SRS air bag deployment
criteria.......................................... 2-68
Supplemental restraint system
components.................................. 2-63
Starting the Engine..............................4-5
Steering Wheel
Heated steering wh eel................. 2-24
Horn............................................. 4-86
Storage Compartments ...................... 5-68
Armrest box................................. 5-69
Center console............................. 5-69
Glove compartment..................... 5-68
Luggage compartment................. 5-70
Overhead console........................ 5-68
Rear coat hooks........................... 5-74
Sunshade............................................3-40
Sunvisors........................................... 5-55
T
Theft-Deterrent System ..................... 3-43
Three-flash Turn Sign al.................... 4-79
Tiedown Hook............................................ 7-20
Tires................................................... 6-35 Flat tire.......................................... 7-3
Replacing a tire........................... 6-36
Replacing a wheel....................... 6-38
Snow tires.................................... 3-48
Specifications.................................9-7
10-9
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Index
Temporary spare tire....................6-37
Tire chains................................... 3-49
Tire inflation pressure................. 6-35
Tire rotation................................. 6-36
Uniform tire quality grading system
(UTQGS)..................................... 8-23
Tire Inflation Pressure Warning
Beep...................................................7-44
Tire Information................................ 8-25
Tire Pressure Monitoring System.... 4-273
To w i n g
Recreational towing.....................3-61
Trailer towing (U.S.A. and
Canada)........................................ 3-53
Towing Description........................... 7-19
Traction Control System (TCS)...... 4-106
TCS OFF Indicator Light.......... 4-106
TCS OFF Switch....................... 4-107
TCS/DSC indicator light........... 4-106
Traffic Jam Assist (TJA) Close proximity warning........... 4-167
Display indication......................4-165
Setting the system..................... 4-168
Stop hold control....................... 4-175
Traffic Sign Recognition System
(TSR)............................................... 4-129
Transmitter.......................................... 3-5
Trouble
Battery runs out........................... 7-13
Emergency starting...................... 7-16
Emergency towing....................... 7-19
Flat tire.......................................... 7-3
Overheating................................. 7-17
Parking in an emergency............... 7-2
When Liftgate Cannot be
Opened......................................... 7-46
Turn Signals...................................... 4-78
U
Ultrasonic Sensor (Rear)................. 4-266
USB Power Outlet............................ 5-62
V
Vanity Mirrors................................... 5-55
Vehicle Information Labels................. 9-2
W
Warning Sound is Activated............. 7-41
Advanced Key removed from vehicle
warning beep............................... 7-42
Air bag/front seat belt pretensioner
system warning beep................... 7-41
AUTOHOLD Warning Beep....... 7-43
Blind Spot Monitoring (BSM)
warning beep............................... 7-44
Collision warning...... .................. 7-45
Electric Parking Brake (EPB)
Warning Beep.............................. 7-43
Excessive speed warning.............7-45
Ignition not switched off (STOP)
warning beep............................... 7-42
Key left-in-luggage compartment
warning beep (With the advanced
keyless function)..........................7-43
Key left-in-vehicle warning beep
(With the advanced keyless
function).......................................7-43
Key removed from vehicle warning
beep..............................................7-42
Lane Departure Warning sound... 7-44
Lights-on reminder...................... 7-41
Mazda Radar Cruise Control with
Stop & Go function (MRCC with
Stop & Go function) system
warnings.......................................7-44
Power Liftgate Warning Beep..... 7-43
Power steering warning buzzer....7-44
Request switch inoperable warning
beep (With the advanced keyless
function).......................................7-43
10-10
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12
