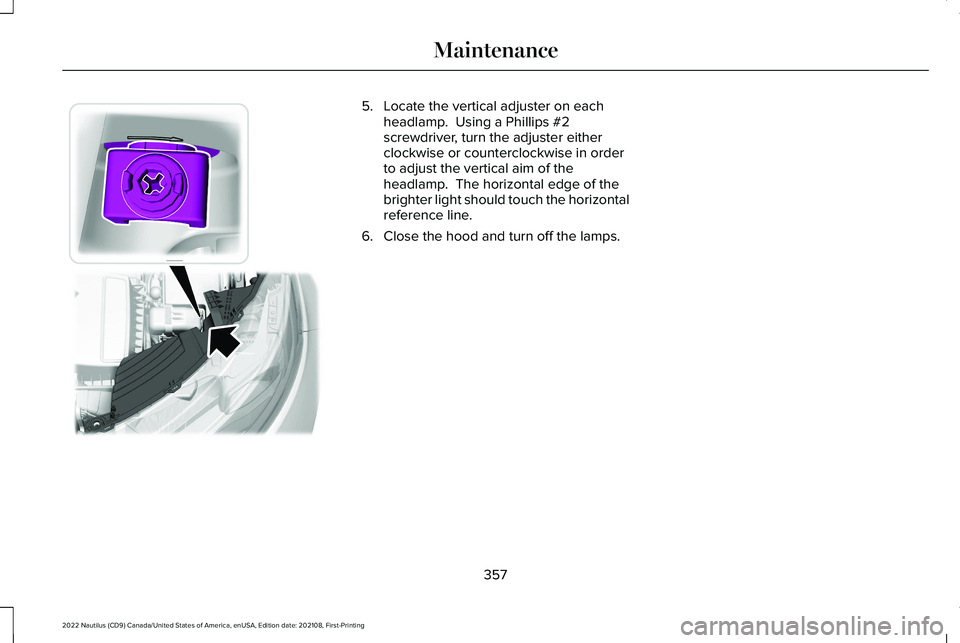

5.Locate the vertical adjuster on eachheadlamp. Using a Phillips #2screwdriver, turn the adjuster eitherclockwise or counterclockwise in orderto adjust the vertical aim of theheadlamp. The horizontal edge of thebrighter light should touch the horizontalreference line.
6.Close the hood and turn off the lamps.
357
2022 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202108, First-PrintingMaintenance E194757

EXTERIOR BULBS
EXTERIOR BULB SPECIFICATION CHART
Power (Watt)SpecificationLamp
LEDLEDBrake and rear lamp.
LEDLEDCentral high mounted brake lamp.
PWM/LEDH15/LEDDaytime running lamps.
LEDLEDFront fog lamp.
21WY21WFront turn signal lamp.
LEDLEDFront side marker lamp.
LEDLEDFront signature lamp.
LEDLEDHeadlamp high beam.
LEDLEDHeadlamp low beam.
LEDLEDHigh-intensity discharge headlamps.
5W5WLicense plate lamp.
LEDLEDRear turn signal lamp.
LEDLEDRear side marker lamp.
358
2022 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202108, First-PrintingMaintenance

REMOVING A HEADLAMP ASSEMBLY
1.Open the hood. See Opening andClosing the Hood (page 339).
2.Remove the screws.
3.Pull the headlamp toward the front of thevehicle to disengage it from the lowerfixing point.
4.Lift the headlamp up and remove it.
5.Disconnect the electrical connector.
CHANGING A FRONT TURN SIGNALLAMP BULB
Headlamp low beam.A
Headlamp low and high beam -vehicles with high-intensitydischarge headlamps.
Headlamp high beam.B
Daytime running lamp.
Front turn signal lamp.C
1.Remove the headlamp assembly. SeeRemoving a Headlamp Assembly (page360).
360
2022 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202108, First-PrintingMaintenance E194758 5E133750 CE188959

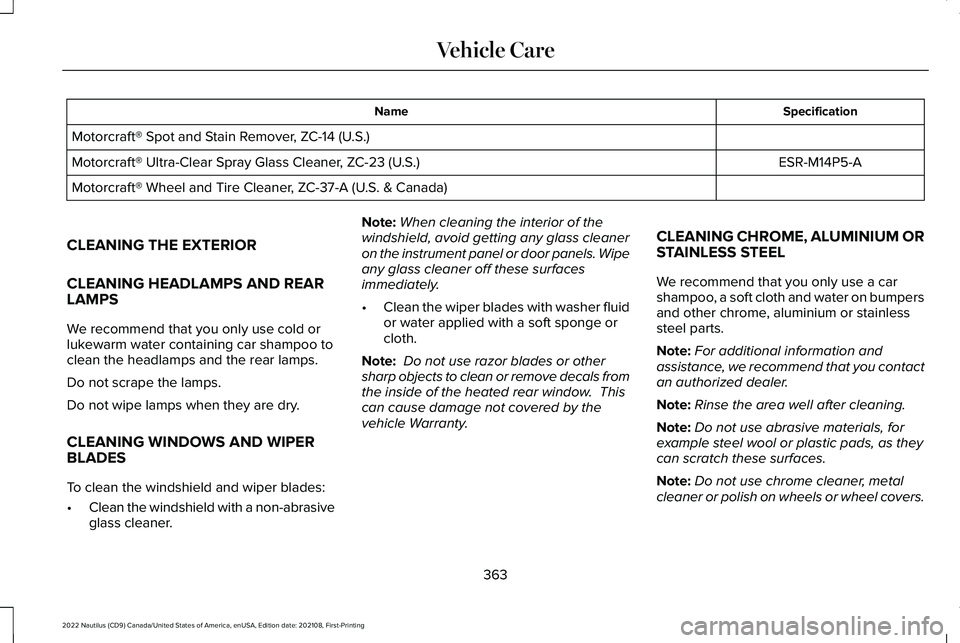

SpecificationName
Motorcraft® Spot and Stain Remover, ZC-14 (U.S.)
ESR-M14P5-AMotorcraft® Ultra-Clear Spray Glass Cleaner, ZC-23 (U.S.)
Motorcraft® Wheel and Tire Cleaner, ZC-37-A (U.S. & Canada)
CLEANING THE EXTERIOR
CLEANING HEADLAMPS AND REARLAMPS
We recommend that you only use cold orlukewarm water containing car shampoo toclean the headlamps and the rear lamps.
Do not scrape the lamps.
Do not wipe lamps when they are dry.
CLEANING WINDOWS AND WIPERBLADES
To clean the windshield and wiper blades:
•Clean the windshield with a non-abrasiveglass cleaner.
Note:When cleaning the interior of thewindshield, avoid getting any glass cleaneron the instrument panel or door panels. Wipeany glass cleaner off these surfacesimmediately.
•Clean the wiper blades with washer fluidor water applied with a soft sponge orcloth.
Note: Do not use razor blades or othersharp objects to clean or remove decals fromthe inside of the heated rear window. Thiscan cause damage not covered by thevehicle Warranty.
CLEANING CHROME, ALUMINIUM ORSTAINLESS STEEL
We recommend that you only use a carshampoo, a soft cloth and water on bumpersand other chrome, aluminium or stainlesssteel parts.
Note:For additional information andassistance, we recommend that you contactan authorized dealer.
Note:Rinse the area well after cleaning.
Note:Do not use abrasive materials, forexample steel wool or plastic pads, as theycan scratch these surfaces.
Note:Do not use chrome cleaner, metalcleaner or polish on wheels or wheel covers.
363
2022 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202108, First-PrintingVehicle Care

1
12V Battery Gauge.........................................141
3
360 Degree Camera...................................245360 Degree Camera Settings.........................247
360 Degree Camera Guide Lines............246360 Degree Camera Limitations..............246360 Degree Camera Precautions............245360 Degree Camera Settings...................247Switching the 360 Degree Camera On andOff......................................................................247Switching the 360 Degree CameraView..................................................................248
9
911 Assist...........................................................74
A
A/CSee: Climate Control..........................................156
About This Publication....................................17ABSSee: Brakes..........................................................220
Accessing Apps............................................449Accessing Navigation.................................454Accessing the Passive Key BackupPosition..........................................................194Accessories...................................................458Active Park Assist.........................................249Active Park Assist – Troubleshooting............251
Active Park Assist Precautions.................249Active Park Assist –Troubleshooting..........................................251Active Park Assist – Frequently AskedQuestions..........................................................251Active Park Assist – InformationMessages..........................................................251
Adaptive Cruise Control.............................256Adaptive Cruise Control –Troubleshooting.............................................266Lane Centering...................................................263
Adaptive Cruise Control AutomaticCancellation................................................260Adaptive Cruise Control Indicators.........263Adaptive Cruise Control Limitations........257Adaptive Cruise ControlPrecautions.................................................256Adaptive Cruise Control –Troubleshooting.........................................266Adaptive Cruise Control – InformationMessages.........................................................266
Adaptive Front Lighting...............................127How Does Adaptive Front LightingWork...................................................................127Switching Adaptive Front Lighting On andOff.......................................................................128
Adjusting the Exterior Mirrors....................135Adjusting the Headlamps..........................355Adjusting the Instrument Panel LightingBrightness....................................................130Adjusting the Map........................................454Changing the Format of the Map...................454Zooming the Map In and Out..........................454
Adjusting the Seatbelt Height.....................57Adjusting the Seatbelts DuringPregnancy......................................................56Adjusting the Sound Settings...................430Adjusting the Steering Wheel - VehiclesWith: Manual Adjustable SteeringColumn...........................................................114Adjusting the Steering Wheel - VehiclesWith: Power Adjustable SteeringColumn...........................................................114Adjusting the Volume..................................430Aid Mode.........................................................271How Does Aid Mode Work...............................271What Is Aid Mode................................................271
Airbag Precautions.........................................67
561
2022 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202108, First-PrintingIndex

Child Safety......................................................39Child Restraint Anchor Points............................40Child Restraints.......................................................41Installing Child Restraints....................................44
Child Safety Locks..........................................52Child Safety Precautions...............................39Cleaning Products........................................362Cleaning the Exterior...................................363Cleaning Camera Lenses and Sensors........364Cleaning Chrome, Aluminium or StainlessSteel..................................................................363Cleaning Headlamps and Rear Lamps.........363Cleaning Stripes or Graphics..........................364Cleaning the Engine Compartment...............364Cleaning Wheels................................................364Cleaning Windows and Wiper Blades..........363
Cleaning the Interior....................................365Cleaning Carpets and Floor Mats..................366Cleaning Displays and Screens......................365Cleaning Fabric Seats and Headliners.........366Cleaning Leather and Vinyl.............................365Cleaning Moonroof Tracks...............................367Cleaning Plastic..................................................365Cleaning Seatbelts.............................................366Cleaning Storage Compartments...................367Cleaning the Instrument Panel.......................365
Clearing All MyKeys.......................................87Clearing the Garage Door Opener...........179
Climate Control..............................................156Auto Mode............................................................158Climate Control – Troubleshooting................159
Climate Control – Troubleshooting..........159Climate Control – Frequently AskedQuestions..........................................................159
Closing the Liftgate......................................105Closing the Hands-Free Liftgate.....................106Closing the Liftgate From Inside YourVehicle...............................................................105Closing the Liftgate From Outside YourVehicle...............................................................105Closing the Liftgate Using the RemoteControl...............................................................106
Cold Weather Precautions..........................310Connected Vehicle......................................423Connected Vehicle – Troubleshooting.........424Connecting the Vehicle to a MobileNetwork............................................................423
Connected Vehicle Data...............................25Connected Vehicle Limitations.................423Connected Vehicle Requirements...........423Connected Vehicle –Troubleshooting.........................................424Connected Vehicle – Frequently AskedQuestions.........................................................424
Connecting a Bluetooth® Device.............448Connecting a Trailer....................................302
Connecting a Trailer Precautions.............302Connecting the Vehicle to a MobileNetwork........................................................423Connecting Lincoln Way to the Modem.......423Enabling and Disabling the Modem..............423What Is the Modem............................................423
Connecting the Vehicle to a Wi-FiNetwork........................................................423Connecting Your Phone..............................442Contacting Us...................................................15Cooling System Capacity and Specification- 2.0L..............................................................413Cooling System Capacity and Specification- 2.7L...............................................................414Crash and Breakdown Information...........315Automatic Crash Shutoff...................................319Jump Starting the Vehicle.................................316Post-Crash Alert System....................................318
Crash Sensors and Airbag Indicator..........72Creating a MyKey...........................................86Creating a Personal Profile........................452Creating a Vehicle Wi-Fi Hotspot.............427Cross Traffic Alert.........................................280Cross Traffic Alert – Troubleshooting...........282
Cross Traffic Alert Indicators......................281Cross Traffic Alert Limitations....................281Cross Traffic Alert Precautions.................280
565
2022 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202108, First-PrintingIndex

Electric Parking Brake –Troubleshooting.........................................224Electric Parking Brake – InformationMessages.........................................................225Electric Parking Brake – WarningLamps...............................................................224
Electric Power Steering..............................234Electric Power Steering Precautions.............234
Electromagnetic Compatibility.................556Emergency Call Limitations..........................75Emergency Call Requirements....................74Emergency Call System Data......................26Emergency Towing......................................322Emission Law.................................................554Enabling Apps on an AndroidDevice...........................................................449Enabling Apps on an iOS Device.............449Enabling or Disabling PersonalProfiles.........................................................452Enabling Remote Start.................................153End User License Agreement...................524Engine Block Heater....................................192Engine Block Heater Precautions...................192How Does the Engine Block HeaterWork...................................................................192Using the Engine Block Heater.......................193
Engine Coolant Temperature Gauge........141
Engine Oil Capacity and Specification -2.0L...............................................................408Engine Oil Capacity and Specification -2.7L.................................................................410Engine Oil.......................................................345Adding Engine Oil..............................................346Checking the Engine Oil Level.......................345Engine Oil Capacity and Specification..........347Engine Oil Dipstick Overview..........................345Resetting the Engine Oil ChangeReminder..........................................................346
Engine Oil Pressure Gauge.........................141Engine Specifications - 2.0L......................404Engine Specifications - 2.7L......................405Entering a Parallel Parking Space............249Entering a Perpendicular ParkingSpace...........................................................250Evasive Steering Assist..............................288Evasive Steering Assist Limitations...............288Switching Evasive Steering Assist On andOff......................................................................289What Is Evasive Steering Assist.....................288
Event Data........................................................24Exiting a Parking Space...............................251Extending the Remote Start Duration......154Exterior Bulbs................................................358Changing a Front Turn Signal LampBulb...................................................................360
Changing a License Plate Lamp Bulb............361Exterior Bulb Specification Chart...................358Removing a Headlamp Assembly..................360
Exterior Lamps...............................................123Exterior Lamp Audible Warning.......................124Exterior Lamp Indicators....................................124Switching the Daytime Running Lamps Onand Off...............................................................123Switching the Front Fog Lamps On andOff.......................................................................124Switching the Turn Signal Lamps On andOff.......................................................................123Switching Welcome Lighting On andOff.......................................................................124
Exterior Lighting Control..............................121Exterior Lighting.............................................121Adaptive Front Lighting.....................................127Autolamps.............................................................122Automatic High Beam Control.........................124Automatic High Beam Control –Troubleshooting..............................................127Exterior Lamps.....................................................123Headlamps.............................................................121Headlamps – Troubleshooting........................122
Exterior Mirrors..............................................135Auto-Dimming Exterior Mirror..........................136
567
2022 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202108, First-PrintingIndex

F
Fastening and Unfastening theSeatbelts........................................................54Feature Bar....................................................438Flat TireSee: Changing a Flat Tire.................................397
Floor Mats........................................................313Folding the Exterior Mirrors - Vehicles With:Manual Folding Mirrors.............................135Folding the Exterior Mirrors - Vehicles With:Power Folding Mirrors...............................135Front Exterior...................................................35Front Parking Aid..........................................238Front Parking Aid Audible Warnings.............239Front Parking Aid Limitations..........................238Locating the Front Parking Aid Sensors.......238What is the Front Parking Aid.........................238
Front Passenger Sensing System..............68Front Passenger Sensing SystemIndicators.............................................................71Front Passenger Sensing SystemPrecautions.........................................................71How Does the Front Passenger SensingSystem Work......................................................68What Is the Front Passenger SensingSystem................................................................68
Front Seat Precautions.................................161
Front Seats.......................................................161Heated Seats........................................................166Massage Seats.....................................................165Power Seats..........................................................162Ventilated Seats...................................................166
Fuel and Refueling........................................201Fuel and Refueling – Troubleshooting.........207Fuel Quality..........................................................202Refueling...............................................................204Running Out of Fuel..........................................203
Fuel and Refueling Precautions................201Fuel and Refueling –Troubleshooting.........................................207Fuel and Refueling – InformationMessages.........................................................207Fuel and Refueling – Warning Lamps...........207
Fuel Gauge.....................................................140Fuel Gauge Limitations......................................140Locating the Fuel Filler Door............................140What Is Distance to Empty.................................141What Is the Fuel Gauge.....................................140What Is the Low Fuel Reminder.......................140
Fuel Quality...................................................202Selecting the Correct Fuel...............................202
Fuel Tank Capacity......................................206Fuse Precautions..........................................323Fuses...............................................................323Body Control Module Fuse Box......................333
Fuses – Troubleshooting..................................338Under Hood Fuse Box......................................323
Fuses – Troubleshooting............................338Fuses – Frequently Asked Questions...........338
G
Garage Door Opener...................................176Garage Door Opener Limitations..............177Garage Door Opener Precautions............176Garage Door Opener RadioFrequencies.................................................179General Maintenance Information...........463Glasses Holder..............................................189Locating the Glasses Holder............................189
Global Opening and Closing......................132Switching Global Closing On and Off............132Switching Global Opening On and Off..........132Using Global Closing..........................................132Using Global Opening........................................132What Is Global Opening and Closing.............132
Glossary of Tire Terminology.....................377
H
Headlamp AdjustingSee: Adjusting the Headlamps.......................355
