511-1. For safe use
RC350/RC300 Owner's Manual
1
For safety and security
Exhaust gas precautions
Harmful substance to the human
body is included in exhaust gases if
inhaled.
WARNING
Exhaust gases include harmful carbon
monoxide (CO), which is colorless and
odorless. Observe the following precau-
tions.
Failure to do so may cause exhaust gases
enter the vehicle and may lead to an
accident caused by light-headedness, or
may lead to death or a serious health
hazard.
■Important points while driving
●Keep the trunk lid closed.
●If you smell exhaust gases in the vehi-
cle even when the trunk lid is closed,
open the windows and have the vehi-
cle inspected at your Lexus dealer as
soon as possible.
■When parking
●If the vehicle is in a poorly ventilated
area or a closed area, such as a
garage, stop the engine.
●Do not leave the vehicle with the
engine on for a long time.
If such a situation cannot be avoided,
park the vehicle in an open space and
ensure that exhaust fumes do not enter
the vehicle interior.
●Do not leave the engine running in an
area with snow build-up, or where it is
snowing. If snowbanks build up around
the vehicle while the engine is running,
exhaust gases may collect and enter
the vehicle.
■Exhaust pipe
The exhaust system needs to be checked
periodically. If there is a hole or crack
caused by corrosion, damage to a joint
or abnormal exhaust noise, be sure to
have the vehicle inspected and repaired
by your Lexus dealer.

61
RC350/RC300 Owner's Manual
2
2
Vehicle status information and indicators
Vehicle status informationand indicators
.2-1. Instrument cluster
Warning lights and indicators........................................................... 62
Gauges and meters .................... 66
Multi-information display............ 71
Fuel consumption information ........................................................... 78

622-1. Instrument cluster
RC350/RC300 Owner's Manual

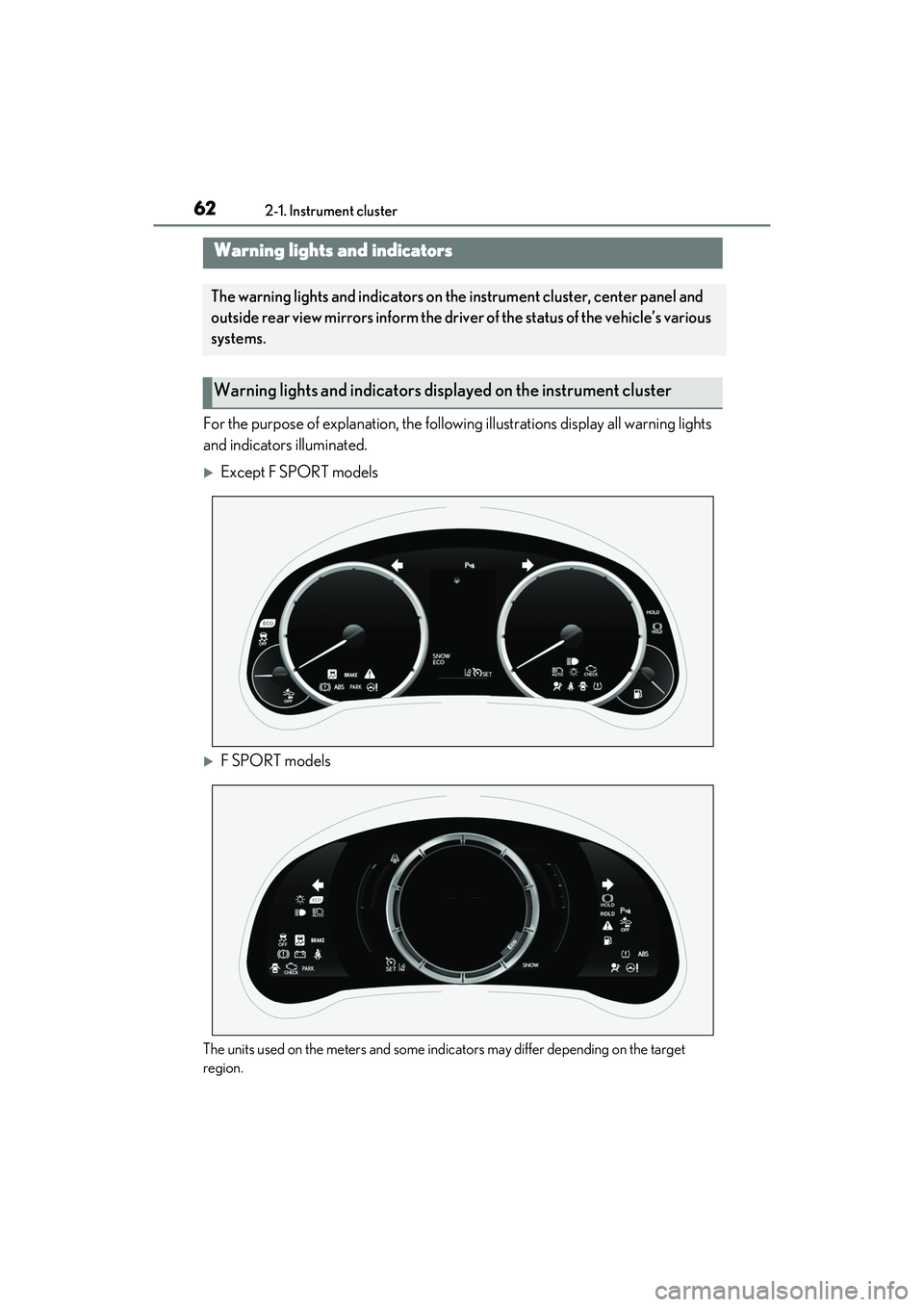

2-1.Instrument cluster
For the purpose of explanation, the following illustrations display all warning lights
and indicators illuminated.
Except F SPORT models
F SPORT models
The units used on the meters and some indicators may differ depending on the target
region.
Warning lights and indicators
The warning lights and indicators on th e instrument cluster, center panel and
outside rear view mirrors inform the driver of the status of the vehicle’s various
systems.
Warning lights and indicators displayed on the instrument cluster

632-1. Instrument cluster
RC350/RC300 Owner's Manual
2
Vehicle status information and indicators
Warning lights inform the driver of mal-
functions in the indicated vehicle sys-
tems.
*1: These lights turn on when the engine
switch is turned to IGNITION ON
mode to indicate that a system check is
being performed. They will turn off after
the engine is started, or after a few sec-
onds. There may be a malfunction in a
system if a light does not come on, or
turn off. Have the vehicle inspected by
Warning lights
(U.S.A.)
Brake system warning light*1
( P.293)
(red)
(Canada)
Brake system warning light*1
( P.293)
(yellow)
Brake system warning light*1
( P.293)
High coolant temperature
warning light
*2 ( P.293)
Charging system warning
light
*3 (  P.294)
Low engine oil pressure warn-
ing light
*2 (  P.294)
(U.S.A.)
Malfunction indicator lamp*1
( P.294)
(Canada)
Malfunction indicator lamp*1
( P.294)
SRS warning light
*1 ( P.294)
(U.S.A.)
ABS warning light*1 ( P.295)
(Canada)
ABS warning light*1 ( P.295)
(flashes)
(U.S.A.)
Parking brake warning light
( P.298)
(flashes)
(Canada)
Parking brake warning light
( P.298)
(flashes) Brake hold operated indicator
*1
( P.293)
Brake Override System warn-
ing light/Drive-Start Control
warning light
*2 (  P.295)
Electric power steering system
warning light
*1 ( P.295)
(orange)
LDA (Lane Departure Alert)
indicator ( P.296)
(flashes or
illuminates)PCS warning light*1 (  P.296)
Slip indicator
*1 ( P.296)
Open door warning light
( P.297)
Low fuel level warning light
( P.297)
Driver’s and front passenger’s
seat belt reminder light
( P.297)
Rear passenger’s seat belt
reminder lights
*4 (  P.297)
Master warning light
*1
( P.298)
Tire pressure warning light
*1
( P.298)

642-1. Instrument cluster
RC350/RC300 Owner's Manual
your Lexus dealer.
*2: This light illuminates on the multi-infor-mation display.
*3: Except F SPORT models: This light illu-minates on the multi-information dis-
play.
F SPORT models: This light illuminates
on the meter.
*4: This light illuminates on the center panel.
The indicators inform the driver of the
operating state of the vehicle’s various
systems.
WARNING
■If a safety system warning light does
not come on
Should a safety system light such as the
ABS and SRS warning light not come on
when you start the engine, this could
mean that these systems are not available
to help protect you in an accident, which
could result in death or serious injury.
Have the vehicle inspected by your
Lexus dealer immediately if this occurs.
Indicators
Turn signal indicator ( P.134)
(U.S.A.)
Headlight indicator ( P.140)
(Canada)
Tail light indicator (P.140)
Headlight high beam indicator
( P.141)
Automatic High Beam indica-
tor
*1 ( P.142)
PCS warning light
*1, 2 ( P.162)
Cruise control indicator
(P.180)
Dynamic radar cruise control
indicator ( P.174)
Cruise control “SET” indicator
( P.174)
(white)
LDA (Lane Departure Alert)
indicator ( P.169)
(green)
LDA (Lane Departure Alert)
indicator ( P.169)
(orange)
(flashes)
LDA (Lane Departure Alert)
indicator ( P.169)
BSM (Blind Spot Monitor) out-
side rear view mirror indica-
tors
*3, 4 (  P.189)
Intuitive parking assist indicator
(if equipped) ( P.183)
(flashes)
Slip indicator*1 (P.199)
VSC OFF indicator
*1, 2
( P.200)
(U.S.A.) Parking brake indicator
(
P.135)
(Canada) Parking brake indicator
(
P.135)
Brake hold standby indicator
*1
( P.137)
Brake hold operated indicator
*1
( P.137)
Security indicator
*5 ( P.56,
57)
Low outside temperature indi-
cator
*6 (  P.66)

702-1. Instrument cluster
RC350/RC300 Owner's Manual
■Display items
 Odometer
Displays the total distance the vehicle has
been driven.
Trip meter A/trip meter B
Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.
 Distance until next engine oil change
Displays the distance the vehicle can be
driven until an oil change is necessary.
■Changing the display
Each time the “ODO TRIP” switch is
pressed, the displayed item will be
changed. When the trip meter is dis-
played, pressing and holding the switch
will reset the trip meter.
■Pop-up display
In some situations the following will be
temporarily displayed:
 Distance until next engine oil
change
Distance until the next engine oil change
will displayed when a warning message
indicating that oil maintenance should be
performed soon or is required is displayed.
The brightness of the instrument panel
lights can be adjusted.
WARNING
■The information display at low tem-
peratures
Allow the interior of the vehicle to warm
up before using the liquid crystal infor-
mation display. At extremely low tem-
peratures, the information display
monitor may respond slowly, and display
changes may be delayed.
For example, there is a lag between the
driver’s shifting and the new gear number
appearing on the display. This lag could
cause the driver to downshift again,
causing rapid and excessive engine brak-
ing and possibly an accident resulting in
death or injury.
NOTICE
■To prevent damage to the engine and
its components
●Do not let the indicator needle of the
tachometer enter the red zone, which
indicates the maxi mum engine speed.
●The engine may be overheating if the
engine coolant temperature gauge is
in the red zone (H). In this case, imme-
diately stop the vehicle in a safe place,
and check the engine after it has
cooled completely. ( P.320)
Odometer and trip meter dis-
play
Changing the instrument panel
light brightness

742-1. Instrument cluster
RC350/RC300 Owner's Manual
■Eco Driving IndicatorEco Driving Indicator Light
During Eco-friendly acceleration (Eco
driving), the Eco Driving Indicator Light
will turn on. When the acceleration
exceeds the Zone of Ec o driving, or when
the vehicle is stopped, the light turns off.
Eco Driving Indicator Zone Display
Suggests the Zone of Eco driving with cur-
rent Eco driving ratio based on accelera-
tion.
Eco driving ratio based on acceler-
ation
If the acceleration exceeds the Zone of
Eco driving, the right side of the Eco Driv-
ing Indicator Zone Display will illuminate.
At this time, the Eco Driving Indicator Light
will turn off.
Zone of Eco driving
Eco Driving Indicator will not operate
under the following conditions:
 The shift lever is in any position
other than D.
 A paddle shift switch is operated.
 Neither normal mode nor Eco drive
mode is selected. ( P.196) 
The vehicle speed is approximately
80 mph (130 km/h) or higher.
■Boost gauge/engine oil tempera-
ture gauge/engine oil pressure
gauge (if equipped)
*
Boost gauge
Displays the boost pressure. The display
will change color if the specified pressure is
exceeded.
Engine oil temp erature gauge
Displays the engine oil temperature.The
display will flash if the engine oil tempera-
ture exceeds 284 °F (140 °C).
Engine oil pressure gauge
Displays the engine oil pressure. A buzzer
will sound and warning message will be
displayed if the engine oil pressure
becomes low. (P.293)
This display is intend ed for use as a guide-
line. Depending on fact ors such as the road
surface condition, temperature and vehicle
speed, the display may not show the actual
condition of the vehicle.
*: For F SPORT models, this item is not available when the main meter is in the
center position.
■G-force (if equipped)*
Displays lateral G-forces on the vehi-
cle.
A
B
C
D
A
B
C

772-1. Instrument cluster
RC350/RC300 Owner's Manual
2
Vehicle status information and indicators
maintenance is required, after the required
maintenance is performed.
 Oil maintenance ( P.258)
Select to reset the en gine oil maintenance
information (message indicating mainte-
nance is required and distance until the
next oil change) after engine oil mainte-
nance is performed.
■Meter settings
 Language
Select to change the language on the dis-
play.
 Units
Select to change the units of measure dis-
played.
 Eco Driving Indicator Light
(  P.74)
Select to enable/disable the Eco Driving
Indicator Light.
 Switch settings (except F
SPORT models)
Displays a procedure to register a desired
screen to
.
You can register 1 screen as a shortcut,
which can be displayed by pressing
.
 Drive information screen ( P.73)
Select to choose betwee n 2 items that will
be displayed on each drive information
screen (“Drive info 1”, “Drive Info 2” and
“Drive Info 3”) respectively.
 Pop-up display ( P.69)
Select to enable/disable the pop-up dis-
play.
• Intersection guidance (if equipped)
• Incoming calls • Audio Feedback (F SPORT)
• Volume Feedback (F SPORT)
• Brightness adjustment

Color
Select to set the color of the cursor on the
multi-information display.
Rev indicator (F SPORT models)
( P.68)
• Select to enable/disable the Rev indica-
tor.
• Select to set the desired engine speed at which the Rev indicator will begin to be
displayed.
 Rev peak (F SPORT models)
( P.69)
Select to enable/dis able the Rev peak.
Default setting
Select to reset the meter display settings to
the default setting.
■Background color of the indicator/shift
position display area (except F SPORT
models)
The background color of the indicator/shift
position display area is changed according
to the driving mode as follows ( P.196):
●Eco drive mode: Blue
●Sport mode: Red
■G-force display (if equipped)
The G-force values may not be zero even
when the vehicle is parked, such as when it
is parked on an incline.
■Suspension of the settings display
●Some settings cannot be changed while
driving. When changing settings, park
the vehicle in a safe place.
●If a warning message is displayed, opera-
tion of the settings display will be sus-
pended.
