632-1. Instrument cluster
RC350/RC300 Owner's Manual
2
Vehicle status information and indicators
Warning lights inform the driver of mal-
functions in the indicated vehicle sys-
tems.
*1: These lights turn on when the engine
switch is turned to IGNITION ON
mode to indicate that a system check is
being performed. They will turn off after
the engine is started, or after a few sec-
onds. There may be a malfunction in a
system if a light does not come on, or
turn off. Have the vehicle inspected by
Warning lights
(U.S.A.)
Brake system warning light*1
( P.293)
(red)
(Canada)
Brake system warning light*1
( P.293)
(yellow)
Brake system warning light*1
( P.293)
High coolant temperature
warning light
*2 ( P.293)
Charging system warning
light
*3 (  P.294)
Low engine oil pressure warn-
ing light
*2 (  P.294)
(U.S.A.)
Malfunction indicator lamp*1
( P.294)
(Canada)
Malfunction indicator lamp*1
( P.294)
SRS warning light
*1 ( P.294)
(U.S.A.)
ABS warning light*1 ( P.295)
(Canada)
ABS warning light*1 ( P.295)
(flashes)
(U.S.A.)
Parking brake warning light
( P.298)
(flashes)
(Canada)
Parking brake warning light
( P.298)
(flashes) Brake hold operated indicator
*1
( P.293)
Brake Override System warn-
ing light/Drive-Start Control
warning light
*2 (  P.295)
Electric power steering system
warning light
*1 ( P.295)
(orange)
LDA (Lane Departure Alert)
indicator ( P.296)
(flashes or
illuminates)PCS warning light*1 (  P.296)
Slip indicator
*1 ( P.296)
Open door warning light
( P.297)
Low fuel level warning light
( P.297)
Driver’s and front passenger’s
seat belt reminder light
( P.297)
Rear passenger’s seat belt
reminder lights
*4 (  P.297)
Master warning light
*1
( P.298)
Tire pressure warning light
*1
( P.298)

662-1. Instrument cluster
RC350/RC300 Owner's Manual
■Locations of gauges and meters (except F SPORT models)Engine coolant temperature gauge
Displays the engine coolant temperature
Tachometer
Displays the engine speed in revolutions per minute
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.
Background color of drive mode
Background color changes according to the drive mode. ( P.196)
•Sport mode: Red
•Eco mode: Blue
Clock
Time displayed is linked to the analog clock on the instrument panel. (P.228)
Multi-information display
Presents the driver with a variety of vehicle data ( P.71)
Displays warning messages in case of a malfunction (P.301)
Speedometer
Fuel gauge
Shift position/shift range/gear position ( P.129, 131)
Gauges and meters
Meter display
A
B
C
D
E
F
G
H
I

672-1. Instrument cluster
RC350/RC300 Owner's Manual
2
Vehicle status information and indicators
Odometer and trip meter display (P.70)
■Locations of gauges and meters (F SPORT models)
When the main meter is moved to the right, some of the meter displays and the
gauge layout will change.
The units used on the meters may differ depending on the target region.
Main meter in center position
Engine coolant temperature gauge
Displays the engine coolant temperature
Tachometer
Displays the engine speed in revolutions per minute
When sport mode is se lected for the driving mode, the periphery of the tachometer will
change color and the scale of the tachometer will be emphasized.
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.
Clock
Time displayed is linked to the analog clock on the instrument panel. (P.228)
Multi-information display
Presents the driver with a variety of vehicle data ( P.71)
Displays warning messages in case of a malfunction (P.301)
Speedometer
Fuel gauge
Shift position/shift range/gear position ( P.129, 131)
J
A
B
C
D
E
F
G
H

682-1. Instrument cluster
RC350/RC300 Owner's Manual
Odometer and trip meter display (P.70)
Main meter moved to the right
Engine coolant temperature gauge
Displays the engine coolant temperature
Tachometer
Displays the engine speed in revolutions per minute
When sport mode is se lected for the driving mode, the periphery of the tachometer will
change color and the scale of the tachometer will be emphasized.
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.
Clock
Time displayed is linked to the analog clock on the instrument panel. (P.228)
Multi-information display
Presents the driver with a variety of vehicle data ( P.71)
Displays warning messages in case of a malfunction (P.301)
Speedometer
Fuel gauge
Shift position/shift range/gear position ( P.129, 131)
Odometer and trip meter display ( P.70)
■Rev indicator (F SPORT models)
When the engine speed reaches a set
speed, a ring-shaped indicator will be displayed on the tachometer.
I
A
B
C
D
E
F
G
H
I

702-1. Instrument cluster
RC350/RC300 Owner's Manual
■Display items
 Odometer
Displays the total distance the vehicle has
been driven.
Trip meter A/trip meter B
Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.
 Distance until next engine oil change
Displays the distance the vehicle can be
driven until an oil change is necessary.
■Changing the display
Each time the “ODO TRIP” switch is
pressed, the displayed item will be
changed. When the trip meter is dis-
played, pressing and holding the switch
will reset the trip meter.
■Pop-up display
In some situations the following will be
temporarily displayed:
 Distance until next engine oil
change
Distance until the next engine oil change
will displayed when a warning message
indicating that oil maintenance should be
performed soon or is required is displayed.
The brightness of the instrument panel
lights can be adjusted.
WARNING
■The information display at low tem-
peratures
Allow the interior of the vehicle to warm
up before using the liquid crystal infor-
mation display. At extremely low tem-
peratures, the information display
monitor may respond slowly, and display
changes may be delayed.
For example, there is a lag between the
driver’s shifting and the new gear number
appearing on the display. This lag could
cause the driver to downshift again,
causing rapid and excessive engine brak-
ing and possibly an accident resulting in
death or injury.
NOTICE
■To prevent damage to the engine and
its components
●Do not let the indicator needle of the
tachometer enter the red zone, which
indicates the maxi mum engine speed.
●The engine may be overheating if the
engine coolant temperature gauge is
in the red zone (H). In this case, imme-
diately stop the vehicle in a safe place,
and check the engine after it has
cooled completely. ( P.320)
Odometer and trip meter dis-
play
Changing the instrument panel
light brightness

2034-6. Driving tips
RC350/RC300 Owner's Manual
4
Driving
4-6.Driving tips
Use fluids that are appropriate to
the prevailing outside temperatures.
•Engine oil
• Engine coolant
•Washer fluid
Have a service technician inspect
the condition of the battery.
 Have the vehicle fitted with four
snow tires or purchase a set of tire
chains for the rear tires.
*
Ensure that all tires are the specified size
and brand, and that chains match the size
of the tires.
*: Tire chains cannot be mounted on vehi-
cles with front and rear tires of differing
sizes and vehicles with LDH and 19-inch
tires.
Perform the following according to the
driving conditions:
 Do not try to forcibly open a window
or move a wiper that is frozen. Pour
Winter driving tips
Carry out the necessary prepara-
tions and inspections before driving
the vehicle in winter. Always drive
the vehicle in a manner appropriate
to the prevailing weather condi-
tions.
Preparation for winter
WARNING
■Driving with snow tires
Observe the following precautions to
reduce the risk of accidents.
Failure to do so may result in a loss of
vehicle control and cause death or seri-
ous injury.
●Use tires of the specified size.
●Maintain the recommended level of air
pressure.
●Do not drive in excess of 75 mph (120
km/h), regardless of the type of snow
tires being used.
●Use snow tires on all, not just some
wheels.
■Driving with tire chains
Observe the following precautions to
reduce the risk of accidents.
Failure to do so may result in the vehicle
being unable to be driven safely, and may
cause death or serious injury.
●Do not drive in excess of the speed
limit specified for the tire chains being
used, or 30 mph (50 km/h), which-
ever is lower.
●Avoid driving on bumpy road surfaces
or over potholes.
●Avoid sudden acceleration, abrupt
steering, sudden braking and shifting
operations that cause sudden engine
braking.
●Slow down sufficiently before entering
a curve to ensure that vehicle control is
maintained.
●Do not use LDA (Lane Departure
Alert with steering control) system.
NOTICE
■Repairing or replacing snow tires
Request repairs or replacement of snow
tires from Lexus dealers or legitimate tire
retailers.
This is because the removal and attach-
ment of snow tires affects the operation
of the tire pressure warning valves and
transmitters.
Before driving the vehicle

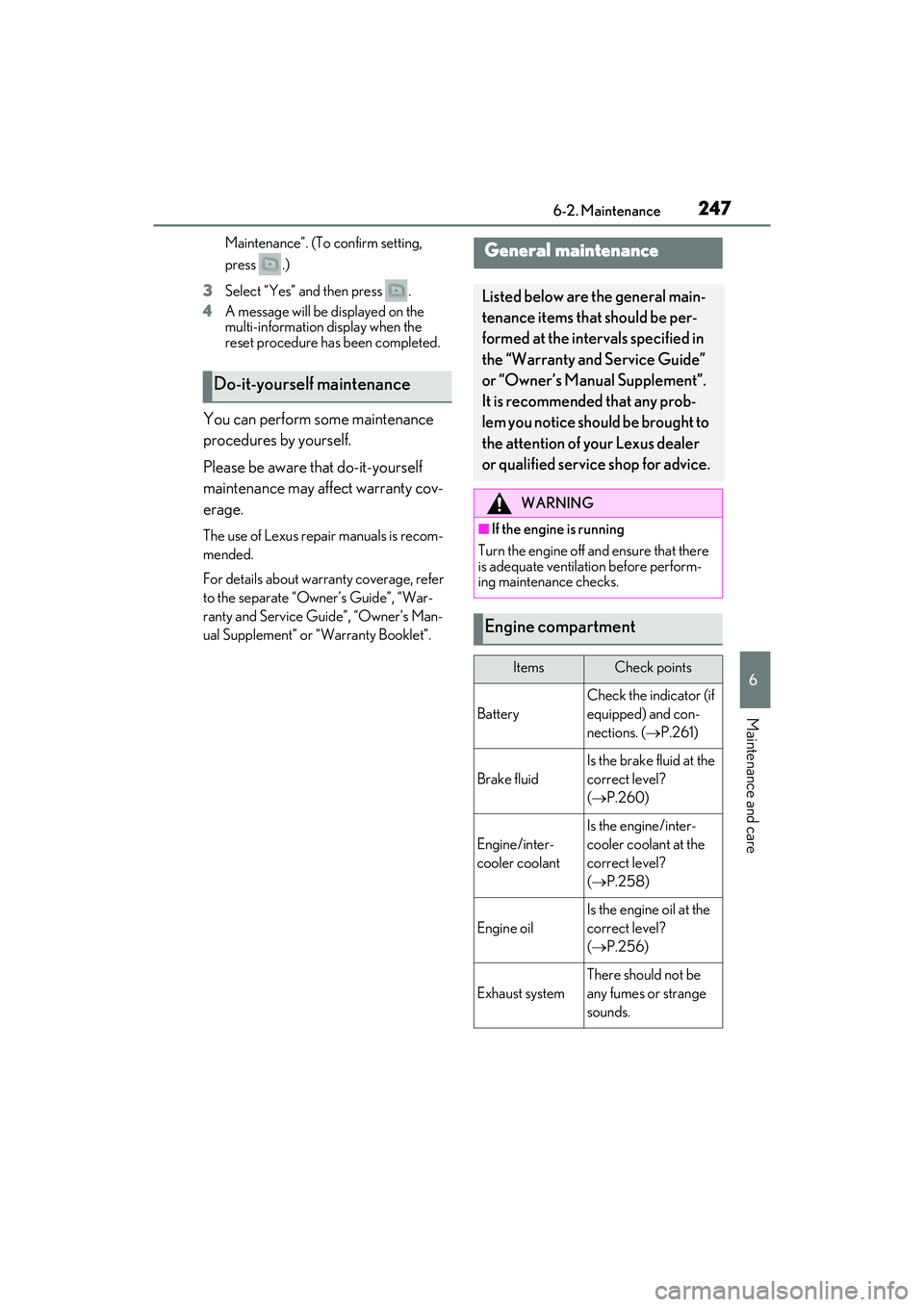

2476-2. Maintenance
RC350/RC300 Owner's Manual
6
Maintenance and care
Maintenance”. (To confirm setting,
press .)
3 Select “Yes” and then press .
4 A message will be displayed on the
multi-information display when the
reset procedure has been completed.
You can perform some maintenance
procedures by yourself.
Please be aware that do-it-yourself
maintenance may affect warranty cov-
erage.
The use of Lexus repair manuals is recom-
mended.
For details about warra nty coverage, refer
to the separate “Owner’s Guide”, “War-
ranty and Service Guide”, “Owner’s Man-
ual Supplement” or “Warranty Booklet”.
Do-it-yourself maintenance
General maintenance
Listed below are the general main-
tenance items that should be per-
formed at the intervals specified in
the “Warranty and Service Guide”
or “Owner’s Manual Supplement”.
It is recommended that any prob-
lem you notice should be brought to
the attention of your Lexus dealer
or qualified service shop for advice.
WARNING
■If the engine is running
Turn the engine off and ensure that there
is adequate ventilation before perform-
ing maintenance checks.
Engine compartment
ItemsCheck points
Battery
Check the indicator (if
equipped) and con-
nections. ( P.261)
Brake fluid
Is the brake fluid at the
correct level?
( P.260)
Engine/inter-
cooler coolant
Is the engine/inter-
cooler coolant at the
correct level?
( P.258)
Engine oil
Is the engine oil at the
correct level?
( P.256)
Exhaust system
There should not be
any fumes or strange
sounds.

2516-3. Do-it-yourself maintenance
RC350/RC300 Owner's Manual
6
Maintenance and care
6-3.Do-it-yourself maintenance
Do-it-yourself service pre-
cautions
If you perform maintenance by
yourself, be sure to follow the cor-
rect procedure as given in these
sections.
Maintenance
ItemsParts and tools
Battery condition
(P.261)
•Warm water
•Baking soda
•Grease
• Conventional
wrench (for terminal
clamp bolts)
Brake fluid level
(P.260)
• SAE J1703 or
FMVSS No.116 DOT
3 brake fluid
• SAE J1704 or FMVSS No.116 DOT
4 brake fluid
• Rag or paper towel
• Funnel (used only for adding brake fluid)
Engine/inter-
cooler coolant
level( P.258)
• “Toyota Super Long
Life Coolant” or a
similar high quality
ethylene gly-
col-based non-sili-
cate, non-amine,
non-nitrite and
non-borate coolant
with long-life hybrid
organic acid tech-
nology
•For the U.S.A.:“Toyota
Super Long Life
Coolant” is
pre-mixed with 50%
coolant and 50%
deionized water.
•For Canada:“Toyota Super Long Life
Coolant” is
pre-mixed with 55%
coolant and 45%
deionized water.
•Funnel (used only for adding coolant)
Engine oil level
( P.256)
•“Toyota Genuine
Motor Oil” or equiv-
alent
• Rag or paper towel
•Funnel (used only for adding engine oil)
Fuses ( P.276)
•Fuse with same
amperage rating as
original
ItemsParts and tools
