2022 LEXUS LS500 navigation system

2
LS500_QG_U
Driving Comfort
Remote Touch ................................................................................................................... ............. 45
Center Display ................................................................................................................. .............. 46
Fuel Consumption Information ............................. .................................................................. 49
Navigation System*.......................................................................................................................51
Hands-free System For Cellular Phone*........................................................................... 54
Audio System*............................................................................................................................... 58
Lexus Climate Concierge ........................................................................................................ .65
Front Automatic Air Conditioning System*..................................................................... 66
Rear Automatic Air Conditioning System .......... ............................................................... 70
Voice Command System*.......................................................................................................... 71
USB/AUX Ports .................................................................................................................. ......... 78
Garage Door Opener ............................................................................................................. ....79
Lexus Enform Safety Connect................................................................................................. 84
Lexus Enform Remote ............................................................................................................ .... 86
Lexus Enform Service Connect.............................................................................................. 86
SiriusXM Satellite Radio ....................................................................................................... ..... 87
Opening and Closing
Door Locks ..................................................................................................................... ................. 88
Power Windows .................................................................................................................. .......... 89
Moon Roof ...................................................................................................................... ................. 90
Panoramic Moon Roof ............................................................................................................ ... 90
Fuel Tank Cap .................................................................................................................. .............. 92
Trunk.......................................................................................................................... ......................... 93
What to do if...
List of Warning/Indicator Lights............................................................................................. 95
If the electronic key does not operate proper ly ............................................................... 99
If the engine will not start.... ........................................................................................................ 101
*: This feature may be operated by Voice command (See P.71)

5
LS500_QG_U
■Switches
HUD (Head-up display) switch*1........................................................................ P.35
Camera switch*1, 2
Instrument panel lig ht control switches*3
“ODO TRIP” switch*3
VSC OFF switch*3
Snow mode switch .................................................................................................... P.26
Driving mode select switch ................................................................................... P.42
Trunk opener switch ................................................................................................ P.93
Fuel filler door opener switch ...... ......................................................................... P.92
*1:If equipped
*2:Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
*3:Refer to the “OWNER’S MANUAL”.
A
B
C
D
E
F
G
H

9
LS500_QG_U
■Interior
SRS airbags*1
Floor mats ......................................................................................................................P.11
Front seats ................................................................................................................... P .16
Head restraints*1
Seat belts*1
Inside lock buttons ................................................................................................... P.88
Console box*1
Cup holders*1
Assist grips*1
Coat hooks*1
Rear Multi Operation Panel*1, 2
Rear seat entertainment system*2, 3
*1: Refer to the “OWNER’S MANUAL”.
*2:If equipped
*3:Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
A
B
C
D
E
F
G
H
I
J
K
L

34
LS500_QG_U
■Menu icons
/ : Select menu icons
/ : Change displayed content,
scroll up/down the screen and move
the cursor up/down
Press: Enter/Set
Press and hold: Reset
Move the main meter* and return to
the previous screen
Call sending/receiving and history dis-
play
*:F SPORT models
Driving information display
Navigation system-linked display (if equipped)
Audio system-linked display
Driving support system information display
Warning message display
Settings display
If a problem is detected in any of the vehicl e’s systems, a warning message is shown on the
multi-information display.
Changing the meter display
A
B
C
D

35
LS500_QG_U
Navigation system-linked display area (if equipped)
Driving support system display area
Speed limit/RSA (Road Sign Assist ) display area (if equipped)
Driving information display area
Tachometer/Eco Driving Indicator display area
HUD (Head-up display) switch
Head-up Display (if equipped)
The head-up display projects a variety of dr iving-related information and the operating
state of the driving support systems on the windshield.
System components
A
B
C
D
E
F

46
LS500_QG_U
Press the “MENU” button on the Remote Touch to display the menu screen.
The displays shown in the illu strations are used for example only and may differ from the
actual vehicle.
*1: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
*2: This function is not made ava ilable in some models or areas.
Center Display
Menu screen
SwitchFunction
Select to display the “Destination” screen.*2 (P.51)
Select to display the audio control screen.*1 (P.60, 61, 62, 63, 64)
Select to display the hands-free control screen. (P.56)
Select to display the “Apps” screen.*1, 2
//
When an Apple CarPlay/Android Auto connection is established and this
button displays “Apple CarPlay”/“An droid Auto”, select to display the
home screen of Apple CarPlay/Android Auto.*1, 2
Select to display the information screen. ( P.49)
Select to display the setup screen.*1
Select to display the air conditioning control screen. (P.67)

47
LS500_QG_U
Different information can be displayed on the left and right sides of the screen. For example,
audio control screen can be displayed and oper ated while the fuel consumption information
screen is being displayed. The la rge screen on the left of the display is called the main dis-
play, and the small screen to the right is called the side display.
The following functions can be displayed
and operated on the side display.
Navigation system ( P.51)
Audio ( P.60, 61, 62, 63, 64)
Vehicle information ( P.50)
Air conditioning system ( P.69)
Show/hide the side display
Split-screen display
Side display
A
B
C
D
E

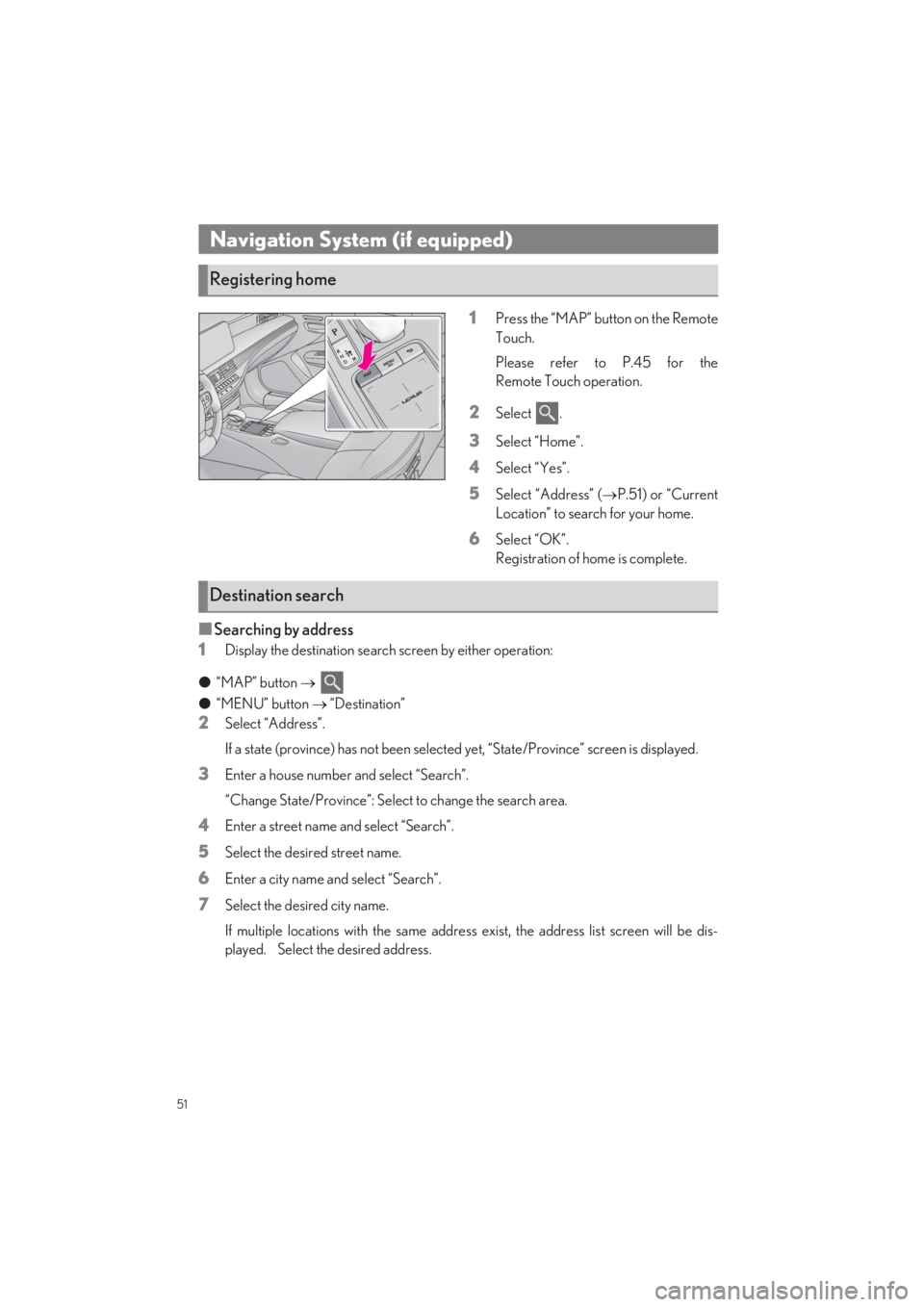

51
LS500_QG_U
1Press the “MAP” button on the Remote
Touch.
Please refer to P.45 for the
Remote Touch operation.
2Select .
3Select “Home”.
4Select “Yes”.
5Select “Address” ( P.51) or “Current
Location” to search for your home.
6Select “OK”.
Registration of home is complete.
■Searching by address
1Display the destination search screen by either operation:
● “MAP” button 
●“MENU” button  “Destination”
2Select “Address”.
If a state (province) has not been selected yet, “State/Province” screen is displayed.
3Enter a house number and select “Search”.
“Change State/Province”: Select to change the search area.
4Enter a street name and select “Search”.
5Select the desired street name.
6Enter a city name and select “Search”.
7Select the desired city name.
If multiple locations with the same addres s exist, the address list screen will be dis-
played. Select the desired address.
Navigation System (if equipped)
Registering home
Destination search
