2164-5. Using the driving support systems
QVehicles that can be detected by the Blind Spot Monitor
The Blind Spot Monitor uses rear side radar sensors to detect the following vehi-
cles traveling in adjacent lanes and advises the driver of the presence of such vehi-
cles via the indicators on the outside rear view mirrors.
Vehicles that are traveling in areas that are not visible using the outside rear
view mirrors (the blind spots)
Vehicles that are approaching rapidly from behind in areas that are not visible
using the outside rear view mirrors (the blind spots)
QBlind Spot Monitor detection areas
The areas that vehicles can be detected in are outlined below.
WARNING
ODo not attach accessories, stickers
(including transparent stickers), alumi-
num tape, etc. to a sensor or its sur-
rounding area on the rear bumper.
ODo not modify the sensor or surround-
ing area on the rear bumper.
OIf a sensor or the rear bumper needs to
be removed/installed or replaced,
contact your Lexus dealer.
ODo not paint the rear bumper any
color other than an official Lexus color.
Blind Spot Moni tor operation
A
B

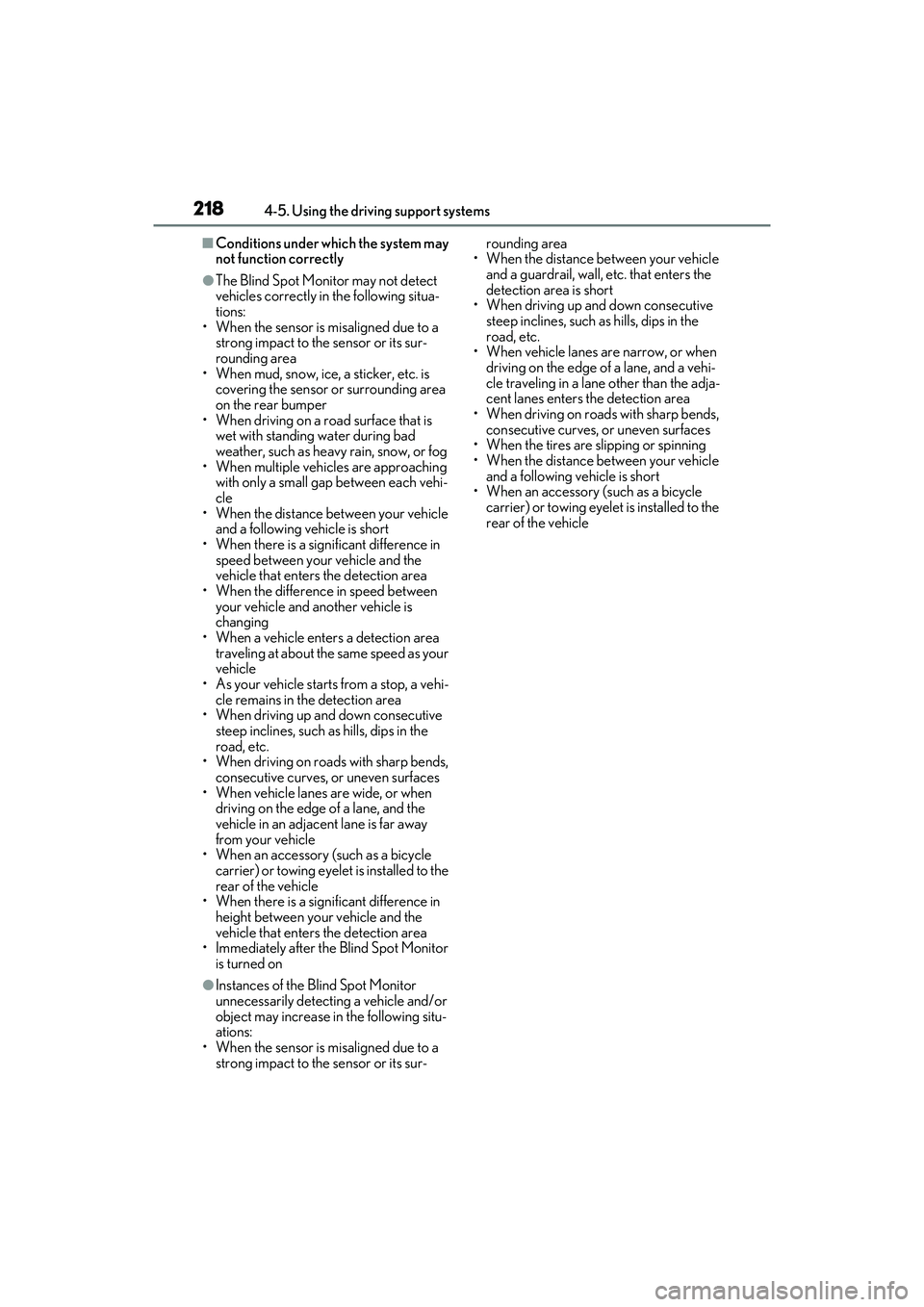

2184-5. Using the driving support systems
QConditions under which the system may
not function correctly
OThe Blind Spot Monitor may not detect
vehicles correctly in the following situa-
tions:
• When the sensor is misaligned due to a strong impact to the sensor or its sur-
rounding area
• When mud, snow, ice, a sticker, etc. is covering the sensor or surrounding area
on the rear bumper
• When driving on a road surface that is wet with standing water during bad
weather, such as heavy rain, snow, or fog
• When multiple vehicles are approaching with only a small gap between each vehi-
cle
• When the distance between your vehicle and a following vehicle is short
• When there is a significant difference in
speed between your vehicle and the
vehicle that enters the detection area
• When the difference in speed between
your vehicle and another vehicle is
changing
• When a vehicle enters a detection area
traveling at about the same speed as your
vehicle
• As your vehicle starts from a stop, a vehi-
cle remains in the detection area
• When driving up and down consecutive steep inclines, such as hills, dips in the
road, etc.
• When driving on roads with sharp bends, consecutive curves, or uneven surfaces
• When vehicle lanes are wide, or when driving on the edge of a lane, and the
vehicle in an adjacent lane is far away
from your vehicle
• When an accessory (such as a bicycle carrier) or towing eyelet is installed to the
rear of the vehicle
• When there is a significant difference in height between your vehicle and the
vehicle that enters the detection area
• Immediately after the Blind Spot Monitor
is turned on
OInstances of the Blind Spot Monitor
unnecessarily detecting a vehicle and/or
object may increase in the following situ-
ations:
• When the sensor is misaligned due to a strong impact to the sensor or its sur- rounding area
• When the distance between your vehicle and a guardrail, wall, etc. that enters the
detection area is short
• When driving up and down consecutive steep inclines, such as hills, dips in the
road, etc.
• When vehicle lanes are narrow, or when driving on the edge of a lane, and a vehi-
cle traveling in a lane other than the adja-
cent lanes enters the detection area
• When driving on roads with sharp bends,
consecutive curves, or uneven surfaces
• When the tires are slipping or spinning
• When the distance between your vehicle
and a following vehicle is short
• When an accessory (such as a bicycle carrier) or towing eyelet is installed to the
rear of the vehicle

2214-5. Using the driving support systems
4
Driving
QDriving mode pop-up display (12.3-inch
display model)
When the driving mode is changed, the
selected driving mode will be temporarily
displayed on the side display. ( P.267)
QCustomization (vehicles with Adaptive
Variable Suspension system)
Settings (e.g. custom mode) can be
changed. (Customizable features: P.421)
*: If equipped
QIntuitive parking assist
Ultrasonic sensors are used to detect
static objects in the detection area
when driving at a low speed or backing
up. ( P.222)
QRCTA (Rear Cross Traffic Alert)
function
Rear side radar sensors are used to
detect approaching vehicles in the
detection areas behind the vehicle
when backing up. ( P.230)
QRCD (Rear camera detection)
function (if equipped)
A rear camera sensor is used to detect
pedestrians in the detection area
behind the vehicle when backing up.
(  P.236)
PKSA (Parking Support
Alert)
*
The Parking Support Alert system
consists of the following functions
that operate when driving at a low
speed or backing up, such as when
parking. When the system deter-
mines that the possibility of a colli-
sion with a detected object, such as
a wall, or pedestrian is high, a warn-
ing operates to urge the driver to
take evasive action.
PKSA (Parking Support Alert)
system

2224-5. Using the driving support systems
QAdjusting the buzzer volume
The buzzer volume can be adjusted on
the multi-information display. The vol-
ume of buzzers for the intuitive parking
assist, RCTA function and RCD func-
tion will be adjusted simultaneously.
Use the meter control switches to
change settings. ( P.86)
1 Press or to select .
2 Press or to select “PKSA”
and then press “OK”.
3 Press or to select and
then press “OK”.
Each time the switch is pressed, the vol-
ume level will change between 1, 2, and 3.
QMuting a buzzer temporarily
A mute button will be displayed on the
multi-information display when an
object or pedestrian is detected. To
mute the buzzer, press “OK”.
The buzzers for the intuitive parking
assist, RCTA function and RCD func-
tion will be muted simultaneously.
Mute will be automatically canceled in
the following situations:
 When the shift position is changed.
 When there is a malfunction in a
sensor or the system is temporarily
unavailable.
 When the function is disabled while
it is operating.
 When the power switch is turned
off.
*: If equipped
QTypes of sensors
Front corner sensors
Front center sensors
Rear corner sensors
Rear center sensors
QDisplay
When the sensors detect an object,
such as a wall, a graphic is shown on
the multi-information display, head-up
display (if equipped) and Center Dis-
play depending on the position and dis-
tance to the object.
Setting the buzzer volumeIntuitive parking assist*
The distance from your vehicle to
objects, such as a wall, when paral-
lel parking or maneuvering into a
garage is measured by the sensors
and communicated via the multi-
information display, head-up dis-
play (if equipped), Center Display
and a buzzer. Always check the sur-
rounding area when using this sys-
tem.
System components
A
B
C
D

2234-5. Using the driving support systems
4
Driving
Multi-information display and head-
up display
Front corner sensor detection
Front center sensor detection
Rear corner sensor detection
Rear center sensor detection
 Center Display
A graphic is shown when the Lexus park-
ing assist monitor (if equipped) is dis-
played.
A simplified image is displayed on the
Center Display when an object is detected.
• When the shift lever is in R
• When the shift lever is in N, S or D (vehi-
cle moving forward) When an object is detected, a graphic will
be displayed on the panoramic view moni-
tor (if equipped).
Use the meter control switches to
enable/disable the intuitive parking
assist. (
P.86)
1 Press or to select .
2 Press or to select “PKSA”
and then press “OK”.
3 Press or to select and
then press “OK”.
When the intuitive parking assist func-
tion is disabled, the intuitive parking
assist OFF indicator ( P.74) illumi-
nates on the multi-information display.
To re-enable the system, select on
the multi-information display, select
A
B
C
D
Turning intuitive parking assist
on/off

2244-5. Using the driving support systems
and turn it on. If the system is dis-
abled, it will remain off even if the
power switch is turned to ON mode
after the power switch has been turned
off.
QThe system can be operated when
OThe power switch is in ON mode.
OIntuitive parking assist function is on.
OThe vehicle speed is less than about 6
mph (10 km/h).
OA shift lever is shifted to a position other
than P.
QSetting the buzzer volume
The buzzer volume can be adjusted on the
multi-information display. ( P.222)
QIf “Parking Assist Unavailable Clean
Parking Assist Sensor” is displayed on
the multi-information display
A sensor may be covered with ice, snow,
dirt, etc. Remove the ice, snow, dirt, etc.,
from the sensor to return the system to nor-
mal.
Also, due to ice forming on a sensor at low
temperatures, a warning message may be
displayed or the sensor may not be able to
detect an object. Once the ice melts, the
system will return to normal.
WARNING
QCautions regarding the use of the
system
There is a limit to the degree of recogni-
tion accuracy and control performance
that this system can provide, do not
overly rely on this system. The driver is
always responsible for paying attention
to the vehicle’s surroundings and driving
safely.
QTo ensure the system can operate
properly
Observe the following precautions.
Failing to do so may result in the vehicle
being unable to be driven safely and pos-
sibly cause an accident.
ODo not damage the sensors, and
always keep them clean.
ODo not attach a sticker or install an
electronic component, such as a
backlit license plate (especially fluo-
rescent type), fog lights, fender pole or
wireless antenna near a radar sensor.
ODo not subject the surrounding area of
the sensor to a strong impact. If sub-
jected to an impact, have the vehicle
inspected by your Lexus dealer. If the
front or rear bumper needs to be
removed/installed or replaced, con-
tact your Lexus dealer.
ODo not modify, disassemble or paint
the sensors.
ODo not attach a license plate cover.
OKeep your tires properly inflated.
QWhen to disable the function
In the following situations, disable the
function as it may operate even though
there is no possibility of a collision.
OFailing to observe the warnings above.
OA non-genuine Lexus suspension
(lowered suspension, etc.) is installed.
QNotes when washing the vehicle
Do not apply intensive bursts of water or
steam to the sensor area. Doing so may
result in the sensor malfunctioning.
OWhen using a high pressure washer to
wash the vehicle, do not spray the sen-
sors directly, as doing so may cause a
sensor to malfunction.
OWhen using steam to clean the vehi-
cle, do not direct steam too close to
the sensors as doing so may cause a
sensor to malfunction.

2254-5. Using the driving support systems
4
Driving
QIf “Parking Assist Unavailable” is dis-
played on the multi-information display
OWater may be continuously flowing over
the sensor surface, such as in a heavy
rain. When the system determines that it
is normal, the system will return to nor-
mal.
OInitialization may not have been per-
formed after a 12-volt battery terminal
was disconnected and reconnected. Ini-
tialize the system. (P.225)
If this message continues to be displayed
even after initialization, have the vehicle
inspected by your Lexus dealer.
QIf a 12-volt battery terminal has been
disconnected and reconnected
The system needs to be initialized. To initial-
ize the system, drive the vehicle straight
ahead for 5 seconds or more at a speed of
approximately 22 mph (35 km/h) or more.
Additionally, for vehicles with the Parking
Support Brake function, turn the steering
wheel fully to the left and right with the vehi-
cle stopped.
QSensor detection information
OThe sensor’s detection areas are limited
to the areas around the vehicle’s front
and rear bumpers.
OThe following situations may occur
during use.
• Depending on the shape of the object and other factors, the detection distance
may shorten, or detection may be impos-
sible.
• There will be a short delay between
object detection and display. Even at low
speeds, there is a possibility that the
object will come within the sensor’s
detection areas before the display is
shown and the warning beep sounds.
• It might be difficult to hear the buzzer due
to the volume of the audio system or air
flow noise of the air conditioning system.
• It may be difficult to hear the buzzer if buzzers for other systems are sounding.
QObjects which the system may not prop-
erly detect
The shape of the object may prevent the
sensor from detecting it. Pay particular
attention to the following objects:
OWires, fences, ropes, etc.
OCotton, snow and other materials that
absorb sound waves
OSharply-angled objects
OLow objects
OTall objects with upper sections project-
ing outwards in the direction of your vehi-
cle
People may not be detected if they are
wearing certain types of clothing.
QSituations in which the system may not
operate properly
Certain vehicle conditions and the sur-
rounding environment may affect the ability
of a sensor to correctly detect objects. Par-
ticular instances where this may occur are
listed below.
OThere is dirt, snow or ice on a sensor.
(Cleaning the sensors will resolve this
problem.)
OA sensor is frozen. (Thawing the area will
resolve this problem.)
In especially cold weather, if a sensor is
frozen the sensor display may be dis-
played abnormally, or objects, such as a
wall, may not be detected.
OWhen a sensor or the area around a sen-
sor is extremely hot or cold.
OOn an extremely bumpy road, on an
incline, on gravel, or on grass.
OWhen vehicle horns, vehicle detectors,
motorcycle engines, air brakes of large
vehicles, the clearance sonar of other
vehicles or other devices which produce
ultrasonic waves are near the vehicle.
OA sensor is coated with a sheet of spray
or heavy rain.
OIf objects draw too close to the sensor.
OWhen a pedestrian is wearing clothing

2264-5. Using the driving support systems
that does not reflect ultrasonic waves (ex.
skirts with gathers or frills).
OWhen objects that are not perpendicular
to the ground, not perpendicular to the
vehicle traveling direction, uneven, or
waving are in the detection range.
OStrong wind is blowing.
OWhen driving in inclement weather such
as fog, snow or a sandstorm.
OWhen an object that cannot be detected
is between the vehicle and a detected
object.
OIf an object such as a vehicle, motorcycle,
bicycle or pedestrian cuts in front of the
vehicle or runs out from the side of the
vehicle.
OIf the orientation of a sensor has been
changed due to a collision or other
impact.
OWhen equipment that may obstruct a
sensor is installed, such as a towing eye-
let, bumper protector (an additional trim
strip, etc.), bicycle carrier, or snow plow.
OIf the front of the vehicle is raised or low-
ered due to the carried load.
OIf the vehicle cannot be driven in a stable
manner, such as when the vehicle has
been in an accident or is malfunctioning.
OWhen tire chains, a compact spare tire or
an emergency tire puncture repair kit are
used.
QSituations in which the system may
operate even if there is no possibility of a
collision
In some situations, such as the following, the
system may operate even though there is
no possibility of a collision.
OWhen driving on a narrow road.
OWhen driving toward a banner, flag, low- hanging branch or boom barrier (such as
those used at railroad crossings, toll
gates and parking lots).
OWhen there is a rut or hole in the surface
of the road.
OWhen driving on a metal cover (grating),
such as those used for drainage ditches.
OWhen driving up or down a steep slope.
OIf a sensor is hit by a large amount of
water, such as when driving on a flooded
road.
OThere is dirt, snow, water drops or ice on
a sensor. (Cleaning the sensors will
resolve this problem.)
OA sensor is coated with a sheet of spray
or heavy rain.
OWhen driving in inclement weather such
as fog, snow or a sandstorm.
OWhen strong winds are blowing.
OWhen vehicle horns, vehicle detectors,
motorcycle engines, air brakes of large
vehicles, the clearance sonar of other
vehicles or other devices which produce
ultrasonic waves are near the vehicle.
OIf the front of the vehicle is raised or low-
ered due to the carried load.
OIf the orientation of a sensor has been
changed due to a collision or other
impact.
OThe vehicle is approaching a tall or
curved curb.
ODriving close to columns (H-shaped steel
beams, etc.) in multi-story parking
garages, construction sites, etc.
OIf the vehicle cannot be driven in a stable
manner, such as when the vehicle has
been in an accident or is malfunctioning.
OOn an extremely bumpy road, on an
incline, on gravel, or on grass.
