2022 KIA SORENTO climate control

TABLE OF CONTENTS
VIDEOS & QR CODES . . Inside Front Cover
INSTRUMENT CLUSTERInstrument Cluster Overview . . . . . . . . . . . . . . . . . 03Indicators & Warning Lights . . . . . . . . . . . . . . . . . . . 04Tire Pressure Monitoring System (TPMS) . . . . . . 05Fuel Economy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 05Drive Mode Integrated Control System* . . . . . . . 06
VEHICLE SETTINGSTrip Modes / Trip Computer . . . . . . . . . . . . . . . . . . . 07LCD Instrument Cluster Modes . . . . . . . . . . . . . . . . 07User Settings – Instrument Cluster . . . . . . . . . . . . 08Vehicle Settings* – Audio Head Unit . . . . . . . . . . . 08Vehicle Auto-Shut Off* . . . . . . . . . . . . . . . . . . . . . . . 09Service Interval Mode . . . . . . . . . . . . . . . . . . . . . . . . 09
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)Forward Collision-Avoidance Assist (FCA)* . . . . . . 10Blind-Spot Collision-Avoidance Assist (BCA)* . . . 11Lane Keeping Assist (LK A) . . . . . . . . . . . . . . . . . . . . . 12Blind-Spot View Monitor (BVM)* . . . . . . . . . . . . . . . . 13Driver Attention Warning (DAW)
. . . . . . . . . . . . . . . . 14Leading Vehicle Departure Alert (LVDA) . . . . . . . . 15Safe Exit Assist (SEA)* . . . . . . . . . . . . . . . . . . . . . . . . . 15Smart Cruise Control (SCC)* . . . . . . . . . . . . . . . . . . . 16Cruise Control (CC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17Navigation-based Smart Cruise Control - (NSCC)* 17Lane Following Assist (LFA) . . . . . . . . . . . . . . . . . . . . 18Highway Driving Assist (HDA)* . . . . . . . . . . . . . . . . . 19Rear View Monitor (RVM) . . . . . . . . . . . . . . . . . . . . . . 20Surround View Monitor (SVM)* . . . . . . . . . . . . . . . . . 20Rear Cross-Traffic Collision-Avoidance Assist (RCCA)* . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21Rear Occupant Alert with Ultrasonic Sensors . . . . 22Reverse Parking Collision-Avoidance Assist . . . . . . 23Forward/Reverse Parking Distance Warning (PDW)* 2 3Intelligent Speed Limit Assist (ISL A)* . . . . . . . . . . . . 24
DRIVER’S PANELInstrument Cluster Illumination Control . . . . . . . . . 25Hill-Start Assist Control (HAC) . . . . . . . . . . . . . . . . . . 25Electronic Stability Control (ESC) . . . . . . . . . . . . . . . 25Reverse Parking Aid Function* . . . . . . . . . . . . . . . . . 26Engine Start/Stop Button* . . . . . . . . . . . . . . . . . . . . . . 26Power Windows, Window Lock & Central Door Lock / Auto Door Lock/Unlock . . . . . . . . . . 27Electronic Child Safety Lock System . . . . . . . . . . . . 27Rear Door Locks - Double Pull to Open . . . . . . . . . 27Power Folding Outside Mirrors* . . . . . . . . . . . . . . . . 28Power/Heated Outside Mirrors* . . . . . . . . . . . . . . . . 28Manual Folding Mirrors . . . . . . . . . . . . . . . . . . . . . . . . 28
STEERING WHEEL CONTROLSHeadlights & High Beams . . . . . . . . . . . . . . . . . . . . . . 29Daytime Running Lights (DRL) / High Beam Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . 29Turn Signals & Fog Lights* . . . . . . . . . . . . . . . . . . . . . 30Windshield Wipers & Washers / Rear Wiper & Washer* . . . . . . . . . . . . . . . . . . . . . . . 30Tilt/Telescoping Steering Wheel . . . . . . . . . . . . . . . . 31
AUDIO SYSTEMSAudio Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31 Bluetooth® Wireless Technology . . . . . . . . . . . . . . . 32 Android Auto™ / Apple CarPlay® Setup . . . . . . . . . . 34Standard Audio System* . . . . . . . . . . . . . . . . . . . . . . . 35UVO link Activation* / UVO Assistance* . . . . . . . . . 36Kia Access with UVO link App Download . . . . . . . 37Kia Access with UVO link App Features Guide . . 37UVO link with Navigation* . . . . . . . . . . . . . . . . . . . . . . 38
CENTER PANELDigital Clock / Multimedia USB Port, Power Outlets & USB Charger Port . . . . . . . . . . . 39Wireless Smartphone Charging System* . . . . . . . . 40Manual Climate Control* . . . . . . . . . . . . . . . . . . . . . . . 41Automatic Climate Control* . . . . . . . . . . . . . . . . . . . . 42Automatic Gear Shift with Sportmatic® Shifting . 43
CENTER PANEL (CONTINUED)Dual Clutch Transmission (DCT)* . . . . . . . . . . . . . . . 44AWD (All-Wheel Drive) Lock* . . . . . . . . . . . . . . . . . . . 45Idle, Stop & Go (ISG) System . . . . . . . . . . . . . . . . . . . 45Electronic Parking Brake (EPB) / Auto Hold . . . . .46Heated Steering Wheel* . . . . . . . . . . . . . . . . . . . . . . . 47Seat Warmers / Ventilated Seats* . . . . . . . . . . . . . . . 47
SEATINGFront Seat Headrest Adjustment* . . . . . . . . . . . . . .48Driver Position Memory System* . . . . . . . . . . . . . . .48Power Adjustable Driver ’s Seat* / Power Lumbar* 49Manual Adjustable Driver ’s Seat* . . . . . . . . . . . . . . .492nd-Row Folding Seat / Auto-Folding Seat . . . . . .503rd-Row Folding Seat / One-Touch Slide & Fold . . 51
OTHER KEY FEATURESSunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52Remote Keyless Entry (Folding Key)* . . . . . . . . . . . 52Double-Turn Lock/Unlock All . . . . . . . . . . . . . . . . . . . 52Smart Key* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53Power Liftgate* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54Smart Liftgate with Auto Open* . . . . . . . . . . . . . . . . 55Map/Room Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56Panoramic Sunroof with Power Sunshade* . . . . . 56HomeLink® with Auto-Dimming Rearview Mirror* 57Hood Release Lever and Latch . . . . . . . . . . . . . . . . . 58Fuel Cap / Malfunction Indicator . . . . . . . . . . . . . . . 58Fuel Filler Lid Release . . . . . . . . . . . . . . . . . . . . . . . . . .58
SAFETY FEATURESOccupant Detection System (ODS) / Passenger Airbag Off Indicator . . . . . . . . . . . . . . 59Child-Protector Rear Door Lock . . . . . . . . . . . . . . . . 59Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
MAINTENANCE CHART . . . . . . . . . .Back Cover
LEGAL DISCLAIMERS . . Inside Back Cover
2*IF EQUIPPEDSORENTO FEATURES & FUNCTIONS GUIDE

8*IF EQUIPPEDSORENTO FEATURES & FUNCTIONS GUIDE
To enter the User Settings mode in the LCD Instrument Cluster Modes, press the Mode button A (Instrument Cluster Type A) when the vehicle is at a standstill, shift lever in Park, and with the Engine/Start Stop button in the ON position, select User Settings by pressing the Move (OK) button B up/down .
You can navigate the selections on the display by pressing the Move (OK) button B up/down, and then selecting the item by pressing the OK button B . Press the OK button B up/down to go back to the previous mode/item .
User Settings mode:
Driver Assistance •Speed Limit •Warning Timing •Warning Volume •Haptic Warning •Driver At tention Warning •For ward Safet y •Lane Safet y •Blind-Spot Safet y •Parking Safet y
Climate* •Recirculate Air •Automatic Ventilation •Defog/Defrost Options
Lights •Ambient Lighting* •One-Touch Turn Signal •Headlamp Delay •High Beam Assist
Sound •Parking Distance Warning Volume* •Welcome Sound*
Door/Liftgate •Automatically Lock/Unlock* •Two Press Unlock* •Horn Feedback* •Power Liftgate Speed* •Power Liftgate Opening Height •Smart Liftgate*
Cluster* •Service Interval •Energy Consumption Reset •Content Selection •Welcome Sound •Theme Selection
Reset •Reset the User Set tings menus (except language and ser vice inter val)
Convenience •Seat-Easy Access •Rear Occupant Aler t* •Welcome Mirror/Light* •Wireless Charging System* •Auto Rear Wiper (when in Reverse) •Heated/Ventilated Features •Wipers/Lights Display* •Gear Position Pop-Up* •Icy Road Warning* •Vehicle Auto-Shut Off*
Other Features •Fuel Economy Auto Reset •Speedometer Unit •Fuel Economy Unit •Temperature Unit •Tire Pressure Unit
User Settings - Instrument Cluster
Images are for illustrative purposes only and may not reflect actual feature or operation .
See section 4 in the Owner ’s Manual for more information .
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Vehicle & User Settings Video
Ambient, Mood & Theme Lighting Video
QR CODE
OK
MODE
OK CRUISE
MODE
OKOK
OKOK
OKOK
OKOK
CRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
Vehicle Settings* -
Audio Head Unit
To enter the Vehicle Settings mode in the audio head unit C, press the SETUP key on the audio head unit or the onscreen SETUP icon
. Then press VEHICLE , which will take you to Vehicle Settings . Use the touchscreen to navigate through the menus .
Vehicle Settings:
Driver Assistance: Driving Convenience*, Warning Time*, Warning Volume*, Driver Attention
Warning*, Forward Safety*, Lane Safety*, Blind-Spot Safety*, Parking Safety*
Drive Mode: Drive Mode Alert*
Climate*: Recirculate Air*, Automatic Ventilation*, Defog/Defrost Options*, Climate Features*
Lights*: Ambient Light*, One Touch Turn Signal*, Headlight Display*, High Beam Assist*
Door*: Auto Lock*, Auto Unlock*, Walk-Away Lock*, Two-Press Unlock*, Smart Trunk*
Cluster*: Service Interval*, Energy Consumption Reset*, Content Selection*,
Cluster Voice Guidance Volume*, Welcome Sound*, Theme Selection*
Convenience*: Rear Occupant Alert*, Welcome Mirror Light*, Wireless Charging System*, Vehicle Auto-Shut Off*
Seat*: Seat Position Change Alert*, Smart Posture Care*, Heated/ Ventilated Features*, Seat East Access*, Rear Seat Heating Control*
Reset: Reset Vehicle Settings to Factory Defaults
12:00 AM Jan. 1MenuVehicle SettingsDriving Convenience
Drive Mode
Climate
LightsDriver
AssistanceWarning TimingLateWarning VolumeOffDriver Attention Warning
VEHICLESETTINGS
VEHICLE SETTINGS
B
C
A

37ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
AUDIO SYSTEMS
AUDIOSYSTEMS
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED
Kia Access with UVO link App Download†1
Go to an app marketplace to download the new Kia Access with UVO link App . Once you download, make sure you register your vehicle and star t an account (refer to UVO link Activation page) . Get to know your new Kia and the available convenient features on the app .
2020 SOULMILEAGE722 mi.
355 miEst. RangeDOOR LOCKSREMOTE STARTFind My Car
•The smar tphone and vehicle need to be connected to a cellular net work with a good wireless signal strength in order to use UVO . If these conditions are not met, remote command may not execute or may take a long time . It will also effect voice commands such as navigation POI or address search
•
To use Remote Star t or Remote Star t with Climate Control feature, all doors, hood and trunk/liftgate must be closed and locked
•
When Remote Star t is activated, if the driver does not enter the vehicle within 10 minutes, the Remote Star t will turn the engine off
•When using Remote Star t with Climate Control, turn on for at least a few minutes before get ting into the vehicle, allowing the vehicle interior to reach your desired temperature
•
The quickest way to obtain accurate vehicle status through the app is by pressing the refresh but ton on the app or refreshing the web page when using the customer web por tal
•In order to preser ve the vehicle bat ter y, UVO will not turn on seven days after the last ignition was on . You will need to restar t the vehicle with a key fob in order to use UVO again
QUICK TIPS
The Kia Access with UVO link App Features Guide is a step-by-step guide that helps you utilize the app to its full potential by detailing how to use each feature and adjust various settings . Below are some of the topics included:
•Remote Commands
•Set Climate
•Schedule Climate
•Schedule Charge
•Schedule Service
•Dealer Settings
•Manage Vehicles and Profiles
Kia Access with UVO link App Features Guide†1
Kia App Screen for illustrative purposes only . Actual App screen and functionalit y may var y .
For fur ther UVO link operations, refer to the Car Infotainment System Quick Reference Guide .
UVO link is currently unavailable for model year 2022 vehicles sold or purchased in Massachuset ts . See UVO Terms of Ser vice at owners .kia .com for more information .
Kia Access with UVO link App Features Guide. Click this dynamic QR code to access the guide . Some phone’s operating systems may need to be updated to scan dynamic QR codes .
Download the Kia Access with UVO link App by clicking this dynamic QR code . Some phone’s operating systems may need to be updated to scan dynamic QR codes .
QR CODES

39 *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
CENTER PANEL
CENTER PANEL
Multimedia USB Ports, Power Outlets, & USB Charger Ports* Digital Clock
Press SETUP, then select General, scroll down and select Date/Time from the menu to adjust .
Multimedia USB Port*
A Use the Multimedia USB port to connect USB audio devices and smartphones
Power Outlets
B Use the power outlets for mobile phones and other devices designed to operate on a 12V (180W max) power outlet
USB Charger Ports*
C USB charger ports* and power ports are located in the Center Panel, inside and on the back of the Center Console
(Located on Center Console below Climate Controls)
REMINDERS:
•
Using the Power Outlet (accessor y plug) and USB charger for prolonged periods of time with the Engine Star t/Stop but ton in the ACC position (Engine OFF) for prolonged period time could cause the bat ter y to discharge
•
Use only the charging cables that your device manufacturer supplied . Third par t y cables may cause damage to device
•
The USB data por t (Multimedia USB por t) is located next to the Power Outlets . The USB Charger por ts do not suppor t data transfer
Refer to section 4 in the Owner ’s Manual for more information .
For illustrative purposes only . Your actual display, but tons and/or features may var y .
(Located on Back of Center Console)
Seat warmers / ventilation Wireless charge center console, back seat
USB / Multimedia
USB
180W12V
Seat warmers / ventilationWireless charge center console, back seat
USB / Multimedia
USB
180W12V
Seat warmers / ventilationWireless charge center console, back seat
USB / Multimedia
USB
180W12V
Refer to the Car Infotainment System Quick Reference Guide for more information .BB
CC
A
•
Press the Return but ton on the audio head unit to ensure changes are saved
•
When needed, Daylight Savings must be enabled in the Clock Set tings screen
•
To access manual date and time set ting, turn GPS time OFF in the Clock Set tings (UVO link with Navigation*)
QUICK TIPS
The power outlets are inactive when the Engine Star t/Stop but ton is OFF .
QUICK TIP

41 *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
CENTER PANEL
CENTER PANEL
REARA/C
MAXA/C
１2
0 3
4
Air Flow Modes
To select Air Flow Modes, press the Mode selection buttons:
Face-Level
Bi-Level
Floor-Level
Floor/Defrost-Level
Manual Climate Control*
B
3rd Row Climate Control*
I 3rd Row air conditioning ON/OFF button
J 3rd Row fan speed control knob
REAR A/C
ON/OFF
(Rear climate control)
I
J
C
DE
G
F
A
REMINDER: Warm air may flow in through vents if Recirculated Air but ton is not pressed ON (LED lit) .
A Front fan speed control knob
B Rear window defroster button
C Air conditioning button
D Max A/C position
E Mode selection knob
F Air intake control buttons
G Temperature control knob
Defrost Outside and/or Inside Windshield:

Set front fan speed A to the highest position
Turn temperature control G to Hot

Press the front defrost button B
Your Manual Climate Control system may differ from those in the illustrations . Refer to section 4 in the Owner ’s Manual for more information .
•
Defrost Mode opens Fresh Air Vent
•MA X A /C Mode automatically engages Recirculated Air
•Keep inside glass as clean as possible to reduce window fogging
QUICK TIPS

42*IF EQUIPPEDSORENTO FEATURES & FUNCTIONS GUIDE
AUTOOFF
DRIVER
ONLYA/CREAR
SYNC
REAR FRONT
A/C
68.568.5

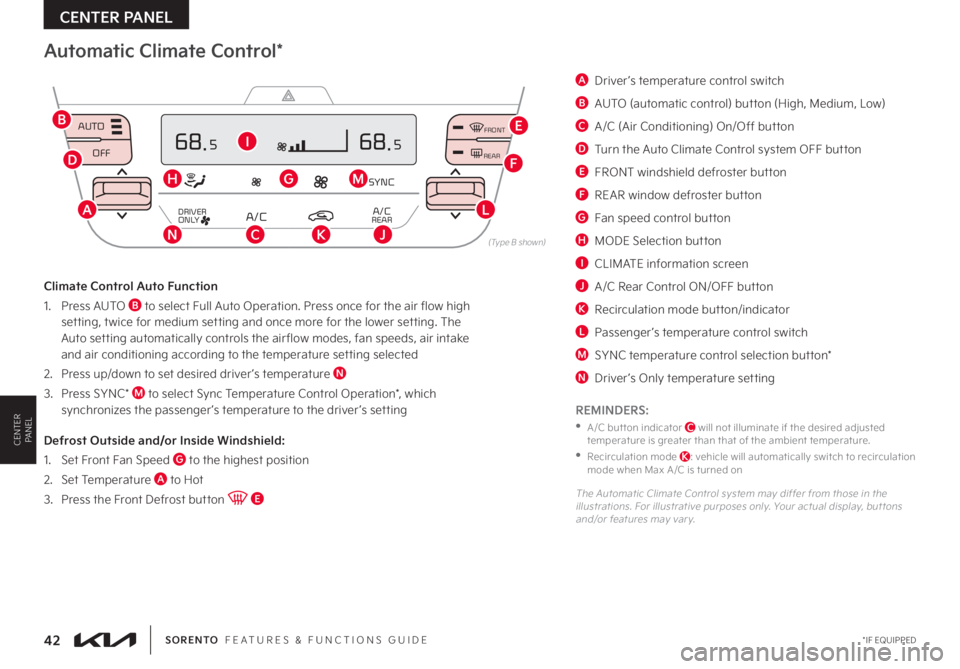

Automatic Climate Control*
A Driver ’s temperature control switch
B AUTO (automatic control) button (High, Medium, Low)
C A/C (Air Conditioning) On/Off button
D Turn the Auto Climate Control system OFF button
E FRONT windshield defroster button
F REAR window defroster button
G Fan speed control button
H MODE Selection button
I CLIMATE information screen
J A/C Rear Control ON/OFF button
K Recirculation mode button/indicator
L Passenger ’s temperature control switch
M SYNC temperature control selection button*
N Driver ’s Only temperature setting
(Type B shown)
Climate Control Auto Function
1
. Press AUTO B to select Full Auto Operation . Press once for the air flow high setting, twice for medium setting and once more for the lower setting . The Auto setting automatically controls the air flow modes, fan speeds, air intake and air conditioning according to the temperature setting selected
2 . Press up/down to set desired driver ’s temperature N
3 . Press SYNC* M to select Sync Temperature Control Operation*, which synchronizes the passenger ’s temperature to the driver ’s setting
Defrost Outside and/or Inside Windshield:
1 .
Set Front Fan Speed G to the highest position
2 . Set Temperature A to Hot
3 .
Press the Front Defrost button E
REMINDERS:
•
A /C but ton indicator C will not illuminate if the desired adjusted temperature is greater than that of the ambient temperature .
•
Recirculation mode K: vehicle will automatically switch to recirculation mode when Max A /C is turned on
The Automatic Climate Control system may differ from those in the illustrations . For illustrative purposes only . Your actual display, but tons and/or features may var y .
B
C
D
E
GH
I
JK
L
MF
A
N
CENTER PANEL
CENTER PANEL

43 *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
Automatic Climate Control* (continued)
REMINDERS:
•
Pressing any but ton during AUTO operation will deactivate the AUTO function and switch to manual mode, except for Temperature Control
•
When in AUTO mode, Air Flow Mode and Fan Speed do not display on the Climate Control Display
•
Warm air may flow in through the vents if the Recirculated Air but ton is not pressed ON (LED lit)
•
Continuous use of the climate control system in the recirculated air position may allow humidit y to increase inside the vehicle which may fog the glass and obscure visibilit y and/or cause smell/odor

Your Automatic Climate Control system may differ from those in the illustrations . Refer to section 4 in the Owner ’s Manual for more information .
For illustrative purposes only . Your actual display, but tons and/or features may var y .
Air Flow Modes
To select Air Flow Modes, press the mode button H to cycle through to the desired mode:
Auto Defogging System (ADS)
Auto defogging is designed to reduce the fogging up of the inside of the windshield by automatically sensing the moisture of the inside of the windshield . The system will automatically change to defrost mode when needed .
Auto Defogging is set ON by default . To cancel Auto Defogging, press the Front Defrost button for three seconds, when the ignition is in on (ADS OFF icon will illuminate) . To turn Auto Defogging on
again, press the Front Defrost button for three seconds .
Face-Level
Bi-Level
Floor-Level
Floor/Defrost-Level
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Automatic Climate Control Operation Video
Auto Defogging System (ADS) Video
QR CODE
•Defrost Mode opens Fresh Air Vent to help dehumidify the air and improve Defroster per formance
•During Auto Operation, the A /C indicator will NOT illuminate . The fan speed, air intake, air flow and air conditioning may automatically be engaged at any time to reach desired temperature and reduce humidit y
•Keep inside glass as clean as possible to reduce window fogging
QUICK TIPS
CENTER PANEL
CENTER PANEL

Air Conditioning / Climate Control – page 41-42Demonstrate Air Flow Modes, Defog and Defrosting Windshield Fan Speed
Windshield/Rear Wipers & Washers – page 30
*IF EQUIPPED
Front Seat Headrest

Adjustment

– page 48Owner ’s Name:
VIN:
Mileage:

Dealership Name:
Sales Consultant:
Date:
BEFORE DELIVERY Test and confirm “Good Battery” using a Kia battery tester and affix Results Label Verify all tire pressures are to spec (see driver ’s door label) LF

LR

RF

RR

Verify proper operation of Remote Keyless Entry and Smart Key lock/unlock Ensure floor mats are snapped into place (if applicable) Verify vehicle is clean (interior and exterior), in good condition and free of chips and scratches Ensure all key documents are in the vehicle (Owner ’s Manual, Warranty and Consumer Information booklet, Tire Warranty booklet and Features & Functions Guide and any Audio System User ’s Manual)KEY FEATURE WALKTHROUGH
To operate: •Move lever Up/Down to change Wiper modes •
Push switch to adjust Intermit tent Wipe •Pull lever to spray and wipe
•Rotate Rear Wiper switch to

change Wiper modes •Push to spray and wipe
MIST:
Single wipe
OFF:
Wiper off
I N T:

Intermittent wipe/

Rain Sensing*
LO:
Slow wipe
HI: Fast wipe
HI: Fast wipeLO:
Slow wipe
OFF:
Wiper off
SORENTO
CUSTOMER DELIVERY CHECKLIST
AUTO
OFF
DRIVER
ONLY
A/CREARSYNC
REAR FRONT
A/C
68.
5
68.
5
REAR
A/CMAXA/C
１
2
0 3
4
Automatic*
Type A
(front operation)
(rear operation)Manual*
MIST
OFF
AUTO
LO
HI
HI
REAR
LO
OFF
MIST OFF
AUTO
LO
HI
HI
REAR
LO
OFF
MIST OFF
AUTO
LO
HI
HI
REAR
LO
OFF
MIST OFF
AUTO
LO
HI
HI
REAR
LO
OFF
