2022 KIA NIRO PHEV Owners Manual

Driving your vehicle
126
5
(Continued)
- Highway interchange andtollgate
- Road surrounded by multi- ple steel constructions (sub-
way construction, steel tun-
nel, etc)
- Parking lot
- Lanes beside guard rail on a road
- Slippery road with rain, ice, or snow covered
- Abrupt curved road
- Steep hills
- Windy roads
- Off roads
- Rods under construction
- Rumble strip
- When driving near crash bar- riers
(Continued)(Continued)- When the vehicle sensingability decreases due to
vehicle modification that
causes a difference in the
level of the vehicle's front
and rear
- When driving with limited view (possibly due to bad
weather, such as fog, snow,
rain or sandstorm)
Pay particular attention to the driving conditions whenever
using Smart Cruise Control.
Smart Cruise Control is not a substitute for safe driving. It is
the responsibility of the driver
to always check the speed
and distance of the vehicle
ahead.
Be careful when driving downhill using Smart Cruise
Control.
(Continued)(Continued)
Smart Cruise Control shouldnot be used when the vehicle
is being towed.
Always set the vehicle speed under the applicable speed
limit.
Unexpected situations may lead to accidents. Pay contin-
uous attention to road condi-
tions and your surroundings
even when Smart Cruise
Control is operating.

5127
Driving your vehicle

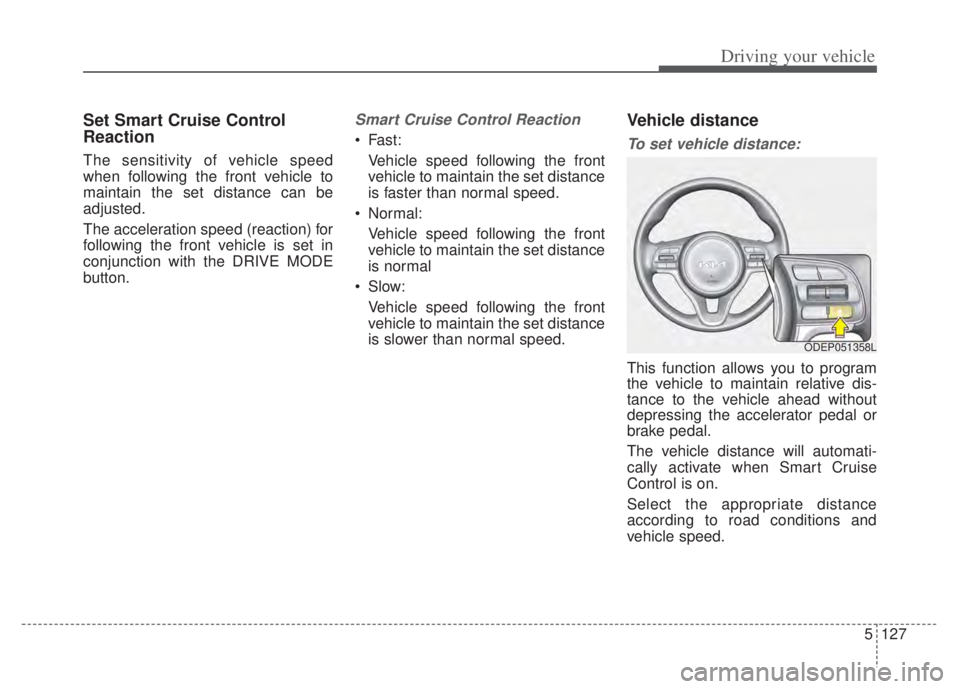

Set Smart Cruise Control
Reaction
The sensitivity of vehicle speed
when following the front vehicle to
maintain the set distance can be
adjusted.
The acceleration speed (reaction) for
following the front vehicle is set in
conjunction with the DRIVE MODE
button.
Smart Cruise Control Reaction
• Fast:Vehicle speed following the front
vehicle to maintain the set distance
is faster than normal speed.
Normal: Vehicle speed following the front
vehicle to maintain the set distance
is normal
Slow: Vehicle speed following the front
vehicle to maintain the set distance
is slower than normal speed.
Vehicle distance
To set vehicle distance:
This function allows you to program
the vehicle to maintain relative dis-
tance to the vehicle ahead without
depressing the accelerator pedal or
brake pedal.
The vehicle distance will automati-
cally activate when Smart Cruise
Control is on.
Select the appropriate distance
according to road conditions and
vehicle speed.
ODEP051358L

Driving your vehicle
128
5
Each time the button is pressed, the
vehicle distance changes as follows:
For example, if you drive at 56 mph
(90 km/h), the distance maintain as
follows;
Distance 4 - approximately 172 feet
(52.5 m)
Distance 3 - approximately 130 feet (40 m)
Distance 2 - approximately 106 feet (32.5 m)
Distance 1 - approximately 82 feet
(25 m) ✽ ✽
NOTICE
The distance is set to the last set dis-
tance when the function is used for
the first time after starting the
engine.
When the lane ahead is clear :
The vehicle speed will maintain the
set speed.
Distance 4 Distance 3 Distance 2
Distance 1
ODEP059093N

5129
Driving your vehicle
The vehicle will maintain the setspeed, when the lane ahead is
clear.
The vehicle will slow down or speed up to maintain the selected
distance, when there is a vehicle
ahead of you in the lane. (A vehicle
will appear in front of your vehicle
in the LCD display only when there
is an actual vehicle in front of you)
If the vehicle ahead speeds up, your vehicle will travel at a steady
cruising speed after accelerating to
the selected speed.
If you turn on the driver’s side turn signal when there is a vehicle
ahead, your vehicle may temporar-
ily accelerate to assist you in
changing lanes.
ODEP059319N
ODEP059082N
ODEP059081N
ODEP059083N
When there is a vehicle ahead of you in your lane :

Driving your vehicle
130
5
Collision Warning
If there is a high risk of collision due
to sudden braking of the front vehicle
or lack of safety distance with the
vehicle ahead during Smart Cruise
Control driving, so that if the driver's
brake or steering wheel operation is
required, the Distance Step with the
vehicle ahead will blink on the cluster
and a Collision Warning will sound.
In this case, immediately reduce the
speed.
OJF058389L
CAUTION
Even if the warning message
does not appear and warningchime does not sound, alwayspay attention to driving condi-tions to prevent dangeroussituations from occurring.
Playing the vehicle audio sys- tem at high volume may causethe occupants to not hear thefunction warning sounds.
If the vehicle cannot keep the enough set distance, thewarning will sound and blinkon the cluster. If a warningsounds, check the nearby traf-fic condition and if necessary,control the speed by depress-ing the brake. Always payattention in case of danger,even if there are no warningsound.
WARNING
If the speed of the vehicle ahead is similar to or faster
than your vehicle, the function
may not warn you as you do
not maintain enough set dis-
tance. Always pay attention in
case of danger, even if there is
no warning sound.
If the speed of the vehicle ahead is too slow, the func-
tion may not warn you as you
do not maintain enough set
distance. Always pay atten-
tion in case of danger, even if
there is no warning sound.
If you set Smart Cruise Control speed and depress
the accelerator pedal, the
function may not warn you as
you do not maintain enough
set distance. Always pay
attention in case of danger,
even if there is no warning
sound.

5131
Driving your vehicle
In traffic situation
Use switch or pedal to accelerate
In traffic, your vehicle will stop if thevehicle ahead of you stops. Also, if
the vehicle ahead of you starts
moving, your vehicle will start as
well. However, if the vehicle stops
you must depress the accelerator
pedal or push up the switch
(RES+) to start driving. If you push switch (RES+ or SET-)
while Auto Hold and Smart Cruise
Control is operating the Auto Hold
will be released regardless of
accelerator pedal operation and
the vehicle will start to move. The
AUTO HOLD indicator changes
from green to white. (if equipped
with EPB (Electronic Parking
Brake))
CAUTION
If the vehicle ahead (vehiclespeed: less than 20 mph (30km/h) disappears to the nextlane, the warning chime willsound and a message willappear. Adjust your vehiclespeed for vehicles or objectsthat can suddenly appear infront of you by depressing thebrake pedal according to theroad condition ahead and driv-ing condition.
ODEP059084L OJF058402L

Driving your vehicle
132
5
Detecting sensor (Front view
camera/Front radar)
Front view camera
Front view camera (1) is a sensor for
detecting lanes and the front vehi-
cles.
If the sensor is covered with dirt,
snow or other foreign matter, the
sensor’s detection performance will
be degraded and Smart Cruise
Control will be temporarily cancelled
so that it does not properly work. Always keep the area in front of the
sensor clean.
For more information of front view
camera, refer to "Lane Keeping
Assist (LKA)"
Front radar
Front radar (1) detects the distance
to the vehicle ahead.
If the sensor or sensor cover is cov-
ered with dirt, snow or other foreign
matter, the sensor’s detection per-
formance will be degraded and
Smart Cruise Control will be tem-
porarily cancelled so that it does not
properly work.
Always keep the area in front of the
sensor clean.ODEP051029
ODEP051418N

5133
Driving your vehicle
Warning message
When the sensor lens cover is
blocked with dirt, snow, or debris,
Smart Cruise Control operation may
stop temporarily. If this occurs, a
warning message will appear on the
LCD display. Remove any dirt, snow,
or debris and clean the radar sensor
lens cover before operating Smart
Cruise Control. Smart Cruise Control
may not properly activate, if the radar
is totally contaminated, or if any sub-
stance is detected after turning ON
the engine (e.g. in an open terrain).
Smart Cruise Control malfunctionmessage
The message will appear when the
vehicle distance control function is
not functioning normally.
Take your vehicle to an authorized
Kia dealer and have the function
checked.
OJF058404L
OJF058406L
CAUTION
Do not install accessories around the sensor and do notreplace the bumper by your-self. It may interfere with thesensor performance.
Always keep the sensor and bumper clean.
Use only a soft cloth to wash the vehicle. Do not spray pres-surized water directly on thesensor or sensor cover.
Be careful not to apply unnec- essary force on the radar sen-sor or sensor cover. If the sen-sor is forcibly moved out ofproper alignment, SmartCruise Control may not oper-ate correctly. In this case, awarning message may not bedisplayed.
Have the function checked byan authorized Kia dealer.
(Continued)
