2022 KIA K5 window

TABLE OF CONTENTS
VIDEOS & QR CODES .........Inside Cover
INSTRUMENT CLUSTER
Instrument Cluster Overview ................03Indicators & Warning Lights ..................04Tire Pressure Monitoring System (TPMS) ..... 05Instant Fuel Economy / Fuel Economy ........06Drive Mode Integrated Control System .......07
VEHICLE SETTINGS
LCD Instrument Cluster Modes ...............08Trip Modes / Trip Computer ..................08User Settings – Instrument Cluster ...........09Service Interval Mode .......................09Vehicle Settings – Audio Head Unit* .......... 10Vehicle Auto-Shut Off* ...................... 10
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
Forward Collision-Avoidance Assist (FCA) ......11Lane Keeping Assist (LK A) ....................12Blind-Spot Collision-Avoidance Assist (BCA)* ...13Safe Exit Assist (SEA)* ........................14Driver Attention Warning (DAW) ...............14Leading Vehicle Departure Alert (LVDA) .......15Cruise Control (CC)* ..........................15Smart Cruise Control (SCC)* ..................16Navigation-based Smart Cruise Control - Curve (NSCC-C)* .........................17Lane Following Assist (LFA) ...................18Highway Driving Assist (HDA)* ................19Rear View Monitor (RVM) ....................20Surround View Monitor (SVM)* ...............20Rear Cross-Traffic Collision Avoidance Assist (RCCA)* .............................21Reverse Parking Collision-Avoidance Assist (PCA)* ..............................22Forward/Reverse Parking Distance Warning (PDW)* ....................................22
DRIVER’S PANEL
Instrument Cluster Control* .................. 23Electronic Stability Control (ESC) ............. 23Hill-Start Assist Control (HAC) ................ 23Engine Start/Stop Button* ................... 24Manual Folding Mirrors* ..................... 24Power Windows, Window Lock & Central Door Lock ....................... 25Auto Door Lock/Unlock ...................... 25Power Folding Outside Mirrors* .............. 25Power/Heated Outside Mirrors* .............. 25Electronic Child Safety Lock System* ......... 25
STEERING WHEEL CONTROLS
Headlights & High Beams .................... 26Turn Signals & Fog Lights* ................... 27Windshield Wipers & Washers ................ 27Lifting Wipers (Wiper Service Mode) .......... 27Heated Steering Wheel Button* .............. 28Tilt/Telescoping Steering Wheel .............. 28
AUDIO SYSTEMS
Audio Controls ............................. 29 Bluetooth® Wireless Technology ............. 30 Android Auto™ / Apple CarPlay® Setup ........ 32Standard Audio System - Value* .............. 33UVO link Activation* ......................... 34UVO Assistance* ............................ 34Kia Access with UVO link App Download ...... 35Kia Access with UVO link App Features Guide . 35Standard Audio System - Value with UVO link* 36UVO link with Navigation* ................... 37
CENTER PANEL
Multimedia USB Port & Power Outlets ........ 38Digital Clock (Audio Head Unit) .............. 38USB Charger Ports* ......................... 38Idle, Stop & Go (ISG) System ................. 39Wireless Smartphone Charging System* ...... 40
CENTER PANEL CONTINUED
Automatic Climate Control ................... 41Electronic Parking Brake (EPB) ............... 42Auto Hold .................................. 42Automatic Gear Shift with Sportmatic® Shifting .43Paddle Shifters* ............................. 43Dual Clutch Transmission (DCT)* ............. 44Seat Warmers* / Ventilated Seats* ............ 44
SEATING
Driver Position Memory System* .............45Power Adjustable Driver ’s Seat* ..............456-Way Manual Adjustable Driver ’s Seat* ......46Rear Occupant Alert (ROA) with Door Monitoring ...................... 46Front Seat Headrest Adjustment .............46
OTHER KEY FEATURES
Map/Room Lamps .......................... 47Panoramic Sunroof with Power Sunshade* .... 47Smart Key* .................................48Remote Keyless Entry (Folding Key)* .......... 49Double-Turn Lock/Unlock All ................. 49Fuel Cap / Malfunction Indicator (Check Engine Light) ...................... 49Fuel Filler Door Release ...................... 49Trunk Release Buttons ...................... 50Smart Trunk with Auto Open* ................50Sunvisor .................................... 51Hood Release Lever and Latch ............... 51
SAFETY FEATURES
Occupant Detection System (ODS) / Passenger Airbag Off Indicator ............ 52Child-Protector Rear Door Locks (Manual)*. . . . 52Seat Belts .................................. 52
MAINTENANCE - TURBO .....Back Cover
LEGAL DISCLAIMERS ....Inside Back Cover
*IF EQUIPPED2K5 FEATURES & FUNCTIONS GUIDE

†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED24K5 FEATURES & FUNCTIONS GUIDE
DRIVER’SPANEL
DRIVER’S PANEL
Refer to section 4 in the Owner ’s Manual for more information.
If needed, pull the mirror firmly until it folds.
QUICK TIP
(Located right of Steering Wheel)
Engine Start/Stop Button†8
To start the engine:
•Press the brake pedal
•
Press the ENGINE START/STOP button A while the gear shift is in P (Park) or N (Neutral)
To turn the engine OFF, press the ENGINE START/STOP button.
To use the ENGINE START/STOP button, you must have the Smart Key fob on your person.
To use electrical accessories:
ACC position
•When in the OFF position and without depressing the brake pedal, press the ENGINE START/STOP but ton once
ON position
•When already in the ACC position and without depressing the brake pedal, press the ENGINE START/STOP but ton again
•When in the OFF position and without depressing the brake pedal, press the ENGINE START/STOP but ton t wice
Keeping the vehicle in ACC or ON position without turning the engine on may discharge the vehicle’s bat ter y
QUICK TIPS
REMINDERS:
•
In an emergency situation while the vehicle is in motion, you are able to turn the engine off and to the ACC position by pressing the ENGINE START/STOP but ton for more than 2 seconds or 3 times successively within 3 seconds
•
If the Smar t Key bat ter y is weak or not working properly, hold the Smar t Key fob up to the ENGINE START/STOP but ton (Lock but ton side closest) and press to star t engine
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Engine Start/Stop Button Video
QR CODE
ENGINESTARTSTOP
For illustrative purposes only. Your actual display, but tons and/or features may var y.
Refer to section 5 in the Owner ’s Manual for more information.
Manual Folding Mirrors*
To fold the mirrors in manually, pull the mirror towards the window.

LRLRLRLR
*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 25
DRIVER’SPANEL
DRIVER’S PANEL
Power Windows, Window Lock & Central Door Lock
A Pull/Press to operate Driver ’s and Passenger ’s Windows Auto-Up/Down*
B Press to Unlock/Lock All Doors
C Press to disable Rear Passenger Windows / activate Electronic Child Safety Lock System
REMINDERS:
• When C is pressed, window controls for the Rear Passenger Windows are disabled
•When closing, be mindful of any objects or persons
Power Folding Outside Mirrors *
Press the L or R buttons D to select the mirror to adjust.
Press button arrows E left/right or up/down to adjust mirror position.
Toggle button F left/right to unfold/fold the outside rearview mirrors.
Toggle button F to center to automatically fold/unfold mirrors when:
•The Smart Key Lock/Unlock buttons are pressed
•The door outside handle button is pressed
But ton configuration may var y depending on vehicle model.
A
A
B
C
D
E
F
•While driving with the rear windows down or with the sunroof* in an open or par tially open position, a wind buffeting or pulsation noise may be heard. This noise is a normal occurrence and can be reduced or eliminated by the following:
-If the noise occurs with one or both of the rear windows down, par tially lower both front windows approximately 1 inch
-If the noise occurs with the sunroof open, slightly reduce the size of the sunroof opening
QUICK TIPS •The mirrors will automatically unfold when the Smar t Key is within close proximit y to the vehicle
•To automatically fold mirrors when exiting vehicle, press the LOCK but ton once on the Smar t Key
QUICK TIPS
REMINDER: To lock position of mirrors, toggle switch to the neutral (center) position.
Power/Heated Outside Mirrors
Mirror heaters controlled with Rear Defroster. Use mirror to defog/deice side mirrors.
Move toggle switch D left or right to select mirror. Then press arrows E left/right or up/down to adjust mirror position.
Automatic Door Lock/Unlock
Auto Door Lock/Unlock will engage when the gear shift is moved into or out of the P (Park) position. Refer to the User Settings in the LCD Instrument Cluster modes on how to turn Auto Door Lock/Unlock ON/OFF.
Electronic Child Safety Lock System*
Press button C to lock the rear passenger doors. An indicator will illuminate showing the system is active.
This system is on by default, and then activated once the button C is pressed. To deactivate, press the button again.
Press but ton again to stop Auto-Up/Down function.
QUICK TIP
For more information on all items on this page, refer to section 4 in the Owner ’s Manual.

†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 31
AUDIOSYSTEMS
AUDIO SYSTEMS
Bluetooth® Wireless Technology*†5 , 2 1 (continued)
Voice Recognition* and Phone Contact Tips
The system may have difficulty understanding some accents or uncommon names. Improve the per formance by making a few simple changes to your phone contacts, listed below. To help optimize the Bluetooth® Wireless Technology Voice Recognition system, see other tips and reminders under Quick Tips.
•Use full names (first and last names) vs. short or single-syllable names (“John Smith” vs. “Dad,” “Smith Residence” vs. “Home”)
•Avoid using special characters, emojis or hyphenated names (@, &, #, /, -, *, +, etc.)
•Avoid using acronyms (“In Case of Emergency” vs. “ICE”) or words with all capital letters
•Spell words completely, no abbreviations (“Doctor Smith” vs. “Dr. Smith”)
•The system may register or pair multiple Bluetooth® devices. See the Car Infotainment System Quick Reference Guide for more information on setup and limitations
•Bluetooth® Music Streaming – If the Bluetooth® music is inaudible or too low, you may need to turn up the volume on the connected phone
•When placing a call, speak in a natural, moderate tone, with clear pronunciation. The system may have trouble recognizing commands if you speak too softly or too loudly
•Always wait for the beep before speaking any commands
•Close windows and sunroof and turn off A /C – open windows, sunroof, weather (wind/rain), or an A /C fan operating at higher speeds can inter fere with Voice Recognition
•Press the talk but ton and say “Help” to get a list of available commands
QUICK TIPS
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Voice Recognition Tips Video
QR CODE

†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED36K5 FEATURES & FUNCTIONS GUIDE
Standard Audio System - Value with UVO link*†1 ,1 2
– FM/AM/SiriusXM®†1 8/Media (USB, Aux, Bluetooth® Au d io)
UVO link is currently unavailable for model year 2022 vehicles sold or purchased in Massachuset ts.See UVO Terms of Ser vice at owners.kia.com for more information.
Driving while distracted is dangerous and should be avoided. Drivers should remain at tentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving. To help minimize driver distraction, some audio system functionalities have been modified while the vehicle is in Drive, Reverse or moved out of Park.
AUDIOSYSTEMS
AUDIO SYSTEMS
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Standard Audio System – Value with UVO link Video
QR CODE
•Volume level bet ween different audio modes:
-
When switching bet ween audio modes (AM, FM, Bluetooth® Audio, etc.), the audio system saves the previous volume level you were listening to. For example, if you were listening to FM radio at volume level 20 then switched to Bluetooth® Audio and adjusted the volume level to 30, the volume level will be at 20 when you switch back to FM radio
-When using Bluetooth® Audio, the overall volume is dependent on your device’s volume. If the volume is turned down low on your device it will remain low even if the system volume is turned up
•To download map updates for the navigation system, go to update.kia.com. Check for updates that are generally available t wice a year
•At any time, you can interrupt UVO link Command Feedback by pressing the TALK but ton on the steering wheel
•Prolonged use of the navigation system in ACC mode may drain the vehicle’s bat ter y. A warning screen may appear periodically to remind users that the navigation system should be operated when the engine is running to prevent bat ter y discharge
•This system suppor ts Android Auto™ and Apple CarPlay® (USB connection only)
QUICK TIPS
System reset
MAP< SEEKMEDIARADIO
N AVTRACK >
SETUP
Press briefly to do the following: • FM/AM mode: Play the previous/next frequency • SiriusXM™ mode: Change the channel • MEDIA mode: Change the track, file or title Press and hold to the do the following (over 0.8 seconds): • FM/AM mode: Move quickly through all of the frequencies. W h e n r e l e a s e d , t h e s y s t e m s e e k s t h e n e x t a v a i l a b l e f r e q u e n c y• MEDIA mode: Rewinds or fast for wards the track or file (except for Bluetooth® Audio)
Press to toggle bet ween AM, FM, and SiriusXM® modesPress to display the media selection window
Press to Power ON/OFF. Rotate to adjust Volume
A programmable key to provide quick access to one of several available system features
• Displays the Set tings screen. Press & hold to show SW Info/Update screen
Sound Settings: To adjust the audio system sound settings:
1. Press the SETUP key on the audio head unit or the on-screen MENU button, when in MEDIA mode. Select the on-screen SOUND button
2.
Select the menu item (Position, Volume, Tone, Priority, Navigation Volume, Advanced, Reset)
3. Use the on-screen buttons to adjust settings
Radio Presets: You can listen to FM, AM and SiriusXM® radio and save frequently used stations
How to Save a Preset: Press and hold the desired slot. This saves the current station in the selected slot in AM, FM, or SiriusXM®
Smart Favorites: For the first ten favorite SiriusXM® channels, you may play live or repeat from the beginning of a song or a program segment. In Radio mode, choose SiriusXM®, then select any of the first six favorites. During song or program play, tap the Skip Backward icon to start from the beginning of the song or program. Tap the Play Live icon to return to the live broadcast
Custom Key H A programmable key to provide quick access to one of several available system features
To Program the Custom Key: Press and hold the Custom Key. Select one of the available features you would like the Custom Key to open
Your vehicle’s audio system may differ from that in the illustration.
For fur ther UVO link with Navigation operations, refer to the Car Infotainment System Quick Reference Guide. For other audio system information, see pages 29-37.

†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 37
UVO link†1 with Navigation*†1 4 – FM/AM/SiriusXM®†2 0/Media (USB, Aux, Bluetooth® Au d io)
UVO link is currently unavailable for model year 2022 vehicles sold or purchased in Massachuset ts.See UVO Terms of Ser vice at owners.kia.com for more information.
Driving while distracted is dangerous and should be avoided. Drivers should remain at tentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving. To help minimize driver distraction, some audio system functionalities have been modified while the vehicle is in Drive, Reverse or moved out of Park.
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
UVO link with Navigation Video
QR CODE
•Volume level bet ween different audio modes:
-
When switching bet ween audio modes (AM, FM, Bluetooth® Audio, etc.), the audio system saves the previous volume level you were listening to. For example, if you were listening to FM radio at volume level 20 then switched to Bluetooth® Audio and adjusted the volume level to 30, the volume level will be at 20 when you switch back to FM radio
-When using Bluetooth® Audio, the overall volume is dependent on your device’s volume. If the volume is turned down low on your device it will remain low even if the system volume is turned up
•To download map updates for the navigation system, go to update.kia.com. Check for updates that are generally available t wice a year
•At any time, you can interrupt UVO link Command Feedback by pressing the TALK but ton on the steering wheel
•Prolonged use of the navigation system in ACC mode may drain the vehicle’s bat ter y. A warning screen may appear periodically to remind users that the navigation system should be operated when the engine is running to prevent bat ter y discharge
•This system suppor ts Android Auto™ and Apple CarPlay® (USB connection only)
QUICK TIPS
Press to display the MAP screen for the current position mode
Press to select navigation mode
System reset
MAP< SEEKMEDIARADIO
N AVTRACK >
SETUP
Press briefly to do the following: • FM/AM mode: Play the previous/next frequency • SiriusXM™ mode: Change the channel • MEDIA mode: Change the track, file or title Press and hold to the do the following (over 0.8 seconds): • FM/AM mode: Move quickly through all of the frequencies. W h e n r e l e a s e d , t h e s y s t e m s e e k s t h e n e x t a v a i l a b l e f r e q u e n c y• MEDIA mode: Rewinds or fast for wards the track or file (except for Bluetooth® Audio)
Press to toggle bet ween AM, FM, and SiriusXM® modes
Press to display the media selection window
Press to Power ON/OFF. Rotate to adjust Volume
A programmable key to provide quick access to one of several available system features• Displays the Set tings screen. Press & hold to show SW Info/Update screen
Sound Settings: To adjust the audio system sound settings:
1. Press the SETUP key on the audio head unit or the on-screen MENU button, when in MEDIA mode. Select the on-screen SOUND button
2.
Select the menu item (Position, Volume, Tone, Priority, Navigation Volume, Advanced, Reset)
3. Use the on-screen buttons to adjust settings
Radio Presets: You can listen to FM, AM and SiriusXM® radio and save frequently used stations
How to Save a Preset: Press and hold the desired slot. This saves the current station in the selected slot in AM, FM, or SiriusXM®
Smart Favorites: For the first ten favorite SiriusXM® channels, you may play live or repeat from the beginning of a song or a program segment. In Radio mode, choose SiriusXM®, then select any of the first six favorites. During song or program play, tap the Skip Backward icon to start from the beginning of the song or program. Tap the Play Live icon to return to the live broadcast
Custom Key H A programmable key to provide quick access to one of several available system features
To Program the Custom Key: Press and hold the Custom Key. Select one of the available features you would like the Custom Key to open
Your vehicle’s audio system may differ from that in the illustration.
For fur ther UVO link with Navigation operations, refer to the Car Infotainment System Quick Reference Guide. For other audio system information, see pages 29-36.
AUDIOSYSTEMS
AUDIO SYSTEMS

*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 41
CENTER PANEL
CENTER PANEL
•Defrost mode activates A /C and opens Fresh Air Vent to help dehumidify the air and improve Defroster per formance
•During Auto Operation, the A /C indicator will NOT illuminate. The fan speed, air intake, air flow and air conditioning may automatically be engaged at any time to reach desired temperature and reduce humidit y
•Keep the inside glass as clean as possible to reduce window fogging
QUICK TIPS
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Automatic Climate Control Operation Video
Auto Defogging System(ADS) Video

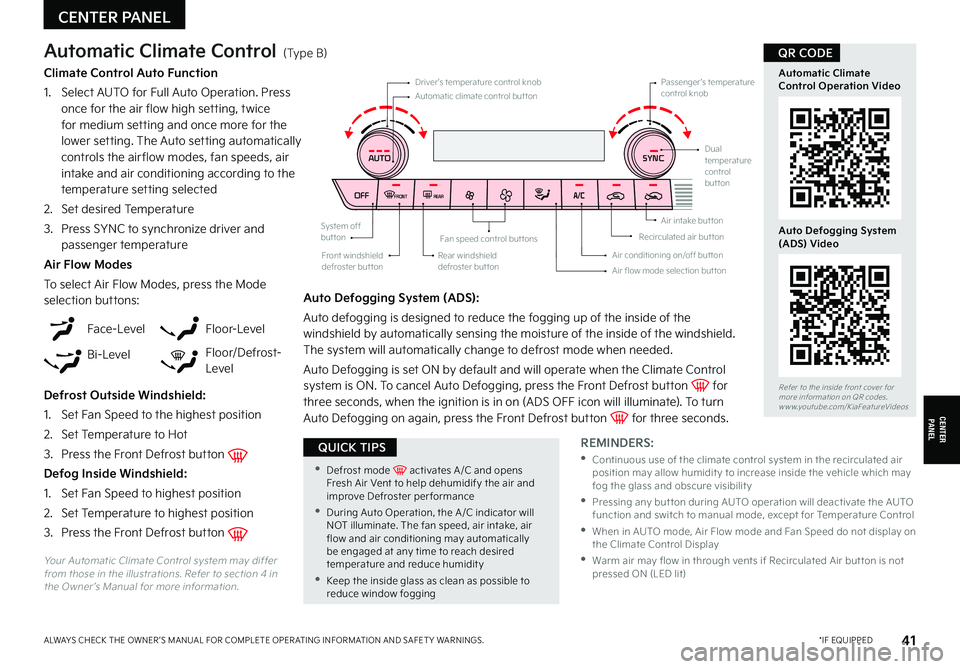

QR CODEAutomatic Climate Control (Type B)
Climate Control Auto Function
1. Select AUTO for Full Auto Operation. Press once for the air flow high setting, twice for medium setting and once more for the lower setting. The Auto setting automatically controls the air flow modes, fan speeds, air intake and air conditioning according to the temperature setting selected
2. Set desired Temperature
3. Press SYNC to synchronize driver and passenger temperature
Air Flow Modes
To select Air Flow Modes, press the Mode selection buttons:
Face-Level
Bi-Level
Floor-Level
Floor/Defrost- Level
REMINDERS:
•
Continuous use of the climate control system in the recirculated air position may allow humidit y to increase inside the vehicle which may fog the glass and obscure visibilit y
•
Pressing any but ton during AUTO operation will deactivate the AUTO function and switch to manual mode, except for Temperature Control
•
When in AUTO mode, Air Flow mode and Fan Speed do not display on the Climate Control Display
•
Warm air may flow in through vents if Recirculated Air but ton is not pressed ON (LED lit)
Defrost Outside Windshield:
1.
Set Fan Speed to the highest position
2. Set Temperature to Hot
3.
Press the Front Defrost button
Defog Inside Windshield:
1. Set Fan Speed to highest position
2. Set Temperature to highest position
3.
Press the Front Defrost button
Fan speed control but tons
Rear windshield defroster but tonFront windshield defroster but tonAir flow mode selection but ton
Passenger’s temperature control knob
Air conditioning on/off but ton
Recirculated air but tonAir intake but ton
Dual temperature control button
System off button
Driver ’s temperature control knobAutomatic climate control but ton
12VUSB180W
AUTO
OFF SYNC
FRONT
REAR
Auto Defogging System (ADS):
Auto defogging is designed to reduce the fogging up of the inside of the windshield by automatically sensing the moisture of the inside of the windshield. The system will automatically change to defrost mode when needed.
Auto Defogging is set ON by default and will operate when the Climate Control system is ON. To cancel Auto Defogging, press the Front Defrost button for three seconds, when the ignition is in on (ADS OFF icon will illuminate). To turn Auto Defogging on again, press the Front Defrost button for three seconds.
Y o u r Automatic Climate Control system may differ from those in the illustrations. Refer to section 4 in the Owner ’s Manual for more information.

†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 51
OTHER KEY FEATURES
OTHER KEY FEATURES
(Located on Driver side kick panel)(Located inside of Hood's center)
Hood Release Lever and Latch
Opening the Hood:
1. Pull the Hood Release Lever A to unlatch the Hood
2. In the front of the vehicle, lift the Hood slightly, push the secondary Latch B to the left inside of the Hood’s center and lift the Hood
Closing the Hood:
Lower the Hood by pressing the front center of the Hood. Then, press down to securely lock in place.
Sunvisor†2 2
Use the Sunvisor to shield direct light through the front or side windows. Slide the Sunvisor out and adjust as needed.
REMINDERS:
•The Sunvisor may impair visibilit y if not adjusted properly
•Sunvisor may not shield all direct light
•
Do not operate the vehicle if Sunvisor is impairing your visibilit y
•
Be aware of your seating position when adjusting or swinging Sunvisor around from the front or side windows
Refer to section 4 in the Owner ’s Manual for more information.
REMINDERS:
•
While lowering and closing, keep hands away from under the Hood
•
Open the Hood only after turning the engine off, on a flat sur face, with the gear shift in the P (Park) position and set ting the parking brake
Refer to section 4 in the Owner ’s Manual for more information.
A
B
