2022 HYUNDAI TUCSON remote control

Driver assistance system

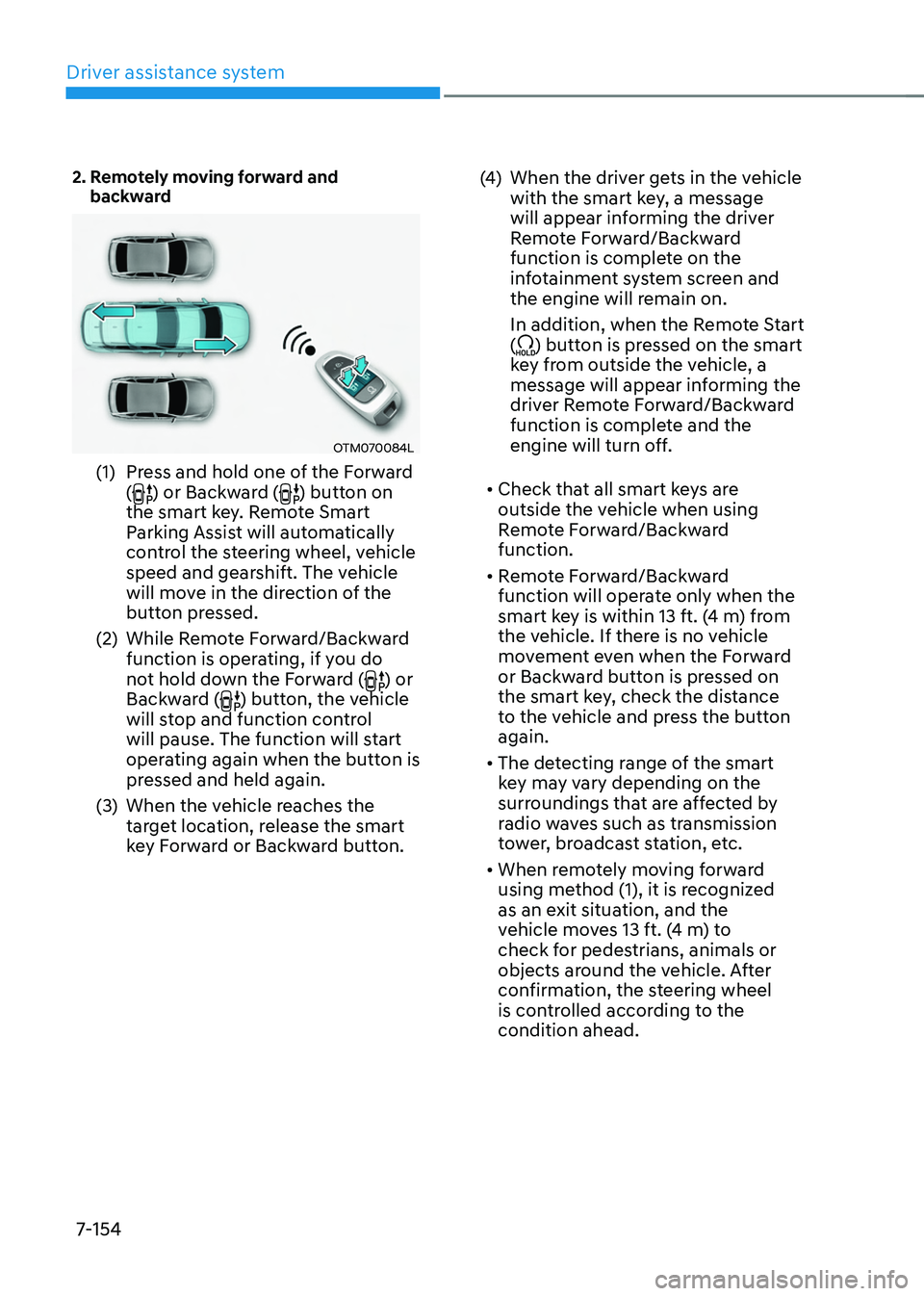

7-154
2. Remotely moving forward and backward
OTM070084L
(1) Press and hold one of the Forward
() or Backward () button on
the smart key. Remote Smart
Parking Assist will automatically
control the steering wheel, vehicle
speed and gearshift. The vehicle
will move in the direction of the
button pressed.
(2) While Remote Forward/Backward
function is operating, if you do
not hold down the Forward (
) or
Backward () button, the vehicle
will stop and function control
will pause. The function will start
operating again when the button is
pressed and held again.
(3) When the vehicle reaches the
target location, release the smart
key Forward or Backward button.
(4) When the driver gets in the vehicle
with the smart key, a message
will appear informing the driver
Remote Forward/Backward
function is complete on the
infotainment system screen and
the engine will remain on.
In addition, when the Remote Start
(
) button is pressed on the smart
key from outside the vehicle, a
message will appear informing the
driver Remote Forward/Backward
function is complete and the
engine will turn off.
• Check that all smart keys are
outside the vehicle when using
Remote Forward/Backward
function.
• Remote Forward/Backward
function will operate only when the
smart key is within 13 ft. (4 m) from
the vehicle. If there is no vehicle
movement even when the Forward
or Backward button is pressed on
the smart key, check the distance
to the vehicle and press the button
again.
• The detecting range of the smart
key may vary depending on the
surroundings that are affected by
radio waves such as transmission
tower, broadcast station, etc.
• When remotely moving forward
using method (1), it is recognized
as an exit situation, and the
vehicle moves 13 ft. (4 m) to
check for pedestrians, animals or
objects around the vehicle. After
confirmation, the steering wheel
is controlled according to the
condition ahead.

07
7-155
• When remotely moving forward
using method (2), it is recognized
as a parking situation, and will
immediately control the steering
wheel according to the condition
ahead to assist with entering the
parking space and aligning the
vehicle. However, performance
may reduce depending on the
pedestrians, animals, shape of
objects, location, etc. around the
vehicle.
• For moving remotely backward,
both method (1) and (2) aligns the
steering wheel first, and then will
only move the vehicle straight.
• When remotely moving Forward/
Backward is completed, the vehicle
will automatically shift to P (Park)
and engage EPB (Electronic Parking
Brake). CAUTION
• When using Remote Remote
Forward/Backward function, make
sure that all passengers have gotten
out of the vehicle.
• If the vehicle’s battery is discharged
or Remote Smart Parking Assist
malfunctions when parked in a
narrow parking space, Remote
Forward/Backward function will not
operate. Always park your vehicle in
a space wide enough for you to get in
or out of your vehicle.
• Please note that depending on the
parking space, you may not be able
to exit from the space you have
entered by using Remote Forward/
Backward function.
• After parking, the surrounding may
change due to the movement of
surrounding vehicles. If this occurs,
Remote Forward/Backward function
may not operate.
• Before leaving the vehicle, close
windows and sunroofs, and make
sure the engine is off before locking
the doors.

Driver assistance system
7-156
Remote Forward/Backward Parking
function operation status
Operation status Smart key LED Hazard
warning light
Under
control Green LED
continuously
blinks
-
Pause Red LED
continuously
blinks Blinks
Off Red LED
illuminates for
4 seconds and
then turns off Blinks 3
times and
turns off
Complete Green LED
illuminates for
4 seconds and
then turns off Blinks 1
time and
turns off
Ã
Operation status by the hazard
warning light may not be applicable
based on the regulation of your
country.
ÃIf the smart key is not within the
operating range from the vehicle
(approximately 13 ft. (4 m)), the
smart key LED will not illuminate or
blink. Use the smart key within the
operating range.
How to turn off Remote Forward/
Backward function while operating
• Press the Parking/View () button
while the infotainment system screen
guides the driver using method 2.
• Shift the gear except to P (Park)
while the infotainment system screen
guides the driver using method 2.
• Press the Parking Safety (
) button or select ‘Cancel’ on the infotainment system screen.
• Press the Remote Start (
) button
on the smart key while the vehicle
is being controlled by RRemote
Forward/Backward function. Remote
Forward/Backward function will turn
off. At this time, the engine will turn
off.
• Get on the vehicle with the smart key.
Remote Forward/Backward function
will turn off. At this time, the engine
will remain on.

07

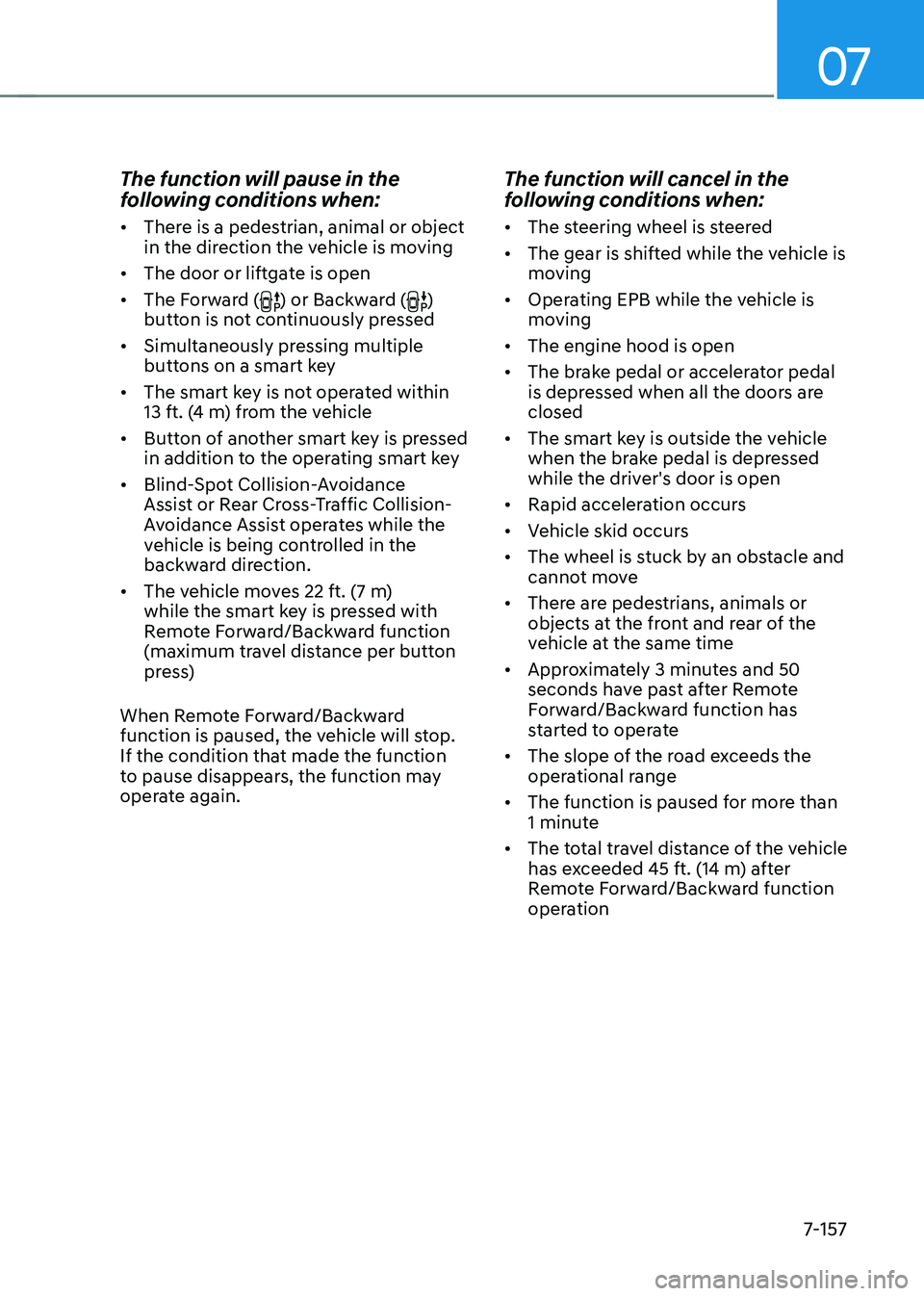

7-157
The function will pause in the
following conditions when:
• There is a pedestrian, animal or object
in the direction the vehicle is moving
• The door or liftgate is open
• The Forward (
) or Backward ()
button is not continuously pressed
• Simultaneously pressing multiple
buttons on a smart key
• The smart key is not operated within
13 ft. (4 m) from the vehicle
• Button of another smart key is pressed
in addition to the operating smart key
• Blind-Spot Collision-Avoidance
Assist or Rear Cross-Traffic Collision-
Avoidance Assist operates while the
vehicle is being controlled in the
backward direction.
• The vehicle moves 22 ft. (7 m)
while the smart key is pressed with
Remote Forward/Backward function
(maximum travel distance per button
press)
When Remote Forward/Backward
function is paused, the vehicle will stop.
If the condition that made the function
to pause disappears, the function may
operate again.
The function will cancel in the
following conditions when:
• The steering wheel is steered
• The gear is shifted while the vehicle is
moving
• Operating EPB while the vehicle is
moving
• The engine hood is open
• The brake pedal or accelerator pedal
is depressed when all the doors are
closed
• The smart key is outside the vehicle
when the brake pedal is depressed
while the driver's door is open
• Rapid acceleration occurs
• Vehicle skid occurs
• The wheel is stuck by an obstacle and
cannot move
• There are pedestrians, animals or
objects at the front and rear of the
vehicle at the same time
• Approximately 3 minutes and 50
seconds have past after Remote
Forward/Backward function has
started to operate
• The slope of the road exceeds the
operational range
• The function is paused for more than
1 minute
• The total travel distance of the vehicle
has exceeded 45 ft. (14 m) after
Remote Forward/Backward function
operation

Driver assistance system
7-158
• The steering wheel, gearshift, braking,
and drive controls are not working
normally
• There is a problem with the smart key
or the smart key battery is low
• ABS, TCS or ESC system operates due
to slippery road conditions
• The alarm of the Theft Alarm System
sounds
When Remote Forward/Backward
function is canceled, the vehicle will
automatically stop, shift the gear to
P (Park) and engage EPB (Electronic
Parking Brake).Remote Smart Parking Assist
Malfunction and Limitations
Remote Smart Parking Assist
malfunction
OTM070222L
Remote Smart Parking Assist check
When Remote Smart Parking Assist is
not working properly, the ‘Check Parking
Assist’ warning message will appear on the infotainment system screen.
If the message appears, stop using
Remote Smart Parking Assist, and have
the vehicle inspected by an authorized
HYUNDAI dealer.

IndexI-2
A
Accessing your vehicle .......................................................................................... 5-4
Hyundai Digital Key ........................................................................................ 5-15
Immobilizer system .......................................................................................... 5-14
Remote key ......................................................................................................... 5-4
Smart key ............................................................................................................ 5-7
Air bag - supplemental restraint system .............................................................. 3-46
Additional safety precautions ........................................................................... 3-67
Air bag warning labels ..................................................................................... 3-67
How does the air bags system operate? ............................................................ 3-51
Occupant Classification System (OCS) ........................................................... 3-55
SRS care ........................................................................................................... 3-66
What to expect after an air bag inflates ............................................................ 3-54
Where are the air bags? .................................................................................... 3-48
Why didn’t my air bag go off in a collision? ................................................... 3-61
Air cleaner ........................................................................................................... 9-25
Filter replacement ............................................................................................. 9-25
Air conditioning system ....................................................................................... 2-13
All wheel drive (AWD) ...................................................................................... 6-52
AWD operation................................................................................................. 6-53
Emergency precautions .................................................................................... 6-56
Appearance care................................................................................................... 9-63
Exterior care ..................................................................................................... 9-63
Interior care ...................................................................................................... 9-68
Automatic climate control system ..................................................................... 5-108
Automatic heating and air conditioning ......................................................... 5-109
Manual heating and air conditioning .............................................................. 5-110
Multi Air Mode............................................................................................... 5-116
System maintenance ....................................................................................... 5-119
System operation ............................................................................................ 5-117
Automatic transmission ....................................................................................... 6-14
Automatic transmission operation .................................................................... 6-14
Good driving practices ..................................................................................... 6-23
LCD display message (button type) ................................................................. 6-21
Paddle shifter (Manual shift mode) .................................................................. 6-22
010_NX4a_HMA_INDEX.indd I-2 2021-03-02  5:44:47

I
I-5
E
Emission control system ...................................................................................... 9-71
Engine .................................................................................................................. 2-10
Engine compartment ....................................................................................... 2-9/9-3
Engine coolant .................................................................................................... 9-20
Changing coolant .............................................................................................. 9-22
Checking the coolant level ............................................................................... 9-20
Engine number ..................................................................................................... 2-17
Engine oil ............................................................................................................. 9-17
Checking the Engine Oil and Filter .................................................................. 9-19
Checking the engine oil level ........................................................................... 9-17
Engine Start/Stop button ........................................................................................ 6-8
Engine Stop/Start button positions ..................................................................... 6-9
Remote start ...................................................................................................... 6-12
Starting the engine ............................................................................................ 6-10
Turning off the engine ...................................................................................... 6-11
Explanation of scheduled maintenance items ...................................................... 9-14
Fuel filter .......................................................................................................... 9-14
Parking brake .................................................................................................... 9-16
Exterior features........................................................................................ 5-70/5-140
Fuel filler door .................................................................................................. 5-81
Hood ................................................................................................................. 5-70
Liftgate ............................................................................................................. 5-71
Power liftgate ................................................................................................... 5-73
Roof rack ....................................................................................................... 5-140
Smart liftgate .................................................................................................... 5-79
Exterior overview (I) ............................................................................................. 2-2
Exterior overview (II) ............................................................................................ 2-3
010_NX4a_HMA_INDEX.indd I-52021-03-02  5:44:47

I
I-7
If the engine overheats ........................................................................................... 8-7
If the engine will not start ...................................................................................... 8-3
If you have a flat tire (with spare tire) ................................................................. 8-14
Changing tires .................................................................................................. 8-15
Jack and tools ................................................................................................... 8-14
Jack label .......................................................................................................... 8-20
Ignition switch ....................................................................................................... 6-5
Key ignition switch ............................................................................................ 6-5
Key ignition switch positions ............................................................................. 6-6
Starting the engine .............................................................................................. 6-7
Important safety precautions.................................................................................. 3-2
Air bag hazards ................................................................................................... 3-2
Always wear your seat belt ................................................................................ 3-2
Control your speed ............................................................................................. 3-2
Driver distraction ................................................................................................ 3-2
Keep your vehicle in safe condition ................................................................... 3-2
Restrain all children ........................................................................................... 3-2
In case of an emergency while driving .................................................................. 8-2
If the engine stalls at a crossroad or crossing ..................................................... 8-2
If the engine stalls while driving ........................................................................ 8-2
If you have a flat tire while driving .................................................................... 8-3
Infotainment system........................................................................................... 5-141
Antenna .......................................................................................................... 5-141
Bluetooth
® Wireless Technology .................................................................... 5-143
How vehicle radio works ................................................................................ 5-143
Infotainment system ...................................................................................... 5-142
Steering wheel remote controls ...................................................................... 5-141
USB Port ........................................................................................................ 5-141
Voice recognition ............................................................................................ 5-142
Instrument cluster .................................................................................................. 4-4
Gauges and meters ............................................................................................. 4-5
Instrument cluster control ................................................................................... 4-5
LCD display messages ..................................................................................... 4-23
Transmission shift indicator ............................................................................... 4-9
Warning and indicator lights .............................................................................. 4-9
Instrument panel overview (I) ............................................................................... 2-6
Instrument panel overview (II) .............................................................................. 2-8
010_NX4a_HMA_INDEX.indd I-7 2021-03-02  5:44:48
