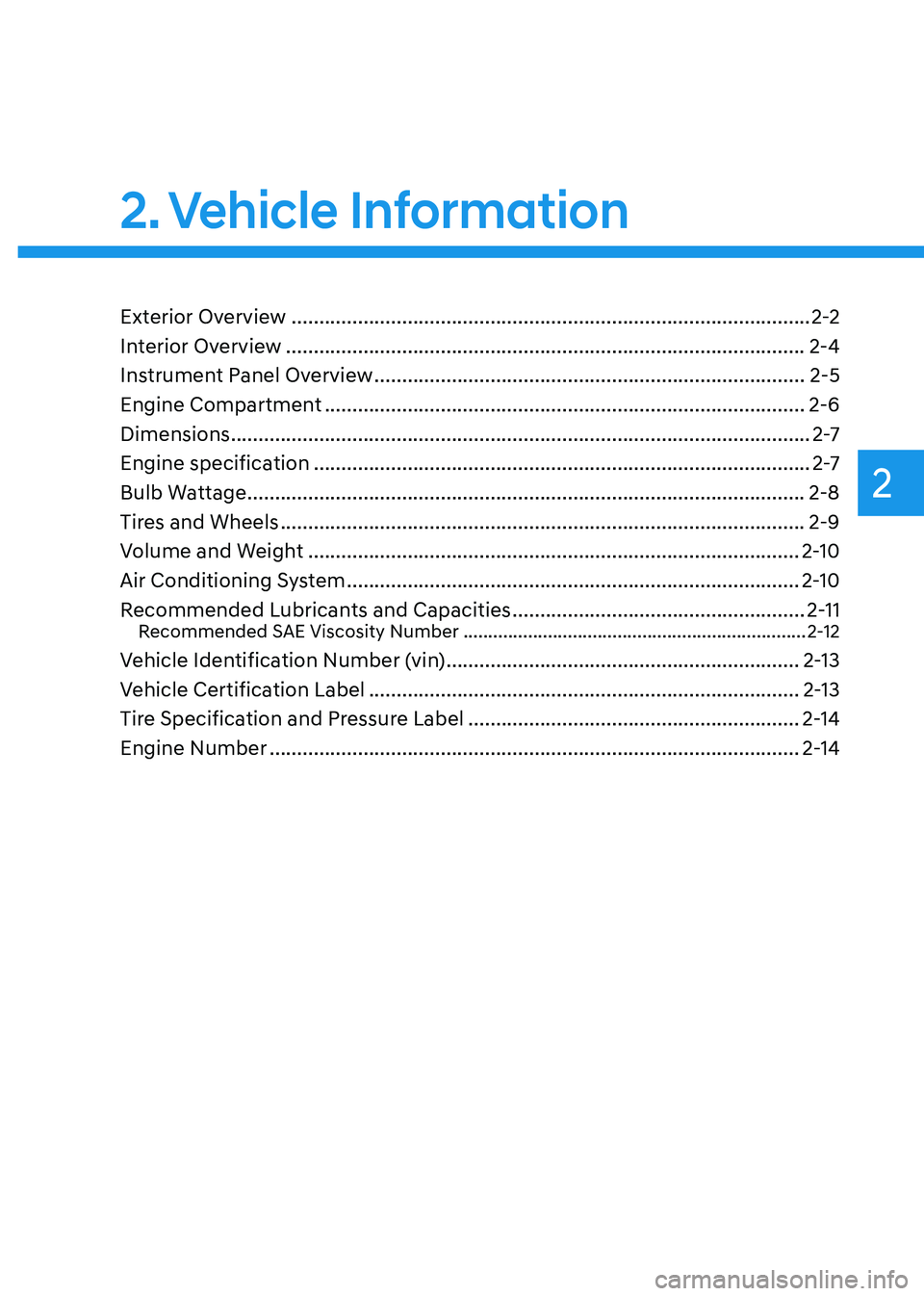

2. Vehicle Information
Vehicle Information
Exterior Overview ........................................................................\
......................2-2
Interior Overview
........................................................................\
......................2-4
Instrument Panel Overview
........................................................................\
......2-5
Engine Compartment
........................................................................\
...............2-6
Dimensions
........................................................................\
.................................2-7
Engine specification
........................................................................\
..................2-7
Bulb Wattage
........................................................................\
.............................2-8
Tires and Wheels
........................................................................\
.......................2-9
Volume and Weight
........................................................................\
.................2-10
Air Conditioning System
........................................................................\
..........2-10
Recommended Lubricants and Capacities
.....................................................2-11Recommended SAE Viscosity Number .....................................................................2-12
Vehicle Identification Number (vin) ................................................................2-13
Vehicle Certification Label
........................................................................\
......2-13
Tire Specification and Pressure Label
............................................................2-14
Engine Number
........................................................................\
........................2-14

2-2
Vehicle Information
EXTERIOR OVERVIEW
„„Front view

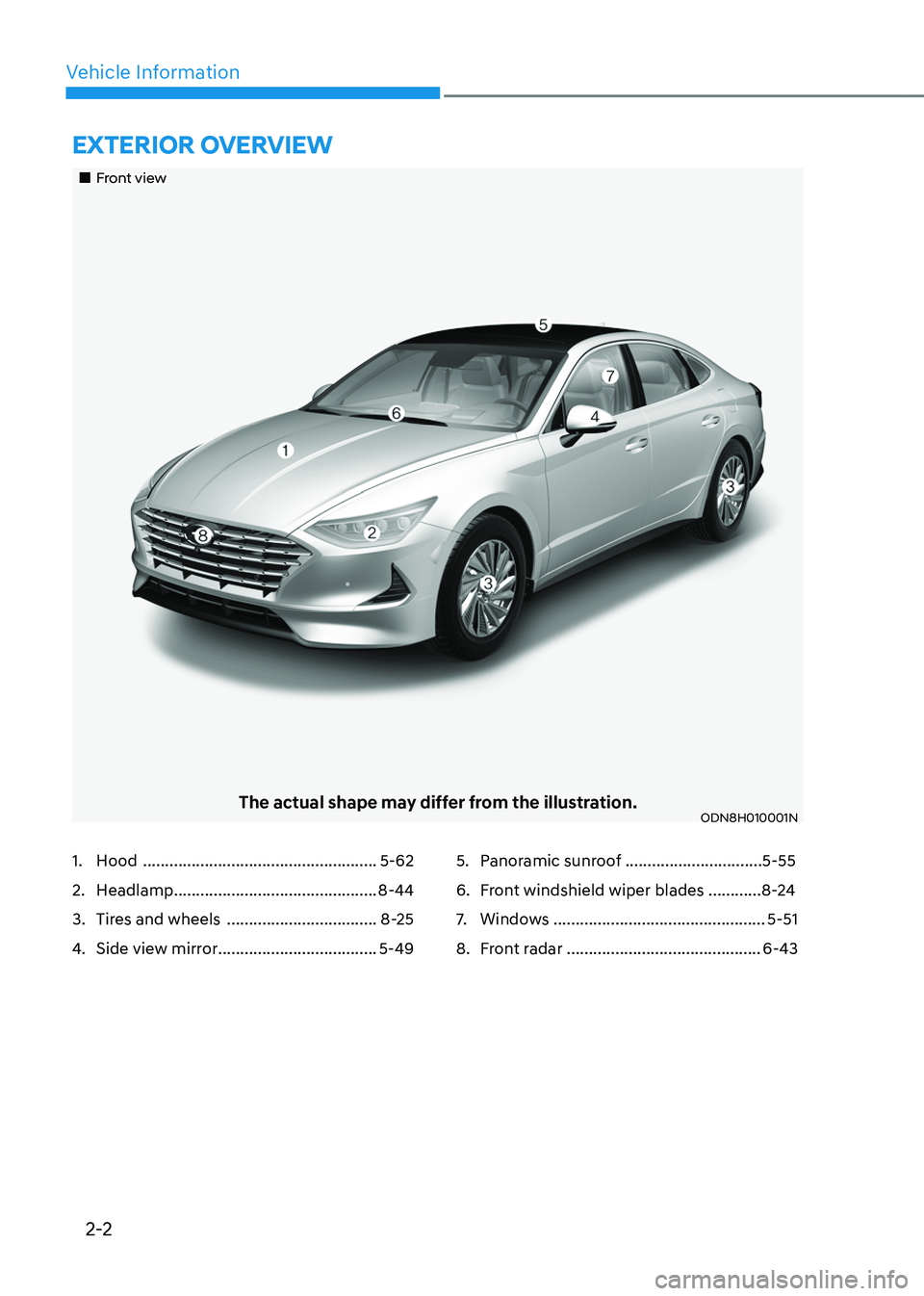

The actual shape may differ from the illustration.ODN8H010001N
1. Hood .....................................................5-62
2. Headlamp ..............................................8-44
3. Tires and wheels ..................................8-25
4. Side view mirror ....................................5-49
5. Panoramic sunroof ...............................5-55
6. Front windshield wiper blades ............8-24
7. Windows ................................................5-51
8. Front radar ............................................6-43

2-3
02
„„Rear view

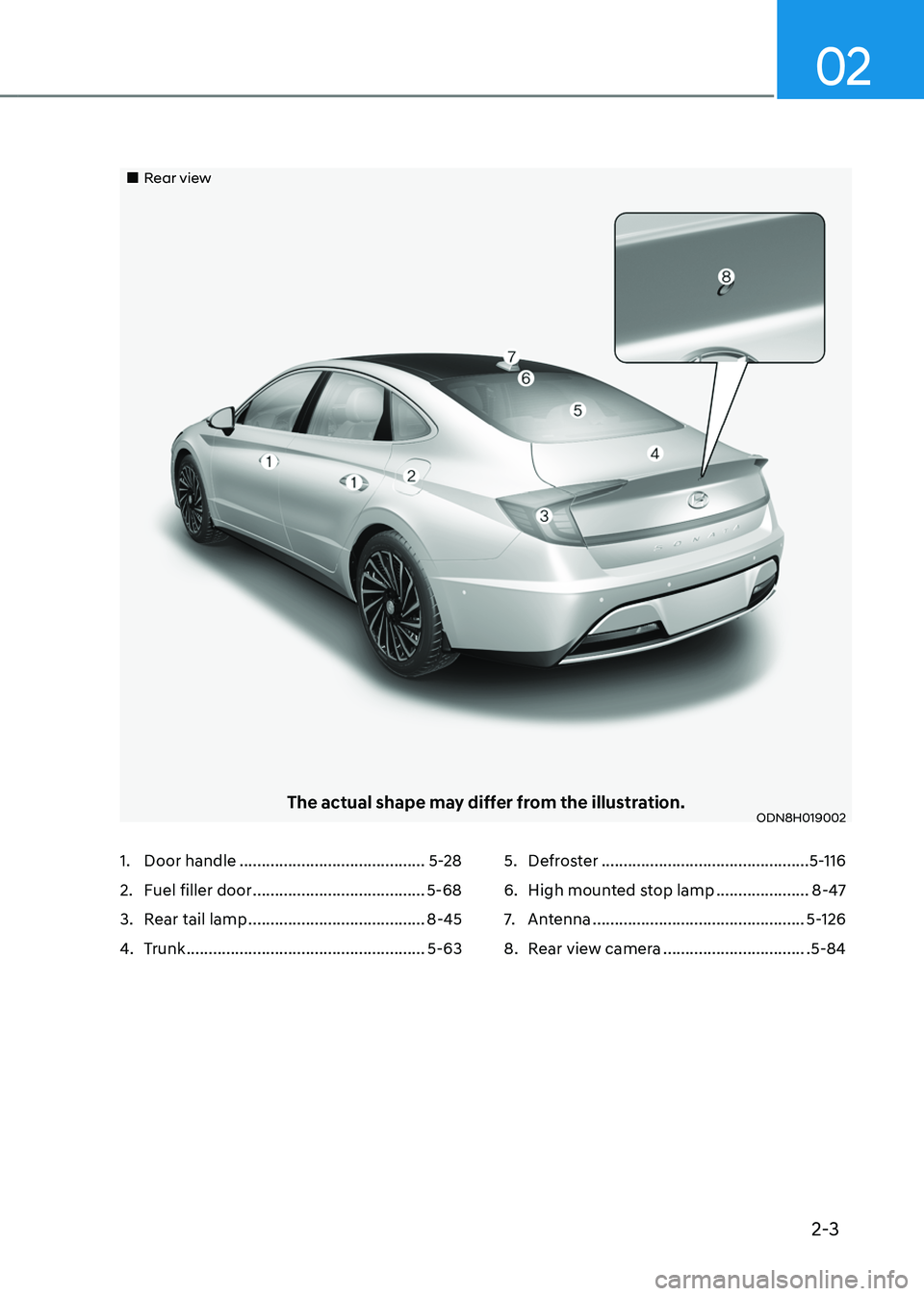

The actual shape may differ from the illustration.ODN8H019002
1. Door handle ..........................................5-28
2. Fuel filler door .......................................5-68
3. Rear tail lamp ........................................8-45
4. Trunk ......................................................5-63
5. Defroster ...............................................5-116
6. High mounted stop lamp .....................8-47
7. Antenna ................................................5-126
8. Rear view camera .................................5-84

2-4
Vehicle Information
The actual shape may differ from the illustration.ODN8H010003N
1. Inside door handle ................................5-29
2. Seat position memory system .............5-35
3. Side view mirror control switch ...........5-49
4. Central door lock switch .......................5-30
5. Power window switches .......................5-51
6. Power window lock button ..................5-54
7. Steering wheel tilt/telescopic lever ....5-39
8. Steering wheel ......................................5-38
9. Instrument panel illumination control
switch
......................................................4-5
10. 12V battery reset button ..........................7-4
11. Lane Safety button ...............................6-59
12. Trunk release button ............................5-63
13. ESC OFF button ....................................6-28
14. EPB (Electronic Parking Brake) .............6-19
15. Hood release lever ...............................5-62
INTERIOR OVERVIEW

2-5
02

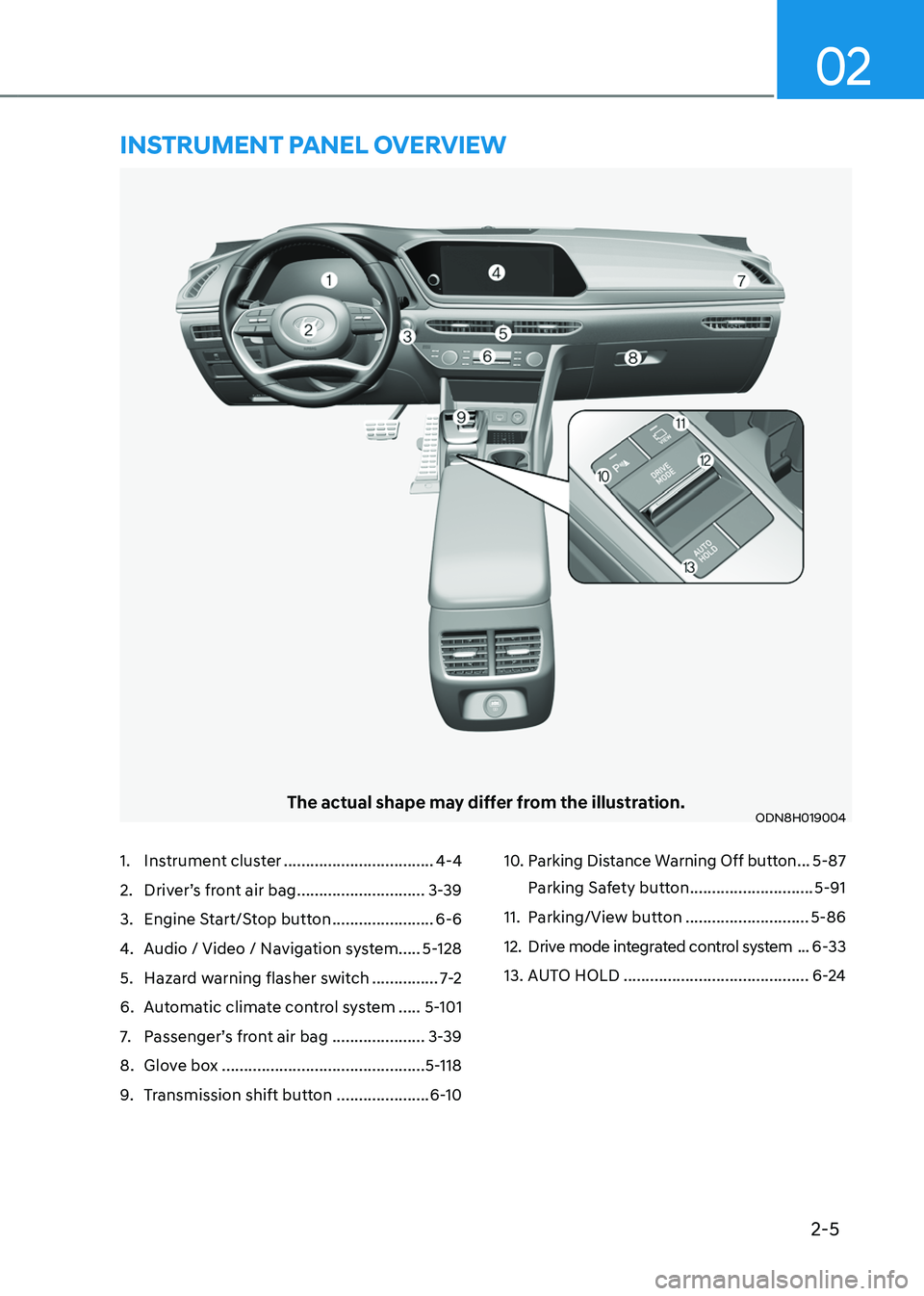

The actual shape may differ from the illustration.ODN8H019004
1. Instrument cluster ..................................4-4
2. Driver’s front air bag .............................3-39
3. Engine Start/Stop button .......................6-6
4. Audio / Video / Navigation system.....5-128
5. Hazard warning flasher switch ...............7-2
6. Automatic climate control system .....5-101
7. Passenger’s front air bag .....................3-39
8. Glove box ..............................................5-118
9. Transmission shift button .....................6-10
10. Parking Distance Warning Off button ...5-87
Parking Safety button
............................5-91
11. Parking/View button ............................5-86
12. Drive mode integrated control system ...6-33
13. AUTO HOLD ..........................................6-24
INSTRUMENT PANEL OVERVIEW

2-6
Vehicle Information
„„Smartstream G2.0 GDi HEV
The actual engine room in the vehicle may differ from the illustration.ODN8H089001
ENGINE COMPARTMENT
1. Engine coolant reservoir .......................8-17
2. Engine coolant reservoir cap ................8-17
3. Inverter coolant reservoir......................8-17
4. Brake fluid reservoir .............................8-20
5. Air cleaner .............................................8-22
6. Engine oil dipstick .................................8-15
7. Engine oil filler cap ................................8-15
8. Windshield washer fluid reservoir ........8-21
9. Fuse box ................................................8-42

02
2-7

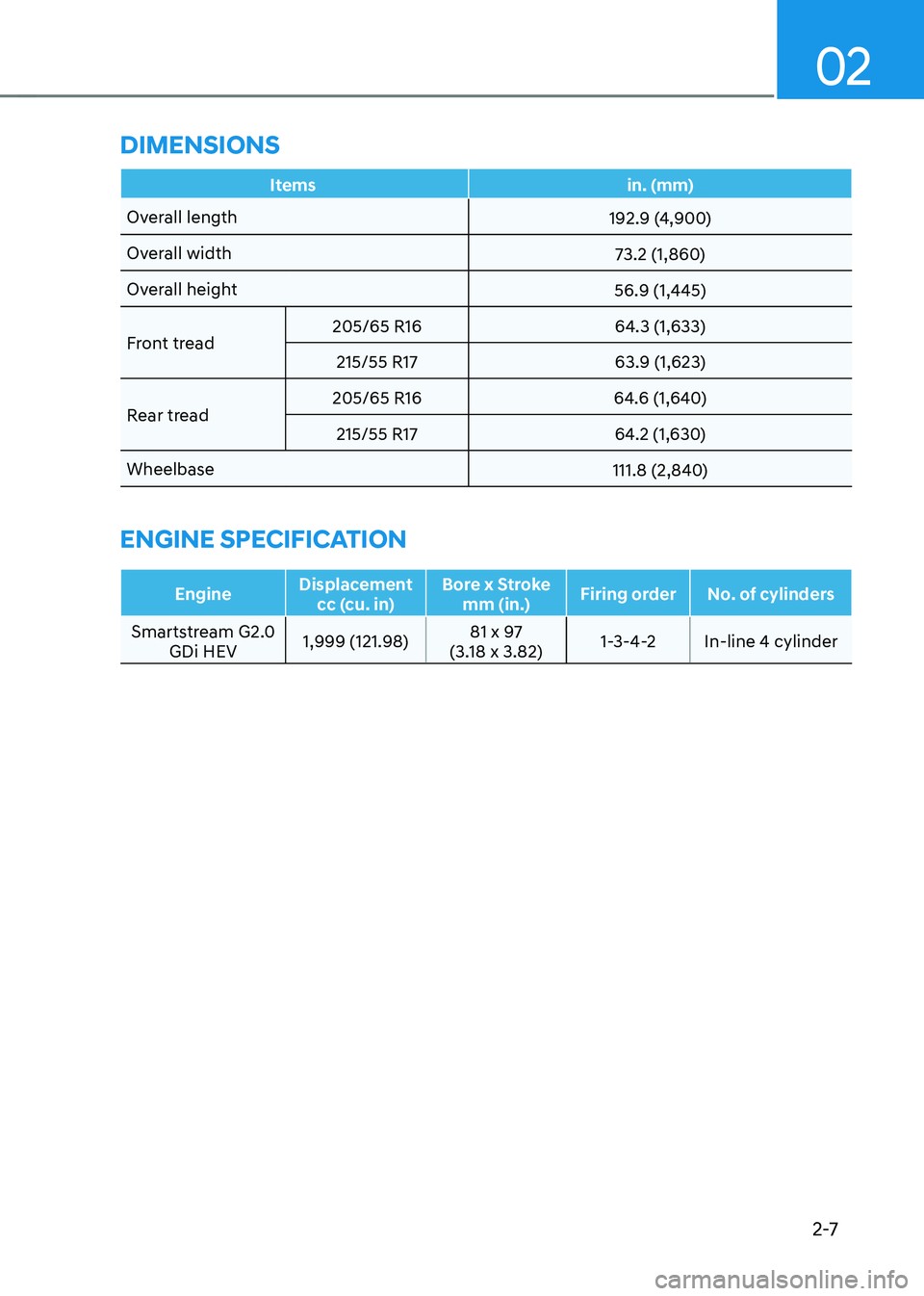

DIMENSIONS
Itemsin. (mm)
Overall length 192.9 (4,900)
Overall width 73.2 (1,860)
Overall height 56.9 (1,445)
Front tread 205/65 R16
64.3 (1,633)
215/55 R17 63.9 (1,623)
Rear tread 205/65 R16
64.6 (1,640)
215/55 R17 64.2 (1,630)
Wheelbase 111.8 (2,840)
ENGINE SPECIFICATION
EngineDisplacement
cc (cu. in) Bore x Stroke
mm (in.) Firing order
No. of cylinders
Smartstream G2.0 GDi HEV 1,999 (121.98) 81 x 97
(3.18 x 3.82) 1-3-4-2
In-line 4 cylinder

Vehicle Information
2-8

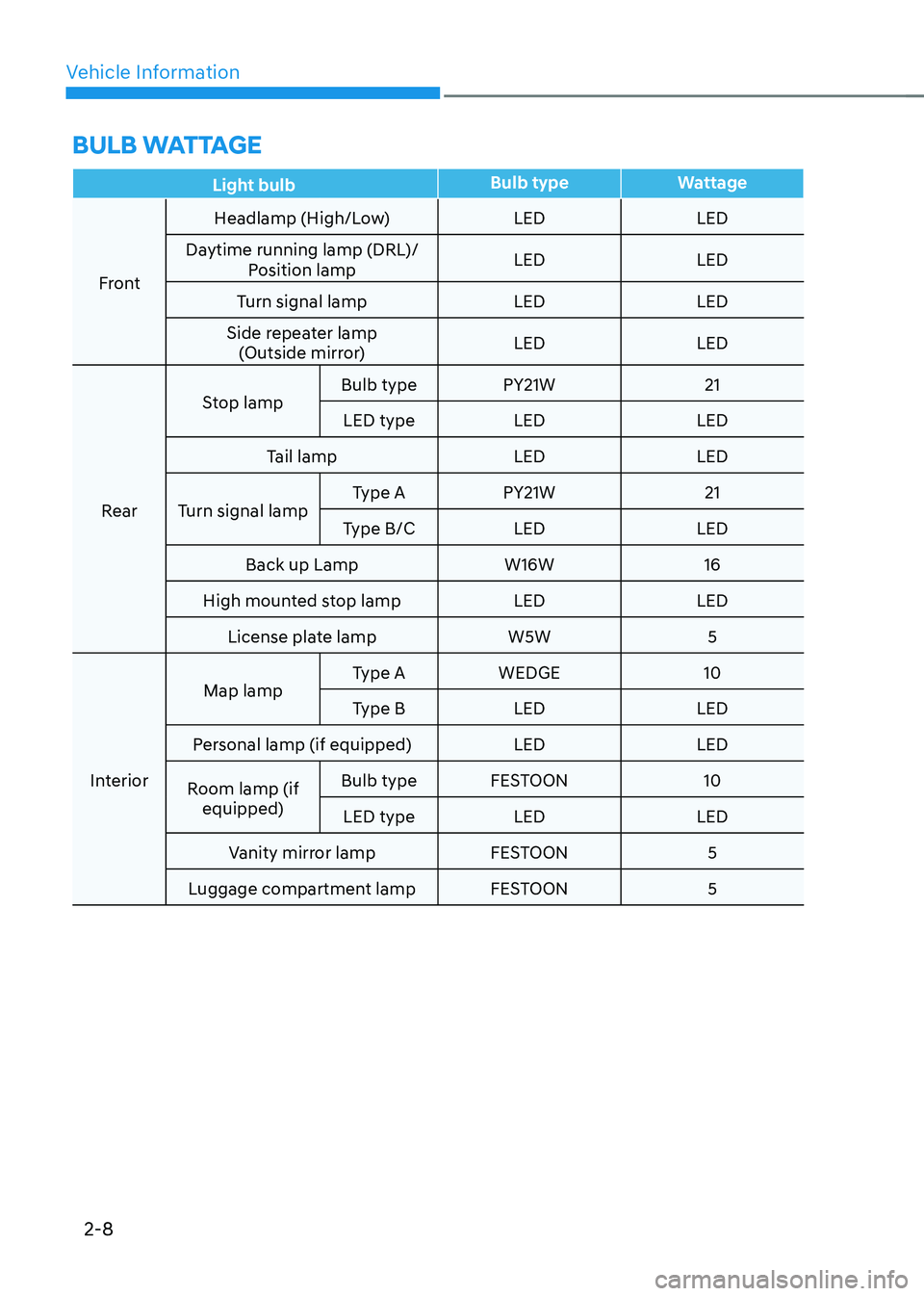

BULB WATTAGE
Light bulbBulb type
Wattage
Front Headlamp (High/Low)
LEDLED
Daytime running lamp (DRL)/ Position lamp LED
LED
Turn signal lamp LEDLED
Side repeater lamp (Outside mirror) LED
LED
Rear Stop lamp
Bulb type
PY21W 21
LED type LED LED
Tail lamp LEDLED
Turn signal lamp Type A
PY21W 21
Type B/C LED LED
Back up Lamp W16W16
High mounted stop lamp LEDLED
License plate lamp W5W5
Interior Map lamp
Type A
WEDGE 10
Type B LED LED
Personal lamp (if equipped) LEDLED
Room lamp (if equipped) Bulb type
FESTOON 10
LED type LED LED
Vanity mirror lamp FESTOON5
Luggage compartment lamp FESTOON5
