2022 HYUNDAI SANTA CRUZ SMART DRIVING

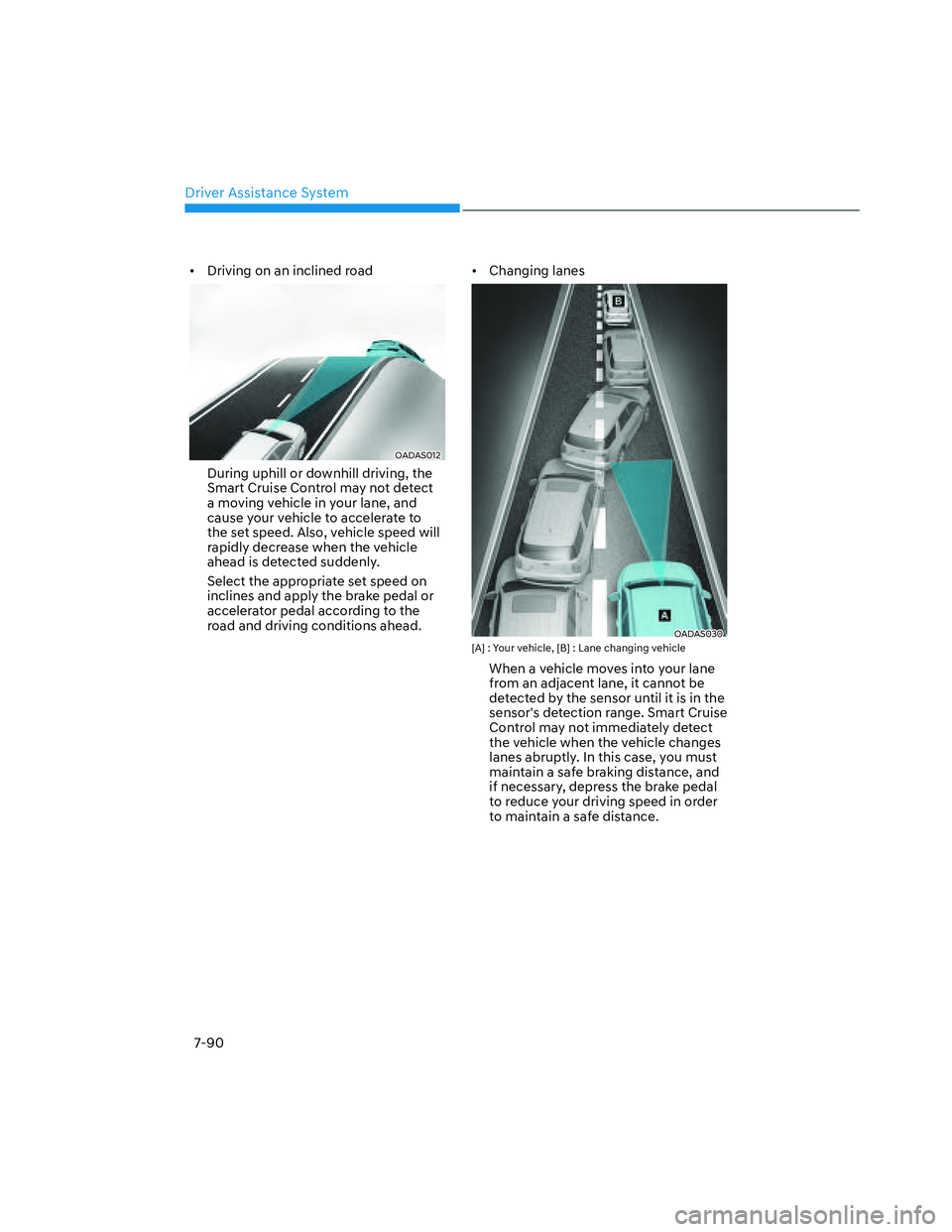

Driver Assistance System
7-90
• Driving on an inclined road
OADAS012OADAS012
During uphill or downhill driving, the
Smart Cruise Control may not detect
a moving vehicle in your lane, and
cause your vehicle to accelerate to
the set speed. Also, vehicle speed will
rapidly decrease when the vehicle
ahead is detected suddenly.
Select the appropriate set speed on
inclines and apply the brake pedal or
accelerator pedal according to the
road and driving conditions ahead.• Changing lanes
OADAS030 OADAS030 [A] : Your vehicle, [B] : Lane changing vehicle
When a vehicle moves into your lane
from an adjacent lane, it cannot be
detected by the sensor until it is in the
sensor's detection range. Smart Cruise
Control may not immediately detect
the vehicle when the vehicle changes
lanes abruptly. In this case, you must
maintain a safe braking distance, and
if necessary, depress the brake pedal
to reduce your driving speed in order
to maintain a safe distance.

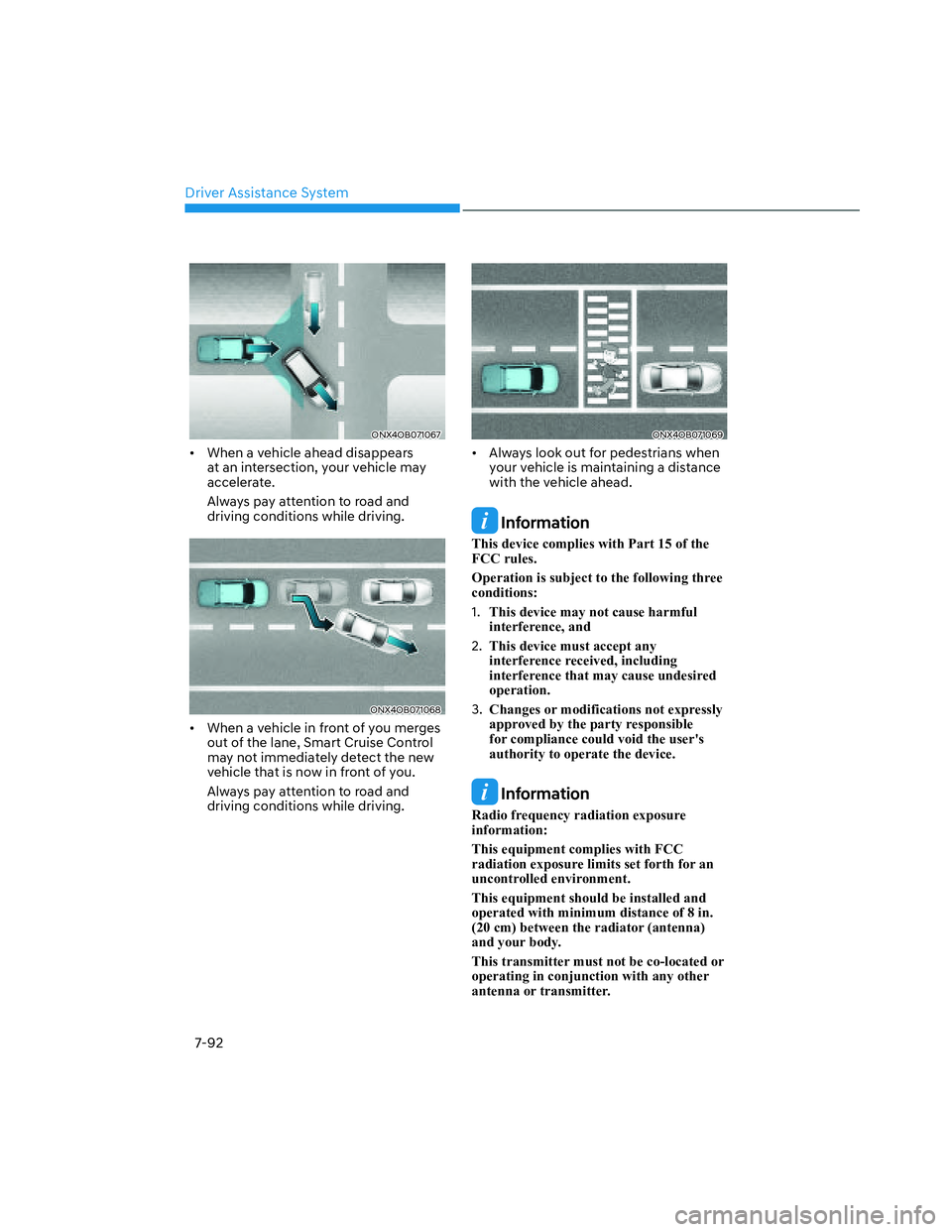

Driver Assistance System
7-92
ONX4OB071067ONX4OB071067
• When a vehicle ahead disappears
at an intersection, your vehicle may
accelerate.
Always pay attention to road and
driving conditions while driving.
ONX4OB071068ONX4OB071068
• When a vehicle in front of you merges
out of the lane, Smart Cruise Control
may not immediately detect the new
vehicle that is now in front of you.
Always pay attention to road and
driving conditions while driving.
ONX4OB071069ONX4OB071069
• Always look out for pedestrians when
your vehicle is maintaining a distance
with the vehicle ahead.
Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the device.
Information
Radio frequency radiation exposure
information:
This equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment.
This equipment should be installed and
operated with minimum distance of 8 in.
(20 cm) between the radiator (antenna)
and your body.
This transmitter must not be co-located or
operating in conjunction with any other
antenna or transmitter.

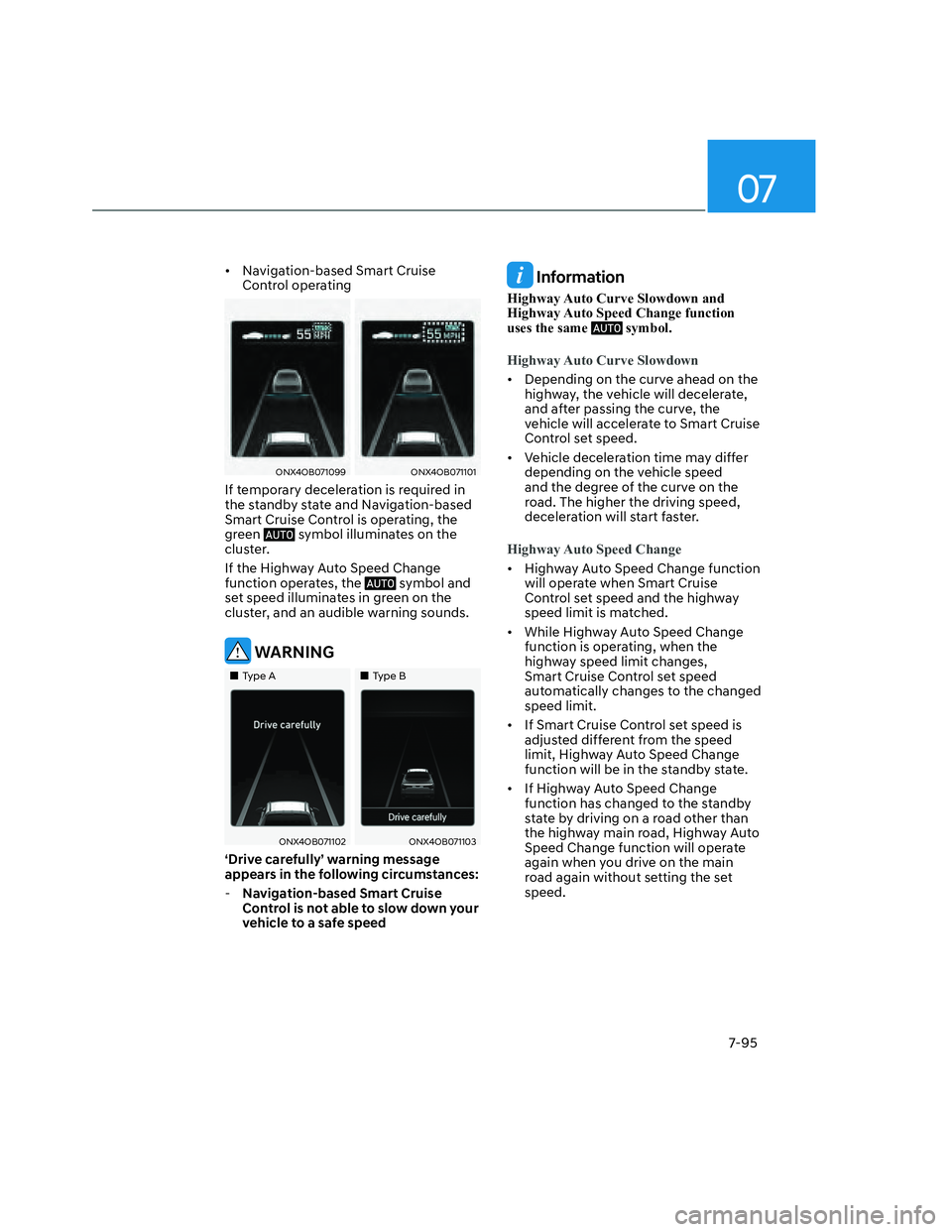

07
7-95
• Navigation-based Smart Cruise
Control operating
ONX4OB071099ONX4OB071099ONX4OB071101ONX4OB071101
If temporary deceleration is required in
the standby state and Navigation-based
Smart Cruise Control is operating, the
green
symbol illuminates on the
cluster.
If the Highway Auto Speed Change
function operates, the
symbol and
set speed illuminates in green on the
cluster, and an audible warning sounds.
WARNING
„„Type AType A„„Type BType B
ONX4OB071102ONX4OB071102ONX4OB071103ONX4OB071103
‘Drive carefully’ warning message
appears in the following circumstances:
-Navigation-based Smart Cruise
Control is not able to slow down your
vehicle to a safe speed
Information
Highway Auto Curve Slowdown and
Highway Auto Speed Change function
uses the same
symbol.
Highway Auto Curve Slowdown
• Depending on the curve ahead on the
highway, the vehicle will decelerate,
and after passing the curve, the
vehicle will accelerate to Smart Cruise
Control set speed.
• Vehicle deceleration time may differ
depending on the vehicle speed
and the degree of the curve on the
road. The higher the driving speed,
deceleration will start faster.
Highway Auto Speed Change
• Highway Auto Speed Change function
will operate when Smart Cruise
Control set speed and the highway
speed limit is matched.
• While Highway Auto Speed Change
function is operating, when the
highway speed limit changes,
Smart Cruise Control set speed
automatically changes to the changed
speed limit.
• If Smart Cruise Control set speed is
adjusted different from the speed
limit, Highway Auto Speed Change
function will be in the standby state.
• If Highway Auto Speed Change
function has changed to the standby
state by driving on a road other than
the highway main road, Highway Auto
Speed Change function will operate
again when you drive on the main
road again without setting the set
speed.

Driver Assistance System
7-96
• If Highway Auto Speed Change
function has changed to the standby
state by depressing the brake pedal
or pressing the
switch on the
steering wheel, press the switch
to restart the function.
• Highway Auto Speed Change
function does not operate on highway
interchanges or junctions.
Information
• Highway Auto Speed Change function
only operates based on the speed limits
of the highway, it does not work with
speed cameras.
• When Highway Auto Speed Change
function is operating, the vehicle
automatically accelerates or decelerates
when the highway speed limit changes.
• The maximum set speed for Highway
Auto Speed Change function is 86 mph
(140 km/h).
• If the speed limit of a new road is not
updated in the navigation, Highway
Auto Speed Change function may not
operate properly.
• If the speed unit is set to a unit other
than the speed unit used in your
country, Highway Auto Speed Change
function may not operate properly.
Limitations of Navigation-based
Smart Cruise Control
Navigation-based Smart Cruise Control
may not operate properly under the
following circumstances:
• The navigation is not working properly
• Map information is not transmitted
due to infotainment system's
abnormal operation
• Speed limit and road information in
the navigation is not updated
• The map information and the actual
road is different because of real-time
GPS data or map information error
• The navigation searches for a route
while driving
• GPS signals are blocked in areas such
as a tunnel
• A road that divides into two or more
roads and joins again
• The driver goes off course the route
set in the navigation
• The route to the destination is
changed or canceled by resetting the
navigation
• The vehicle enters a service station or
rest area
• Android Auto or Car Play is operating
• The navigation cannot detect the
current vehicle position (for example,
elevated roads including overpass
adjacent to general roads or nearby
roads exist in a parallel way)
• The navigation is being updated while
driving
• The navigation is being restarted while
driving
• The speed limit of some sections
changes according to the road
situations
• Driving on a road under construction
• Driving on a road that is controlled
• There is bad weather, such as heavy
rain, heavy snow, etc.
• Driving on a road that is sharply
curved

Driver Assistance System
7-98
ONX4OB071072ONX4OB071072[1] : Driving route, [2] : Branch line,
[3] : Curved road section, [4] : Main road
• If there is no destination set on the
navigation, Highway Auto Curve
Slowdown function will operate based
on the curve information on the main
road.
• Even if you depart from the main
road, Highway Auto Curve Slowdown
function may temporarily operate
due to navigation information of the
highway curve section.
WARNING
• Navigation-based Smart Cruise
Control is not a substitute for safe
driving practices, but a convenience
function. Always have your eyes on
the road, and it is the responsibility
of the driver to avoid violating traffic
laws.
• The navigation’s speed limit
information may differ from the
actual speed limit information on the
road. It is the driver's responsibility
to check the speed limit on the
actual driving road or lane.
• Navigation-based Smart Cruise
Control will automatically be
cancelled when you leave the
highway main road. Always pay
attention to road and driving
conditions while driving.
• Navigation-based Smart Cruise
Control may not operate due to the
existence of leading vehicles and
the driving conditions of the vehicle.
Always pay attention to road and
driving conditions while driving.
• When you are towing a trailer or
another vehicle, we recommend
that Navigation-based Smart Cruise
Control is turned off due to safety
reasons.

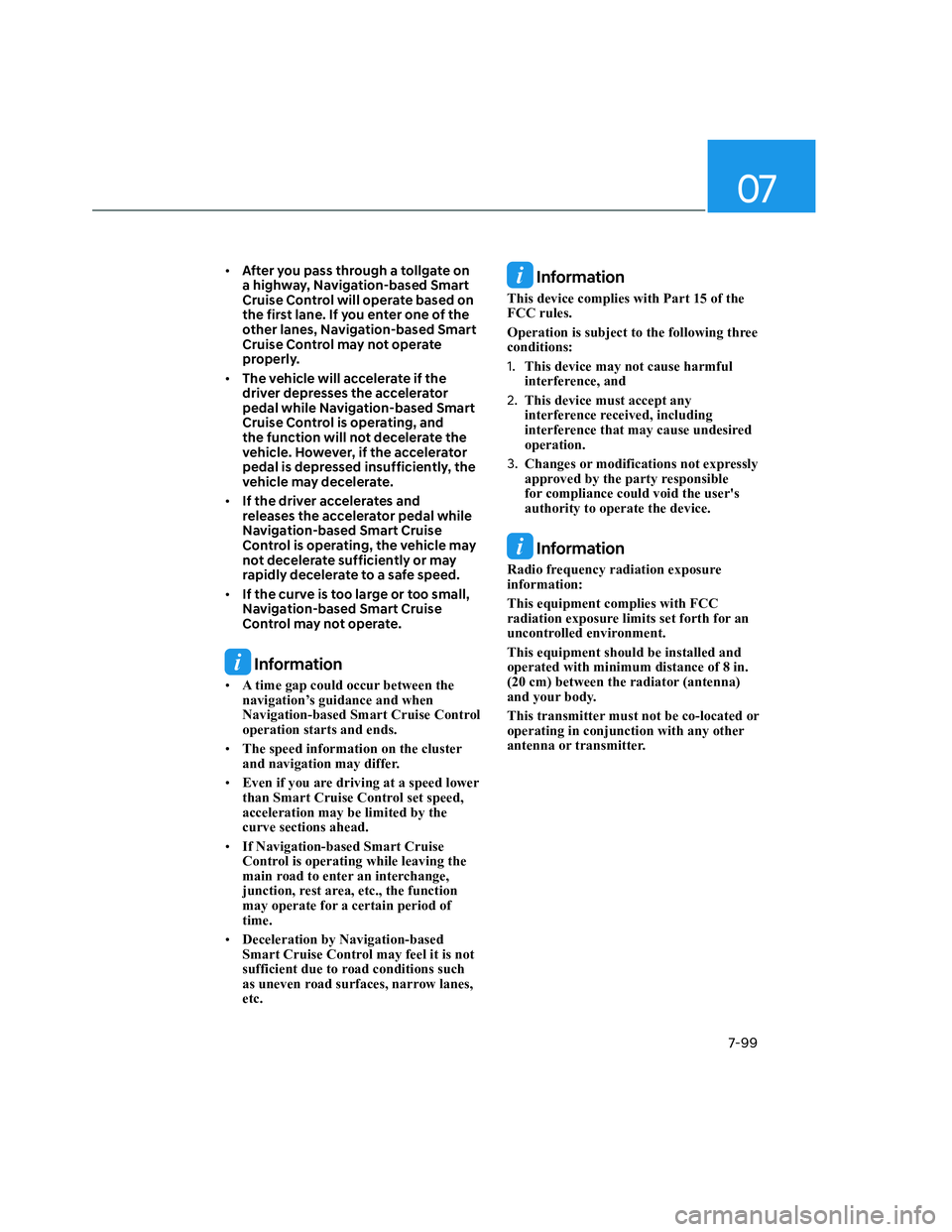

07
7-99
• After you pass through a tollgate on
a highway, Navigation-based Smart
Cruise Control will operate based on
the first lane. If you enter one of the
other lanes, Navigation-based Smart
Cruise Control may not operate
properly.
• The vehicle will accelerate if the
driver depresses the accelerator
pedal while Navigation-based Smart
Cruise Control is operating, and
the function will not decelerate the
vehicle. However, if the accelerator
pedal is depressed insufficiently, the
vehicle may decelerate.
• If the driver accelerates and
releases the accelerator pedal while
Navigation-based Smart Cruise
Control is operating, the vehicle may
not decelerate sufficiently or may
rapidly decelerate to a safe speed.
• If the curve is too large or too small,
Navigation-based Smart Cruise
Control may not operate.
Information
• A time gap could occur between the
navigation’s guidance and when
Navigation-based Smart Cruise Control
operation starts and ends.
• The speed information on the cluster
and navigation may differ.
• Even if you are driving at a speed lower
than Smart Cruise Control set speed,
acceleration may be limited by the
curve sections ahead.
• If Navigation-based Smart Cruise
Control is operating while leaving the
main road to enter an interchange,
junction, rest area, etc., the function
may operate for a certain period of
time.
• Deceleration by Navigation-based
Smart Cruise Control may feel it is not
sufficient due to road conditions such
as uneven road surfaces, narrow lanes,
etc.
Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the device.
Information
Radio frequency radiation exposure
information:
This equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment.
This equipment should be installed and
operated with minimum distance of 8 in.
(20 cm) between the radiator (antenna)
and your body.
This transmitter must not be co-located or
operating in conjunction with any other
antenna or transmitter.

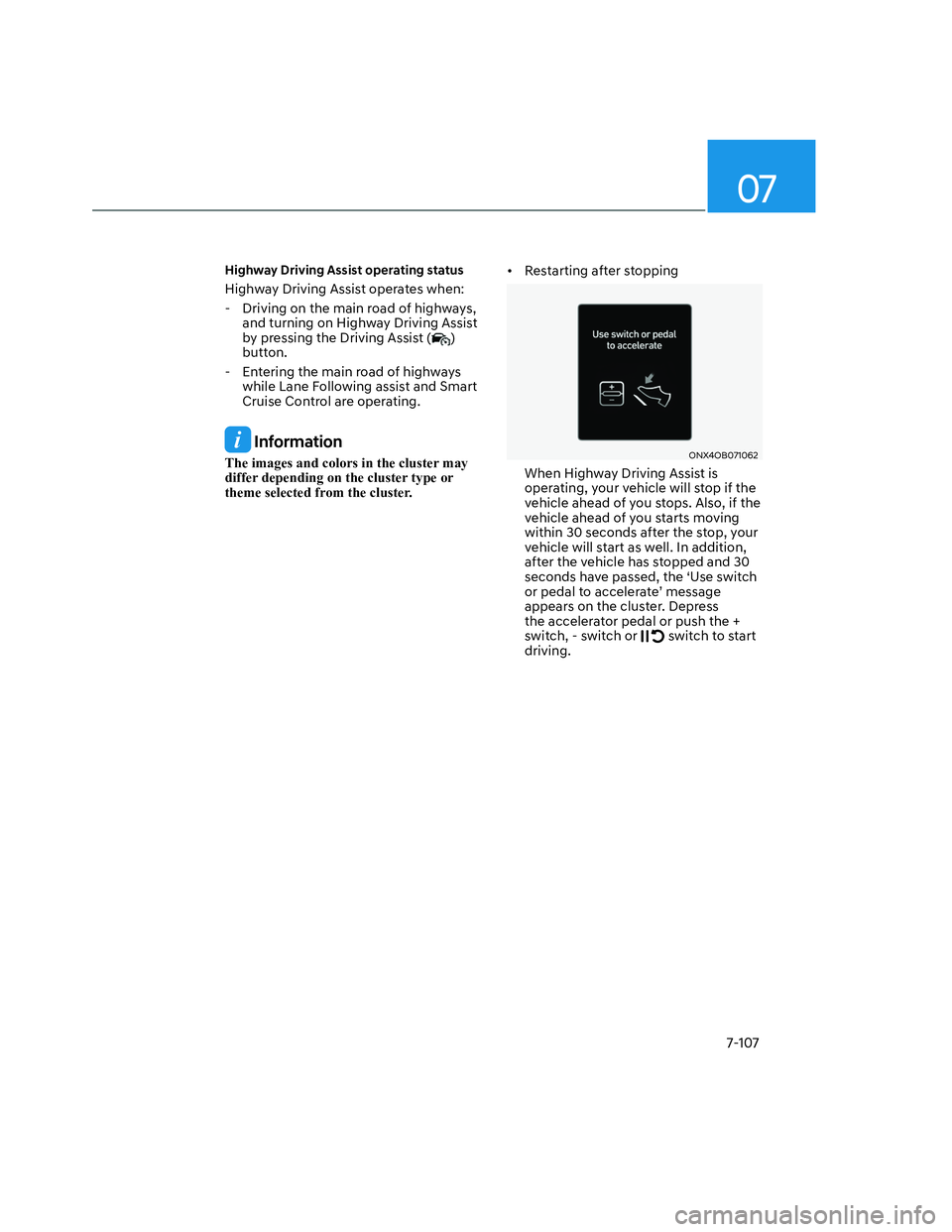

07
7-107
Highway Driving Assist operating status
Highway Driving Assist operates when:
- Driving on the main road of highways,
and turning on Highway Driving Assist
by pressing the Driving Assist (
)
button.
- Entering the main road of highways
while Lane Following assist and Smart
Cruise Control are operating.
Information
The images and colors in the cluster may
differ depending on the cluster type or
theme selected from the cluster. • Restarting after stoppingONX4OB071062ONX4OB071062
When Highway Driving Assist is
operating, your vehicle will stop if the
vehicle ahead of you stops. Also, if the
vehicle ahead of you starts moving
within 30 seconds after the stop, your
vehicle will start as well. In addition,
after the vehicle has stopped and 30
seconds have passed, the ‘Use switch
or pedal to accelerate’ message
appears on the cluster. Depress
the accelerator pedal or push the +
switch, - switch or
switch to start
driving.

Driver Assistance System
7-108
• Hands-off warning
ONX4E070091ONX4E070091
If the driver takes their hands off the
steering wheel for several seconds,
the ‘Place hands on the steering
wheel’ warning message appears and
an audible warning sounds in stages.
First stage : Warning message
Second stage : Warning message (red
steering wheel) and
audible warning
ONX4OB071076ONX4OB071076
If the driver still does not have their
hands on the steering wheel after
the hands-off warning, the ‘Highway
Driving Assist (HDA) canceled’ warning
message appears and Highway Driving
Assist and Lane Change Assist are
automatically canceled.
Highway Driving Assist standby
When Smart Cruise Control is
temporarily canceled while Highway
Driving Assist is operating, Highway
Driving Assist will be in the standby state.
At this time, Lane Following Assist will
operate properly.
Highway Driving Assist
Malfunction and Limitations
Highway Driving Assist malfunction
ONX4OB071077ONX4OB071077
When Highway Driving Assist is not
working properly, the ‘Check Highway
Driving Assist (HDA) system’ warning
message appears, and the
warning
light illuminates on the cluster. Have
the vehicle inspected by an authorized
HYUNDAI dealer.
