2022 HYUNDAI SANTA CRUZ headlamp

09
9-57
Consult an authorized HYUNDAI dealer
to replace most vehicle light bulbs. It is
difficult to replace vehicle light bulbs
because other parts of the vehicle must
be removed before you can get to the
bulb. This is especially true for removing
the headlamp assembly to get to the
bulb(s).
Removing/installing the headlamp
assembly can result in damage to the
vehicle.
WARNING
• Prior to replacing a lamp, depress
the foot brake, move the shift button
into P (Park) apply the parking brake,
place the ignition switch to the
LOCK/OFF position, and take the key
with you when leaving the vehicle
to avoid sudden movement of the
vehicle and to prevent possible
electric shock.
• Be aware the bulbs may be hot and
may burn your fingers.
NOTICE
Be sure to replace the burned-out bulb
with one of the same wattage rating.
Otherwise, it may cause damage to the
fuse or electrical wiring system.
NOTICE
To prevent damage, do not clean the
headlamp lens with chemical solvents
or strong detergents.
Information - Headlamp
and rear combination lamp
desiccant (if equipped)
This vehicle is equipped with desiccant
packs to reduce fogging inside the
headlamp and rear combination lamp due
to moisture. The desiccant pack is made
of moisture absorbing materials and its
performance may change based on the
used period or environment. If fogging
inside the headlamp or rear combination
lamp due to moisture continues for a long
time, consult an authorized HYUNDAI
dealer.
Information
The headlamp and tail lamp lenses could
appear frosty if the vehicle is washed after
driving or the vehicle is driven at night in
wet weather. This condition is caused by
temperature difference between the lamp
inside and outside and, it does not indicate
a problem with your vehicle. When
moisture condenses in the lamp, it will be
removed after driving with the headlamp
on. The removable level may differ
depending on lamp size, lamp position
and environmental condition. However, if
moisture is not removed, have the vehicle
is inspected by an authorized HYUNDAI
dealer.
LIGHT BULBS

Maintenance

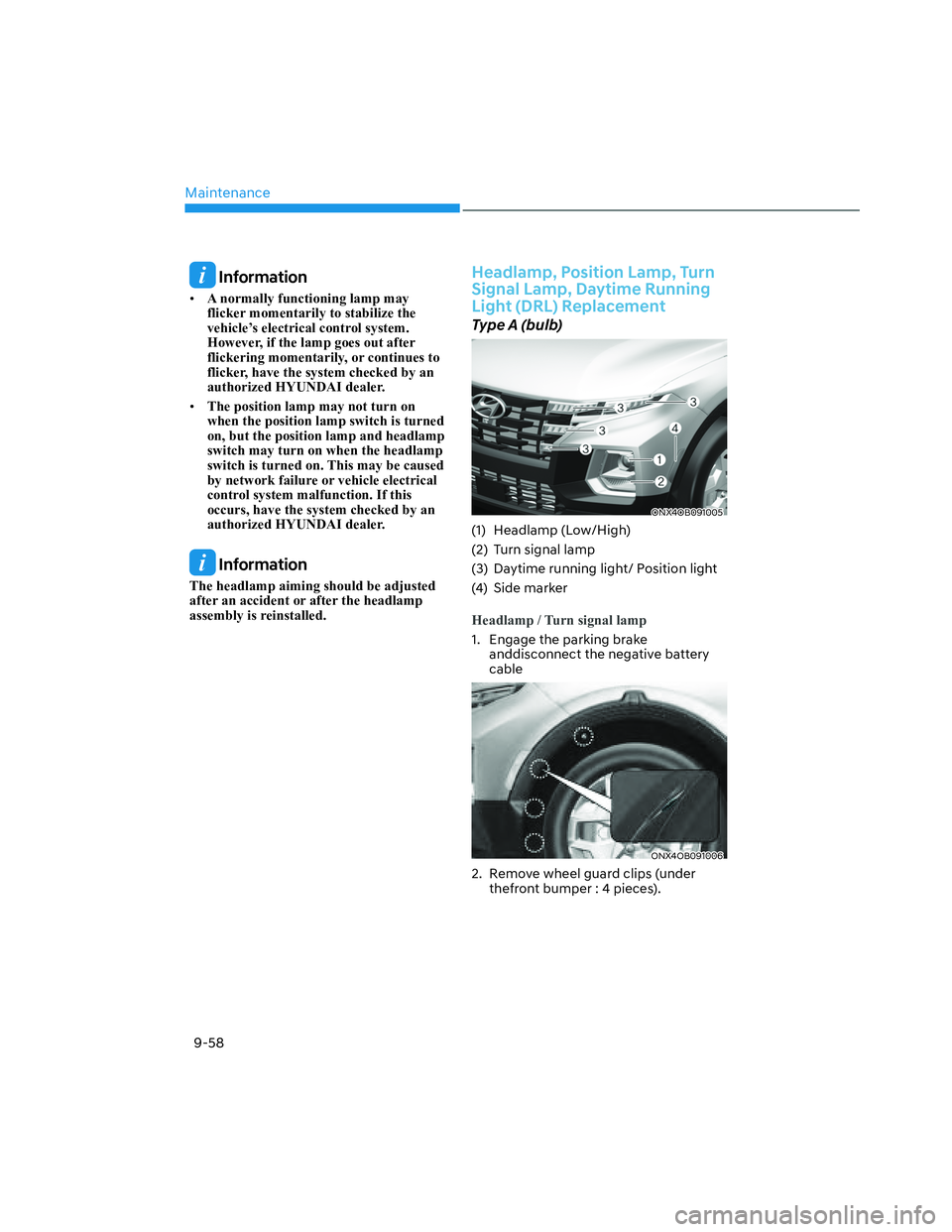

9-58
Information
• A normally functioning lamp may
flicker momentarily to stabilize the
vehicle’s electrical control system.
However, if the lamp goes out after
flickering momentarily, or continues to
flicker, have the system checked by an
authorized HYUNDAI dealer.
• The position lamp may not turn on
when the position lamp switch is turned
on, but the position lamp and headlamp
switch may turn on when the headlamp
switch is turned on. This may be caused
by network failure or vehicle electrical
control system malfunction. If this
occurs, have the system checked by an
authorized HYUNDAI dealer.
Information
The headlamp aiming should be adjusted
after an accident or after the headlamp
assembly is reinstalled.
Headlamp, Position Lamp, Turn
Signal Lamp, Daytime Running
Light (DRL) Replacement
Type A (bulb)
ONX4OB091005 ONX4OB091005
(1) Headlamp (Low/High)
(2) Turn signal lamp
(3) Daytime running light/ Position light
(4) Side marker
Headlamp / Turn signal lamp
1. Engage the parking brake
anddisconnect the negative battery
cable
ONX4OB091006ONX4OB091006
2. Remove wheel guard clips (under
thefront bumper : 4 pieces).

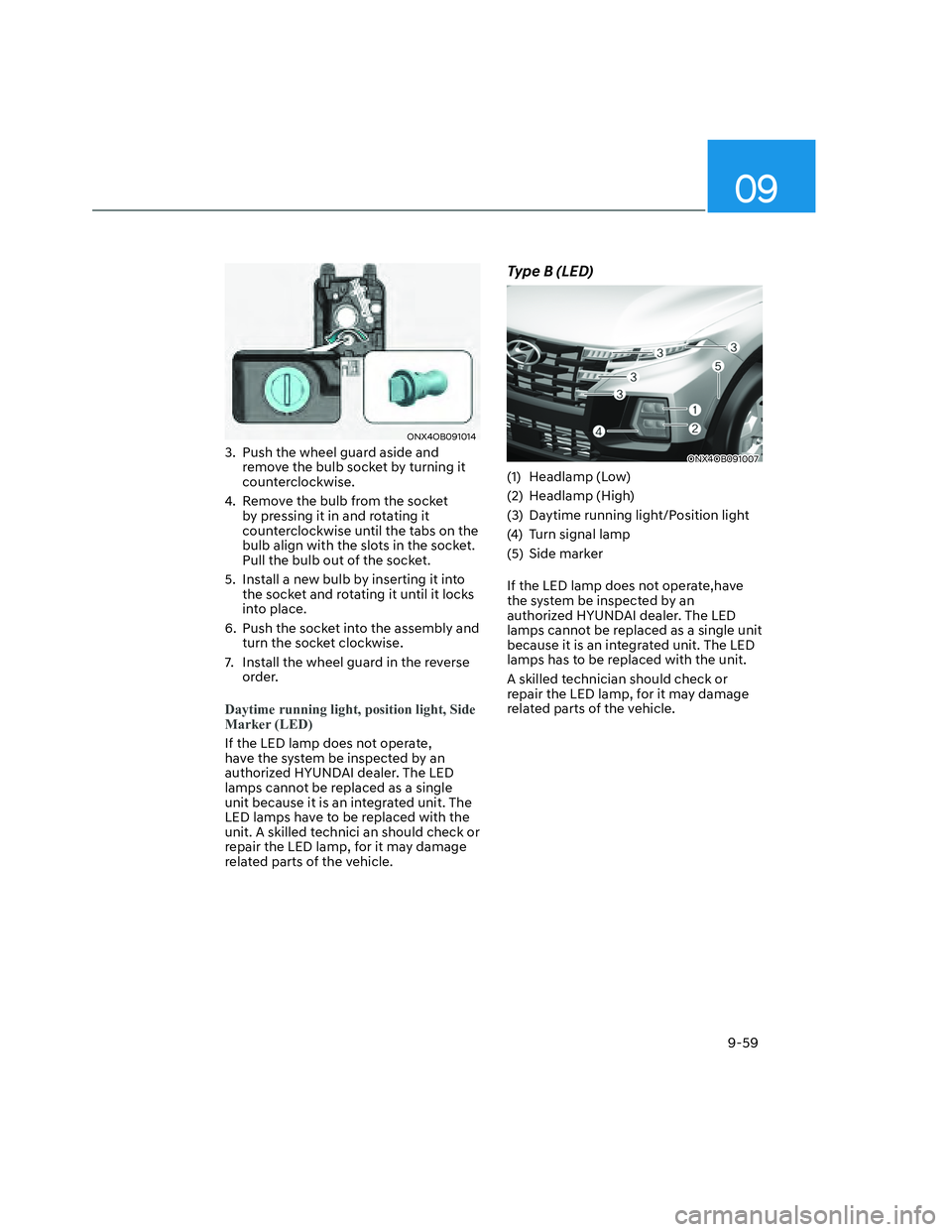

09
9-59
ONX4OB091014ONX4OB091014
3. Push the wheel guard aside and
remove the bulb socket by turning it
counterclockwise.
4. Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on the
bulb align with the slots in the socket.
Pull the bulb out of the socket.
5. Install a new bulb by inserting it into
the socket and rotating it until it locks
into place.
6. Push the socket into the assembly and
turn the socket clockwise.
7. Install the wheel guard in the reverse
order.
Daytime running light, position light, Side
Marker (LED)
If the LED lamp does not operate,
have the system be inspected by an
authorized HYUNDAI dealer. The LED
lamps cannot be replaced as a single
unit because it is an integrated unit. The
LED lamps have to be replaced with the
unit. A skilled technici an should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
Type B (LED)
ONX4OB091007ONX4OB091007
(1) Headlamp (Low)
(2) Headlamp (High)
(3) Daytime running light/Position light
(4) Turn signal lamp
(5) Side marker
If the LED lamp does not operate,have
the system be inspected by an
authorized HYUNDAI dealer. The LED
lamps cannot be replaced as a single unit
because it is an integrated unit. The LED
lamps has to be replaced with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.

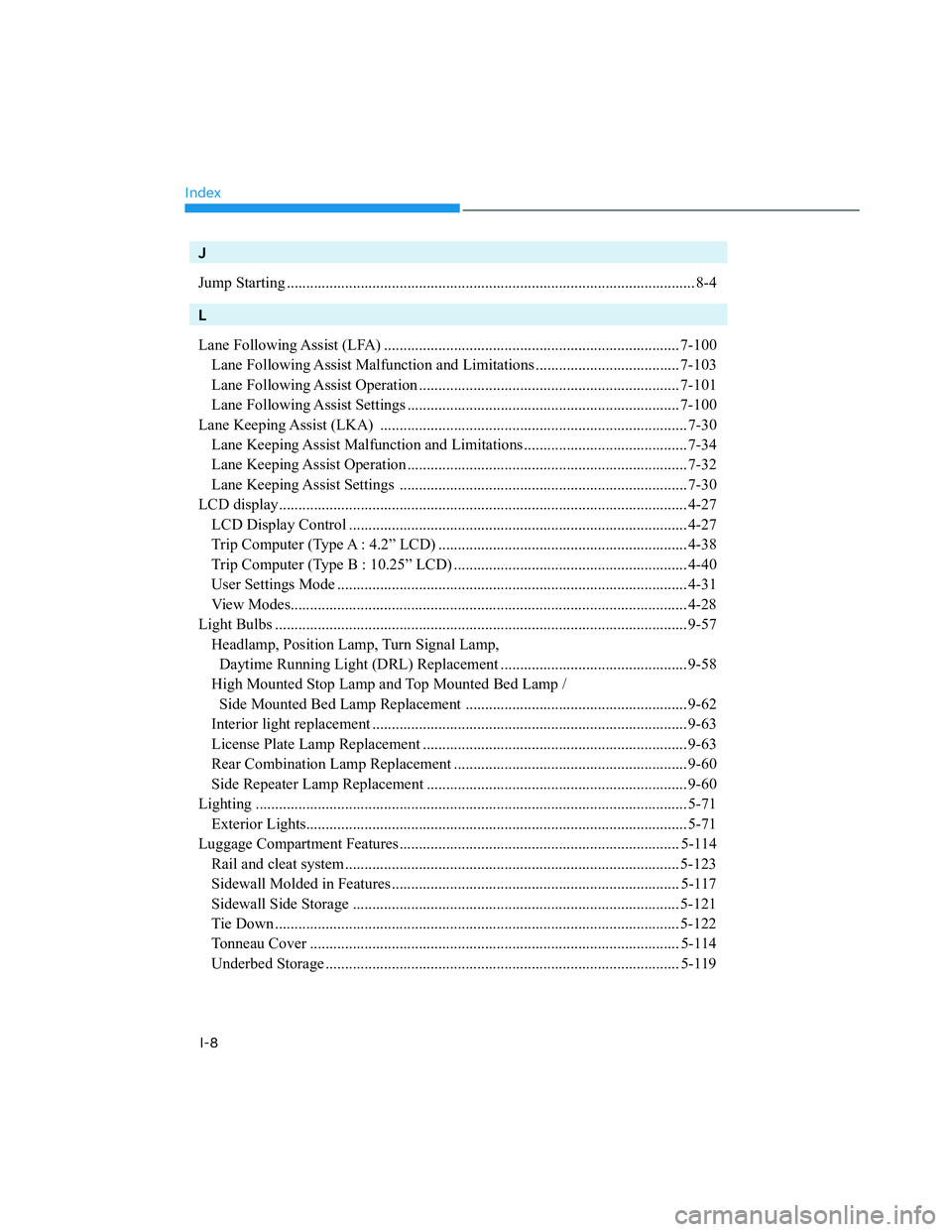

Index
I-8
J
Jump Starting ......................................................................................................... 8-4
L
Lane Following Assist (LFA) ............................................................................ 7-100
Lane Following Assist Malfunction and Limitations ..................................... 7-103
Lane Following Assist Operation ................................................................... 7-101
Lane Following Assist Settings ...................................................................... 7-100
Lane Keeping Assist (LKA) ............................................................................... 7-30
Lane Keeping Assist Malfunction and Limitations .......................................... 7-34
Lane Keeping Assist Operation ........................................................................ 7-32
Lane Keeping Assist Settings .......................................................................... 7-30
LCD display......................................................................................................... 4-27
LCD Display Control ....................................................................................... 4-27
Trip Computer (Type A : 4.2” LCD) ................................................................ 4-38
Trip Computer (Type B : 10.25” LCD) ............................................................ 4-40
User Settings Mode .......................................................................................... 4-31
View Modes...................................................................................................... 4-28
Light Bulbs .......................................................................................................... 9-57
Headlamp, Position Lamp, Turn Signal Lamp,
Daytime Running Light (DRL) Replacement ................................................ 9-58
High Mounted Stop Lamp and Top Mounted Bed Lamp /
Side Mounted Bed Lamp Replacement ......................................................... 9-62
Interior light replacement ................................................................................. 9-63
License Plate Lamp Replacement .................................................................... 9-63
Rear Combination Lamp Replacement ............................................................ 9-60
Side Repeater Lamp Replacement ................................................................... 9-60
Lighting ............................................................................................................... 5-71
Exterior Lights.................................................................................................. 5-71
Luggage Compartment Features........................................................................ 5-114
Rail and cleat system ...................................................................................... 5-123
Sidewall Molded in Features .......................................................................... 5-117
Sidewall Side Storage .................................................................................... 5-121
Tie Down ........................................................................................................ 5-122
Tonneau Cover ............................................................................................... 5-114
Underbed Storage ........................................................................................... 5-119
