2022 HYUNDAI I20 trip computer

Instrument cluster .......................................................................................... 5-2
Instrument Cluster Control ........................................................................................5-3
Gauges ....................................................................................................................... 5-4
Transmission Shift Indicator ...................................................................................... 5-7
Warning and indicator lights .................................................................................... 5-9
LCD display messages
............................................................................................. 5-19
LCD display (cluster type B) ......................................................................... 5-23
LCD display control ..................................................................................................5-23
LCD display modes.................................................................................................. 5-24
User settings mode
................................................................................................. 5-26
Trip computer ................................................................................................ 5-30
Cluster type A .......................................................................................................... 5-30
Cluster type B
.......................................................................................................... 5-35
5. Instrument cluster
5

5-24
Instrument cluster
LCD display modes
Modes Symbol Explanation
Trip
ComputerThis mode displays driving information such as the tripmeter,
fuel economy, etc.
For more details, refer to "Trip Computer" in this chapter.
Turn By
Turn (TBT)
This mode displays the state of the navigation.
Driving
Assist
- Cruise Control (CC)
- Tire Pressure (TPMS)
User
Settings
In this mode, you can change settings of the doors, lamps,
etc.
Warning
- This mode displays warning messages related to the
lamp malfunction, etc.
- Tire pressure information
The information provided may differ depending on which functions are applicable
to your vehicle.

5-25
05
Trip computer mode
OIK047124LOIK047124L
The trip computer mode displays
information related to vehicle driving
parameters including fuel economy,
tripmeter information and vehicle speed.
For more details, refer to "Trip
Computer" in this chapter.
Turn By Turn (TBT) group
OCN7060149OCN7060149
This group displays the state of the
navigation.
Driving Assist mode
OSU2I049039OSU2I049039
CC
This mode displays the state of Cruise
Control (CC).
For more details, refer to “Cruise
Control” in chapter 7.
OBI3040009OBI3040009
Tire Pressure
This mode displays information related
to Tire Pressure.
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” in chapter
8.

5-29
05
Other features
ItemsExplanation
Fuel Economy
Auto Reset• Off : The average fuel economy will not reset automatically whenever
refueling.
• After Ignition : The average fuel economy will reset automatically
whenever it has passed 4 hours after turning OFF the engine.
• After Refueling : The average fuel economy will reset automatically
when refueling.
For more details, refer to “Trip Computer” in this chapter.
Fuel Economy
UnitChoose the fuel economy unit. (Km/L, L/100km)
Temperature
UnitChoose the temperature unit. (°C,°F)
Tyre pressure
unitTo select the tire pressure unit. (psi, kPa, bar)
Language
ItemsExplanation
LanguageChoose the language.
Reset
ItemsExplanation
ResetYou can reset the menus in the User Settings Mode. All menus in the
User Settings Mode are reset to factory settings, except language and
service interval.

5-30
Instrument cluster
Cluster type A
Tripmeter/Trip computer
OBI3040011OBI3040011
„„Type AType A
„„Type BType B
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving,
when the ignition switch is in the ON
position. All stored driving information
(except odometer & Trip A & B) resets if
the battery is disconnected.Press the trip mode/reset button for less
than 1 second to select any mode as
follows:
* if equipped* if equipped
Tripmeter A
Tripmeter B
Distance to empty*
Average fuel consumption*
Instant fuel consumption*
Average speed*
Elapsed time*
Service Reminder*
TRIP COMPUTER

5-33
05

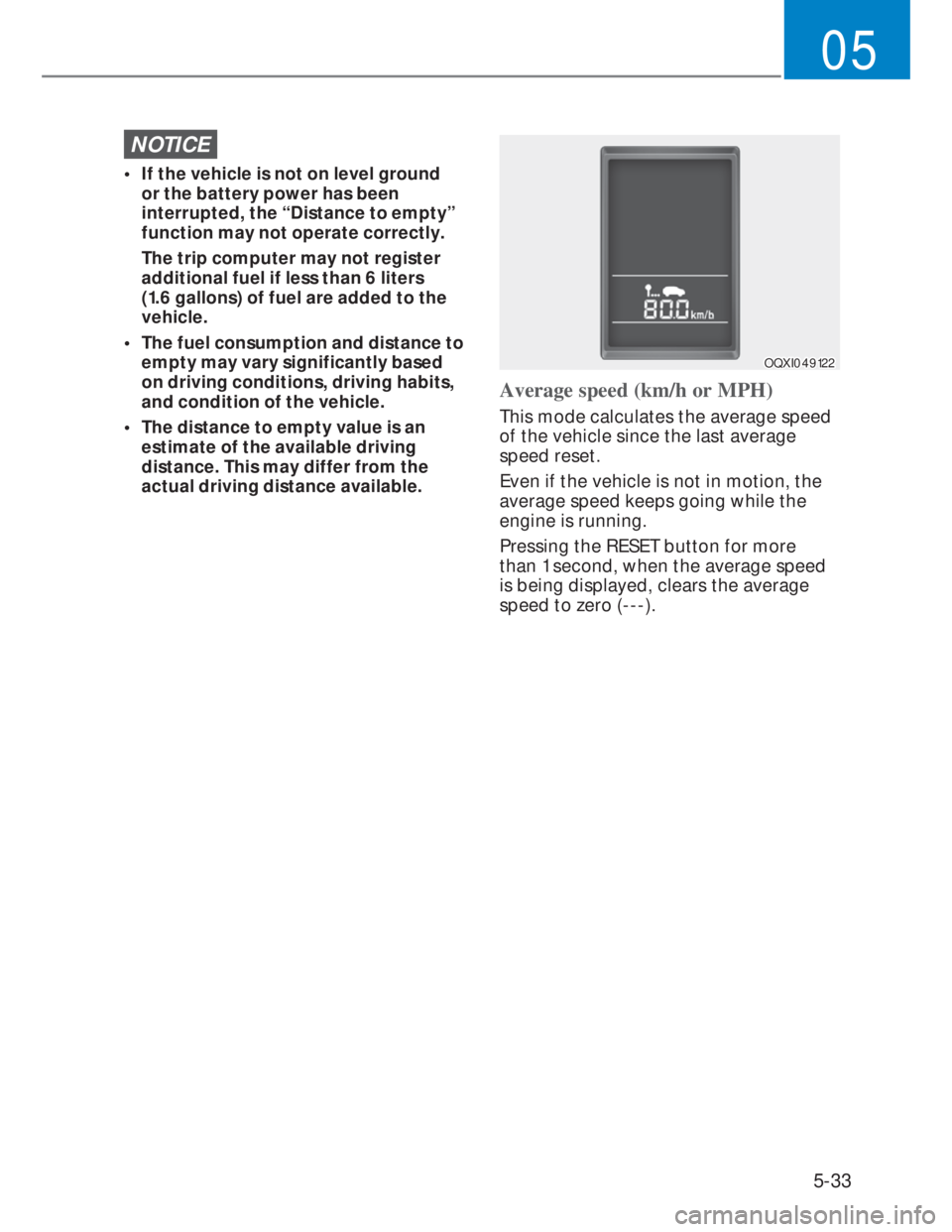

NOTICE
• If the vehicle is not on level ground
or the battery power has been
interrupted, the “Distance to empty”
function may not operate correctly.
The trip computer may not register
additional fuel if less than 6 liters
(1.6 gallons) of fuel are added to the
vehicle.
• The fuel consumption and distance to
empty may vary significantly based
on driving conditions, driving habits,
and condition of the vehicle.
• The distance to empty value is an
estimate of the available driving
distance. This may differ from the
actual driving distance available.
OQXI049122OQXI049122
Average speed (km/h or MPH)
This mode calculates the average speed
of the vehicle since the last average
speed reset.
Even if the vehicle is not in motion, the
average speed keeps going while the
engine is running.
Pressing the RESET button for more
than 1 second, when the average speed
is being displayed, clears the average
speed to zero (---).

5-35
05

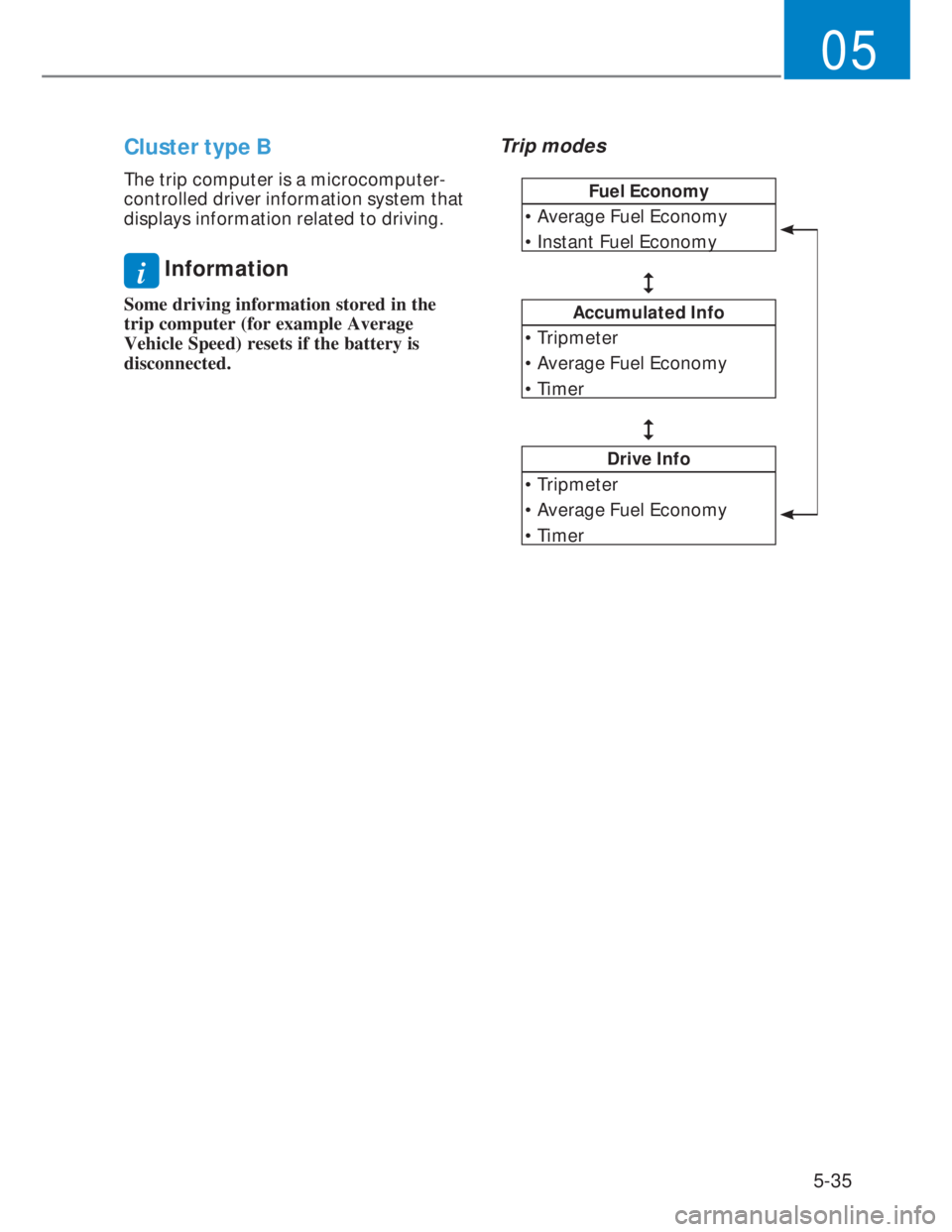

Cluster type B
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving.
i Information
Some driving information stored in the
trip computer (for example Average
Vehicle Speed) resets if the battery is
disconnected.
Trip modes
Fuel Economy
• Average Fuel Economy
• Instant Fuel Economy

Accumulated Info
• Tripmeter
• Average Fuel Economy
• Timer

Drive Info
• Tripmeter
• Average Fuel Economy
• Timer
