2022 HYUNDAI I20 cruise control

5-24
Instrument cluster
LCD display modes
Modes Symbol Explanation
Trip
ComputerThis mode displays driving information such as the tripmeter,
fuel economy, etc.
For more details, refer to "Trip Computer" in this chapter.
Turn By
Turn (TBT)
This mode displays the state of the navigation.
Driving
Assist
- Cruise Control (CC)
- Tire Pressure (TPMS)
User
Settings
In this mode, you can change settings of the doors, lamps,
etc.
Warning
- This mode displays warning messages related to the
lamp malfunction, etc.
- Tire pressure information
The information provided may differ depending on which functions are applicable
to your vehicle.

5-25
05
Trip computer mode
OIK047124LOIK047124L
The trip computer mode displays
information related to vehicle driving
parameters including fuel economy,
tripmeter information and vehicle speed.
For more details, refer to "Trip
Computer" in this chapter.
Turn By Turn (TBT) group
OCN7060149OCN7060149
This group displays the state of the
navigation.
Driving Assist mode
OSU2I049039OSU2I049039
CC
This mode displays the state of Cruise
Control (CC).
For more details, refer to “Cruise
Control” in chapter 7.
OBI3040009OBI3040009
Tire Pressure
This mode displays information related
to Tire Pressure.
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” in chapter
8.

7-42
Driving your vehicle

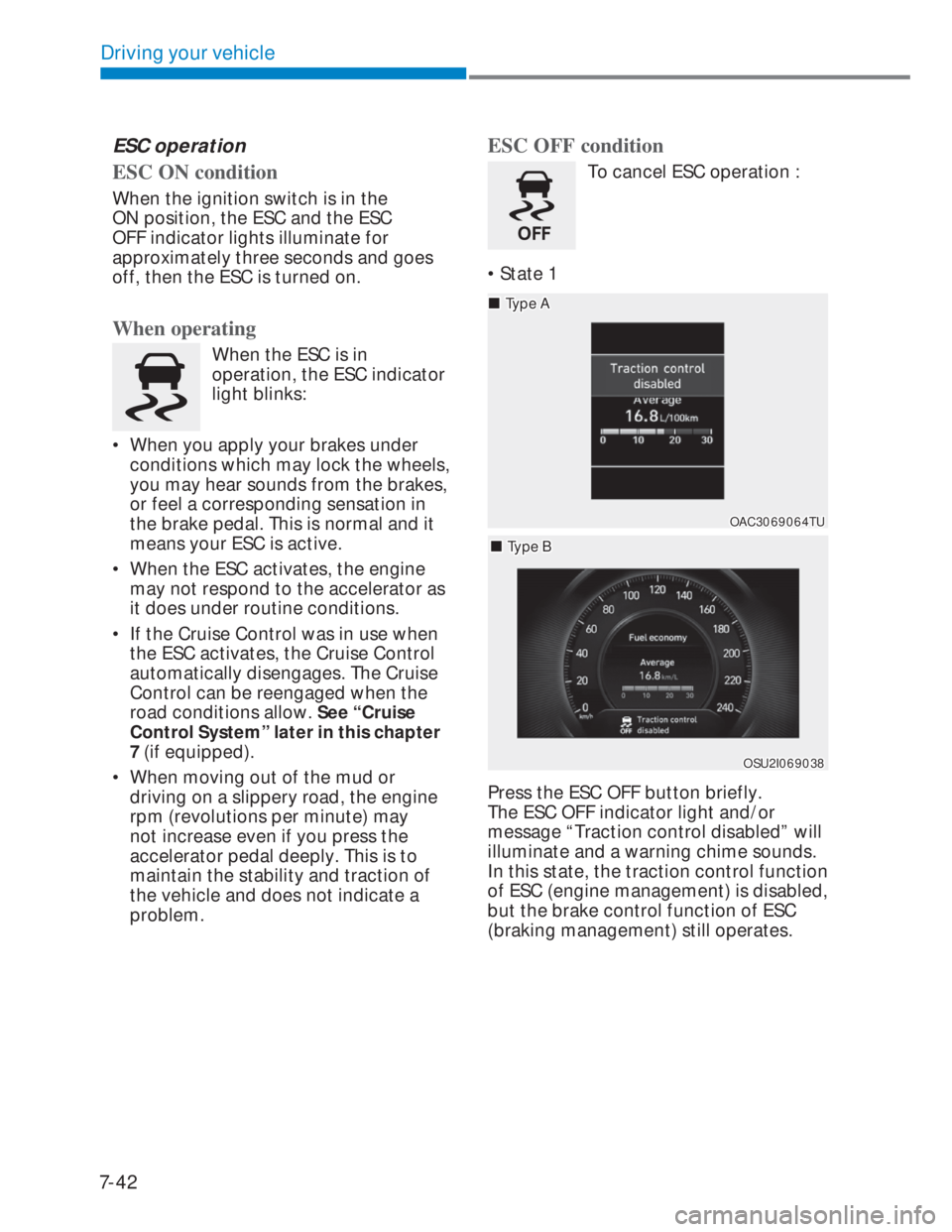

ESC operation
ESC ON condition
When the ignition switch is in the
ON position, the ESC and the ESC
OFF indicator lights illuminate for
approximately three seconds and goes
off, then the ESC is turned on.
When operating
When the ESC is in
operation, the ESC indicator
light blinks:
• When you apply your brakes under
conditions which may lock the wheels,
you may hear sounds from the brakes,
or feel a corresponding sensation in
the brake pedal. This is normal and it
means your ESC is active.
• When the ESC activates, the engine
may not respond to the accelerator as
it does under routine conditions.
• If the Cruise Control was in use when
the ESC activates, the Cruise Control
automatically disengages. The Cruise
Control can be reengaged when the
road conditions allow. See “Cruise
Control System” later in this chapter
7 (if equipped).
• When moving out of the mud or
driving on a slippery road, the engine
rpm (revolutions per minute) may
not increase even if you press the
accelerator pedal deeply. This is to
maintain the stability and traction of
the vehicle and does not indicate a
problem.
ESC OFF condition
To cancel ESC operation :
• State 1
OAC3069064TUOAC3069064TU
„„Type AType A
„„Type BType B
OSU2I069038OSU2I069038
Press the ESC OFF button briefly.
The ESC OFF indicator light and/or
message “Traction control disabled” will
illuminate and a warning chime sounds.
In this state, the traction control function
of ESC (engine management) is disabled,
but the brake control function of ESC
(braking management) still operates.

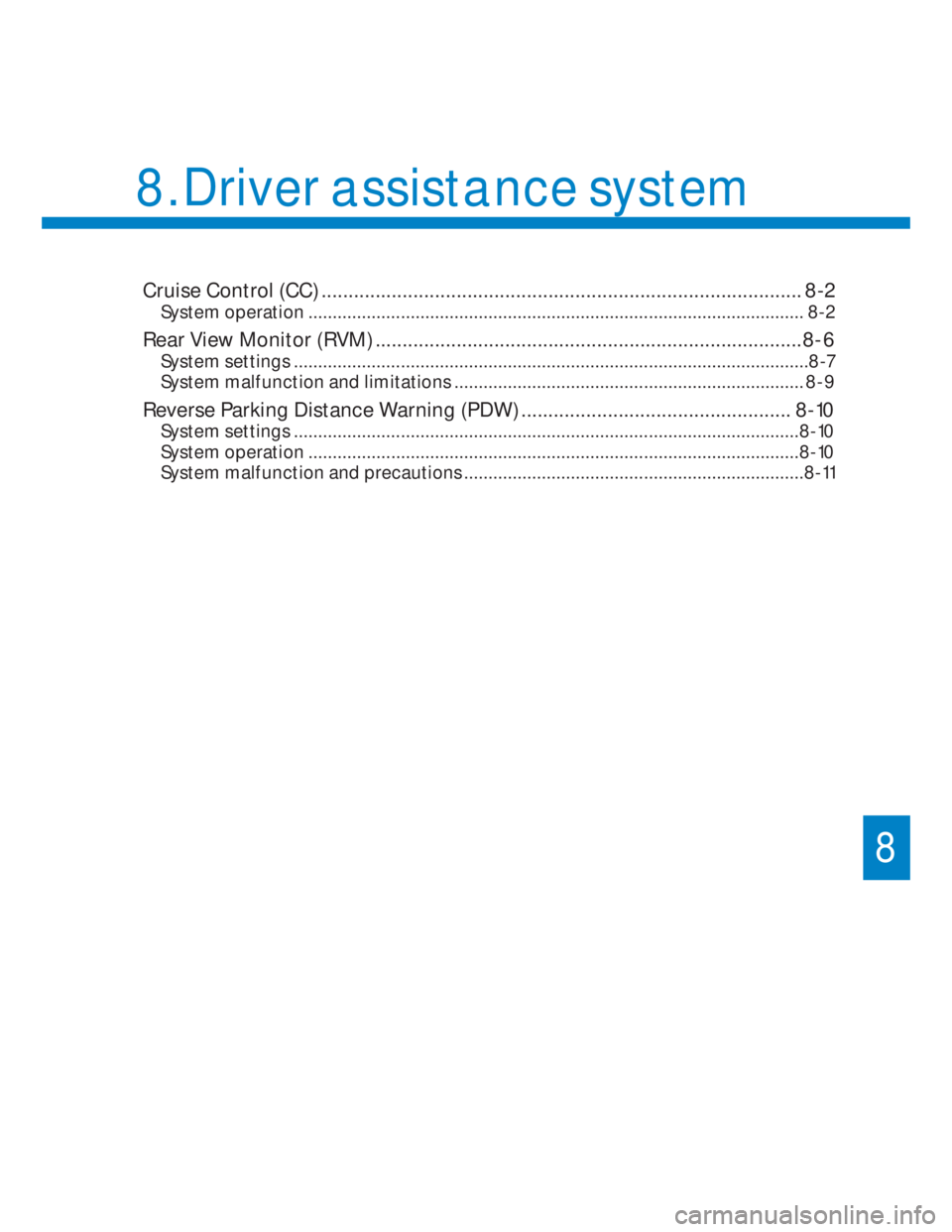

8
Cruise Control (CC) ......................................................................................... 8-2
System operation ...................................................................................................... 8-2
Rear View Monitor (RVM) ...............................................................................8-6
System settings ..........................................................................................................8-7
System malfunction and limitations ........................................................................ 8-9
Reverse Parking Distance Warning (PDW) .................................................. 8-10
System settings ........................................................................................................8-10
System operation
.....................................................................................................8-10
System malfunction and precautions ......................................................................8-11
8. Driver assistance system

Driver assistance system
8-2

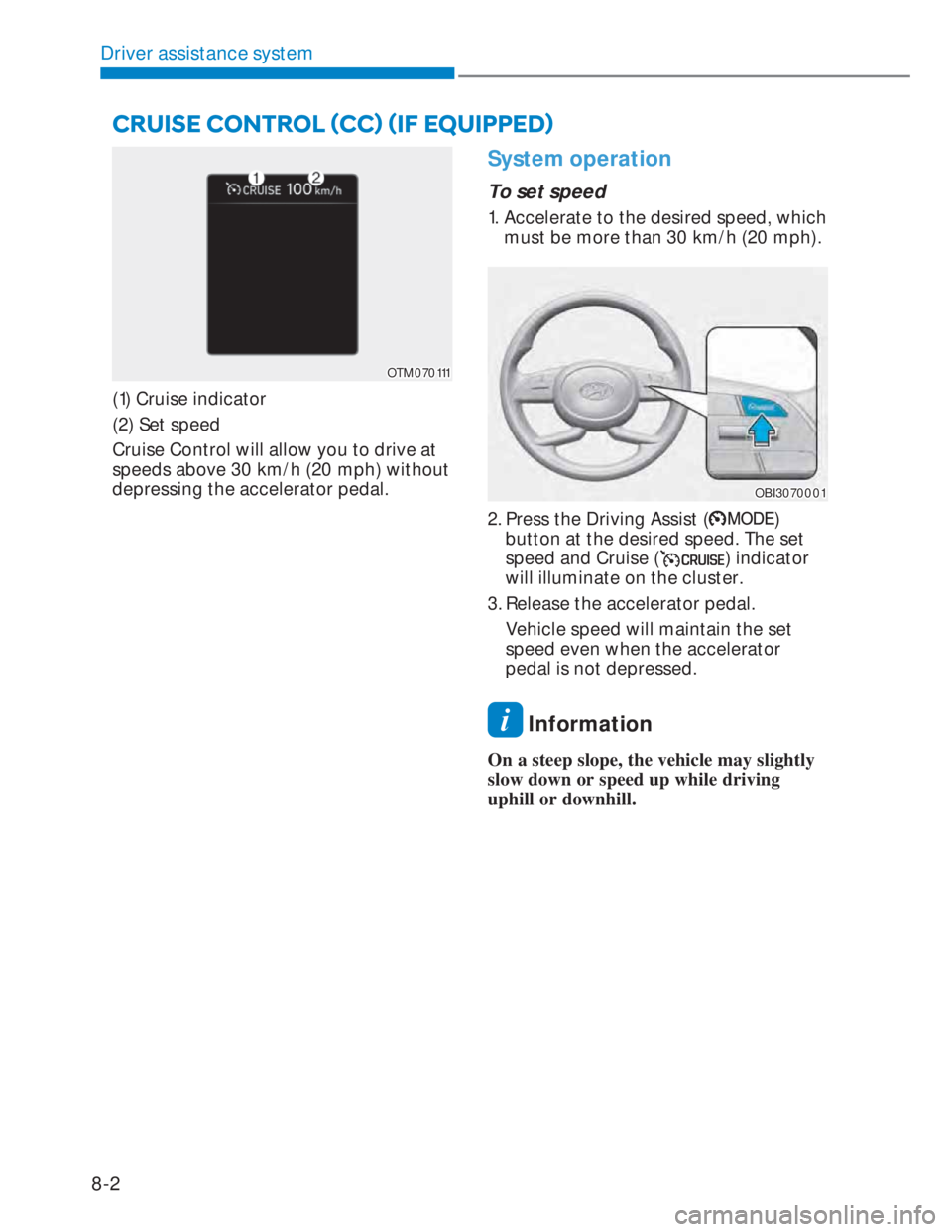

OTM070111OTM070111
(1) Cruise indicator
(2) Set speed
Cruise Control will allow you to drive at
speeds above 30 km/h (20 mph) without
depressing the accelerator pedal.
System operation
To set speed
1. Accelerate to the desired speed, which
must be more than 30 km/h (20 mph).
OBI3070001OBI3070001
2. Press the Driving Assist ()
button at the desired speed. The set
speed and Cruise (
) indicator
will illuminate on the cluster.
3. Release the accelerator pedal.
Vehicle speed will maintain the set
speed even when the accelerator
pedal is not depressed.
Information
On a steep slope, the vehicle may slightly
slow down or speed up while driving
uphill or downhill.
&58,6(&21752/

Driver assistance system
8-4

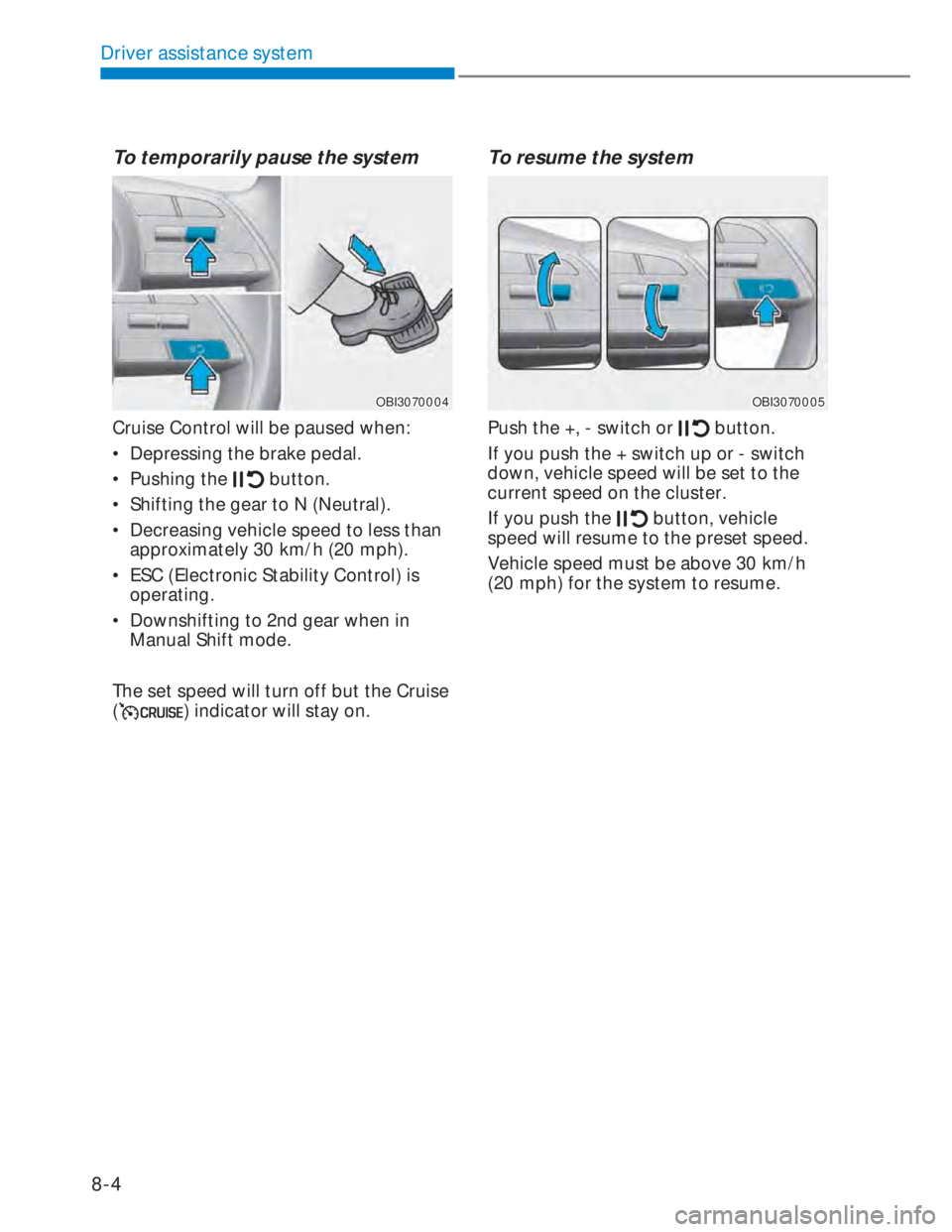

To temporarily pause the system
OBI3070004OBI3070004
Cruise Control will be paused when:
• Depressing the brake pedal.
• Pushing the
button.
• Shifting the gear to N (Neutral).
• Decreasing vehicle speed to less than
approximately 30 km/h (20 mph).
• ESC (Electronic Stability Control) is
operating.
• Downshifting to 2nd gear when in
Manual Shift mode.
The set speed will turn off but the Cruise
(
) indicator will stay on.
To resume the system
OBI3070005OBI3070005
Push the +, - switch or button.
If you push the + switch up or - switch
down, vehicle speed will be set to the
current speed on the cluster.
If you push the
button, vehicle
speed will resume to the preset speed.
Vehicle speed must be above 30 km/h
(20 mph) for the system to resume.

08
8-5

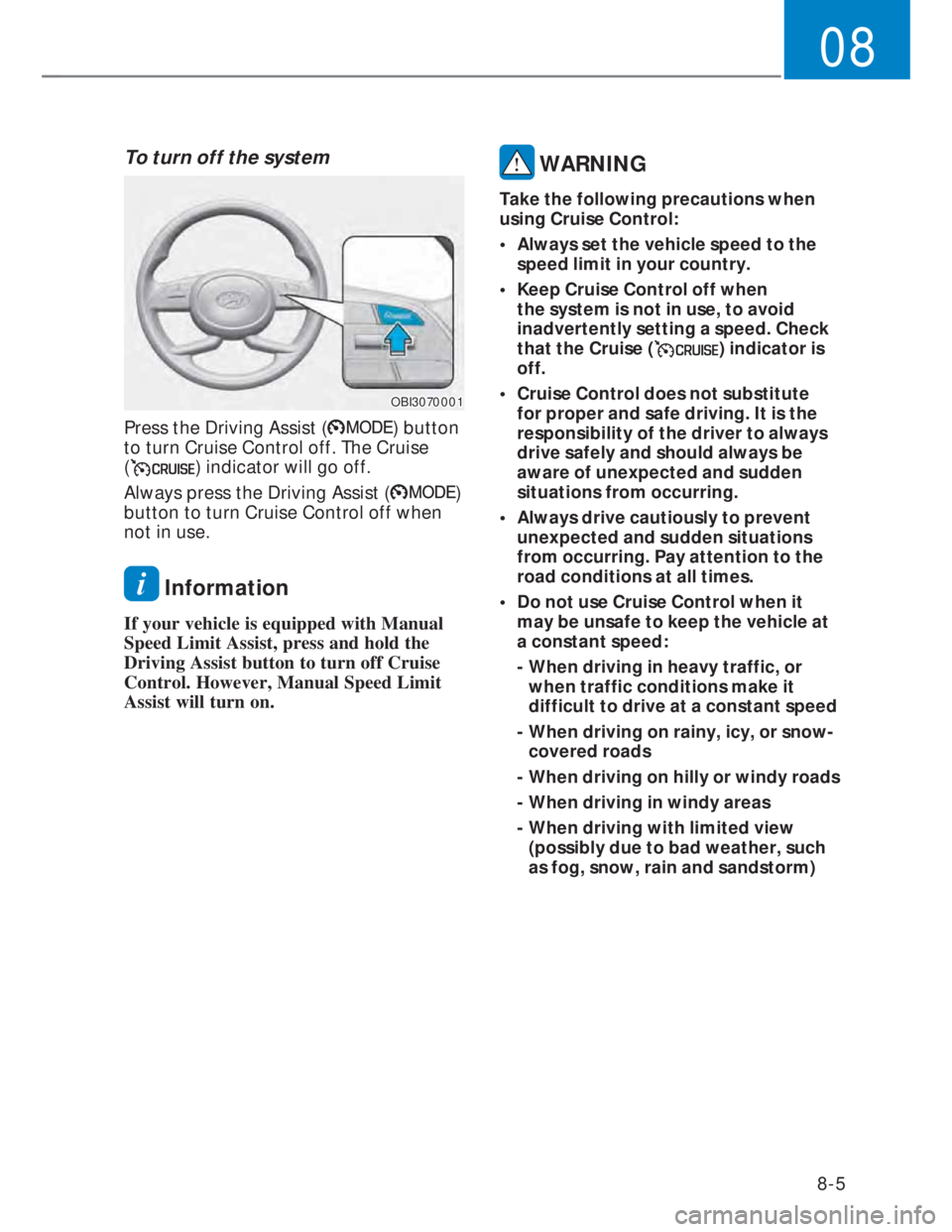

To turn off the system
OBI3070001OBI3070001
Press the Driving Assist () button
to turn Cruise Control off. The Cruise
(
) indicator will go off.
Always press the Driving Assist (
)
button to turn Cruise Control off when
not in use.
Information
If your vehicle is equipped with Manual
Speed Limit Assist, press and hold the
Driving Assist button to turn off Cruise
Control. However, Manual Speed Limit
Assist will turn on.
WARNING
Take the following precautions when
using Cruise Control:
• Always set the vehicle speed to the
speed limit in your country.
• Keep Cruise Control off when
the system is not in use, to avoid
inadvertently setting a speed. Check
that the Cruise (
) indicator is
off.
• Cruise Control does not substitute
for proper and safe driving. It is the
responsibility of the driver to always
drive safely and should always be
aware of unexpected and sudden
situations from occurring.
• Always drive cautiously to prevent
unexpected and sudden situations
from occurring. Pay attention to the
road conditions at all times.
• Do not use Cruise Control when it
may be unsafe to keep the vehicle at
a constant speed:
- When driving in heavy traffic, or
when traffic conditions make it
difficult to drive at a constant speed
- When driving on rainy, icy, or snow-
covered roads
- When driving on hilly or windy roads
- When driving in windy areas
- When driving with limited view
(possibly due to bad weather, such
as fog, snow, rain and sandstorm)
