Using the media player
You can play music stored in various
media storage devices, such as USB
storage devices, smartphones.
1. Connect a device to the USB port in
your vehicle.
• Playback may start immediately
depending on the device that you
connect to the system.
2. On the control panel, press the
[AUDIO] button.
3. When the mode selection window
displays, turn the [TUNE] knob to
select the desired mode and then
press the knob.
NOTICE
• To start the media player, press the
[AUDIO] button on the control panel.
• You can also change the mode by
press the [MODE] button repeatedly
on the steering wheel.
• Make sure to connect or disconnect
external USB devices with the system
power turned off.
• When the Mode popup is not
selected in [MENU/CLOCK] X Mode
popup, press the [AUDIO] button
on the control panel to change the
media player.
Each time you press the [AUDIO]
button on the control panel, the
media mode switches to USB X
Bluetooth audio in order.
• Depending on vehicle models and
specifications, available buttons or
the appearance and layout of the
USB port in your vehicle may vary.• Do not connect a smartphone or
an MP3 device to the system via
multiple methods such as USB and
Bluetooth simultaneously. Doing
so may cause a distorted noise or a
system malfunction.
• When the equaliser function of the
connected device and Equaliser
settings of the system are both
activated, the effects may interfere
with each other and may lead to
sound degradation or distortion.
Deactivate the device’s equaliser
function if possible.
Using the USB mode
You can play media files stored in
portable devices, such as USB storage
devices and MP3 players. Check
compatible USB storage devices and
file specifications before using the USB
mode.
Connect your USB device to the USB port
in the vehicle.
• Playback starts immediately.
• Press the [AUDIO] button on the
control panel to display the mode
selection window, turn the [TUNE]
knob to select USB and then press the
knob.

6-104
Convenient features
(1) Current file number and total number
of files
(2) Playback time
(3) Information about the song currently
playing
Press the [MENU/CLOCK] button on the
control panel to access the following
menu options:
• List: Access the file list.
• Folder list: Access the folder list.
• Information: Display information
about the song currently playing.
• Sound settings: You can change
the settings related to sounds, such
as location where sound will be
concentrated and the output level for
each range.
-Position: Select a location where
sound will be concentrated in the
vehicle. Select Fader or Balance,
turn the [TUNE] knob to select the
desired position, and then press the
knob. To set sound to be centred in
the vehicle, select Centre.
-Equaliser: Adjust the output level
for each sound tone mode.
-Sound experience: Select the
location where sound is focused
in the vehicle between the driver’s
seat and all other seats.
-Speed dependent vol.: Set the
volume to be adjusted automatically
according to your driving speed.
NOTICE
• Depending on vehicle models or
specifications, available options may
vary.
• Depending on the system or
amplifier specifications applied to
your vehicle, available options may
vary.
• Song information: Select information
such as Folder/File or Artist/Title/
Album to display when playing MP3
files.
• Mode popup: Set to display mode
selection window when the [AUDIO]
button is pressed on the control panel.
• Bluetooth remote lock: Even if
Bluetooth remote control application
is connected, if Set Bluetooth remote
lock is enabled. System cannot be
operated via smart phone application.
• Date/Time: You can change the
date and time that are shown on the
system display.
-Set date: Set date to display on the
system display.
-Set time: Set time to display on the
system display.
-Time format: Select to display time
in the 12 hour format or the 24 hour
format.
-Display (Power Off): Set to display
the clock when the system power
is off.
• Language: You can change the
display language.
Rewinding/Fast forwarding
On the control panel, press and hold the
[< SEEK] button / [TRACK >] button.
• You can also push and hold the Up/
down lever on the steering wheel.

6-105
06

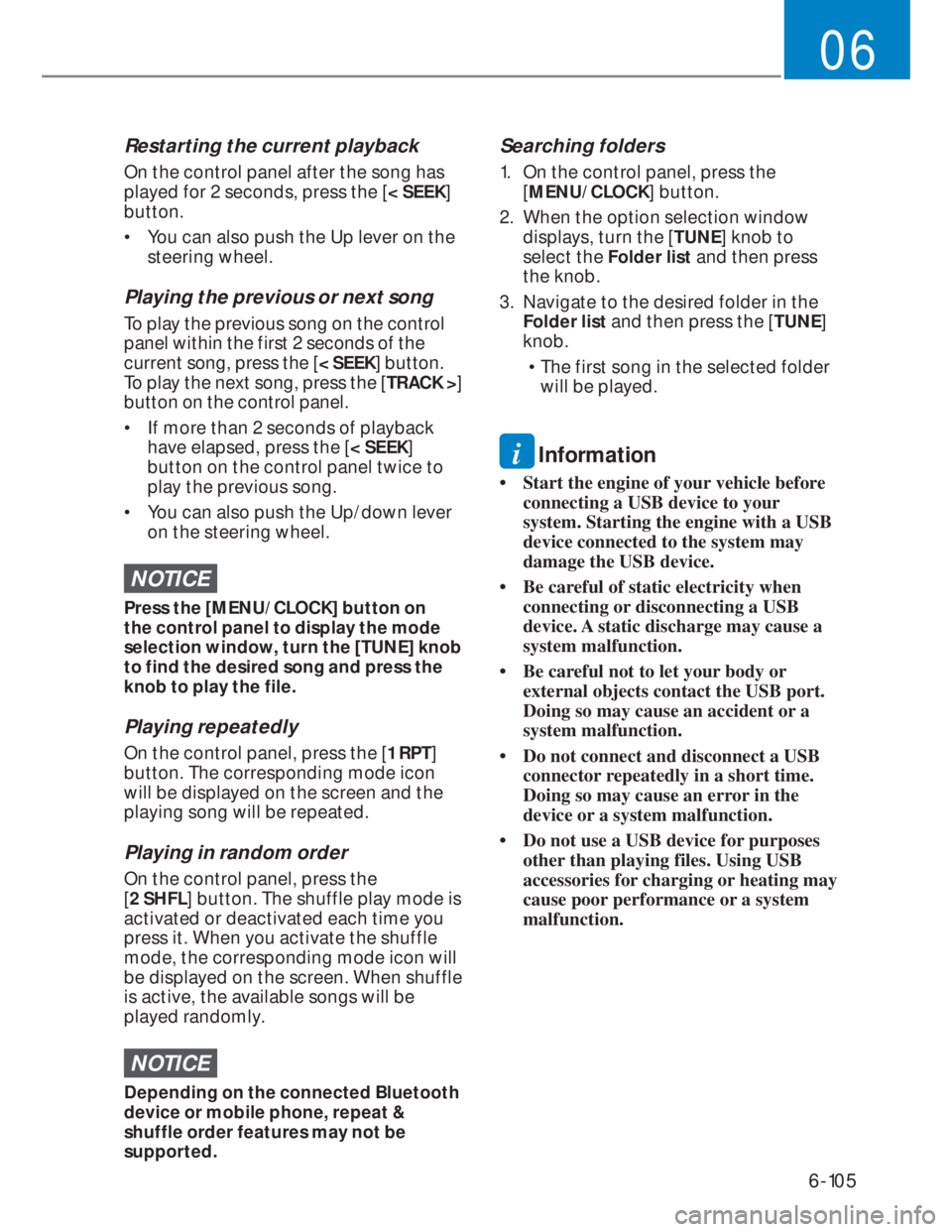

Restarting the current playback
On the control panel after the song has
played for 2 seconds, press the [< SEEK]
button.
• You can also push the Up lever on the
steering wheel.
Playing the previous or next song
To play the previous song on the control
panel within the first 2 seconds of the
current song, press the [< SEEK] button.
To play the next song, press the [TRACK >]
button on the control panel.
• If more than 2 seconds of playback
have elapsed, press the [< SEEK]
button on the control panel twice to
play the previous song.
• You can also push the Up/down lever
on the steering wheel.
NOTICE
Press the [MENU/CLOCK] button on
the control panel to display the mode
selection window, turn the [TUNE] knob
to find the desired song and press the
knob to play the file.
Playing repeatedly
On the control panel, press the [1 RPT]
button. The corresponding mode icon
will be displayed on the screen and the
playing song will be repeated.
Playing in random order
On the control panel, press the
[2 SHFL] button. The shuffle play mode is
activated or deactivated each time you
press it. When you activate the shuffle
mode, the corresponding mode icon will
be displayed on the screen. When shuffle
is active, the available songs will be
played randomly.
NOTICE
Depending on the connected Bluetooth
device or mobile phone, repeat &
shuffle order features may not be
supported.
Searching folders
1. On the control panel, press the
[MENU/CLOCK] button.
2. When the option selection window
displays, turn the [TUNE] knob to
select the Folder list and then press
the knob.
3. Navigate to the desired folder in the
Folder list and then press the [TUNE]
knob.
• The first song in the selected folder
will be played.
i Information
• Start the engine of your vehicle before
connecting a USB device to your
system. Starting the engine with a USB
device connected to the system may
damage the USB device.
• Be careful of static electricity when
connecting or disconnecting a USB
device. A static discharge may cause a
system malfunction.
• Be careful not to let your body or
external objects contact the USB port.
Doing so may cause an accident or a
system malfunction.
• Do not connect and disconnect a USB
connector repeatedly in a short time.
Doing so may cause an error in the
device or a system malfunction.
• Do not use a USB device for purposes
other than playing files. Using USB
accessories for charging or heating may
cause poor performance or a system
malfunction.

6-109
06
Disconnecting a device
If you want to stop using a Bluetooth
device or connect another device,
disconnect your currently connected
device.
1. From the control panel, press the
[PHONE] button, and then select
Phone settings X Paired devices.
2. Turn the [TUNE] knob to select your
currently connected device and then
press the knob.
3. Press the [1 RPT] button to select Ye s.
Deleting paired devices
If you no longer want a Bluetooth device
paired or if you want to connect a new
device when the Bluetooth device list is
full, delete paired devices.
1. From the control panel, press the
[PHONE] button, and then select
Phone settings X Delete devices.
2. Turn the [TUNE] knob to select the
device to delete, and then press the
knob.
3. Press the [1 RPT] button to select Ye s.
NOTICE
• When you delete a paired device, the
Call history and Contacts stored in
the system are also deleted.
• To re-use a deleted device, you must
pair the device again.
Using a Bluetooth audio device
You can listen to music stored in the
connected Bluetooth audio device via
your vehicle’s speakers.
1. On the control panel, press the
[AUDIO] button.
2. When the mode selection window
displays, turn the [TUNE] knob to
select Bluetooth audio and then press
the knob.
(1) Information about the song currently
playing
1. Press the [MENU/CLOCK] button
on the control panel to access the
following a menu option.
2. Turn the [TUNE] knob to select option
and then press the knob.
• Sound settings: You can change
the settings related to sounds, such
as location where sound will be
concentrated and the output level
for each range.
- Position: Select a location where
sound will be concentrated in the
vehicle. Select Fader or Balance,
turn the [TUNE] knob to select
the desired position, and then
press the knob. To set sound to
be centred in the vehicle, select
Centre.
- Equaliser: Adjust the output level
for each sound tone mode.
- Sound experience: Select the
location where sound is focused
in the vehicle between the driver’s
seat and all other seats.

6-110
Convenient features
- Speed dependent vol.: Set
the volume to be adjusted
automatically according to your
driving speed.
NOTICE
• Depending on vehicle models or
specifications, available options may
vary.
• Depending on the system or
amplifier specifications applied to
your vehicle, available options may
vary.
• Mode popup: Set to display mode
selection window when the [AUDIO]
button is pressed on the control
panel.
• Bluetooth remote lock: Even
if Bluetooth remote control
application is connected, if Set
Bluetooth remote lock is enabled.
System cannot be operated via
smart phone application.
• Date/Time: You can change the
date and time that are shown on the
system display.
- Set date: Set date to display on
the system display.
- Set time: Set time to display on
the system display.
- Time format: Select to display
time in the 12 hour format or the 24
hour format.
- Display (Power Off): Set to display
the clock when the system power
is off.
• Language: You can change the
display language.
Pausing/Resuming playback
To pause playback, press the [TUNE]
knob on the control panel. To resume
playback, press the [TUNE] knob again.
• You can also press the Mute button on
the steering wheel remote control.
Playing repeatedly
On the control panel, press the [1 RPT]
button. The corresponding mode icon
will be displayed on the screen and the
playing song will be repeated.
Playing in random order
On the control panel, press the
[2 SHFL] button. The shuffle play mode is
activated or deactivated each time you
press it. When you activate the shuffle
mode, the corresponding mode icon will
be displayed on the screen. When shuffle
is active, the available songs will be
played randomly.
NOTICE
Depending on the connected Bluetooth
device or mobile phone, repeat &
shuffle order features may not be
supported.

6-112
Convenient features

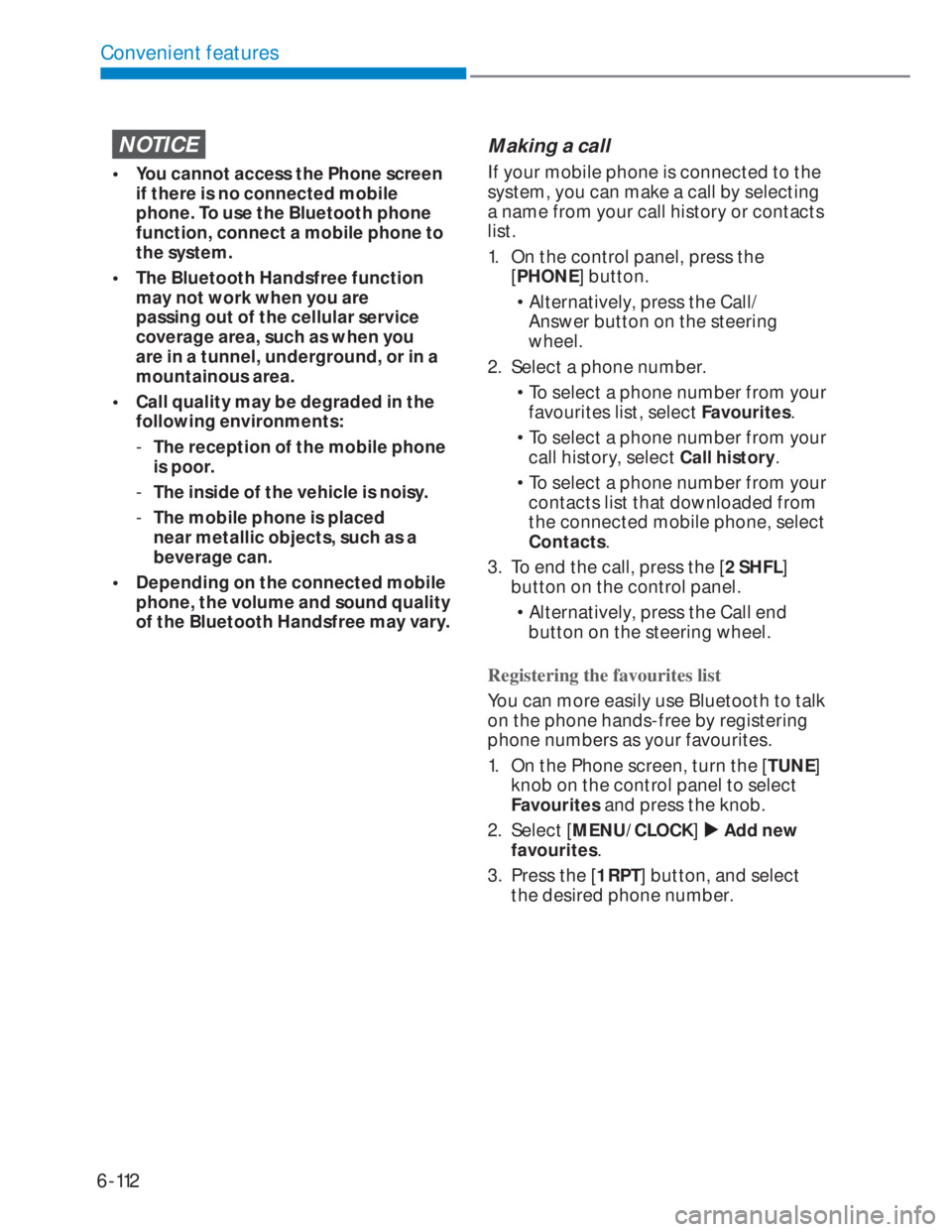

NOTICE
• You cannot access the Phone screen
if there is no connected mobile
phone. To use the Bluetooth phone
function, connect a mobile phone to
the system.
• The Bluetooth Handsfree function
may not work when you are
passing out of the cellular service
coverage area, such as when you
are in a tunnel, underground, or in a
mountainous area.
• Call quality may be degraded in the
following environments:
-The reception of the mobile phone
is poor.
-The inside of the vehicle is noisy.
-The mobile phone is placed
near metallic objects, such as a
beverage can.
• Depending on the connected mobile
phone, the volume and sound quality
of the Bluetooth Handsfree may vary.
Making a call
If your mobile phone is connected to the
system, you can make a call by selecting
a name from your call history or contacts
list.
1. On the control panel, press the
[PHONE] button.
• Alternatively, press the Call/
Answer button on the steering
wheel.
2. Select a phone number.
• To select a phone number from your
favourites list, select Favourites.
• To select a phone number from your
call history, select Call history.
• To select a phone number from your
contacts list that downloaded from
the connected mobile phone, select
Contacts.
3. To end the call, press the [2 SHFL]
button on the control panel.
• Alternatively, press the Call end
button on the steering wheel.
Registering the favourites list
You can more easily use Bluetooth to talk
on the phone hands-free by registering
phone numbers as your favourites.
1. On the Phone screen, turn the [TUNE]
knob on the control panel to select
Favourites and press the knob.
2. Select [MENU/CLOCK] X Add new
favourites.
3. Press the [1 RPT] button, and select
the desired phone number.

6-113
06
Using the favourites list
1. From the Phone screen, turn the
[TUNE] knob on the control panel to
select Favourites, and then press the
knob.
2. Turn the [TUNE] knob to select the
desired contact, and then press the
knob to make a phone call.
Press the [MENU/CLOCK] button on the
control panel to access the following
menu options:
• Add new favourites: Add a frequently
used phone number to favourites.
• Delete items: Delete a selected
favourites item.
• Delete all: Delete all favourites items.
NOTICE
• You can register up to 20 favourites
for each device.
• You must first download the contacts
to the system to register favourites.
• The favourites list saved on the
mobile phone is not downloaded to
the system.
• Even if the contact information on
the mobile phone is edited, the
favourites on the system are not
automatically edited. Delete and add
the item to favourites again.
• When you connect a new mobile
phone, your favourites set for the
previous mobile phone will not be
displayed, but they will remain in
your system until you delete the
previous phone from the device list.
Using your call history
1. From the Phone screen, turn the
[TUNE] knob on the control panel to
select Call history, and then press the
knob.
2. Turn the [TUNE] knob to select the
desired entry, and then press the knob
to make a phone call.
Press the [MENU/CLOCK] button on the
control panel to access the following
menu options:
Download: Download your call history.
• All calls: View all call records.
• Dialled calls: View only dialled calls.
• Received calls: View only received
calls.
• Missed calls: View only missed calls.
NOTICE
• Some mobile phones may not
support the download function.
• The call history is accessed only after
downloading the call history when
the mobile phone is connected to the
system.
• Calls from restricted IDs are not
saved on the call history list.
• Up to 50 call records will be
downloaded per individual list.
• Call duration and time information
will not be displayed on the system
screen.

6-114
Convenient features
• Permission is required to download
your call history from the mobile
phone. When you attempt to
download data, you may need to
permit the download on the mobile
phone. If the download fails, check
the mobile phone screen for any
notification or the mobile phone’s
permission setting.
• When you download your call
history, any old data will be deleted.
Using the contacts list
1. From the Phone screen, turn the
[TUNE] knob on the control panel to
select Contacts, and then press the
knob.
2. Turn the [TUNE] knob to select the
desired group of alphanumeric
characters, and then press the knob.
3. Turn the [TUNE] knob to select the
desired contact, and then press the
knob to make a phone call.
Press the [MENU/CLOCK] button on the
control panel to access the following a
menu option:
• Download: Download your mobile
phone contacts.
NOTICE
• Contacts can be viewed only when
the Bluetooth device is connected.
• Only contacts in the supported
format can be downloaded and
displayed from the Bluetooth device.
Contacts from some applications will
not be included.
• Up to 2,000 contacts can be
downloaded from your device.
• Some mobile phones may not
support the download function.
• Depending on the system’s
specifications, some of the
downloaded contacts may be lost.
• Contacts stored both in the phone
and in the SIM card are downloaded.
With some mobile phones,
contacts in the SIM card may not be
downloaded.
• Special characters and figures used
in the contact name may not be
displayed properly.
• Permission is required to download
contacts from the mobile phone.
When you attempt to download
data, you may need to permit the
download on the mobile phone. If
the download fails, check the mobile
phone screen for any notification
or the mobile phone’s permission
setting.
• Depending on the mobile phone type
or status, downloading may take
longer.
• When you download your contacts,
any old data will be deleted.
• You cannot edit or delete your
contacts on the system.
• When you connect a new mobile
phone, your contacts downloaded
from the previous mobile phone
will not be displayed, but they will
remain in your system until you
delete the previous phone from the
device list.
