2022 HYUNDAI ELANTRA Smart cruise

While Driving
6-56
Various driving situations, which you may
encounter in SMART mode

[The driving mode automatically
changes to SMART ECO mode after
a certain period of time, when you
gently depress the accelerator pedal
(Your driving is categorized to be
economic.).

[The driving mode automatically
changes from SMART ECO mode to
SMART NORMAL mode after a certain
period of time, when you sharply or
repetitively depress the accelerator
pedal.

[The driving mode automatically
changes to SMART NORMAL mode
with the same driving patterns, when
the vehicle starts to drive on an
upward slope of a certain angle. The
driving mode automatically returns to
SMART ECO mode, when the vehicle
enters a leveled road.

[The driving mode automatically
changes to SMART SPORT, when
you abruptly accelerate the vehicle
or repetitively operate the steering
wheel (Your driving is categorized
to be sporty.). In this mode, your
vehicle drives in a lower gear for
abrupt accelerating/decelerating
and increases the engine brake
performance.

[You may still sense the engine
braking performance, even when
you release the accelerator pedal in
SMART SPORT mode. It is because
your vehicle remains in lower gear
over a certain period of time for next
acceleration. Thus, it is a normal
driving situation, not indicating any
malfunction.

[The driving mode automatically
changes to SMART SPORT mode
only in harsh driving situations. In
most of the normal driving situations,
the driving mode sets to be either
in SMART ECO mode or in SMART
NORMAL mode.
Limitation of SMART mode
The SMART mode may be limited in
following situations. (The OFF indicator
illuminates in those situations.)

[The cruise control is activated :
The cruise control system may
deactivate the SMART mode when
the vehicle is controlled by the set
speed of Smart Cruise Control system.
(SMART mode is not deactivated
just by activating the cruise control
system.)

[The transmission oil temperature is
either extremely low or extremely
high :
The SMART mode can be active in
most of the normal driving situations.
However, an extremely high/ low
transmission oil temperature may
temporarily deactivate the SMART
mode, because the transmission
condition is out of normal operation
condition.

7
Driving SafetyForward Collision–Avoidance Assist (FCA) (front view camera only) .................... 7-2
Forward Collision–Avoidance Assist (FCA) (sensor fusion) ................................... 7-14
Lane Keeping Assist (LKA) ...................................................................................... 7-30
Blind-Spot Collision Warning (BCW) ..................................................................... 7-37
Blind-Spot Collision-Avoidance Assist (BCA) ........................................................ 7-46
Safe Exit Warning (SEW) .........................................................................................7-60
Manual Speed Limit Assist (MSLA) ......................................................................... 7-65
Driver Attention Warning (DAW) .............................................................................7-68
Driving ConvenienceCruise Control (CC) ..................................................................................................7-74
Smart Cruise Control (SCC) ................................................................................... 7-78
Navigation-Based Smart Cruise Control (NSCC) .................................................. 7-95
Lane Following Assist (LFA) ...................................................................................7-102
Highway Driving Assist (HDA) .............................................................................. 7-106
Parking SafetyRear View Monitor (RVM) ........................................................................................7-113
Rear Cross-Traffic Collision Warning (RCCW) ....................................................... 7-117
Rear Cross-Traffic Collision-Avoidance Assist (RCCA) ........................................ 7-125
Reverse Parking Distance Warning (PDW) ........................................................... 7-135
Reverse Parking Collision-Avoidance Assist (PCA) ..............................................7-138
Declaration of conformity ......................................................................................7-146
7. Driver assistance system

Driver assistance system
7-78
Smart Cruise Control is designed to
detect the vehicle ahead and help
maintain the desired speed and
minimum distance between the vehicle
ahead.
Overtaking Acceleration Assist
While Smart Cruise Control is operating,
if the system judges that the driver is
determined to overtake the vehicle in
front, acceleration will be assisted.
Detecting senor
OCN7060030
OCN7060029[1] : Front view camera,
[2] : Front radar
The front view camera and front radar
are used as a detecting sensor to help
detect the vehicles in front.
Refer to the picture above for the
detailed location of the detecting sensor.
CAUTION
Always keep the front view camera and
front radar in good and clean condition
to maintain optimal performance of
Smart Cruise Control.
For more details on the precautions of
the front view camera and front radar,
refer to “Forward Collision-Avoidance
Assist (FCA)” section in chapter 7.
SMART CRUISE CONTROL
ãSCC
ä
ãIF EQUIPPED
ä

07
7-79
Function settings
Setting
OCN7060060[A] : Type A, [B] : Type B
To turn on the function

[Press the Driving Assist button to turn
on the system. The speed will be set
to the current speed on the cluster.

[ If there is no vehicle in front of you,
the set speed will be maintained, but
if there is a vehicle in front of you,
the speed may decrease to maintain
the distance to the vehicle ahead. If
the vehicle ahead accelerates, your
vehicle will travel at a steady cruising
speed after accelerating to the set
speed.
Information

[If your vehicle speed is between 0~
20 mph (0~ 30 km/h) when you press
the Driving Assist button, the Smart
Cruise Control speed will be set to
20 mph (30 km/h).

[The Driving Assist button symbol
(
) may vary depending on
your vehicle option.
OCN7060069[A] : Type A, [B] : Type B
To set vehicle distance
Each time the button is pressed, the
vehicle distance changes as follows:
Distance 4 Distance 3
Distance 1Distance 2
Information

[If you drive at 56 mph (90 km/h), the
distance is maintained as follows:
Distance 4 -
approximately 172 ft. (53 m)
Distance 3 -
approximately 130 ft. (40 m)
Distance 2 -
approximately 106 ft. (30 m)
Distance 1 -
approximately 82 ft. (25 m)

[The distance is set to the last set
distance when the engine is restarted,
or when the system was temporarily
canceled.

07

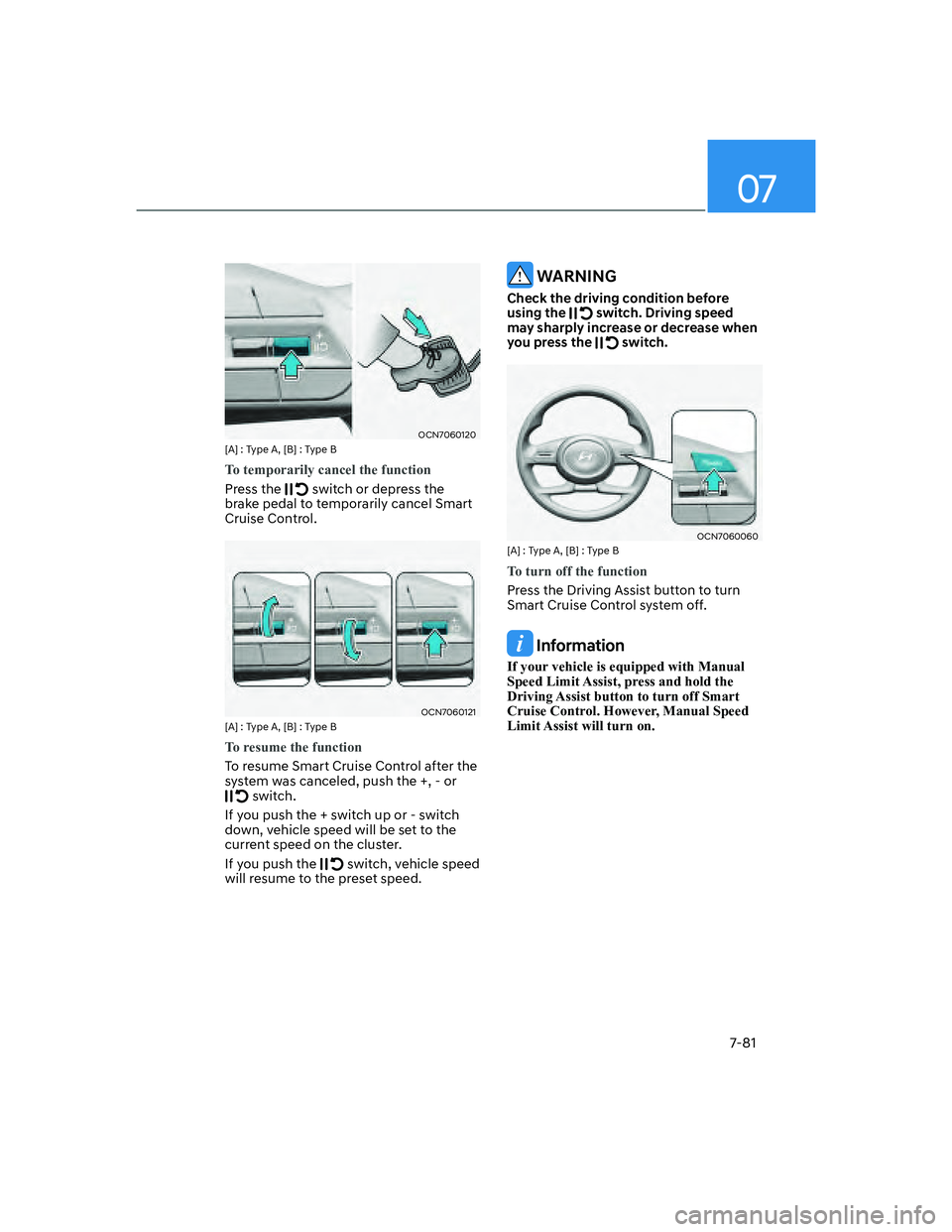

7-81
OCN7060120[A] : Type A, [B] : Type B
To temporarily cancel the function
Press the switch or depress the
brake pedal to temporarily cancel Smart
Cruise Control.
OCN7060121[A] : Type A, [B] : Type B
To resume the function
To resume Smart Cruise Control after the
system was canceled, push the +, - or
switch.
If you push the + switch up or - switch
down, vehicle speed will be set to the
current speed on the cluster.
If you push the
switch, vehicle speed
will resume to the preset speed.
WARNING
Check the driving condition before
using the switch. Driving speed
may sharply increase or decrease when
you press the
switch.
OCN7060060[A] : Type A, [B] : Type B
To turn off the function
Press the Driving Assist button to turn
Smart Cruise Control system off.
Information
If your vehicle is equipped with Manual
Speed Limit Assist, press and hold the
Driving Assist button to turn off Smart
Cruise Control. However, Manual Speed
Limit Assist will turn on.

Driver assistance system
7-82
OTM070142N
Smart Cruise Reaction
With the engine on, select ‘Driver
$VVLVWDQFH

07
7-83
Overtaking Acceleration Assist
Overtaking Acceleration Assist will
operate when the turn signal indicator is
turned on to the left while Smart Cruise
Control is operating, and the following
conditions are satisfied:

[Your vehicle speed is above 40 mph
(60 km/h)

[The hazard warning flasher is off

[A vehicle is detected in front of your
vehicle

[Deceleration is not needed to
maintain distance with the vehicle in
front
WARNING

[When the turn signal indicator is
turned on to the left (left-hand drive)
or turned on to the right (right-
hand drive) while there is a vehicle
ahead, the vehicle may accelerate
temporarily. Pay attention to the
road conditions at all times.

[Regardless of your countries driving
direction, Overtaking Acceleration
Assist will operate when the
conditions are satisfied. When
using the function in countries with
different driving direction, always
check the road conditions at all
times.
Function display and control
Basic function
You can see the status of the Smart
Cruise Control operation in the Driving
Assist mode on the cluster. Refer to “LCD
Display Modes” section in chapter 4.
Smart Cruise Control will be displayed
as below depending on the status of the
system.
OCN7060065N

[When operating
(1) Whether there is a vehicle ahead
and the selected distance level are
displayed.
(2) Set speed is displayed.
(3) Whether there is a vehicle ahead
and the target vehicle distance are
displayed.

Driver assistance system
7-84
OCN7060164N

[When temporarily canceled
(1)
indicator is displayed.
(2) The previous set speed is shaded.
Information

[The distance of the front vehicle on the
cluster is displayed according to the
actual distance between your vehicle
and the vehicle ahead.

[The target distance may vary according
to the vehicle speed and the set
distance level. If vehicle speed is low,
even though the vehicle distance have
changed, the change of the target
vehicle distance may be small.
To temporarily accelerate
OCN7060166N
If you want to speed up temporarily
when Smart Cruise Control is on, depress
the accelerator pedal. While the speed
is increasing, the set speed, distance
level and target distance will blink on the
cluster.
WARNING
Be careful when accelerating
temporarily, because the speed and
distance is not controlled automatically
even if there is a vehicle in front of you.
