2022 HONDA PASSPORT Owners Manual

Continued407
uuWhen Driving uShifting
Driving
■If you want to keep the transmission in (N position [car wash mode]
With the engine running:
1. Press and hold the brake pedal.
2. Select
(N, then release the button to display (Neutral) (N hold mode on the driver
information interface.
3. Press and hold
(N again for two seconds.
u This puts the vehicle in car wash mode which must be used when your vehicle
is pulled through a conveyor type automatic car wash where you or an
attendant do not remain in the vehicle.
If the ENGINE START/STOP button is pressed
after car wash mode has been activated, the
power mode will change to ACCESSORY and a
message will be displayed on the driver
information interface. u For 15 minutes the gear position remains
in
(N with the power mode in
ACCESSORY. After that, the position
automatically changes to
( P and the
power mode changes to OFF.
u Manually changing to
(P cancels
ACCESSORY mode. The
(P indicator
comes on and the power mode changes
to OFF. You must always shift to
(P
when car wash mode is no longer
needed.
1If you want to keep the transmission in ( N position [car wash mode]
To keep the vehicle (N position, you can also follow
this procedure:
While the power mode is on, select
( N, and then
within five seconds, press the ENGINE START/STOP
button.
Note that the transmiss ion may not stay in
(N
position while any of the following indicators is on:
•Transmission system indicator.
•Malfunction indicator lamp.•Charging system indicator.
22 PASSPORT-31TGS6300.book 407 ページ ２０２１年１０月６日　水曜日　午前１０時２分

408
uuWhen Driving uShifting
Driving
■Restrictions on selecting a gear position
You cannot select a gear position under certa in circumstances that may lead to a crash.
When the
transmission is in:1. Under these circumstances:2. If you try to change to
the following:3. The gear position
remains in/changes to:How to change the
gear position
(P
The brake pedal is not depressed.
Other gear position
(P
Release the accelerator
pedal and depress the
brake pedal.
The accelerator pedal is
depressed.
(N
The vehicle is moving at low
speed without the brake pedal
depressed.
(N
The vehicle is moving at low
speed with the accelerator pedal
depressed.
(N, (D or (SThe vehicle is moving forward.(RStop your vehicle in a
safe place, keep the
brake pedal pressed,
and select the
appropriate gear
position.
(R or (NThe vehicle is moving backward.(D, (S
(R, (N, (D or (SThe vehicle is moving.(P
22 PASSPORT-31TGS6300.book 408 ページ ２０２１年１０月６日　水曜日　午前１０時２分

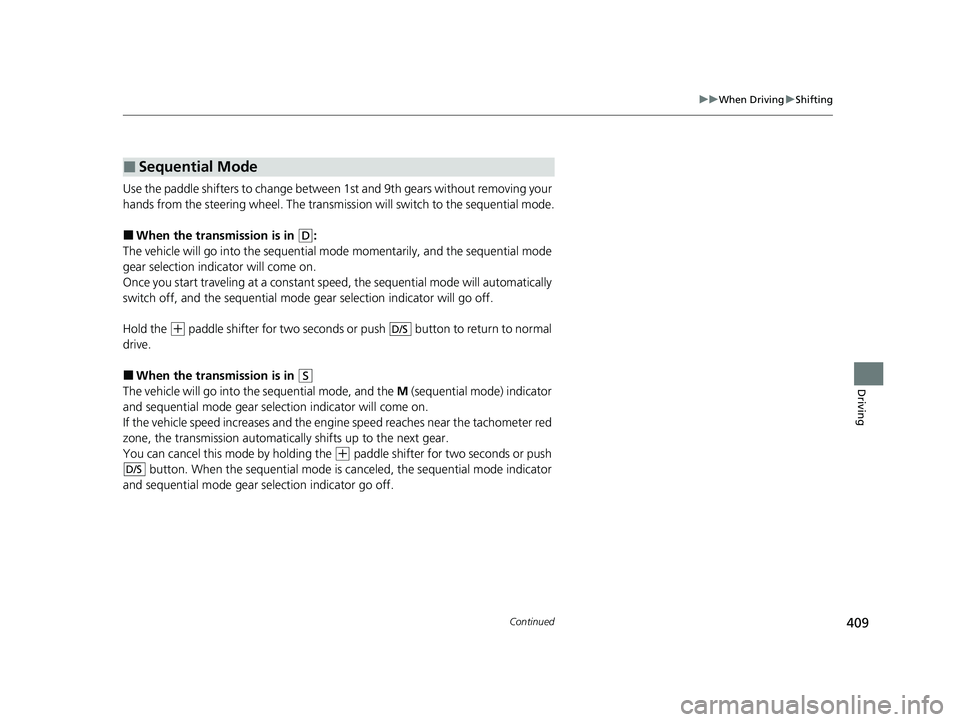

409
uuWhen Driving uShifting
Continued
Driving
Use the paddle shifters to change betwee n 1st and 9th gears without removing your
hands from the steering wheel. The transmission will switch to the sequential mode.
■When the transmi ssion is in (D:
The vehicle will go into th e sequential mode momentarily , and the sequential mode
gear selection indicator will come on.
Once you start traveling at a constant speed, the sequential mode will automatically
switch off, and the sequential mode gear selection indicator will go off.
Hold the
(+ paddle shifter for two seconds or push button to return to normal
drive.
■When the transmi ssion is in (S
The vehicle will go into th e sequential mode, and the M (sequential mode) indicator
and sequential mode gear selection indicator will come on.
If the vehicle speed increases and the engi ne speed reaches near the tachometer red
zone, the transmission automatically shifts up to the next gear.
You can cancel this mode by holding the
(+ paddle shifter for two seconds or push
button. When the sequential mode is canceled, the sequential mode indicator
and sequential mode gear selection indicator go off.
■Sequential Mode
D/S
D/S
22 PASSPORT-31TGS6300.book 409 ページ ２０２１年１０月６日　水曜日　午前１０時２分

uuWhen Driving uShifting
410
Driving
■Sequential Mode Operation1Sequential Mode Operation
Each paddle shift operation makes a single gear
change.
To change gears continuously, release the paddle
shifter before pulling it again for the next gear.
If the sequential mode gear selection indicator blinks
when you try to shift up or down, this means your
vehicle speed is not in its allowable gear range or the
protection of transmissi on system is necessary.
Slightly accelerate to shift up and decelerate to shift
down while the indi cator is blinking.
Sequential
Mode Gear
Selection
Indicator
Downshifting when pulling
the paddle shifter.
(Changes to a lower gear)Upshifting when pulling
the paddle shifter.
(Changes to a higher gear)
Paddle Shifter
(Shift down) Paddle Shifter
(Shift up)
22 PASSPORT-31TGS6300.book 410 ページ ２０２１年１０月６日　水曜日　午前１０時２分

411
uuWhen Driving uAuto Idle Stop
Continued
Driving
Auto Idle Stop
To help maximize fuel economy, the engi ne automatically stops when the vehicle
comes to a stop, depending on environmental and vehicle operating conditions. The
indicator (green) comes on at this time.
The environmental and vehicle conditions that
impact Auto Idle Stop system operation are varied.
2 Auto Idle Stop Activates When: P. 412,
414
The engine then restarts once the vehicle is
about to move again, and the indicator
(green) goes off.
2 The Engine Automatically Restarts When
P. 415
The Auto Idle Stop suspend indicator comes
on and a message appears on the gauge
when the Auto Idle St op system cannot be
activated.
2 Indicators P. 80
2 Auto Idle Stop System ON/OFF P. 412
If the driver’s door is opened while the
indicator (green) comes on, a buzzer sounds
to notify you that the Auto Idle Stop function
is in operation.
A message associated with Auto Idle Stop
appears on the driver information interface.
1 Auto Idle Stop
The 12-volt battery insta lled in this vehicle is
specifically designed for a m odel with Auto Idle Stop.
Using a 12-volt battery other than this specified type
may shorten the 12-volt ba ttery life, and prevent
Auto Idle Stop from activati ng. If you need to replace
the 12-volt battery, make sure to select the specified
type. Ask a dealer for more details.
The duration of the Au to Idle Stop operation:
•Increases in the ECON mode, compared to when
the ECON mode is off, with climate control in use.
2ECON Mode P. 417Auto Idle Stop
Indicator
(Green)
Auto Idle Stop
Suspend
Indicator
22 PASSPORT-31TGS6300.book 411 ページ ２０２１年１０月６日　水曜日　午前１０時２分

uuWhen Driving uAuto Idle Stop
412
Driving
To turn the Auto Idle Stop system off, press
this button. The Auto Idle Stop system stops.
u Auto Idle Stop system will stop, the
indicator will come on and a message
appears on the gauge.
The Auto Idle Stop syst em is turned on every
time you start the engine, even if you turned it
off the last time you drove the vehicle.
The vehicle stops with the gear position in
(D and the brake pedal depressed.
When you put the transmission into
(P, the Auto Idle Stop continues to operate,
even if the brake pedal is released. u If you depress the brake pedal, the engine may automatically restart.
■Auto Idle Stop does not activate when:
• The Auto Idle Stop OFF button is pressed.
• The driver’s seat belt is not fastened.
• The engine is not adequately warmed up or coolant temperature is high.
• The transmission fluid temperature is low or high.
• The vehicle comes to a stop again befo re the vehicle speed reaches 3 mph (5
km/h) after the engine starts.
• The vehicle is stopped on a steep incline.
• A gear position other than
(D.
■Auto Idle Stop System ON/OFF1Auto Idle Stop System ON/OFF
If you turn off the Auto Id le Stop system while it is
activated, the engine will restart.
2 Auto Idle Stop Activates When: P. 412
If you hold the Auto Idle Stop OFF button, you can
disable idle stop messages. 2 Indicators P. 80
Auto Idle
Stop OFF
Button
Auto Idle Stop OFF
Indicator
■Auto Idle Stop Activates When:1 Auto Idle Stop Activates When:
Do not open a hood, during idling stop. If the hood is
opened, the engine will not restart automatically.
In this case, restart the engine with the ENGINE
START/STOP button.
2 Starting the Engine P. 394
Pressing the ENGINE START/STOP button causes
the engine to no longer rest art automatically. Follow
the standard procedure to start the engine.
2 Starting the Engine P. 394
22 PASSPORT-31TGS6300.book 412 ページ ２０２１年１０月６日　水曜日　午前１０時２分

413
uuWhen Driving uAuto Idle Stop
Continued
Driving
• The engine is started with the hood open.
u Turn off the engine. Close the hood before you restart the engine to activate
Auto Idle Stop.
• The battery charge is low.
• The internal temperature of the battery is 14°F (−10°C) or less.
• The climate control system is in use, and the outside temperature is below −4°F
(−20°C) or over 104°F (40°C).
• The climate control system is in use, and the temperature is set to Hi or Lo .
• is ON (indicator on).
• The rear fan is set to maximum speed.
u Auto Idle Stop may not activate under other conditions when the rear climate
control system is in use.
• When the Intelligent Traction Management is set to Snow, Mud
*, or Sand*.
* Not available on all models
22 PASSPORT-31TGS6300.book 413 ページ ２０２１年１０月６日　水曜日　午前１０時２分

414
uuWhen Driving uAuto Idle Stop
Driving
■Auto Idle Stop may not activate when:
• The vehicle is stopped by braking suddenly.
• The steering wheel is operated.
• The fan speed is high.
• Altitude is high.
• The climate control system is in use, and there is a significant difference between
the set temperature and the actual interior temperature.
• The climate control system is in use, and humidity in the interior is high.
• The rear fan is set to maximum speed.
u Auto Idle Stop may not ac tivate under other conditions when the rear climate
control system is in use.
22 PASSPORT-31TGS6300.book 414 ページ ２０２１年１０月６日　水曜日　午前１０時２分
