2022 HONDA INSIGHT brake light

Visual Index
10
Quick Reference Guide❚Maintenance Under the Hood (P 499)
❚Windshield Wipers (P 192, 516)
❚Door Lock/Unlock Control (P 160)
❚Power Door Mirrors (P 198)
❚Headlights (P 185, 512)
❚High-Mount Brake Light (P 515)
❚Emergency Trunk Opener (P 173)
❚Opening/Closing the Trunk (P 171)
❚Parking/Daytime Running Lights (P 184, 188, 512)
❚Fog Lights* (P 188, 512)
❚Trunk Release Button (P 172)
❚Brake Lights (P 513)
❚Rear Side Marker Lights/Taillights (P 513)
❚Rear Turn Signal Lights (P 513)
❚Back-Up Lights (P 514)
❚How to Refuel (P 486)
❚Tires (P 519, 541, 547)
❚Taillights (P 514)
❚Multi-View Rear Camera (P 483)
❚Rear License Plate Light (P 515)
❚Front Turn Signal Lights (P 184, 512)
❚Front Side Marker Lights (P 185, 512)
❚Side Turn Signal Lights* (P 185, 512)
22 INSIGHT HMIN-31TXM6300.book 10 ページ ２０２１年２月２４日　水曜日　午後３時４５分

33
Quick Reference Guide
Maintenance (P 489)
Under the Hood (P 499)
●Check engine oil, engine coolant, inverter coolant, and
windshield washer fluid. Add when necessary.
●Check brake fluid.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, push it to the side, and then
raise the hood. Once you have raised the hood slightly, you
can release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P 512)
●Inspect all lights regularly.
Wiper Blades (P 516)
●Replace blades if they leave streaks
across the windshield or become
noisy.
Tires (P 519)
●Inspect tires and wheels regularly.●Check tire pressures regularly.●Install snow tires for winter
driving.
22 INSIGHT HMIN-31TXM6300.book 33 ページ ２０２１年２月２４日　水曜日　午後３時４５分

35
Quick Reference Guide
What to Do If
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
2Anti-lock Brake System (ABS) (P476)
The rear door cannot be
opened from inside the
vehicle. Why?Check if the childproof lock is in the
lock position. If so, open the rear door
with the outside door handle.
To cancel this function, slide the lever
up to the unlock position.
Why do the doors lock
after I unlocked the doors?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver’s door?The beeper sounds when:
●The power mode is in ACCESSORY.
●The exterior lights are left on.
22 INSIGHT HMIN-31TXM6300.book 35 ページ ２０２１年２月２４日　水曜日　午後３時４５分

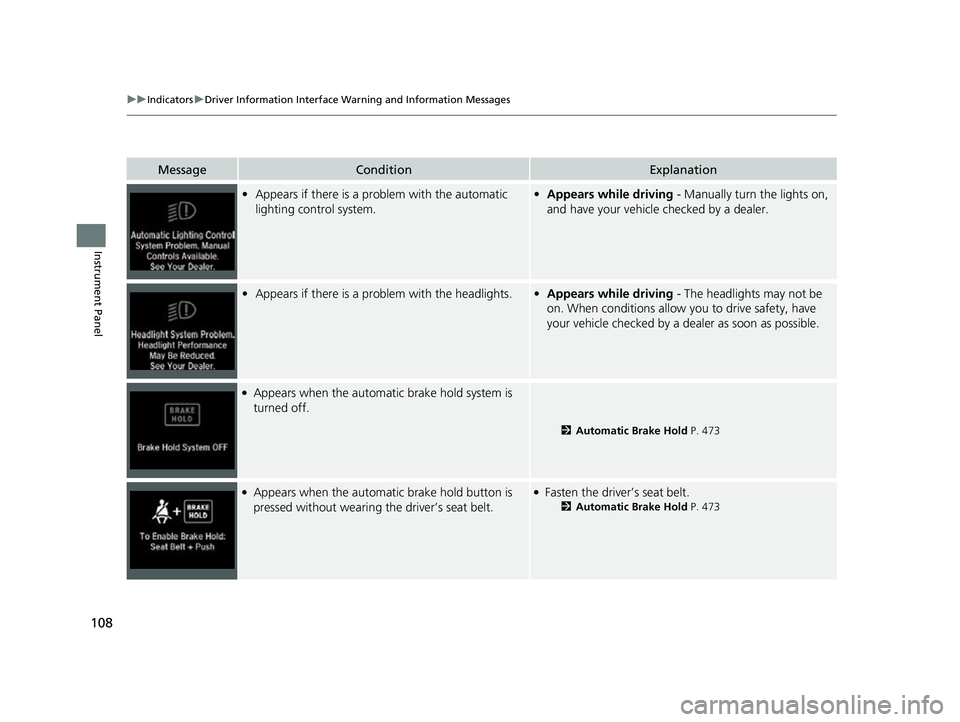

108
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears if there is a problem with the automatic
lighting control system.•Appears while driving - Manually turn the lights on,
and have your vehicle checked by a dealer.
• Appears if there is a problem with the headlights.•Appears while driving - The headlights may not be
on. When conditions allow you to drive safety, have
your vehicle checked by a de aler as soon as possible.
●Appears when the automatic brake hold system is
turned off.
2 Automatic Brake Hold P. 473
●Appears when the automa tic brake hold button is
pressed without wearing the driver’s seat belt.●Fasten the driver’s seat belt.
2 Automatic Brake Hold P. 473
22 INSIGHT HMIN-31TXM6300.book 108 ページ ２０２１年２月２４日　水曜日　午後３時４５分

119
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears if there is a prob lem with the auto high-
beam.• Manually operate the headlight switch.
• If you are driving with th e high-beam headlights when
this happens, the headlights are changed to low beams.
●Appears when ACC with Lo w Speed Follow has been
automatically canceled.●You can resume the set speed after the condition that
caused ACC with Low Speed Fo llow to cancel improves.
Press the RES/+ button.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 428
●Flashes when the system senses a likely collision with
a vehicle in front of you.●Take the appropriate means to prevent a collision (apply
the brakes, change lanes, etc.)
2Collision Mitigation Braking SystemTM (CMBSTM)
P. 418
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 428
22 INSIGHT HMIN-31TXM6300.book 119 ページ ２０２１年２月２４日　水曜日　午後３時４５分

152
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
■Drive Cycle Score/Lifetime Points
Appear for a few seconds when you set th e power mode to VEHICLE OFF. Each has
three stages. Depending on your driving style, the leaf icon(s) and the gauge
increase or decrease to indicate that you have reached a different stage of fuel
economy.
■Resetting the Drive Cycle Score
1. Make sure the shift position is in
(P. Turn the power mode to ON.
2. If ECON mode is on, press the ECON button to turn it off.
3. Turn the power mode to VEHICLE OFF.
4. Turn the power mode to ON again.
u Make sure to complete steps from 4 through 6 within 30 seconds.
5. Depress the brake pedal twice.
u The color of the ambient meter wi ll change from white to green.
u When the Fuel Efficiency Backlight setting on the audio/information screen
is off, the color stays white.
6. Press the ECON button twice.
u The color of the ambient mete r will turn to monochrome.
7. Turn the power mode to VEHICLE OFF.
Drive Cycle Score
Lifetime Points Advancing
to 2nd
Stage
Advancing
to 3rd
Stage
Receding
to 3rd
Stage
Receding
to 2nd
Stage
22 INSIGHT HMIN-31TXM6300.book 152 ページ ２０２１年２月２４日　水曜日　午後３時４５分

188
uuOperating the Switches Around the Steering Wheel uFog Lights*
Controls
Fog Lights*
When the low beam headlights are on, turn
the fog light switch on to use the fog lights.
Daytime Running Lights
The parking/daytime running lights come on when the following conditions have
been met:
• The power mode is in ON.
• The headlight switch is AUTO or OFF .
• The parking brake is released.
The lights remain on even if you set the parking brake. Setting the power mode to
VEHICLE OFF (LOCK) will turn off the daytime running lights.
The daytime running lights are off once the headlight switch is turned on, or when
the headlight switch is in AUTO and it is getting darker outside.
Fog Light Switch
* Not available on all models
22 INSIGHT HMIN-31TXM6300.book 188 ページ ２０２１年２月２４日　水曜日　午後３時４５分

Continued377
uuBefore Driving uDriving Preparation
Driving
• Store or secure all items on board properly.
u Carrying too much cargo, or improperly storing it, can affect your vehicle’s
handling, stability, sto pping distance, and tires, and make it unsafe.
2Maximum Load Limit P. 379
•Do not pile items higher than the seat height.
u They can block your view and may be thrown forward in the event of sudden
braking.
• Do not place anything in the front seat footwells. Make sure to secure the floor
mat.
u An object or unsecured floor mat can in terfere with your brake and accelerator
pedal operation while driving.
• If you have any animals on board, do not let them move around in the vehicle.
u They may interfere with driv ing and a crash could occur.
• Securely close and lock all doors and the trunk.
2 Locking/Unlocking the Doors from the Inside P. 167
•Adjust your seating position properly.
u Adjust the head restraint, too.
2Adjusting the Seats P. 199
2 Adjusting the Front Head Restraint Positions P. 204
•Adjust the mirrors and steering wheel properly.
u Adjust them while sitting in the proper driving position.
2 Adjusting the Mirrors P. 197
2 Adjusting the Steering Wheel P. 196
■Interior Checks1Interior Checks
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk, have the aiming readjusted
at a dealer or by a qualified technician.
22 INSIGHT HMIN-31TXM6300.book 377 ページ ２０２１年２月２４日　水曜日　午後３時４５分
