2022 HONDA INSIGHT Owners Manual

uuCleaning uExterior Care
536
Maintenance
The inside lenses of exterior lights (headli ghts, brake lights, etc.) may fog temporarily
if you have driven in the rain, or after the vehicle has been run through a car wash.
Dew condensation also may build up inside the lenses when there is a significant
enough difference between the ambient and inside lens temperatures (similar to
vehicle windows fogging up in rainy conditions). These conditions are natural
processes, not structural design problems in the exterior lights.
Lens design characteristics may result in mo isture developing on the light lens frame
surfaces. This also is not a malfunction.
However, if you see large amounts of wa ter accumulation, or large water drops
building up inside the lenses, have your vehicle inspected by a dealer.
Refer to the temperature notice label a ffixed to the driver’s doorjamb before
painting the vehicle.

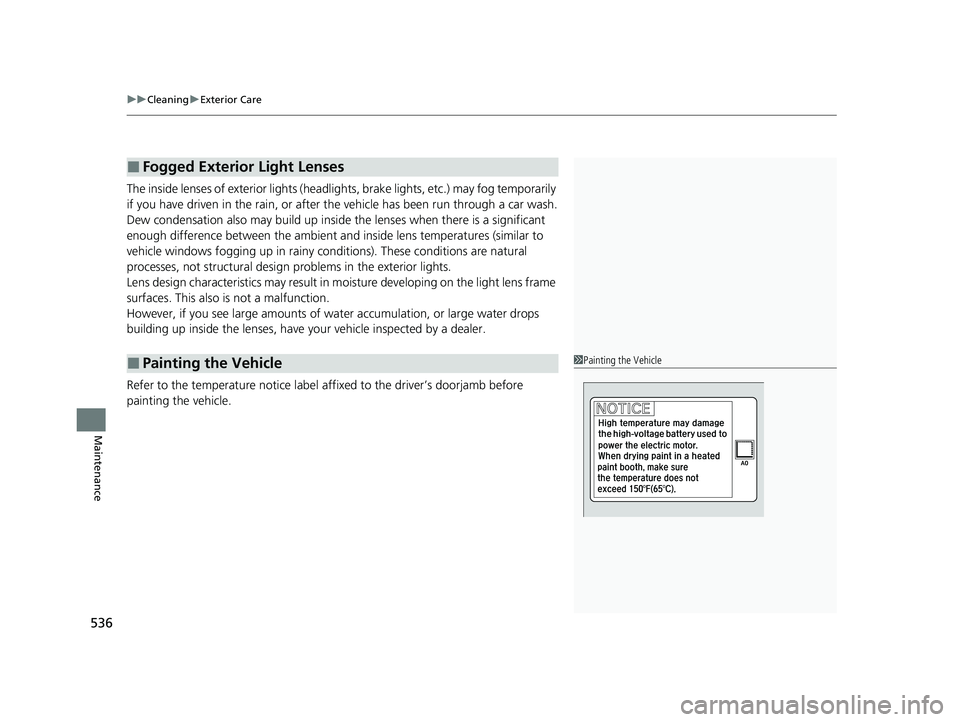

■Fogged Exterior Light Lenses
■Painting the Vehicle1 Painting the Vehicle
22 INSIGHT HMIN-31TXM6300.book 536 ページ ２０２１年２月２４日　水曜日　午後３時４５分

537
Maintenance
Accessories and Modifications
Accessories
When installing accessories, check the following:
• Do not install accessories on the windsh ield. They can obstruct your view and
delay your reaction to driving conditions.
• Do not install any accessories over areas marked SRS Airbag, on the sides or backs
of the front seats, on front or side pillars, or near the side windows.
Accessories installed in these areas may interfere with proper operation of the
vehicle’s airbags or may be propelled into you or another occupant if the airbags
deploy.
• Be sure electronic accessories do not overload electrical circuits or interfere with
proper operation of your vehicle.
2 Fuses P. 577
•Before installing any electro nic accessory, have the installer contact a dealer for
assistance. If possible, have a deal er inspect the final installation.
1Accessories and Modifications
Honda Genuine accessor ies are recommended to
ensure proper operati on on your vehicle.
3WARNING
Improper accessories or modifications can
affect your vehicle’s handling, stability, and
performance, and cause a crash in which
you can be seriously hurt or killed.
Follow all instruction s in this owner’s
manual regarding accessories and
modifications.
3WARNING
Use of improperly designed, engineered or
manufactured high-voltage battery
assemblies could cause a fire in your
vehicle.
A vehicle fire could result in a crash or
injury.
Only use a genuine Honda high-voltage
battery assembly, or it s equivalent, in your
vehicle.
22 INSIGHT HMIN-31TXM6300.book 537 ページ ２０２１年２月２４日　水曜日　午後３時４５分

538
uuAccessories and Modifications uModifications
Maintenance
Modifications
Do not modify your vehicle in a manner that may affect its handling, stability, or
reliability, or install non-genuine Honda parts or accessories that may have a similar
effect.
Even minor modifications to vehicle system s can affect overall vehicle performance.
Always make sure all equipment is prop erly installed and maintained, and do not
make any modification to your vehicle or its systems that might cause your vehicle
to no longer meet federal, state, prov ince, territory, and local regulations.
The on-board diagnostic port (OBD-II/SAE J1962 connector) installed on this vehicle
is intended to be used with automobile system diagnostic devices or with other
devices that Honda has approved. Use of any other type of device may adversely
affect the vehicle’s electronic systems or allow them to be compromised, possibly
resulting in a system malfunction, drained battery, or other unexpected problems.
Do not modify or attempt to repair your vehicle's high-voltage hybrid power system
or otherwise modify vehicle electrical systems. Disassembling or modifying electrical
equipment can result in a crash or a fire.
If you ever need to replace your vehicle’s high-voltage battery assembly outside of
warranty coverage, we highly recommend that you only use a genuine Honda high-
voltage battery assembly. Genuine Hond a high-voltage battery assemblies are
designed to work with your vehicle’s hybrid power system and have been designed,
engineered and manufactured to avoid overcharging situations. Non-genuine high-
voltage battery assemblies may not have be en similarly designed, engineered and
manufactured, and installation of such assemblies could result in overcharging, fires,
loss of power, or other conditions that may increase the likelihood of a crash or
injury.
22 INSIGHT HMIN-31TXM6300.book 538 ページ ２０２１年２月２４日　水曜日　午後３時４５分

539
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 540
If a Tire Goes Flat
Changing a Flat Tire ......................... 541
Temporarily Repairi ng a Flat Tire....... 547
Power System Won’t Start Checking the Procedure ................... 561
If the Keyless Remote Battery is Weak ...562
Emergency Power System Off........... 563
If the 12-Volt Battery Is Dead .......... 564
Jump Starting Procedure .................. 564
Models with optional spare tire
Overheating How to Handle Overheating............. 567
Indicator, Coming On/Blinking
If the Low Oil Pressure Warning Appears ... 569If the 12-Volt Battery Charging System Indicator Comes On ....................... 570
If the Malfunction Indicator Lamp Comes On or Blinks ..................................... 571
If the Brake System Indicator (Red) Comes
On or Blinks ..................................... 572
If the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On .....573
If the Electric Power Steering (EPS) System Indicator Comes On......................... 574
If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 575
If the Transmission System Indicator Blinks along with the Warning Message ...... 576
Fuses Fuse Locations ................................. 577
Inspecting and Changing Fuses ........ 582
Emergency Towing ........................... 583
If You Cannot Unlock the Fuel Fill Door.. 584If You Cannot Open the Trunk ........ 585
22 INSIGHT HMIN-31TXM6300.book 539 ページ ２０２１年２月２４日　水曜日　午後３時４５分

540
Handling the Unexpected

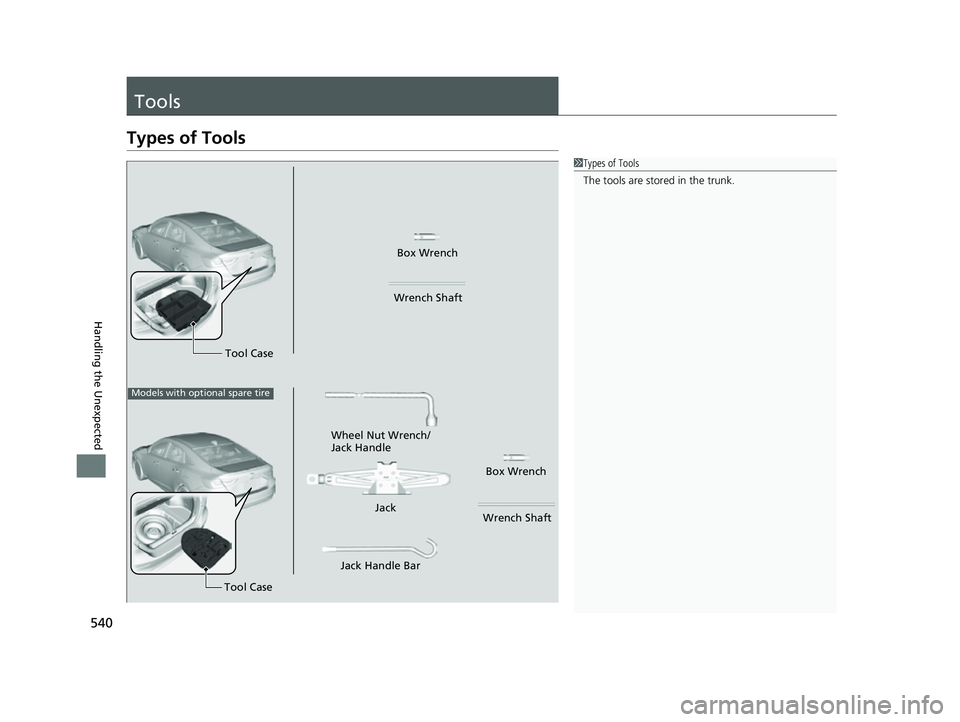

Tools
Types of Tools
1Types of Tools
The tools are stored in the trunk.
Wheel Nut Wrench/
Jack Handle
Box Wrench
Jack Handle Bar
Tool Case Jack
Wrench Shaft
Box Wrench
Wrench Shaft
Tool Case
Models with optional spare tire
22 INSIGHT HMIN-31TXM6300.book 540 ページ ２０２１年２月２４日　水曜日　午後３時４５分

541Continued
Handling the Unexpected
If a Tire Goes Flat

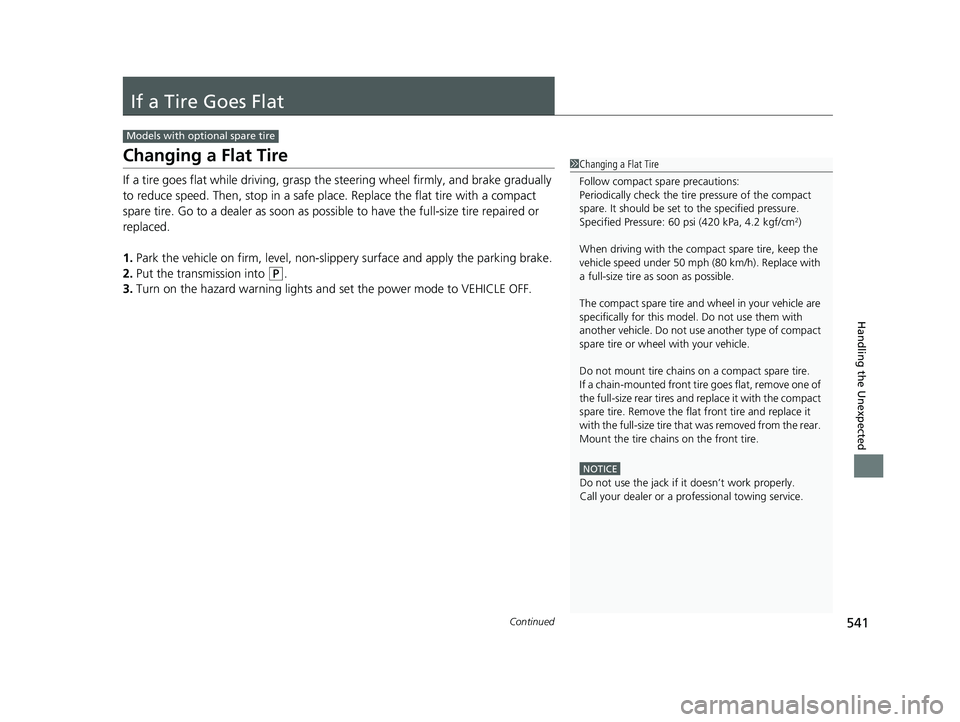

Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe plac e. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possib le to have the full-size tire repaired or
replaced.
1. Park the vehicle on firm, level, non-slip pery surface and apply the parking brake.
2. Put the transmission into
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF.
Models with optional spare tire
1Changing a Flat Tire
Follow compact spare precautions:
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
NOTICE
Do not use the jack if it doesn

542
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
1. Open the trunk floor lid.
2. Take the tool case out of the trunk.
3. Take the jack, wheel nut wrench and jack
handle bar out of the tool case.
4. Unscrew the wing bolt, and remove the
spacer cone. Then, remove the spare tire.
5. Place a wheel block or rock in front and rear
of the wheel diagonal to the flat tire.
■Getting Ready to Replace the Flat Tire
Tool Case
Spare Tire
Wheel
Blocks
The tire to be replaced.
22 INSIGHT HMIN-31TXM6300.book 542 ページ ２０２１年２月２４日　水曜日　午後３時４５分

543
uuIf a Tire Goes Flat uChanging a Flat Tire
Continued
Handling the Unexpected

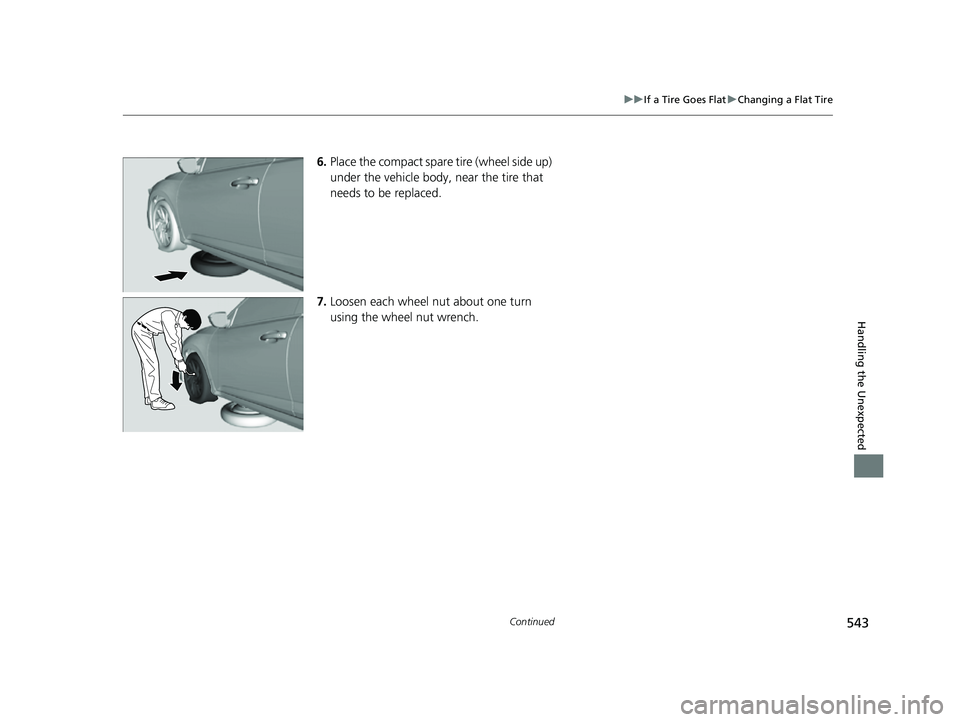

6. Place the compact spare tire (wheel side up)
under the vehicle body, near the tire that
needs to be replaced.
7. Loosen each wheel nut about one turn
using the wheel nut wrench.
22 INSIGHT HMIN-31TXM6300.book 543 ページ ２０２１年２月２４日　水曜日　午後３時４５分
