2022 HONDA INSIGHT TPMS

519
Maintenance
Checking and Maintaining Tires
Checking Tires
To safely operate your vehicle, your tires must be of the proper type and size, in
good condition with adequate tread, and properly inflated.
■Inflation guidelines
Properly inflated tires provid e the best combination of hand ling, tread life, and comfort.
Refer to the driver’s doorjamb label or spec ifications page for the specified pressure.
Underinflated tires wear unev enly, adversely affect handling and fuel economy, and
are more likely to fail from overheating.
Overinflated tires make your vehicle ride ha rshly, are more prone to road hazards,
and wear unevenly.
Every day before you drive, look at each of the tires. If one looks lower than the
others, check the pressure with a tire gauge.
At least once a month or before long trips, use a gauge to measure the pressure in all
tires, including the spare
*. Even tires in good condition can lose 1–2 psi (10–20 kPa,
0.1–0.2 kgf/cm2) per month.
■Inspection guidelines
Every time you check inflation, also examine the tires and valve stems.
Look for:
• Bumps or bulges on the side or in the tr ead. Replace the tire if you find any cuts,
splits, or cracks in the side of the tire . Replace it if you see fabric or cord.
• Remove any foreign objects and inspect for air leaks.
• Uneven tread wear. Have a deal er check the wheel alignment.
• Excessive tread wear.
2 Wear Indicators P. 524
•Cracks or other damage around valve stem.
1Checking Tires
Measure the air pressure when tires are cold. This
means the vehicle has been parked for at least three
hours, or driven less than 1 mile (1.6 km). If
necessary, add or releas e air until the specified
pressure is reached.
If checked when hot, tire pressure can be as much as
4–6 psi (30–40 kPa, 0.3–0.4 kgf/cm
2) higher than if
checked when cold.
Whenever tire pressure is adjusted, you must
calibrate the TPMS. 2 TPMS Calibration P. 406
Have a dealer check the tires if you feel a consistent
vibration while driving. Ne w tires and any that have
been removed and reinst alled should be properly
balanced.
Check the spare tire pressu re once a month or before
long trips.
3WARNING
Using tires that are excessively worn or
improperly inflated can cause a crash in
which you can be seriously hurt or killed.
Follow all instruction s in this owner’s
manual regarding tire inflation and
maintenance.
Models with optional spare tire
* Not available on all models
22 INSIGHT HMIN-31TXM6300.book 519 ページ ２０２１年２月２４日　水曜日　午後３時４５分

526
uuChecking and Maintaining Tires uTire Rotation
Maintenance
Tire Rotation
Rotating tires according to the maintena nce messages on the driver information
interface helps to distribute wear more evenly and increase tire life.
■Tires without rotation marks Rotate the tires as shown here.
■Tires with rotation marksRotate the tires as shown here.
1Tire Rotation
Tires with directional trea d patterns should only be
rotated front to back (not fr om one side to the other).
Directional tires should be mounted with the rotation
indication mark facing forward, as shown below.
Whenever tires are rotated, you must calibrate the
TPMS. 2 TPMS Calibration P. 406
Front
Direction MarkFront
Front
22 INSIGHT HMIN-31TXM6300.book 526 ページ ２０２１年２月２４日　水曜日　午後３時４５分

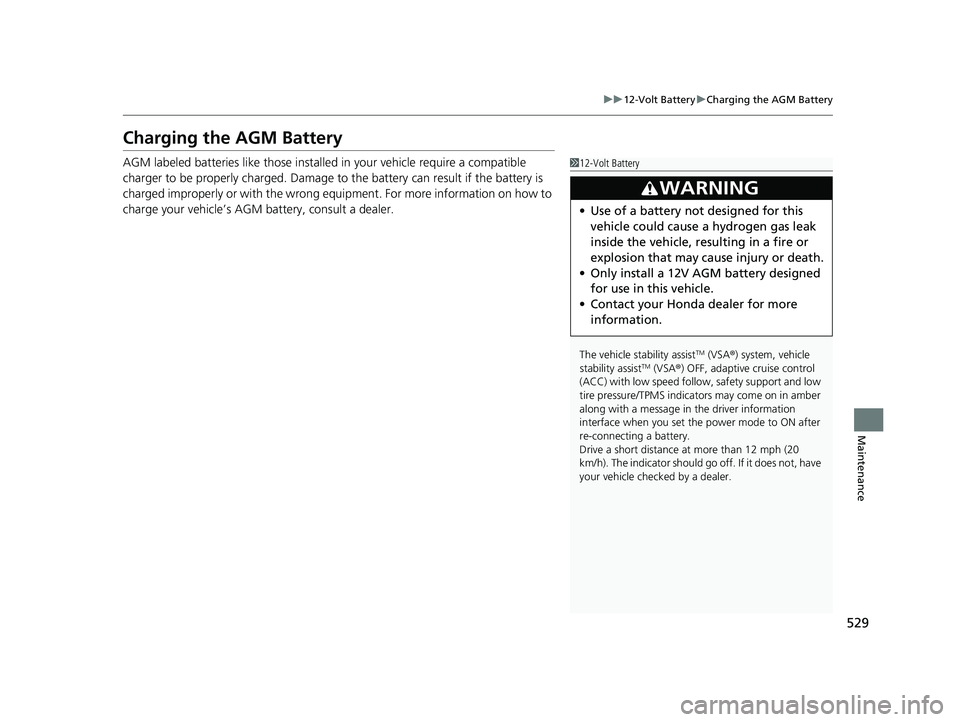

529
uu12-Volt Battery uCharging the AGM Battery
Maintenance
Charging the AGM Battery
AGM labeled batteries like those installed in your vehicle require a compatible
charger to be properly charged. Damage to the battery can result if the battery is
charged improperly or with the wrong equi pment. For more information on how to
charge your vehicle’s AGM battery, consult a dealer.1 12-Volt Battery
The vehicle stability assist
TM (VSA ®) system, vehicle
stability assistTM (VSA ®) OFF, adaptive cruise control
(ACC) with low speed follow, safety support and low
tire pressure/TPMS indicato rs may come on in amber
along with a message in the driver information
interface when you set the power mode to ON after
re-connecting a battery.
Drive a short distance at more than 12 mph (20
km/h). The indicator should go off. If it does not, have
your vehicle checked by a dealer.
3WARNING
• Use of a battery not designed for this
vehicle could cause a hydrogen gas leak
inside the vehicle, resulting in a fire or
explosion that may cause injury or death.
• Only install a 12V AGM battery designed
for use in this vehicle.
• Contact your Honda dealer for more
information.
22 INSIGHT HMIN-31TXM6300.book 529 ページ ２０２１年２月２４日　水曜日　午後３時４５分

539
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 540
If a Tire Goes Flat
Changing a Flat Tire ......................... 541
Temporarily Repairi ng a Flat Tire....... 547
Power System Won’t Start Checking the Procedure ................... 561
If the Keyless Remote Battery is Weak ...562
Emergency Power System Off........... 563
If the 12-Volt Battery Is Dead .......... 564
Jump Starting Procedure .................. 564
Models with optional spare tire
Overheating How to Handle Overheating............. 567
Indicator, Coming On/Blinking
If the Low Oil Pressure Warning Appears ... 569If the 12-Volt Battery Charging System Indicator Comes On ....................... 570
If the Malfunction Indicator Lamp Comes On or Blinks ..................................... 571
If the Brake System Indicator (Red) Comes
On or Blinks ..................................... 572
If the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On .....573
If the Electric Power Steering (EPS) System Indicator Comes On......................... 574
If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 575
If the Transmission System Indicator Blinks along with the Warning Message ...... 576
Fuses Fuse Locations ................................. 577
Inspecting and Changing Fuses ........ 582
Emergency Towing ........................... 583
If You Cannot Unlock the Fuel Fill Door.. 584If You Cannot Open the Trunk ........ 585
22 INSIGHT HMIN-31TXM6300.book 539 ページ ２０２１年２月２４日　水曜日　午後３時４５分

uuIf a Tire Goes Flat uChanging a Flat Tire
546
Handling the Unexpected
1. Remove the center cap.
2. Place the flat tire face down in the spare tire
well.
3. Remove the spacer cone from the wing
bolt, flip it over, and insert it back on the
bolt. Secure the flat tire with the wing bolt.
4. Securely put the jack and wheel nut wrench
back in the tool case. Store the case in the
trunk.
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. Afte r driving for a few miles (kilometers), Tire
Pressure Monitor System Problem. Ch eck Tire Pressure. See Your Dealer. will
appear on the driver information interface and the indicator will start blinking for a
short time and then stay on; however, this is normal and is no cause for concern.
Calibrate the TPMS when you replace the tire with a specified regular tire.
2TPMS Calibration P. 406
■Storing the Flat Tire1Storing the Flat Tire
3WARNING
Loose items can be thrown out of the
vehicle in a crash and could seriously injure
the occupants.
Store the wheel, jack, and tools securely
before driving.
Center Cap
Spacer Cone
Wing Bolt
For
compact
spare tire For
full-size
tire
■TPMS and the Compact Spare Tire
22 INSIGHT HMIN-31TXM6300.book 546 ページ ２０２１年２月２４日　水曜日　午後３時４５分

uuIf the 12-Volt Battery Is Dead uJump Starting Procedure
566
Handling the Unexpected
Once your vehicle’s engine has started, re move the jumper cables in the following
order.
1. Disconnect the jumper cable from your vehicle’s ground.
2. Disconnect the other end of the jumper cable from the booster battery -
terminal.
3. Disconnect the jumper cable from your vehicle’s jump start box + terminal.
4. Disconnect the other end of the jumper cable from the booster battery +
terminal.
Have your vehicle inspected by a n earby service station or a dealer.
■What to Do After the Engine Starts1What to Do After the Engine Starts
The vehicle stability assist
TM (VSA ®) system, vehicles
stability assistTM (VSA ®) OFF, adaptive cruise control
(ACC) with low speed follow, safety support and low
tire pressure/TPMS indicato rs may come on in amber
along with a message in the driver information
interface when you set the power mode to ON after
re-connecting a battery.
Drive a short distance at more than 12 mph (20 km/h).
Each indicator should go off. If any do not, have your
vehicle checked by a dealer.
22 INSIGHT HMIN-31TXM6300.book 566 ページ ２０２１年２月２４日　水曜日　午後３時４５分

575
uuIndicator, Coming On/BlinkinguIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is signif icantly low, or the TPMS has not been calibrated.
If there is a problem with the TPMS, the indicator blinks for about one
minute, and then stays on.
If the compact spare tire
* is installed, the indicator will either come on or
it will first blink for about one minute, then stay on.
■What to do when th e indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The spec ified tire pressure is on a label on
the driver side doorjamb. u Calibrate the TPMS after the tire pressure is adjusted.
2 TPMS Calibration P. 406
If the compact spare tire* causes the indicator to come on, change the
tire to a full-size tire. The indicato r goes off after calibrating the TPMS.
■What to do when the indicator blinks, then remains on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire
* causes the indicator to first b link, and then stay on, change
the tire to a full-size tire. The indi cator goes off after calibrating the
TPMS.
1 If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed levelM
* Not available on all models
22 INSIGHT HMIN-31TXM6300.book 575 ページ ２０２１年２月２４日　水曜日　午後３時４５分

603
Index
Automatic Brake Hold System ........... 85, 473
Blind spot information System................. 412
Deceleration Paddle Selector ..................... 89
ECON Mode ..................................... 97, 401
Electric Power Steering (EPS)
System ............................................ 92, 574
EV............................................................. 87
EV Mode................................................... 87
Fog Light .................................................. 95
High Beam ................................................ 95
Immobilizer System ................................... 96
Lane Keeping Assist System (LKAS) (Amber) .................................................. 99
Lane Keeping Assist System (LKAS)
(Green) ........................................... 99, 448
Lights On .................................................. 95
Low Fuel ................................................... 91
Low Tire Pressure/TPMS ............ 94, 406, 409
Malfunction Indicator Lamp .............. 88, 571
Parking Brake and Brake System (Amber) .......................................... 84, 573
Parking Brake and Brake System
(Red) ....................................... 83, 572, 573
POWER SYSTEM ....................................... 86
READY ...................................................... 87
Safety Support (Amber)........................... 100
Safety Support (Green/Gray) ................... 103
Seat Belt Reminder.............................. 45, 91
Security System Alarm............................... 96
Shift Position............................................. 89
SPORT Mode..................................... 97, 397 Supplemental Restraint System ............ 62, 92
System Message ........................................ 97
Transmission System .................................. 90
Turn Signal and Haza
rd Warning ............... 95
Vehicle Stability Assist
TM (VSA ®) OFF ... 93, 404
Vehicle Stability AssistTM (VSA ®)
System............................................. 93, 403
Information ............................................... 587
Instant Fuel Economy ............................... 137
Instrument Panel ........................................ 81
Brightness Control ................................... 195
Interior Lights ........................................... 207
Interior Rearview Mirror .......................... 197
Inverter Coolant ....................................... 508
iPad ............................................................ 305
iPhone ....................................................... 305
iPod ................................................... 273, 305
J
Jack (Wheel Nut Wrench) ........................ 544
Jump Starting ........................................... 564
K
Key Number Tag ....................................... 158
Keyless Access System ............................... 160
Keyless Lockout Prevention ..................... 166
Keys ........................................................... 157
Lockout Prevention .................................. 166
Number Tag ............................................ 158 Rear Door Won’t Open............................ 169
Remote Transmitter ................................. 164
Types and Functions ................................ 157
L
Lane Keeping Assist System (LKAS)
......... 446
Language (HFL) ........................................ 351
LATCH (Child Seats) .................................... 71
Lights ................................................. 185, 512
Automatic ............................................... 186
Bulb Replacement ................................... 512
Daytime Running Lights........................... 188
Fog Lights ............................................... 188
High Beam Indicator .................................. 95
Interior .................................................... 207
Light Switches ......................................... 185
Lights On Indicator .................................... 95
Turn Signals ............................................ 184
Load Limits ................................................ 379
Locking/Unlocking .................................... 157
Auto Door Locking/Unlocking.................. 170
Childproof Door Locks............................. 169
From Inside ............................................. 167
From Outside .......................................... 160
Keys ........................................................ 157
Using a Key ............................................. 165
Lockout Prevention System ..................... 166
Low Battery Charge ................................. 570
Low Fuel Indicator ...................................... 91
Low Keyless Remote Signal Strength ...... 159
22 INSIGHT HMIN-31TXM6300.book 603 ページ ２０２１年２月２４日　水曜日　午後３時４５分
