2022 HONDA HRV Owners Manual

207
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls
Interior Convenience Items
Pull the handle to open the glove box.
Pull the handle to open the console
compartment.
■Glove Box1Glove Box
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
■Console Compartment
22 HR-V HDMC-31T7A6600.book 207 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
208
Controls

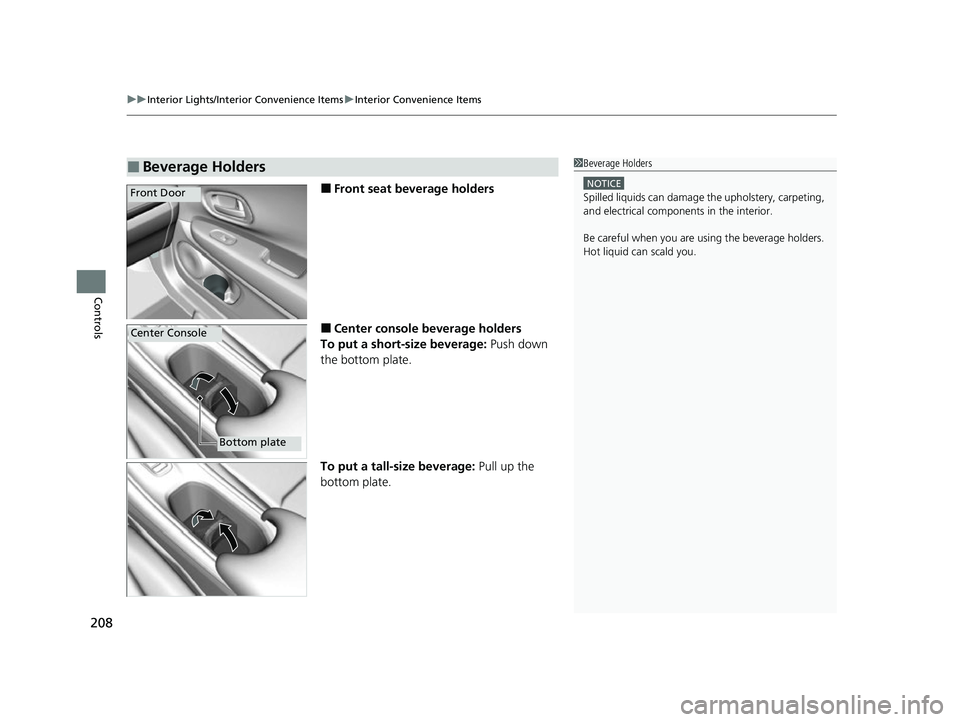

■Front seat beverage holders
■Center console beverage holders
To put a short-size beverage: Push down
the bottom plate.
To put a tall-size beverage: Pull up the
bottom plate.
■Beverage Holders1 Beverage Holders
NOTICE
Spilled liquids ca n damage the upholstery, carpeting,
and electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.Front Door
Center Console
Bottom plate
22 HR-V HDMC-31T7A6600.book 208 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

209
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls
■Rear seat beverage holdersRear Door
At the Back of the Center Console
22 HR-V HDMC-31T7A6600.book 209 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

210
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

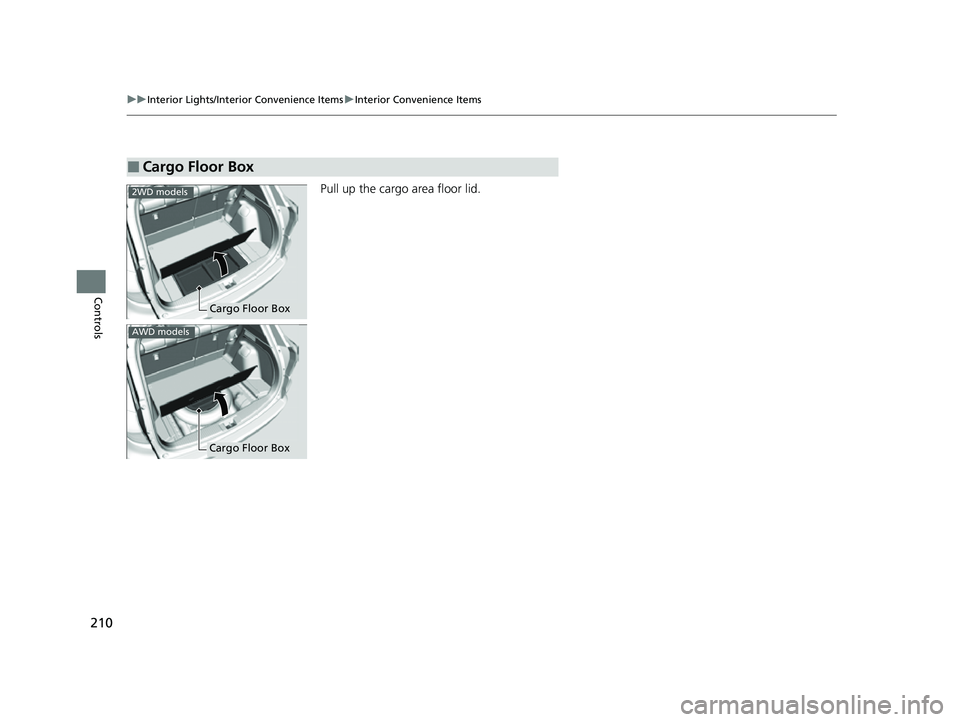

Pull up the cargo area floor lid.
■Cargo Floor Box
Cargo Floor Box
2WD models
AWD models
Cargo Floor Box
22 HR-V HDMC-31T7A6600.book 210 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

Continued211
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

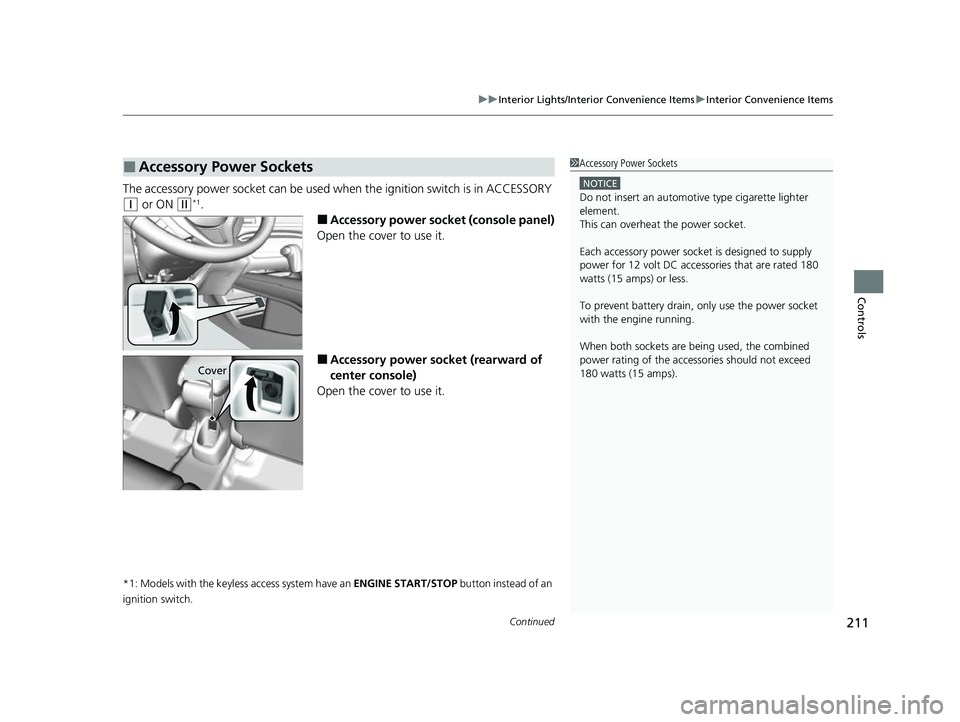

The accessory power socket can be used wh en the ignition switch is in ACCESSORY
(q or ON (w*1.
■Accessory power socket (console panel)
Open the cover to use it.
■Accessory power socket (rearward of
center console)
Open the cover to use it.
*1: Models with the keyless access system have an ENGINE START/STOP button instead of an
ignition switch.
■Accessory Power Sockets1 Accessory Power Sockets
NOTICE
Do not insert an automotive type cigarette lighter
element.
This can overheat the power socket.
Each accessory power soc ket is designed to supply
power for 12 volt DC access ories that are rated 180
watts (15 amps) or less.
To prevent battery drain, only use the power socket
with the engine running.
When both sockets are being used, the combined
power rating of the accesso ries should not exceed
180 watts (15 amps).
Cover
22 HR-V HDMC-31T7A6600.book 211 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
212
Controls
■Accessory power socket (cargo area)
Open the cover to use it.
There is a coat hook on the rear left grab
handle. Pull it down to use it.
Canadian models
■Coat Hook1 Coat Hook
The coat hook is not desi gned for large or heavy
items.
22 HR-V HDMC-31T7A6600.book 212 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

213
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls

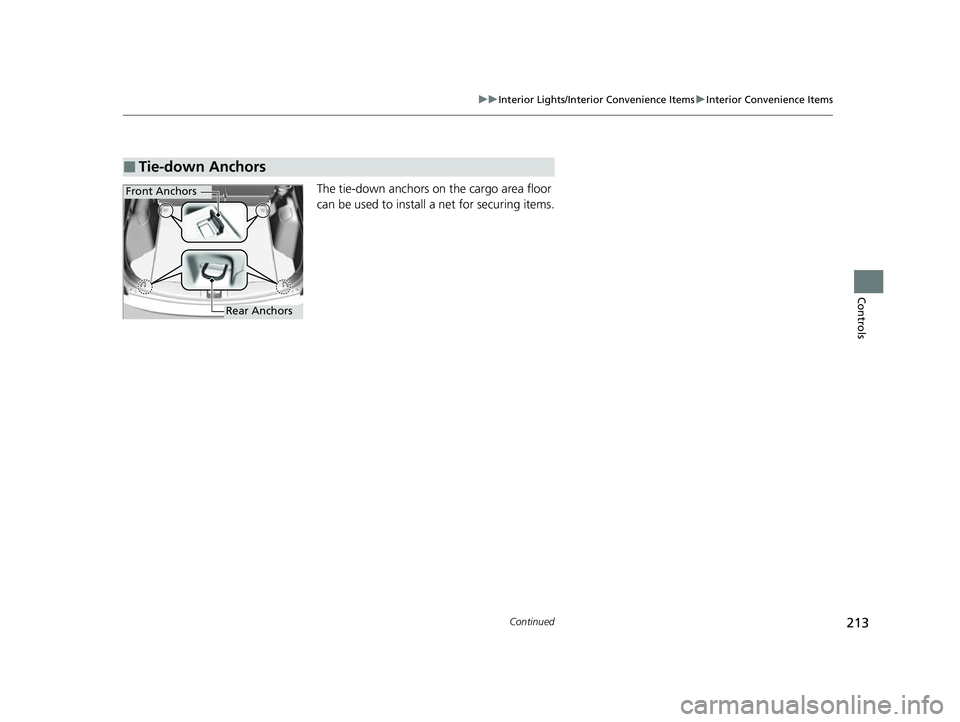

The tie-down anchors on the cargo area floor
can be used to install a net for securing items.
■Tie-down Anchors
Front Anchors
Rear Anchors
22 HR-V HDMC-31T7A6600.book 213 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
214
Controls

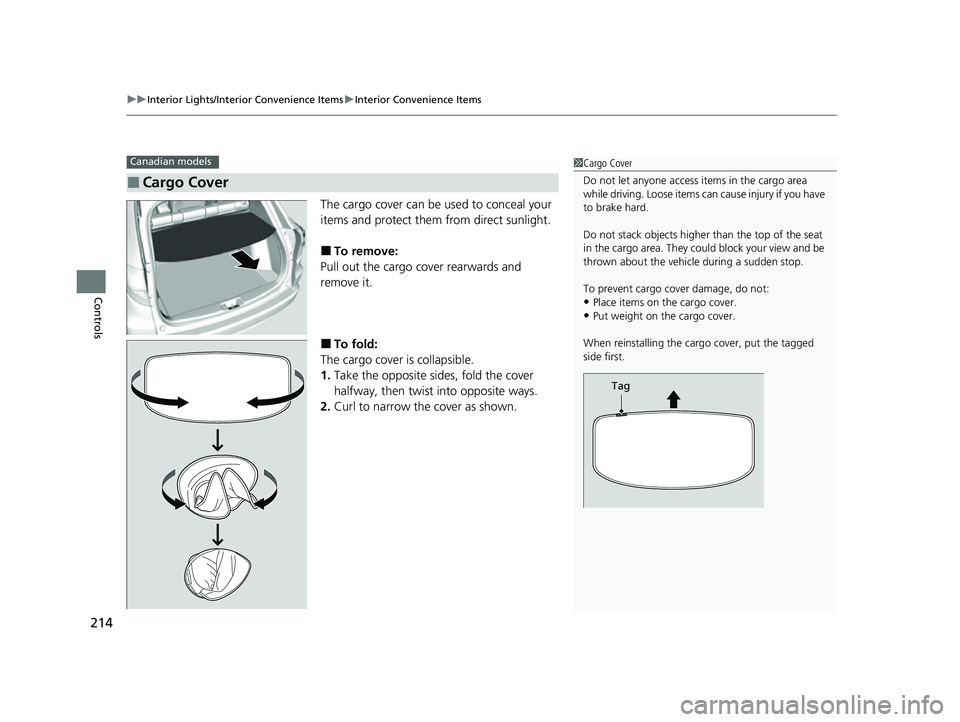

The cargo cover can be used to conceal your
items and protect them from direct sunlight.
■To remove:
Pull out the cargo cover rearwards and
remove it.
■To fold:
The cargo cover is collapsible.
1. Take the opposite sides, fold the cover
halfway, then twist into opposite ways.
2. Curl to narrow the cover as shown.
■Cargo Cover
Canadian models1Cargo Cover
Do not let anyone access items in the cargo area
while driving. Loose items can cause injury if you have
to brake hard.
Do not stack objects higher than the top of the seat
in the cargo area. They could block your view and be
thrown about the vehicle during a sudden stop.
To prevent cargo cover damage, do not:
•Place items on the cargo cover.•Put weight on the cargo cover.
When reinstalling the carg o cover, put the tagged
side first.
Tag
22 HR-V HDMC-31T7A6600.book 214 ページ ２０２１年４月１２日　月曜日　午前１０時５０分
