2022 HONDA ACCORD lock

uuIf a Tire Goes Flat uChanging a Flat Tire
600
Handling the Unexpected
1. Place the jack under the jacking point
closest to the tire to be changed.
2. Turn the end bracket clockwise (as shown
in the image) until the top of the jack
contacts the jacking point.
u Make sure that the jacking point tab is
resting in the jack notch.
3. Raise the vehicle, using the jack handle bar
and the jack handle, until the tire is off the
ground.
■How to Set Up the Jack1How to Set Up the Jack
Do not use the jack with people or luggage in the
vehicle.
Use the jack provided in your vehicle.
Other jacks may not support the weight (“load”) or
may not fit the jacking point.
The following instructions must be followed to use
the jack safely:
•Do not use while the engine is running.
•Use only where the ground is firm and level.
•Use only at the jacking points.•Do not get in the vehicl e while using the jack.
•Do not put anything on top of or underneath the
jack.
3WARNING
The vehicle can easily roll off the jack,
seriously injuring anyone underneath.
Follow the directions for changing a tire
exactly, and never get under the vehicle
when it is supported only by the jack.
Jacking Points
Jacking Point
Jack
Handle
Bar Wheel Nut
Wrench as Jack Handle

605
uuEngine Does Not Start uEmergency Engine Stop
Handling the Unexpected
Emergency Engine Stop
The ENGINE START/STOP button may be used to stop the engine due to an
emergency situation even while driving. If you must stop the engine, do either of the
following operations:
• Press and hold the ENGINE START/STOP button for about two seconds.
• Firmly press the ENGINE START/STOP button three times.
The steering wheel will not lock. However, because turning off the engine disables
the power assist the engine provides to the steering and braking systems, it will
require significantly more physical effort an d time to steer and slow the vehicle. Use
both feet on the brake pedal to slow down the vehicle and stop immediately in a
safe place.
The transmission automa tically changes to
(P after the vehicle comes to a complete
stop. Then, the power mode changes to VEHICLE OFF.
The power mode is in ACCESSORY when the engine is stopped.
To change the mode to VEHICLE OFF, put the transmission into
(P after the vehicle
comes to a complete stop.
Then, press the ENGINE START/STOP button twice without depressing the brake
pedal.
1 Emergency Engine Stop
Do not press the ENGINE START/STOP button while
driving unless it is absolute ly necessary for the engine
to be turned off.
If you press the ENGINE START/STOP button while
driving, the beeper sounds.
Automatic transmission models
Continuously variable transmission models
Continuously variable transmission models for Canadian models

609Continued
Handling the Unexpected
Shift Lever Does Not Move
Follow the procedure below if you cannot move the shift lever out of the (P
position.
1.Set the parking brake.
2. Remove the built-in key from the keyless
remote.
3. Open the center pocket.
2 Center Pocket P. 225
4.Remove the cover in the center pocket.
5. Wrap a cloth around the tip of the built-in
key. Put it into the shift lock release slot (as
shown in the image) and remove the cover.
■Releasing the Lock
Continuously variable transmission models
Models without wireless charger
Cover
Models without wireless charger
Slot
Cover
All models

610
uuShift Lever Does Not Move u
Handling the Unexpected
6.Insert the key into the sh ift lock release slot.
7. While pushing the key down, press the shift
lever release button, and place the shift
lever into
(N.
u The lock is now released. Have the shift
lever checked by a dealer as soon as
possible.
Release ButtonShift Lock
Release Slot

623
uuFuses uFuse Locations
Continued
Handling the Unexpected
■Circuit protected and fuse rating
Circuit ProtectedAmps
1−−
2L SIDE DOOR UNLOCK10 A
3R SIDE DOOR UNLOCK10 A
4ACC10 A
5ACC KEY LOCK7.5 A
6SRS10 A
7−−
8IG HOLD2*(10 A)
9SMART10 A
10−−
11L SIDE DOOR LOCK10 A
12DR DOOR LOCK(10 A)
13R SIDE DOOR LOCK10 A
14OPTION10 A
15DRL10 A
16CTR ACC SOCKET(20 A)
17MOON ROOF*(20 A)
18−−
19−−
20SBW ECU*(10 A)
21DR DOOR UNLOCK(10 A)
22−−
23−−
24PREMIUM AMP*(20 A)
25−−
26−−
27−−
28−−
29−−
30−−
31−−
32IG HOLD3*(15 A)
33DR P/SEAT SLI*(20 A)
34AS P/SEAT SLI*(20 A)
35OPTION210 A
36METER10 A
37OPTION110 A
38DR P/SEAT REC*(20 A)
39AS P/SEAT REC*(20 A)
40DR P/LUMBAR*(10 A)
41−−
42AVS*(20 A)
43OPTION10 A
44ADS*(20 A)
45−−
46SRS10 A
47−−
48HUD*(10 A)
49DOOR LOCK20 A
50FR ACC SOCKET20 A
51RR R P/W20 A
52RR L P/W20 A
Circuit ProtectedAmps
53AS P/W20 A
54DR P/W20 A
55−−
Circuit ProtectedAmps
* Not available on all models

627
Handling the Unexpected

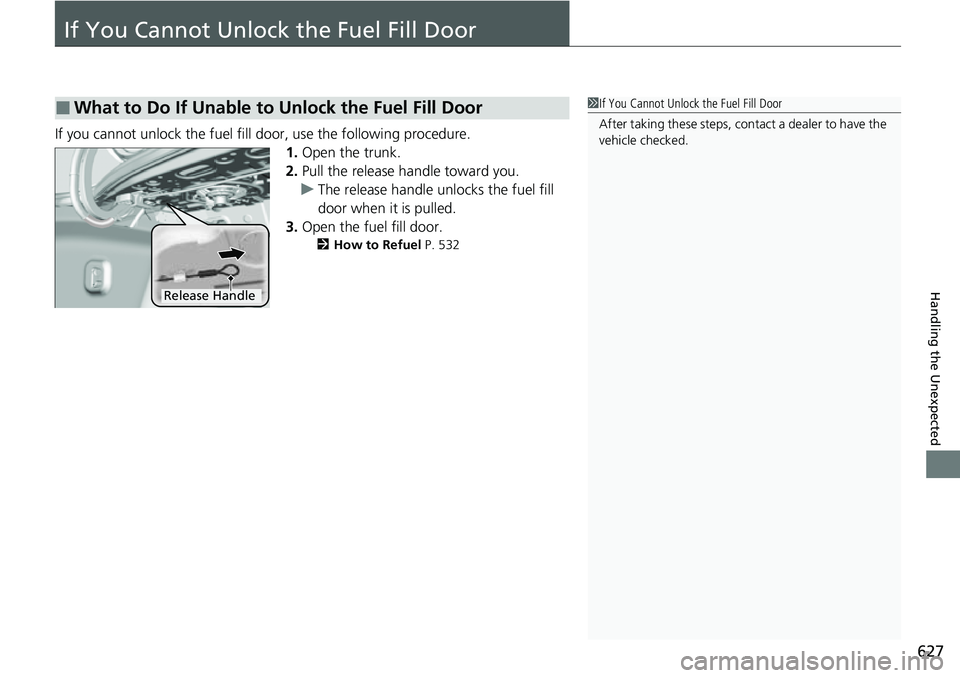

If You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.1.Open the trunk.
2. Pull the release handle toward you.
u The release handle unlocks the fuel fill
door when it is pulled.
3. Open the fuel fill door.
2 How to Refuel P. 532
■What to Do If Unable to Unlock the Fuel Fill Door1If You Cannot Unlock the Fuel Fill Door
After taking these steps, cont act a dealer to have the
vehicle checked.
Release Handle

628
Handling the Unexpected
If You Cannot Open the Trunk
If you cannot open the trunk, use the following procedure.1.Remove the driver side rear outer head
restraint.
2 Removing and Reinstalling the Head
Restraints P. 221
2.Remove the built-in key from the keyless
remote.
3. Wrap a cloth around the tip of the built-in
key. Put it into the cover (as shown in the
image) and remove the cover.
4. Insert the key into the cylinder and turn it
clockwise.
u The trunk unlocks and opens.
■What to Do If Unable to Open the Trunk1If You Cannot Open the Trunk
Following up:
After taking these steps, cont act a dealer to have the
vehicle checked.
Cover
Models with adjustable headrest
All models
Key
Models with the cylinder in the cover

629
uuIf You Cannot Open the Trunk u
Handling the Unexpected

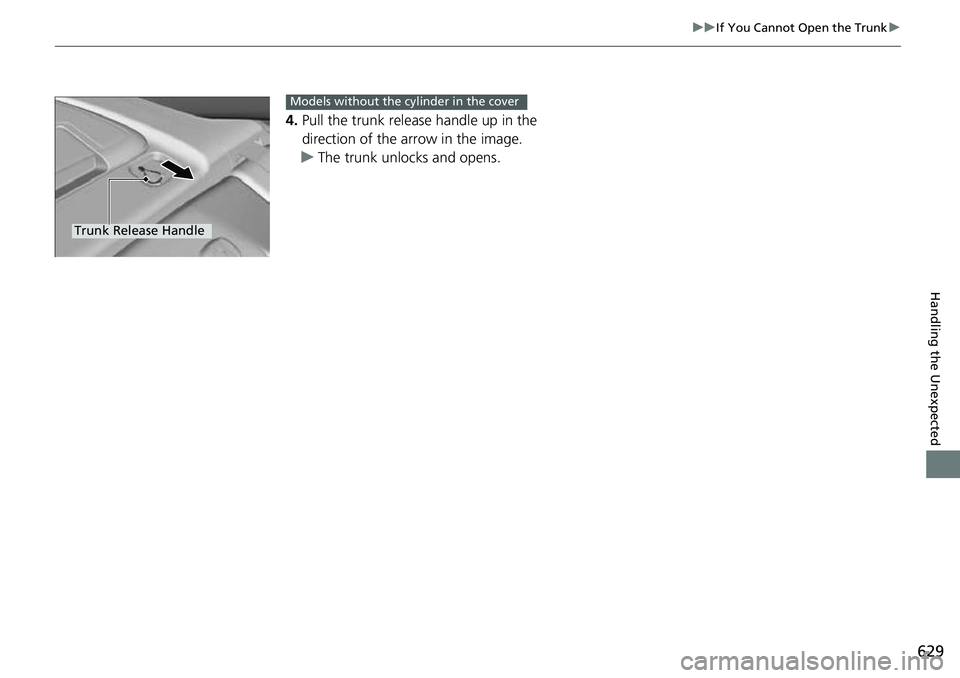

4.Pull the trunk release handle up in the
direction of the arrow in the image.
u The trunk unlocks and opens.
Trunk Release Handle
Models without the cylinder in the cover
