2022 FORD MAVERICK fuse box

Driving Hints
Cold Weather Precautions
.......................273
Driving on Snow and Ice ...........................
273
Breaking-In ....................................................
273
Driving Economically .................................
273
Driving in Special Conditions ..................
274
Driving Through Shallow Water .............
275
Floor Mats ......................................................
276
Crash and Breakdown Information
Roadside Assistance .................................
278
High Voltage Battery Vehicle Precautions - Hybrid Electric Vehicle (HEV) .........
279
Switching the Hazard Flashers On and Off ................................................................
280
Jump Starting the Vehicle .......................
280
Post-Crash Alert System .........................
283
Automatic Crash Shutoff ........................
284
Recovery Towing .........................................
284
Transporting the Vehicle .........................
286
Towing Your Vehicle
Towing Your Vehicle Precautions ..........
287
Recreationally Towing Your Vehicle - Gasoline, FWD .........................................
287
Recreationally Towing Your Vehicle - Gasoline, AWD .........................................
287
Recreationally Towing Your Vehicle - Hybrid Electric Vehicle (HEV) ............
287
Emergency Towing - Gasoline ...............
288
Emergency Towing - Hybrid Electric Vehicle (HEV) ..........................................
288
Towing Your Vehicle – Troubleshooting - Hybrid Electric Vehicle (HEV) .........
289
Fuses
Fuse Precautions ........................................
290
Under Hood Fuse Box ..............................
290
Body Control Module Fuse Box ............
296
Identifying Fuse Types .............................
298Fuses – Troubleshooting
.........................
298
Maintenance
Maintenance Precautions .......................
299
Opening and Closing the Hood .............
299
Under Hood Overview - 2.0L EcoBoost™ ........................................................................\
.
301
Under Hood Overview - 2.5L, Hybrid Electric Vehicle (HEV) ..........................
302
Engine Oil ......................................................
303
Checking the Coolant ...............................
304
Changing the Engine Air Filter - 2.0L EcoBoost™ ..............................................
308
Changing the Engine Air Filter - 2.5L, Hybrid Electric Vehicle (HEV) ...........
309
Changing the Fuel Filter ..........................
309
Drive Belt Routing Overview - 2.0L EcoBoost™ ...............................................
310
Changing the 12V Battery .........................
310
Adjusting the Headlamps .........................
312
Exterior Bulbs ................................................
313
Interior Bulbs .................................................
318
Vehicle Care
Cleaning Products .......................................
319
Cleaning the Exterior ..................................
319
Cleaning the Interior ...................................
321
Repairing Minor Paint Damage ..............
323
Waxing Your Vehicle ..................................
323
Body Styling Kits
Body Styling Kit Precautions ..................
324
Storing Your Vehicle
Preparing Your Vehicle for Storage ......
325
Removing Your Vehicle From Storage ........................................................................\
326
Wheel and Tire Information
Locating the Tire label ...............................
327
10
2022 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202106, First-Printing Table of Contents

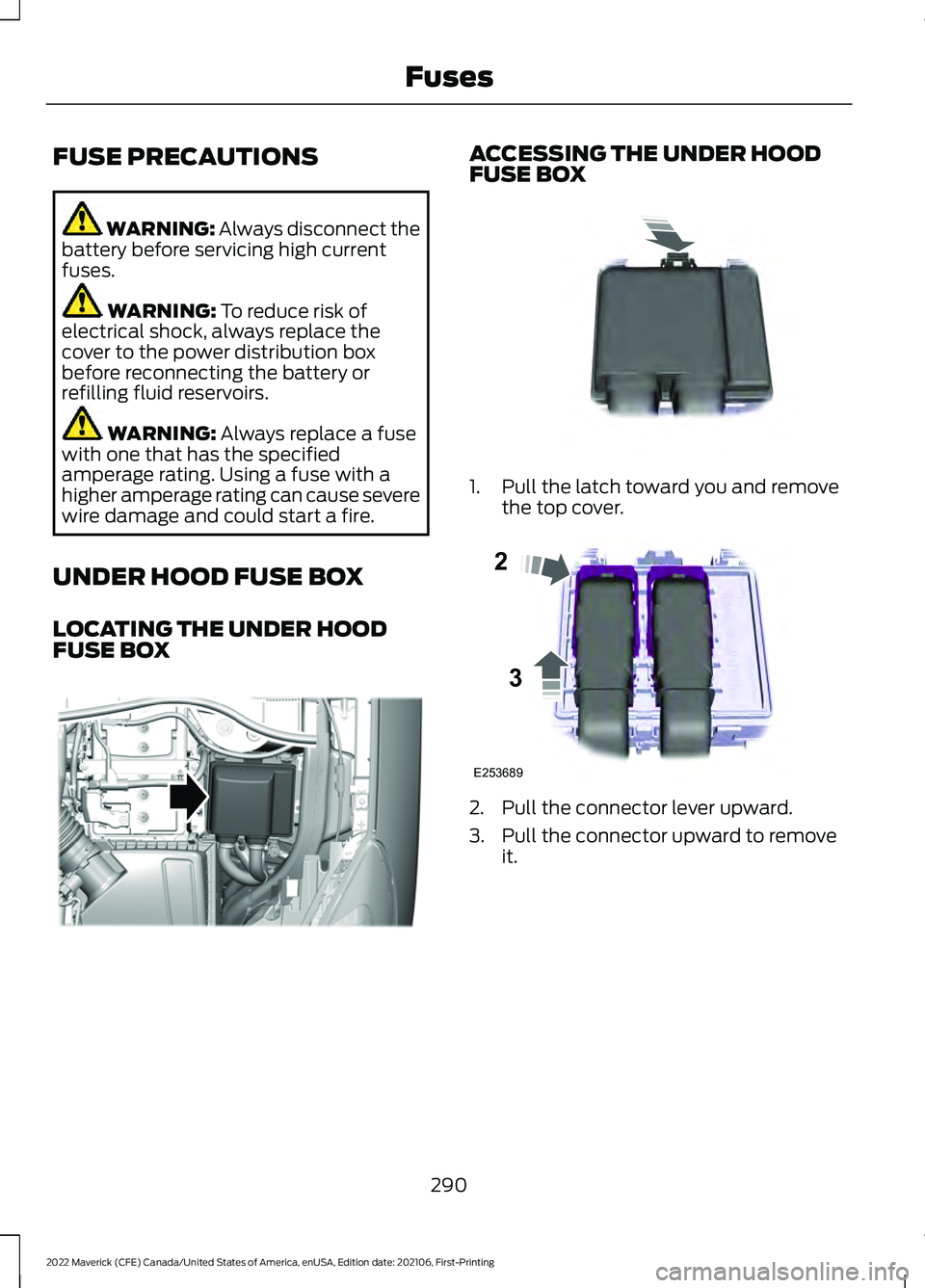

FUSE PRECAUTIONS
WARNING: Always disconnect the
battery before servicing high current
fuses. WARNING:
To reduce risk of
electrical shock, always replace the
cover to the power distribution box
before reconnecting the battery or
refilling fluid reservoirs. WARNING:
Always replace a fuse
with one that has the specified
amperage rating. Using a fuse with a
higher amperage rating can cause severe
wire damage and could start a fire.
UNDER HOOD FUSE BOX
LOCATING THE UNDER HOOD
FUSE BOX ACCESSING THE UNDER HOOD
FUSE BOX
1. Pull the latch toward you and remove
the top cover. 2. Pull the connector lever upward.
3. Pull the connector upward to remove
it.
290
2022 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202106, First-Printing FusesE334436 E253688 E253689
2
3

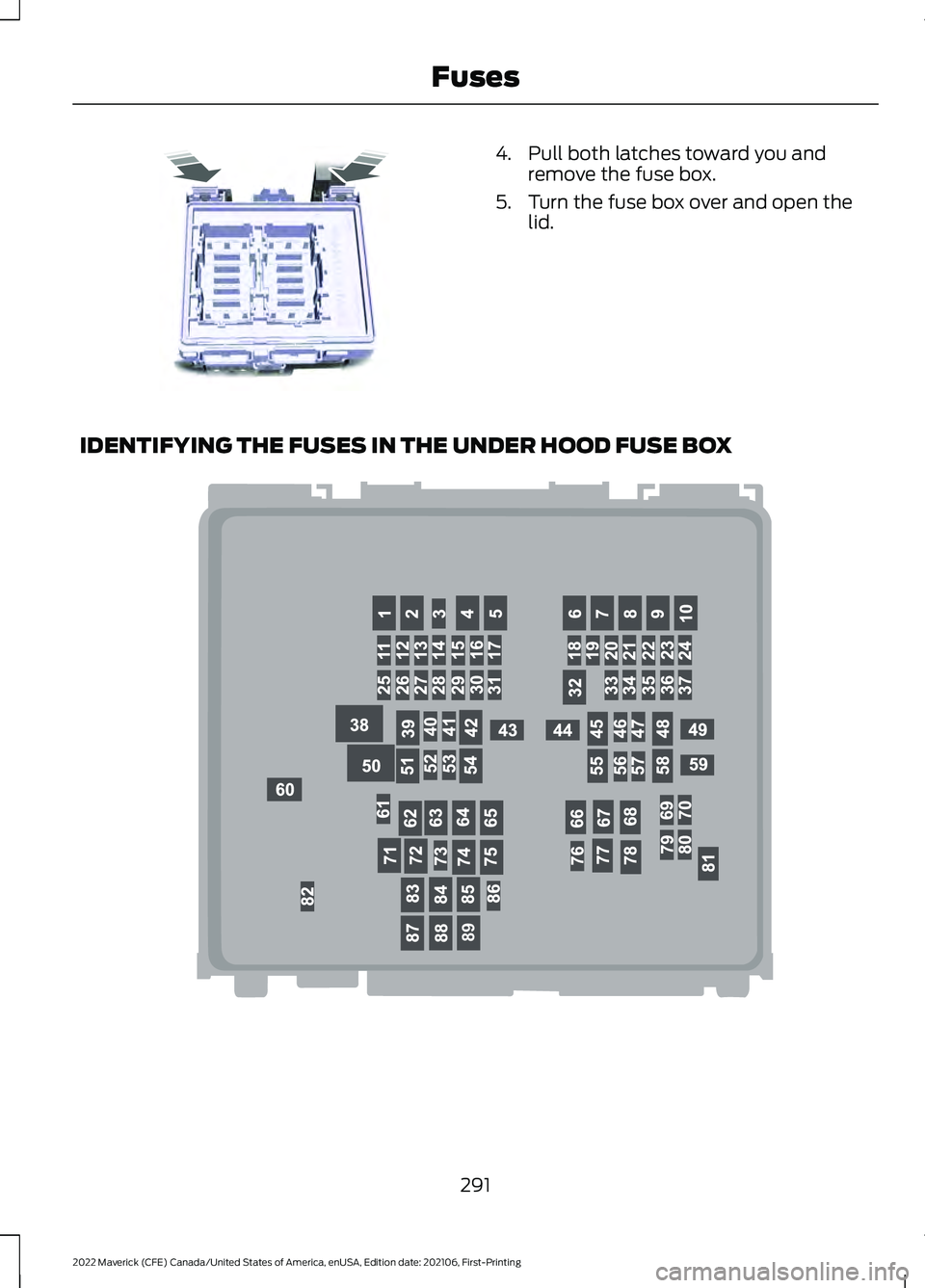

4. Pull both latches toward you and
remove the fuse box.
5. Turn the fuse box over and open the lid.
IDENTIFYING THE FUSES IN THE UNDER HOOD FUSE BOX 291
2022 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202106, First-Printing FusesE253693 89 E351223

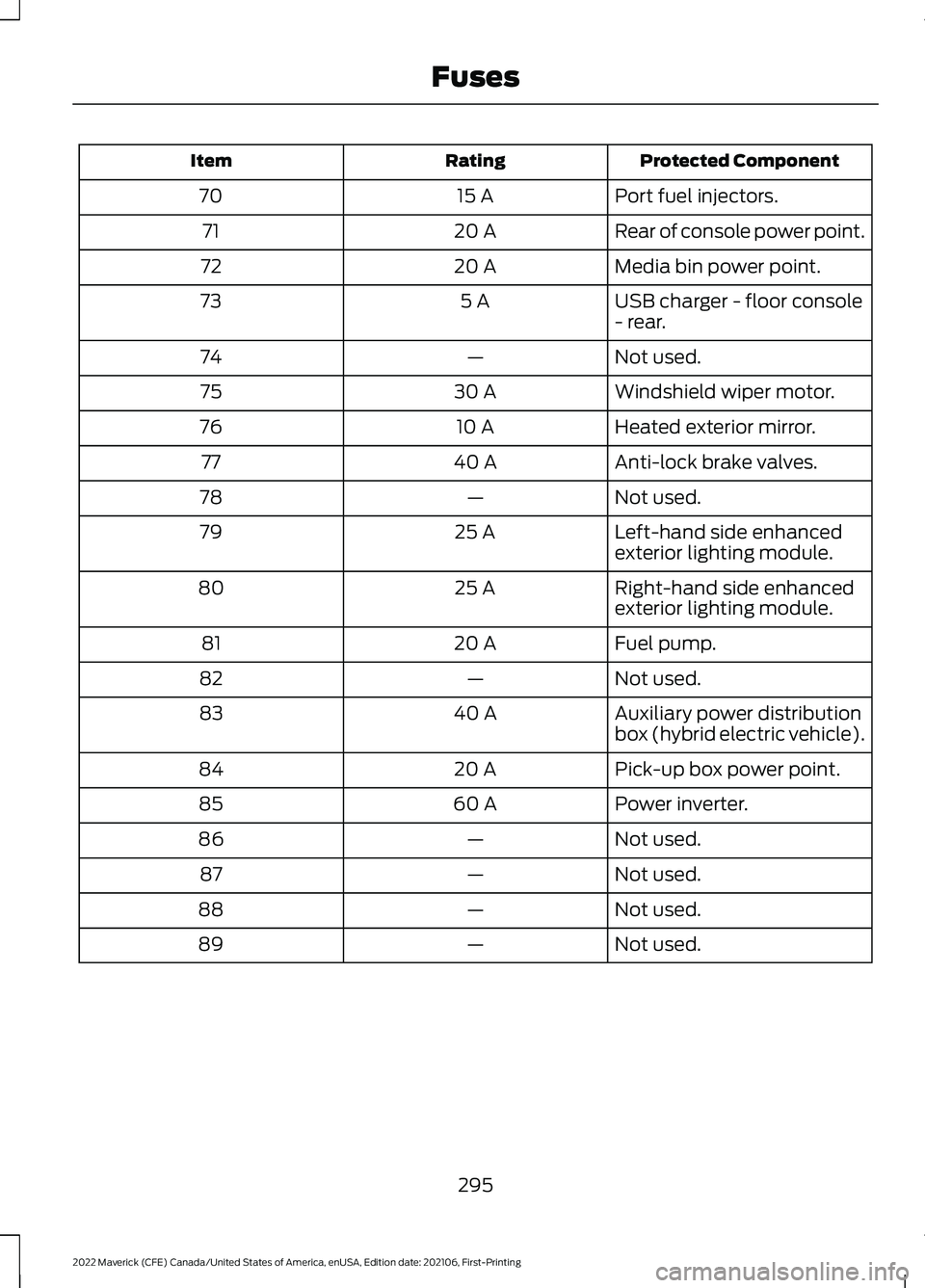

Protected Component
Rating
Item
Port fuel injectors.
15 A
70
Rear of console power point.
20 A
71
Media bin power point.
20 A
72
USB charger - floor console
- rear.
5 A
73
Not used.
—
74
Windshield wiper motor.
30 A
75
Heated exterior mirror.
10 A
76
Anti-lock brake valves.
40 A
77
Not used.
—
78
Left-hand side enhanced
exterior lighting module.
25 A
79
Right-hand side enhanced
exterior lighting module.
25 A
80
Fuel pump.
20 A
81
Not used.
—
82
Auxiliary power distribution
box (hybrid electric vehicle).
40 A
83
Pick-up box power point.
20 A
84
Power inverter.
60 A
85
Not used.
—
86
Not used.
—
87
Not used.
—
88
Not used.
—
89
295
2022 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202106, First-Printing Fuses

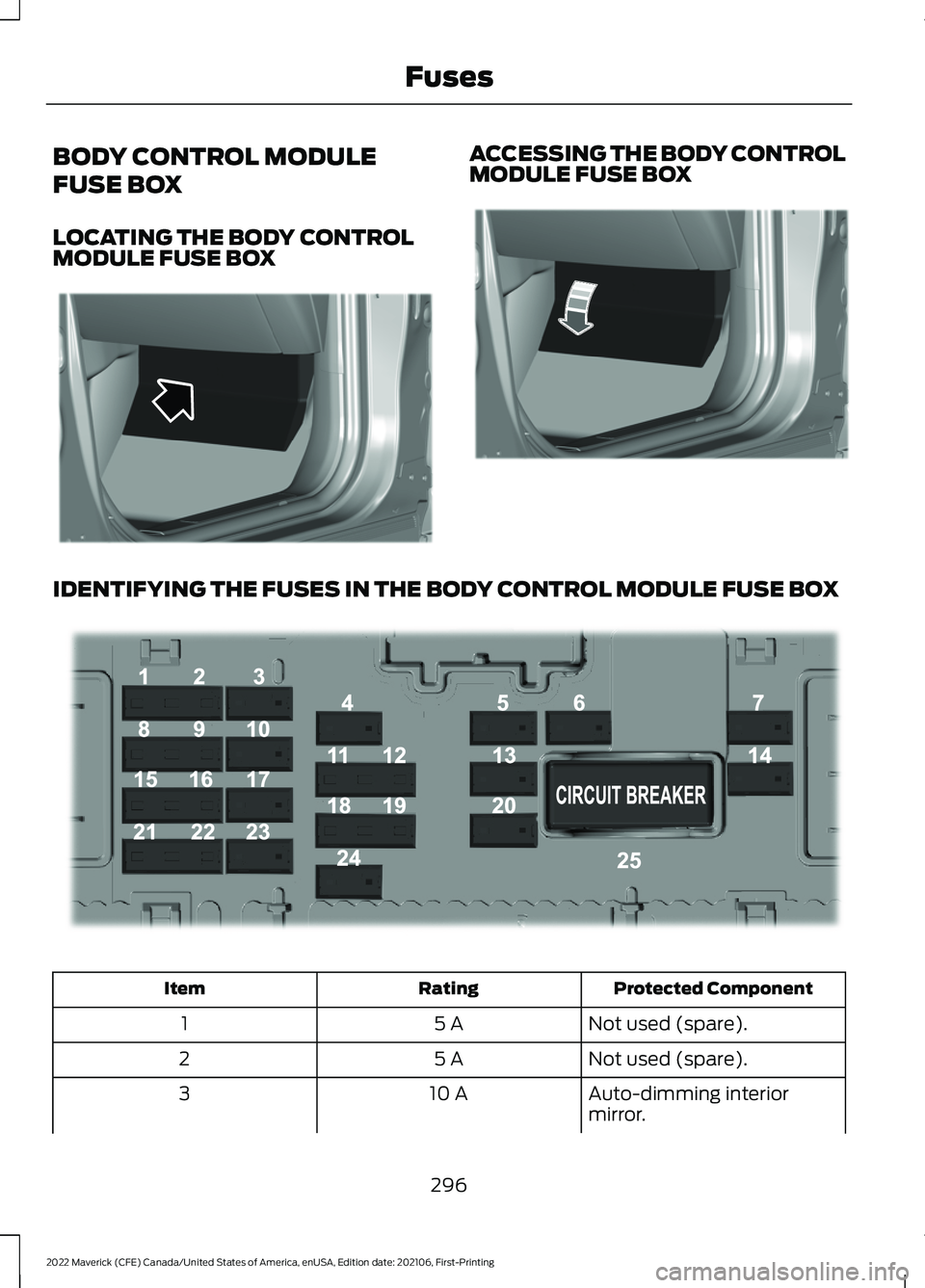

BODY CONTROL MODULE
FUSE BOX
LOCATING THE BODY CONTROL
MODULE FUSE BOX ACCESSING THE BODY CONTROL
MODULE FUSE BOX
IDENTIFYING THE FUSES IN THE BODY CONTROL MODULE FUSE BOX
Protected Component
Rating
Item
Not used (spare).
5 A
1
Not used (spare).
5 A
2
Auto-dimming interior
mirror.
10 A
3
296
2022 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202106, First-Printing FusesE329070 E329071 E293328

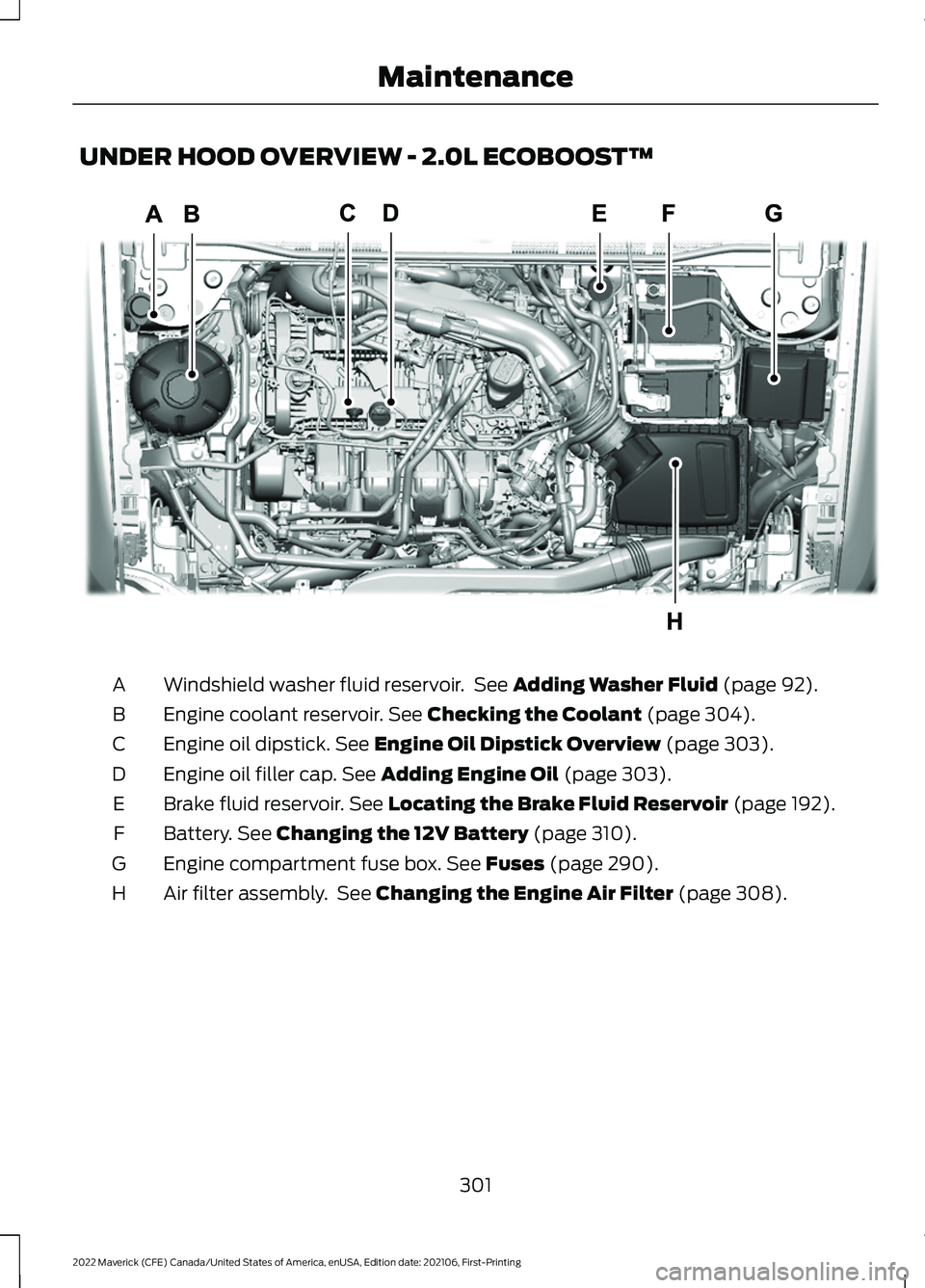

UNDER HOOD OVERVIEW - 2.0L ECOBOOST™
Windshield washer fluid reservoir. See Adding Washer Fluid (page 92).
A
Engine coolant reservoir.
See Checking the Coolant (page 304).
B
Engine oil dipstick.
See Engine Oil Dipstick Overview (page 303).
C
Engine oil filler cap.
See Adding Engine Oil (page 303).
D
Brake fluid reservoir.
See Locating the Brake Fluid Reservoir (page 192).
E
Battery.
See Changing the 12V Battery (page 310).
F
Engine compartment fuse box.
See Fuses (page 290).
G
Air filter assembly. See
Changing the Engine Air Filter (page 308).
H
301
2022 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202106, First-Printing MaintenanceE354447

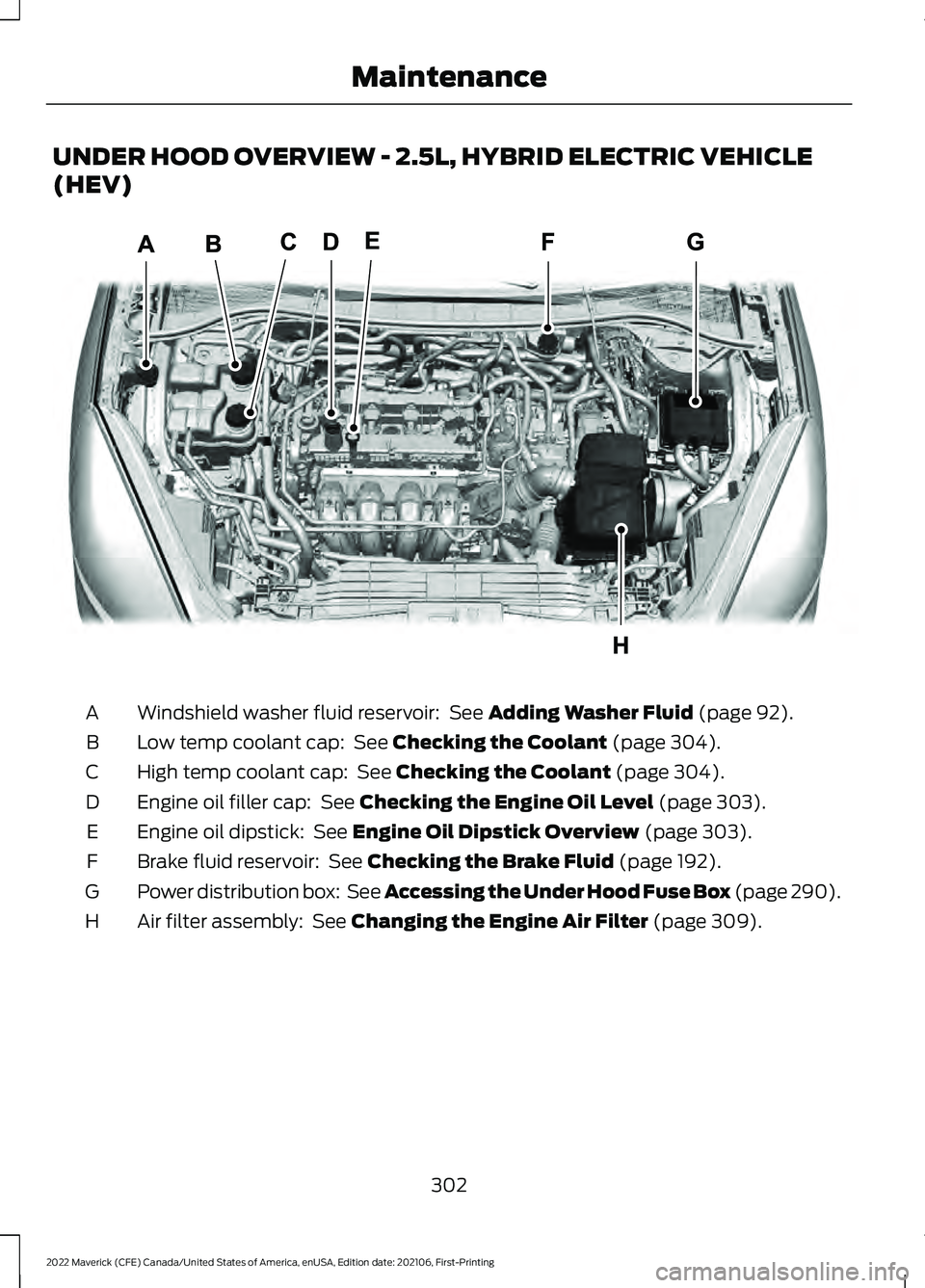

UNDER HOOD OVERVIEW - 2.5L, HYBRID ELECTRIC VEHICLE
(HEV)
Windshield washer fluid reservoir: See Adding Washer Fluid (page 92).
A
Low temp coolant cap:
See Checking the Coolant (page 304).
B
High temp coolant cap:
See Checking the Coolant (page 304).
C
Engine oil filler cap:
See Checking the Engine Oil Level (page 303).
D
Engine oil dipstick:
See Engine Oil Dipstick Overview (page 303).
E
Brake fluid reservoir:
See Checking the Brake Fluid (page 192).
F
Power distribution box: See Accessing the Under Hood Fuse Box (page 290).
G
Air filter assembly:
See Changing the Engine Air Filter (page 309).
H
302
2022 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202106, First-Printing MaintenanceE337414

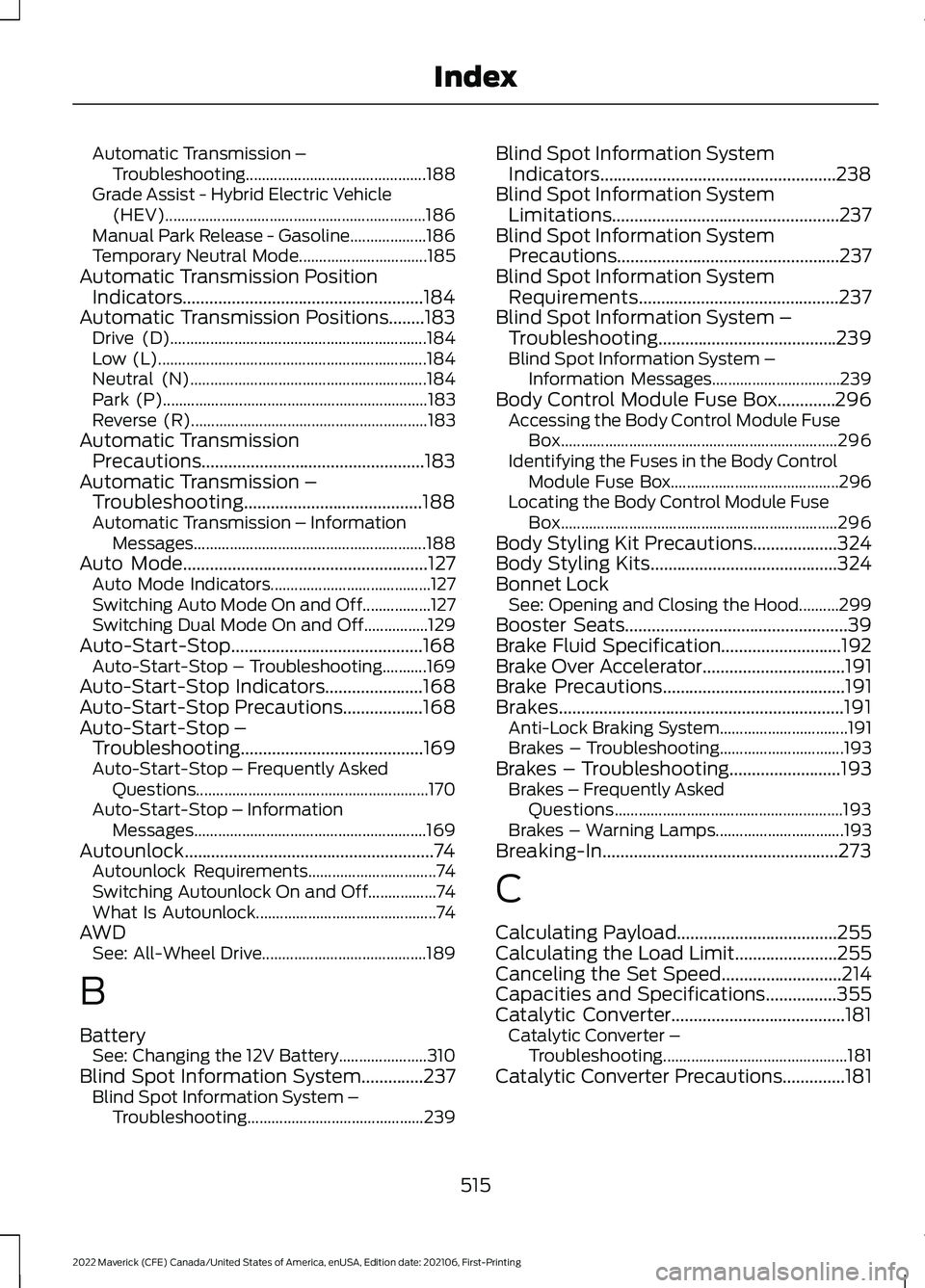

Automatic Transmission –
Troubleshooting............................................. 188
Grade Assist - Hybrid Electric Vehicle (HEV)................................................................. 186
Manual Park Release - Gasoline...................186
Temporary Neutral Mode................................ 185
Automatic Transmission Position Indicators......................................................184
Automatic Transmission Positions........183 Drive (D)................................................................ 184
Low (L)................................................................... 184
Neutral (N)........................................................... 184
Park (P).................................................................. 183
Reverse (R)........................................................... 183
Automatic Transmission Precautions..................................................183
Automatic Transmission – Troubleshooting........................................188
Automatic Transmission – Information Messages .......................................................... 188
Auto Mode
.......................................................127
Auto Mode Indicators........................................ 127
Switching Auto Mode On and Off.................127
Switching Dual Mode On and Off................129
Auto-Start-Stop...........................................168 Auto-Start-Stop – Troubleshooting...........169
Auto-Start-Stop Indicators......................168
Auto-Start-Stop Precautions
..................168
Auto-Start-Stop – Troubleshooting.........................................169
Auto-Start-Stop – Frequently Asked Questions.......................................................... 170
Auto-Start-Stop – Information Messages.......................................................... 169
Autounlock........................................................74 Autounlock Requirements................................ 74
Switching Autounlock On and Off.................74
What Is Autounlock............................................. 74
AWD See: All-Wheel Drive......................................... 189
B
Battery See: Changing the 12V Battery...................... 310
Blind Spot Information System..............237 Blind Spot Information System –
Troubleshooting............................................ 239Blind Spot Information System
Indicators.....................................................238
Blind Spot Information System Limitations...................................................237
Blind Spot Information System Precautions
..................................................237
Blind Spot Information System Requirements.............................................237
Blind Spot Information System – Troubleshooting........................................239
Blind S

pot Information System –
Information Messages................................ 239
Body Control Module Fuse Box.............296 Accessing the Body Control Module Fuse
Box..................................................................... 296
Identifying the Fuses in the Body Control Module Fuse Box.......................................... 296
Locating the Body Control Module Fuse Box..................................................................... 296
Body Styling Kit Precautions...................324
Body Styling Kits..........................................324
Bonnet Lock See: Opening and Closing the Hood..........299
Booster Seats
..................................................39
Brake Fluid Specification...........................192
Brake Over Accelerator
................................191
Brake Precautions.........................................191
Brakes................................................................191 Anti-Lock Braking System................................ 191
Brakes – Troubleshooting............................... 193
Brakes – Troubleshooting.........................193 Brakes – Frequently Asked
Questions......................................................... 193
Brakes – Warning Lamps................................ 193
Breaking-In.....................................................273
C
Calculating Payload
....................................255
Calculating the Load Limit.......................255
Canceling the Set Speed...........................214
Capacities and Specifications
................355
Catalytic Converter.......................................181 Catalytic Converter –
Troubleshooting.............................................. 181
Catalytic Converter Precautions..............181
515
2022 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202106, First-Printing Index
