2022 FORD BRONCO SPORT Audible warning and indicators

Liftgate
Opening the Liftgate
....................................73
Closing the Liftgate .......................................
73
Opening and Closing the Liftgate Window .........................................................
74
Security
Passive Anti-Theft System ........................
75
Anti-Theft Alarm ...........................................
75
Steering Wheel
Adjusting the Steering Wheel ...................
77
Audio Control ...................................................
77
Voice Control ...................................................
78
Cruise Control - Vehicles With: Lane Centering ......................................................
78
Cruise Control - Vehicles With: Cruise Control ...........................................................
78
Information Display Control ......................
78
Horn ....................................................................
78
Switching the Heated Steering Wheel On and Off ...................................................
79
Wipers and Washers
Windshield Wipers .......................................
80
Autowipers ......................................................
80
Windshield Washers .....................................
81
Rear Window Wiper and Washers ..........
82
Lighting
General Information .....................................
83
Lighting Control .............................................
83
Autolamps .......................................................
84
Instrument Lighting Dimmer ....................
84
Headlamp Exit Delay ...................................
85
Daytime Running Lamps - Vehicles With: Configurable Daytime Running Lamps
........................................................................\
..
85
Daytime Running Lamps - Vehicles With: Daytime Running Lamps (DRL) ..........
85
Front Fog Lamps ...........................................
85Cornering Lamps
..........................................
86
Direction Indicators ......................................
86
Interior Lamps ................................................
87
Ambient Lighting ...........................................
87
Rear Floodlamps ..........................................
88
Automatic High Beam Control
What Is Automatic High Beam Control ........................................................................\
..
89
Switching Automatic High Beam Control On and Off ..................................................
89
Automatic High Beam Control Indicators ........................................................................\
..
89
Overriding Automatic High Beam Control ........................................................................\
..
90
Windows and Mirrors
Power Windows ..............................................
91
Global Opening and Closing .....................
92
Exterior Mirrors ...............................................
92
Interior Mirror ..................................................
93
Sun Visors ........................................................
93
Moonroof .........................................................
94
Instrument Cluster
Gauges - Vehicles With: 4.2 Inch Instrument Cluster Display Screen
........................................................................\
..
95
Gauges - Vehicles With: 6.5 Inch Instrument Cluster Display Screen
........................................................................\
..
96
Warning Lamps and Indicators ................
97
Audible Warnings and Indicators ...........
101
Information Displays
General Information ...................................
102
Personalized Settings ...............................
106
Information Messages ...............................
107
2
2022 Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202107, First-Printing Table of Contents

Switching the Heated Rear Window On
and Off ........................................................136
Setting the Blower Motor Speed ...........
136
Setting the Temperature ..........................
136
Directing the Flow of Air ............................
136
Climate Control Hints .................................
137
Interior Air Quality
What Is the Cabin Air Filter ......................
138
Locating the Cabin Air Filter ....................
138
Replacing the Cabin Air Filter ..................
138
Seats
Sitting in the Correct Position .................
139
Head Restraints ...........................................
139
Manual Seats ................................................
142
Power Seats ...................................................
143
Rear Seats ......................................................
144
Heated Seats ................................................
145
Rear Occupant Alert System
What is the Rear Occupant Alert System ........................................................................\
.
147
How Does the Rear Occupant Alert System Work .............................................
147
Rear Occupant Alert System Precautions ........................................................................\
.
147
Rear Occupant Alert System Limitations ........................................................................\
.
147
Switching Rear Occupant Alert System On and Off ..................................................
147
Rear Occupant Alert System Indicators ........................................................................\
.
148
Rear Occupant Alert System Audible Warnings ....................................................
148
Power Outlet - Vehicles With: 12V Power Outlet
What Is the Power Outlet .........................
149
Power Outlet Precautions ........................
149Locating the Power Outlets
....................
149
Power Outlet - Vehicles With: 110V Power Outlet
What Is the Power Outlet .........................
150
Power Outlet Precautions ........................
150
Power Outlet Limitations .........................
150
Locating the Power Outlets ....................
150
Power Outlet Indicators ............................
150
Wireless Accessory Charger
What Is the Wireless Accessory Charger ........................................................................\
.
152
Wireless Accessory Charger Precautions ........................................................................\
.
152
Locating the Wireless Accessory Charger ........................................................................\
.
152
Charging a Wireless Device ......................
152
Storage
Cup Holders ...................................................
153
Glove Compartment ...................................
153
Under Seat Storage ....................................
153
Glasses Holder .............................................
154
Map Pocket ....................................................
154
Starting and Stopping the Engine
General Information ...................................
155
Ignition Switch ..............................................
155
Keyless Starting ...........................................
155
Starting a Gasoline Engine ......................
156
Engine Block Heater ...................................
158
Unique Driving Characteristics
Auto-Start-Stop ..........................................
160
Fuel and Refueling
Safety Precautions ......................................
162
4
2022 Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202107, First-Printing Table of Contents

Stability Control
It flashes when the system is
active. If it remains illuminated
or does not illuminate when you
switch the ignition on, this indicates a
system error. During a system error the
system switches off. Have the system
checked by an authorized dealer
immediately. See Using Stability
Control (page 189).
Stability Control Off Illuminates when you switch the
system off. It goes out when you
switch the system back on or
when you switch the ignition off. See
Using Stability Control
(page 189).
Trail Control Illuminates when you switch trail
control on.
4WD Lock Illuminates when four-wheel
drive is locked.
AUDIBLE WARNINGS AND
INDICATORS
Key in Ignition Warning Chime
Sounds when you open the driver's door
and you have left the key in the ignition.
Keyless Warning Alert
(If Equipped)
Sounds the horn twice when you exit your
vehicle with the intelligent access key, after
the last door is closed and your keyless
vehicle is in RUN, indicating your vehicle is
still on. Headlamps On Warning Chime
Sounds when you remove the key from the
ignition and open the driver's door and you
have left the headlamps or parking lamps
on.
Parking Brake On Warning Chime
Sounds when you have left the parking
brake on and drive your vehicle. If the
warning chime remains on after you have
released the parking brake, have the
system checked by an authorized dealer
immediately.
101
2022 Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202107, First-Printing Instrument ClusterE323869 E323870 E318506 E325580

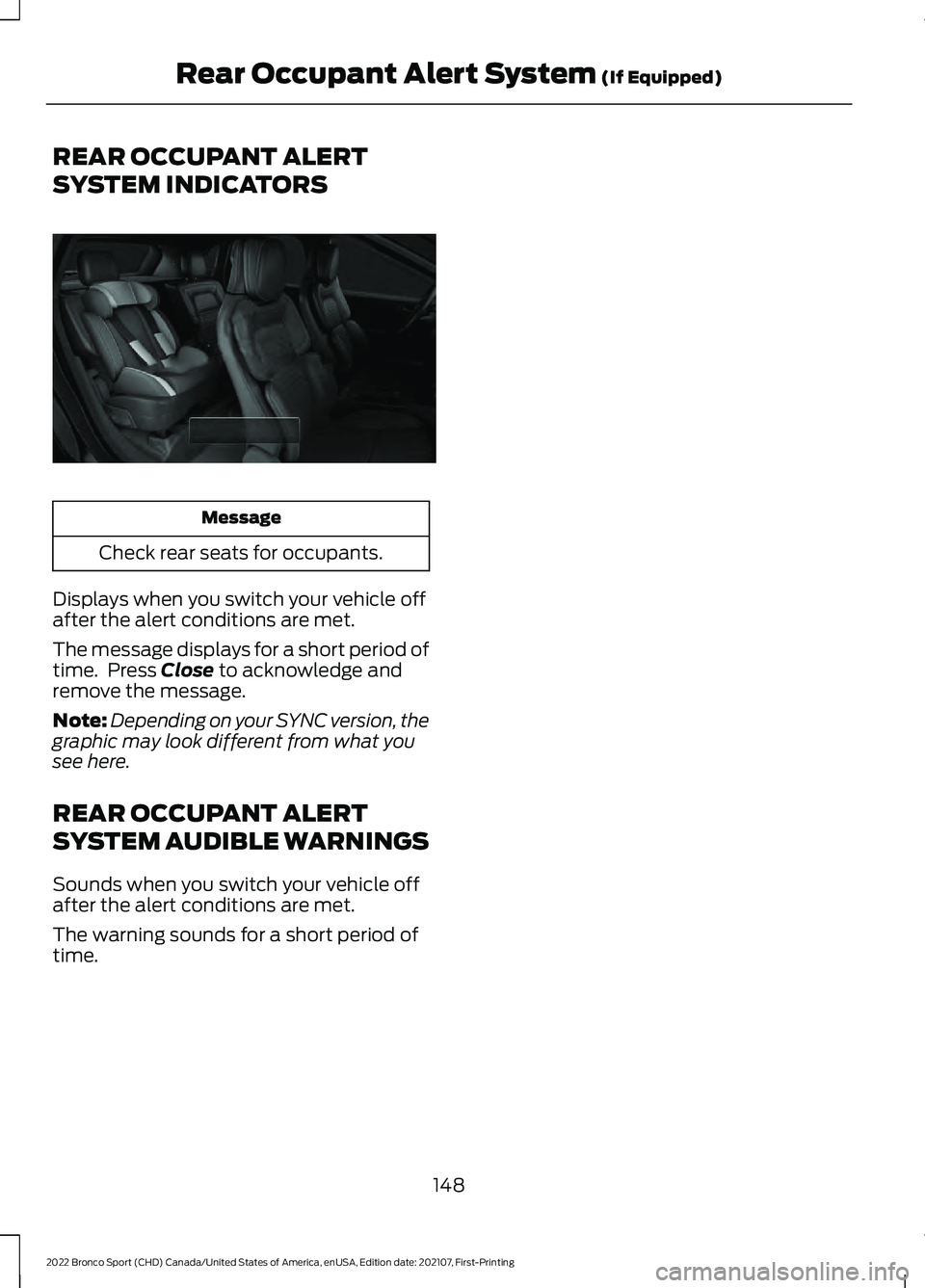

REAR OCCUPANT ALERT
SYSTEM INDICATORS
Message
Check rear seats for occupants.
Displays when you switch your vehicle off
after the alert conditions are met.
The message displays for a short period of
time. Press Close to acknowledge and
remove the message.
Note: Depending on your SYNC version, the
graphic may look different from what you
see here.
REAR OCCUPANT ALERT
SYSTEM AUDIBLE WARNINGS
Sounds when you switch your vehicle off
after the alert conditions are met.
The warning sounds for a short period of
time.
148
2022 Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202107, First-Printing Rear Occupant Alert System

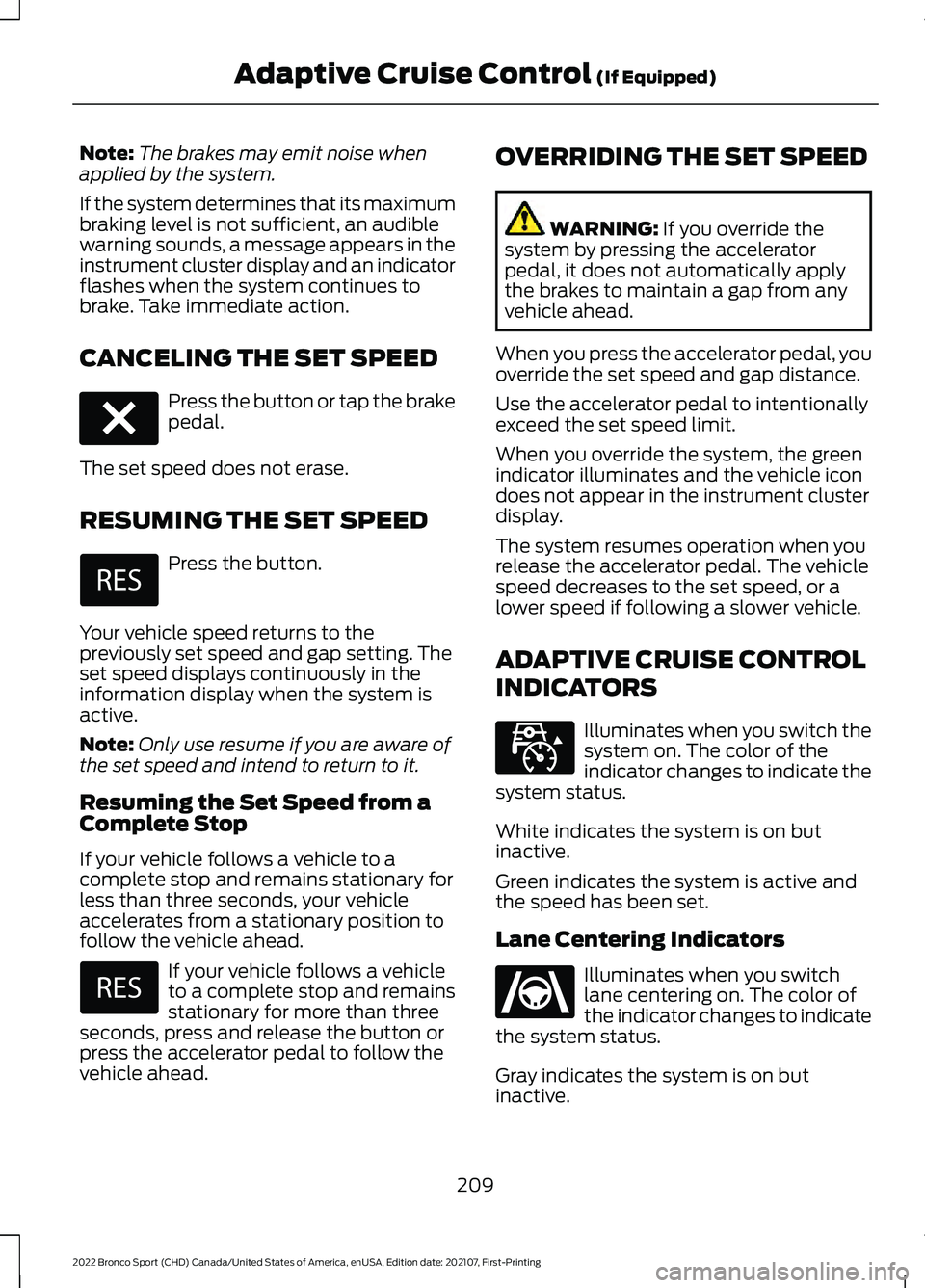

(If Equipped)E350472

Note:
The brakes may emit noise when
applied by the system.
If the system determines that its maximum
braking level is not sufficient, an audible
warning sounds, a message appears in the
instrument cluster display and an indicator
flashes when the system continues to
brake. Take immediate action.
CANCELING THE SET SPEED Press the button or tap the brake
pedal.
The set speed does not erase.
RESUMING THE SET SPEED Press the button.
Your vehicle speed returns to the
previously set speed and gap setting. The
set speed displays continuously in the
information display when the system is
active.
Note: Only use resume if you are aware of
the set speed and intend to return to it.
Resuming the Set Speed from a
Complete Stop
If your vehicle follows a vehicle to a
complete stop and remains stationary for
less than three seconds, your vehicle
accelerates from a stationary position to
follow the vehicle ahead. If your vehicle follows a vehicle
to a complete stop and remains
stationary for more than three
seconds, press and release the button or
press the accelerator pedal to follow the
vehicle ahead. OVERRIDING THE SET SPEED WARNING: If you override the
system by pressing the accelerator
pedal, it does not automatically apply
the brakes to maintain a gap from any
vehicle ahead.
When you press the accelerator pedal, you
override the set speed and gap distance.
Use the accelerator pedal to intentionally
exceed the set speed limit.
When you override the system, the green
indicator illuminates and the vehicle icon
does not appear in the instrument cluster
display.
The system resumes operation when you
release the accelerator pedal. The vehicle
speed decreases to the set speed, or a
lower speed if following a slower vehicle.
ADAPTIVE CRUISE CONTROL
INDICATORS Illuminates when you switch the
system on. The color of the
indicator changes to indicate the
system status.
White indicates the system is on but
inactive.
Green indicates the system is active and
the speed has been set.
Lane Centering Indicators Illuminates when you switch
lane centering on. The color of
the indicator changes to indicate
the system status.
Gray indicates the system is on but
inactive.
209
2022 Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202107, First-Printing Adaptive Cruise Control
(If Equipped)E280804 E323440 E262175

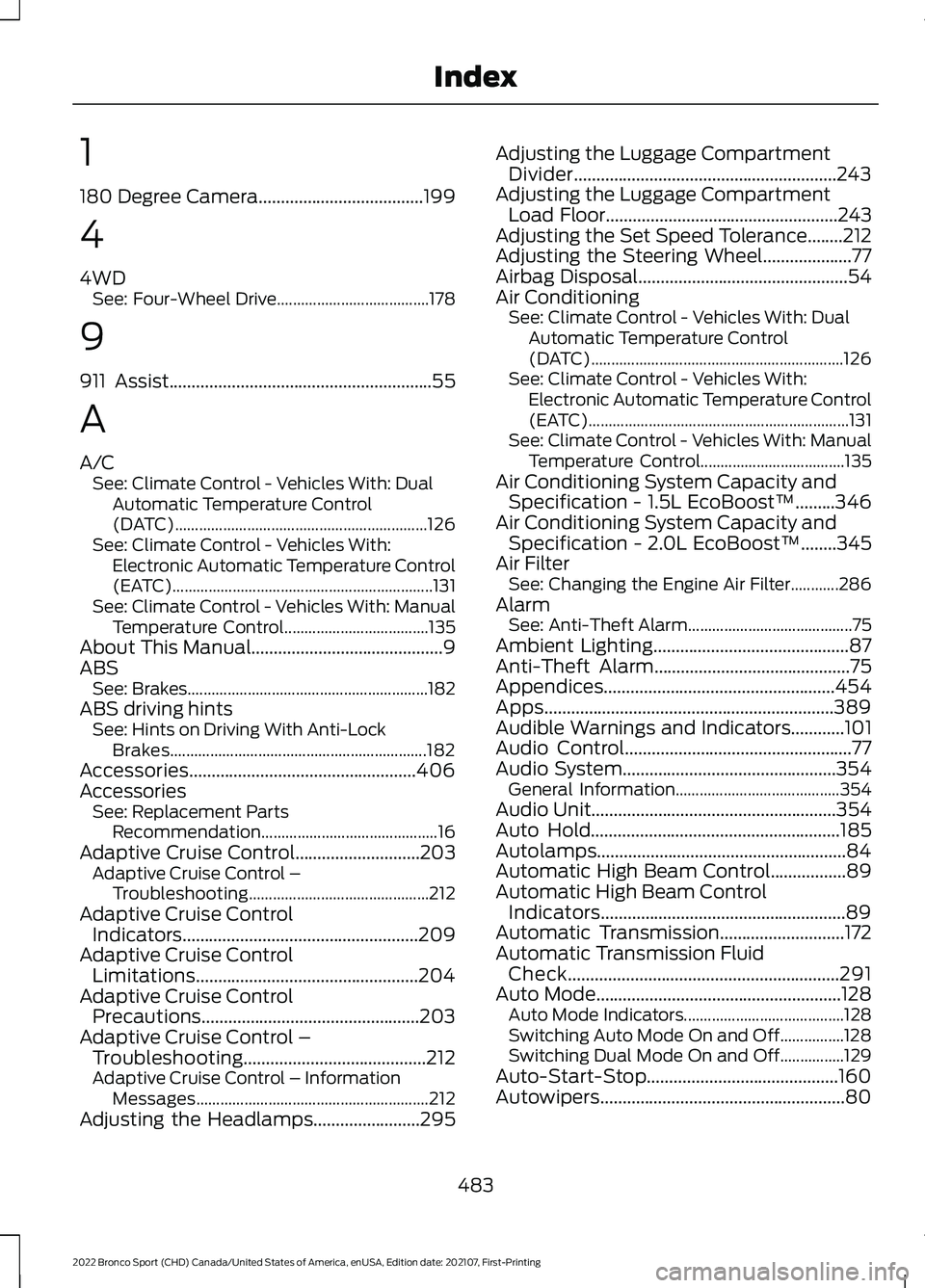

1
180 Degree Camera.....................................199
4
4WD See: Four-Wheel Drive...................................... 178
9
911 Assist...........................................................55
A
A/C See: Climate Control - Vehicles With: Dual
Automatic Temperature Control
(DATC)............................................................... 126
See: Climate Control - Vehicles With: Electronic Automatic Temperature Control
(EATC) ................................................................. 131
See: Climate Control - Vehicles With: Manual Temperature Control.................................... 135
About This Manual...........................................9
ABS See: Brakes............................................................ 182
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes................................................................ 182
Accessories...................................................406
Accessories See: Replacement Parts
Recommendation............................................ 16
Adaptive Cruise Control
............................203
Adaptive Cruise Control –
Troubleshooting............................................. 212
Adaptive Cruise Control Indicators.....................................................209
Adaptive Cruise Control Limitations..................................................204
Adaptive Cruise Control Precautions.................................................203
Adaptive Cruise Control – Troubleshooting.........................................212
Adaptive Cruise Control – Information Messages.......................................................... 212
Adjusting the Headlamps........................295 Adjusting the Luggage Compartment
Divider...........................................................243
Adjusting the Luggage Compartment Load Floor
....................................................243
Adjusting the Set Speed Tolerance........212
Adjusting the Steering Wheel....................77
Airbag Disposal...............................................54
Air Conditioning See: Climate Control - Vehicles With: Dual
Automatic Temperature Control
(DATC)............................................................... 126
See: Climate Control - Vehicles With: Electronic Automatic Temperature Control
(EATC) ................................................................. 131
See: Climate Control - Vehicles With: Manual Temperature Control.................................... 135
Air Conditioning System Capacity and Specification - 1.5L EcoBoost™.........346
Air Conditioning System Capacity and Specification - 2.0L EcoBoost™........345
Air Filter See: Changing the Engine Air Filter............286
Alarm See: Anti-Theft Alarm......................................... 75
Ambient Lighting
............................................87
Anti-Theft Alarm............................................75
Appendices....................................................454
Apps.................................................................389
Audible Warnings and Indicators............101
Audio Control
...................................................77
Audio System................................................354 General Information......................................... 354
Audio Unit
.......................................................354
Auto Hold........................................................185
Autolamps........................................................84
Automatic High Beam Control.................89
Automatic High Beam Control Indicators.......................................................89
Automatic Transmission
............................172
Automatic Transmission Fluid Check.............................................................291
Auto Mode.......................................................128 Auto Mode Indicators........................................ 128
Switching Auto Mode On and Off................128
Switching Dual Mode On and Off................129
Auto-Start-Stop...........................................160
Autowipers.......................................................80
483
2022 Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202107, First-Printing Index

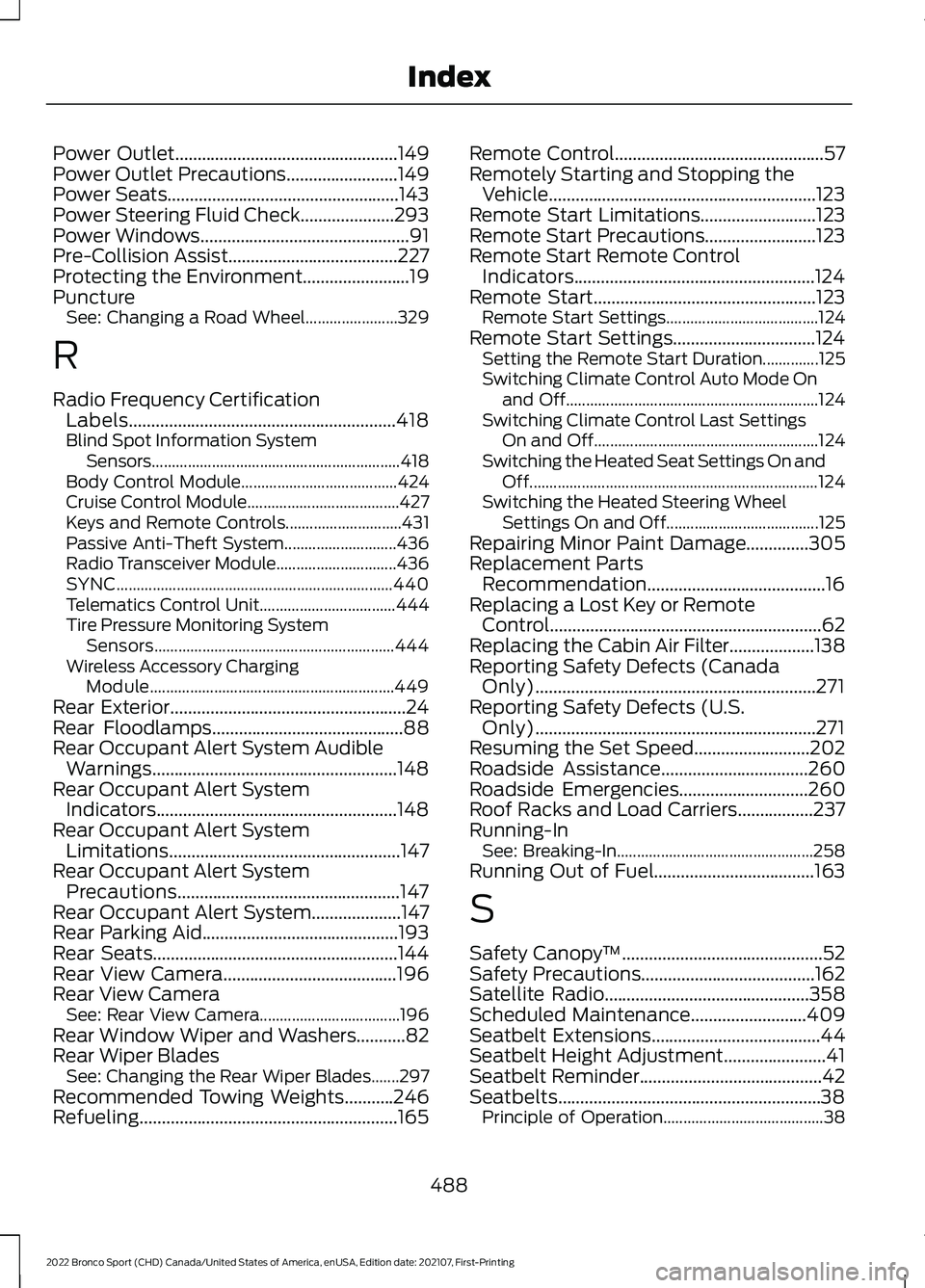

Power Outlet..................................................149
Power Outlet Precautions.........................149
Power Seats
....................................................143
Power Steering Fluid Check.....................293
Power Windows...............................................91
Pre-Collision Assist
......................................227
Protecting the Environment........................19
Puncture See: Changing a Road Wheel....................... 329
R
Radio Frequency Certification Labels............................................................418
Blind Spot Information System Sensors..............................................................418
Body Control Module....................................... 424
Cruise Control Module...................................... 427
Keys and Remote Controls............................. 431
Passive Anti-Theft System............................ 436
Radio Transceiver Module.............................. 436
SYNC..................................................................... 440
Telematics Control Unit.................................. 444
Tire Pressure Monitoring System Sensors............................................................ 444
Wireless Accessory Charging Module............................................................. 449
Rear Exterior.....................................................24
Rear Floodlamps
...........................................88
Rear Occupant Alert System Audible Warnings
.......................................................148
Rear Occupant Alert System Indicators......................................................148
Rear Occupant Alert System Limitations....................................................147
Rear Occupant Alert System Precautions..................................................147
Rear Occupant Alert System
....................147
Rear Parking Aid............................................193
Rear Seats.......................................................144
Rear View Camera.......................................196
Rear View Camera See: Rear View Camera................................... 196
Rear Window Wiper and Washers...........82
Rear Wiper Blades See: Changing the Rear Wiper Blades.......297
Recommended Towing Weights
...........246
Refueling..........................................................165 Remote Control
...............................................57
Remotely Starting and Stopping the Vehicle............................................................123
Remote Start Limitations..........................123
Remote Start Precautions.........................123
Remote Start Remote Control Indicators......................................................124
Remote Start..................................................123 Remote Start Settings...................................... 124
Remote Start Settings................................124 Setting the Remote Start Duration..............125
Switching Climate Control Auto Mode On
and Off............................................................... 124
Switching Climate Control Last Settings On and Off........................................................ 124
Switching the Heated Seat Settings On and Off........................................................................\
124
Switching the Heated Steering Wheel Settings On and Off...................................... 125
Repairing Minor Paint Damage..............305
Replacement Parts Recommendation........................................16
Replacing a Lost Key or Remote Control.............................................................62
Replacing the Cabin Air Filter...................138
Reporting Safety Defects (Canada Only)...............................................................271
Reporting Safety Defects (U.S. Only)...............................................................271
Resuming the Set Speed..........................202
Roadside Assistance
.................................260
Roadside Emergencies.............................260
Roof Racks and Load Carriers.................237
Running-In See: Breaking-In................................................. 258
Running Out of Fuel....................................163
S
Safety Canopy ™
.............................................52
Safety Precautions.......................................162
Satellite Radio..............................................358
Scheduled Maintenance..........................409
Seatbelt Extensions......................................44
Seatbelt Height Adjustment.......................41
Seatbelt Reminder.........................................42
Seatbelts...........................................................38 Principle of Operation........................................ 38
488
2022 Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202107, First-Printing Index
