Instruments and controls(1)RFID reader.
(2) Lighting/Direction indicator control stalk.
(3) Horn.
(4) Starting switch.
(5) Wiper/Screenwash/Pedestrian horn.
(6) Instrument panel.
(7) Vents.
(8) Central storage compartment.
(9) USB socket.
(10) Central control panel: assistance call/
central locking/hazard warning lamps/air
conditioning/automatic air recirculation.
(11) Side control panel: foglamps/City power
steering function/headlamp beam height
adjustment.
(12) Heating system.
(13) 12
V accessory socket.
(14) Driving mode selector.Presentation of your
E-MEHARI
An elegant design
combined with the latest
technology
Your E-MEHARI is an innovative electric
vehicle with a
new approach to mobility. Some
of the vehicle's systems operate differently from
those on a


conventional internal combustion
engine vehicle.
Your E-MEHARI uses energy stored in an
LMP
® (Lithium Metal Polymer) battery. The
LMP® battery has to be charged before you
can drive your E-MEHARI. The LMP® battery
progressively discharges during use of the
vehicle.
If the state of charge of the LMP
® battery is at
0%, your E-MEHARI cannot be started: the
LMP
® battery must be charged.
A full recharge (from 0% to 100%) on a normal
domestic power supply (standard charge) takes
between 8
and 13 hours on average depending
on the electrical system you have installed.
Your E-MEHARI uses two different types of
battery: the LMP
® battery to drive the vehicle
and a

12

V battery, as on a conventional
vehicle with an internal combustion engine.
The 12

V battery provides the energy needed
for operation of the vehicle's systems: e.g. the
audio system, the exterior and interior lighting,
the windscreen wipers.
.
Over view

7
Instrument panel
Instrument panelWarning and indicator lamps
and instrument panel buttons
(1)
Battery fault.
(2) Motor fault.
(3) Charge indicator.
(4) Instrument panel buttons.
If warning lamp (1) or (2) is on, you must stop
your E-MEHARI as soon as it is safe to do so.
Symbols
Main beam headlamps
Sidelamps
Rear foglamp Left-hand direction indicator
Right-hand direction indicator
Braking fault
Alert message
Flashing: ESP in action
Fixed: ESP fault
Demisting/defrosting
Passenger compartment heating
active
Heating fault
Motor power limited
1
Dashboard instruments

31
Exterior lighting and
signalling
Exterior lighting
Your E-MEHARI is provided with different types
of exterior lighting: daytime running lamps,
sidelamps, dipped beam headlamps, main beam
headlamps, a reversing lamp and a

rear foglamp.
(1) Sidelamps (daytime running lamps)/
direction indicators/dipped beam headlamps/
main beam headlamps. (1)
Rear sidelamps/brake lamps/direction
indicators.
(2) Rear foglamp (left-hand side).
(3) Reversing lamp (right-hand side).
Exterior lighting control
stalk
The exterior lighting control stalk on your
E-MEHARI is behind the steering wheel on the
left-hand side.
This control stalk is used to operate the exterior
lighting and the direction indicators.
The daytime running lamps and sidelamps
come on automatically every time the vehicle
is started. (1)
Headlamp dipping control, for switching
between dipped and main beam.
(2) Exterior lighting control.
Main lighting
Dipped beam headlamps
With the ignition on, place the
control in this position.
4
Lighting and visibility

32

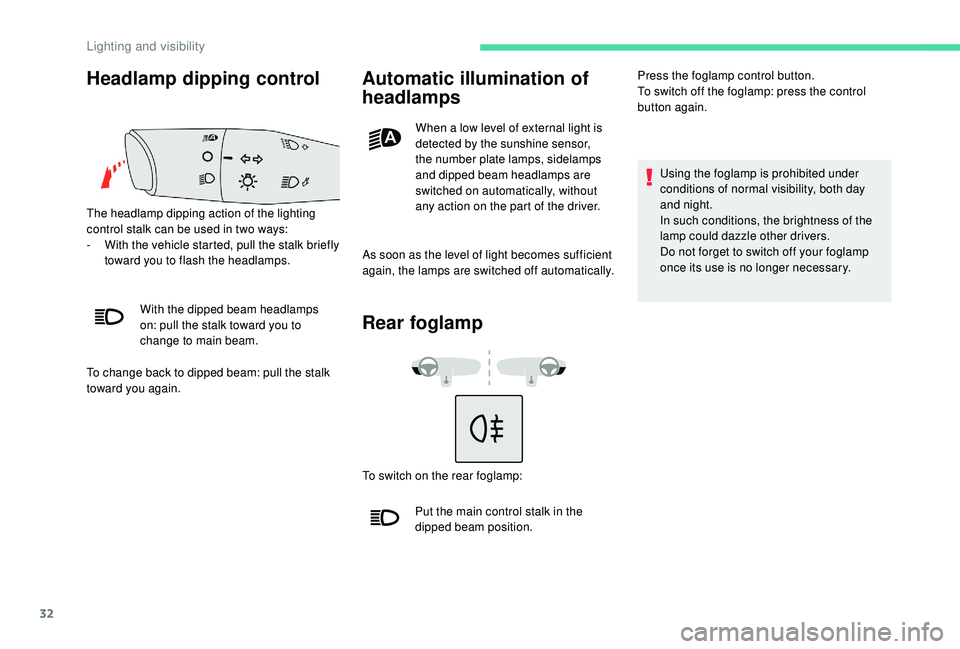

Headlamp dipping control
The headlamp dipping action of the lighting
control stalk can be used in two ways:
-
W
ith the vehicle started, pull the stalk briefly
toward you to flash the headlamps.
With the dipped beam headlamps
on: pull the stalk toward you to
change to main beam.
To change back to dipped beam: pull the stalk
toward you again.
Automatic illumination of
headlamps
When a low level of external light is
d etected by the sunshine sensor,
the number plate lamps, sidelamps
and dipped beam headlamps are
switched on automatically, without
any action on the part of the driver.
As soon as the level of light becomes sufficient
again, the lamps are switched off automatically.
Rear foglamp
To switch on the rear foglamp: Put the main control stalk in the
dipped beam position. Press the foglamp control button.
To switch off the foglamp: press the control
button again.
Using the foglamp is prohibited under
conditions of normal visibility, both day
and night.
In such conditions, the brightness of the
lamp could dazzle other drivers.
Do not forget to switch off your foglamp
once its use is no longer necessary.
Lighting and visibility

33
Adjusting the headlamps
The headlamp beam height on your E-MEHARI
should be adjusted according to the load and
number of passengers in your vehicle, so as to
avoid causing a nuisance to other drivers.
Your E-MEHARI has a
thumbwheel for
adjusting the height of the beams.
Select the desired position using the headlamp
beam height adjustment control.
Use position "0" when driving without heavy
loads.
Wipers/Screenwash
Your E-MEHARI has two windscreen wipers.
To activate the wipers: turn the ring on the
control stalk located on the right behind the
steering wheel.
3
positions for the control:
-

P
osition 1: intermittent wipe.
-

P
osition 2: continuous wipe.
-

P
osition 3: fast continuous wipe.
Pushing the control stalk down gives a
single
wipe.
Operation of the screenwash: pull the wiper
control stalk towards you.
This action automatically operates the
windscreen wipers and the screenwash. In low temperatures, use a
screenwash
fluid with adequate protection against
freezing.
Do not operate the screenwash for more
than 30
seconds, as this could lead to
a
loss of visibility and cause an accident.
Do not operate the screenwash control
when the fluid reservoir is empty.
4
Lighting and visibility

69
Temporary puncture
repair kit
Access to the repair kit
Your E-MEHARI's puncture repair kit is located
under the boot floor hatch.
The boot floor hatch is opened with the grip
located at the left-hand side of the boot floor
(only if your E-MEHARI is unlocked using your
personal RFID key ring).
Using the repair kit
Refer to the instructions provided with the
compressor.Never remove from a
tyre a foreign body
that has caused a puncture.
The sealant product contained in the
compressor is toxic and is an irritant.
Never ingest it, never spray it onto the
body, face or eyes. If it is ingested, call the emergency services
immediately (fire service, ambulance, etc.) or
go to a


hospital's emergency department.
If it enters the eyes, wash with abundant
clean water and consult a doctor without
d e l ay.
If the symptoms persist, consult a specialist.
Keep the sealant product out of the reach
of children.
Do not simply throw the old cartridge
away after use; take it to your CITROËN
authorised repairer or to a waste recovery
organisation that specialises in this type
of product.
Once the tyre has been repaired, go
to a
CITROËN authorised repairer or
a
qualified professional as soon as
possible.
If you are unable to obtain the desired
pressure after a
few minutes of operation
of the compressor, this means that the
tyre cannot be repaired.
Contact CITROËN ASSISTANCE who will
send a


roadside recovery agent.
Replacing a bulb
All maintenance on the vehicle's lamps must be
carried out by a
CITROËN authorised repairer
or a


qualified professional.
If a
headlamp has to be replaced on your
E-MEHARI: go to a
CITROËN authorised
repairer or a qualified professional.
8
In the event of a breakdown

77
